Medium size surface grinding machine
- Category: Other Grinding Machines >>>
- Supplier: Shanghai Zhong Jing Imp. & Exp. Corporation
Share on (287213166):
Product Overview
Description

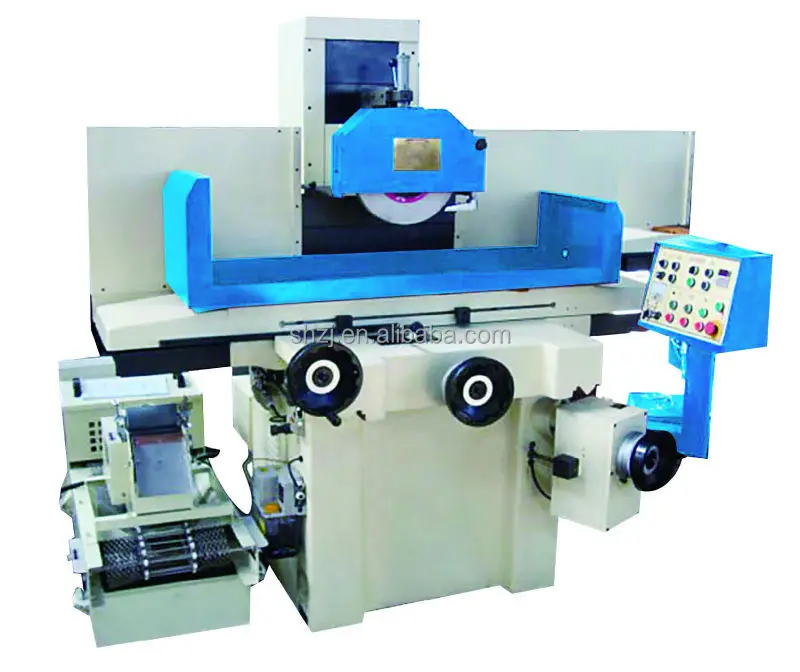

Medium Size Surface Grinding Machine
Description for model:
H: X axis hydraulic
AH: X axis hydraulic, Y axis motorized
AHR: X axis hydraulic, Y axis motorized, rapid grinding head elevation
AHD: X axis hydraulic, Y axis motorized, rapid grinding head elevation, grinding head auto down feed.
Specification:
|
|
KGS1224AH/AHR/AHD |
KGS1632AH/AHR/AHD |
KGS1640AH/AHR/AHD |
KGS510 |
KGS515 |
|
|
Working surface of table (mm) |
300X600 |
400X800 |
400X1000 |
500X1000 |
500X1500 |
|
|
Max. table travel (mm) |
660 |
920 |
1120 |
1140 |
1600 |
|
|
Max. cross travel (mm) |
370 |
450 |
450 |
540 |
570 |
|
|
Distance between table surface and spindle center (mm) |
540 |
580 |
580 |
590 |
590 |
|
|
Max. table load (kg) |
420 |
700 |
700 |
700 |
700 |
|
|
T Slot (Number x Width) (mm) |
1X14 |
3X14 |
31X14 |
3X16 |
3X16 |
|
|
Table speed (m/min) |
5-25 |
5-25 |
5-25 |
5-25 |
5-25 |
|
|
Crossfeed handwheel (mm) |
1 scale |
0.02 |
0.02 |
0.02 |
0.02 |
0.02 |
|
1 rev |
5 |
5 |
5 |
5 |
5 |
|
|
Automatic crossfeed (mm) |
0.5-12 |
0.5-12 |
0.5-12 |
0.5-12 |
0.5-12 |
|
|
Power cross feed (mm) |
50Hz |
790 |
790 |
1250 |
1250 |
1250 |
|
60Hz |
950 |
950 |
1500 |
1500 |
1500 |
|
|
Grinding wheel (mm) |
355x40x127 |
355x40x127 |
355x40x127 |
355x40x127 |
355x40x127 |
|
|
Spindle speed (rpm) |
50Hz |
1450 |
1450 |
1450 |
1450 |
1450 |
|
60Hz |
1740 |
1740 |
1740 |
1740 |
1740 |
|
|
Vertical handwheel (mm) |
1 scale |
0.01/0.01/0.001 |
0.01/0.01/0.001 |
0.002 |
0.002 |
0.01/0.01/0.001 |
|
1 rev |
2/2/0.5 |
2/2/0.5 |
0.5 |
0.5 |
2/2/0.5 |
|
|
Automatic down feed rate (mm) |
-/-/0.005-0.025 |
-/-/0.005-0.025 |
-/-/0.005-0.025 |
0.005-0.04 |
0.005-0.04 |
|
|
Power head increment (mm) |
-/380/230 |
-/380/230 |
-/380/230 |
230 |
230 |
|
|
Spindle motor (kw) |
4 |
5.5 |
5.5 |
5.5 |
5.5 |
|
|
Vertical motor (kw) |
-/90/90 |
-/90/90 |
-/90/90 |
370 |
370 |
|
|
Hydraulic motor (kw) |
1.5 |
2.2 |
2.2 |
2.2 |
2.2 |
|
|
Dust collection motor (kw) |
550 |
550 |
550 |
550 |
550 |
|
|
Coolant motor (kw) |
90 |
90 |
90 |
90 |
90 |
|
|
Crossfeed motor (kw) |
90 |
90 |
90 |
370 |
370 |
|
|
Floor space (mm) |
2600x2500 |
3600x2600 |
3600x2600 |
4445x2200 |
5810x2445 |
|
|
Packing dimensions (mm) |
2090x1940x2210 |
2775x2255x2210 |
2990x2225x2210 |
3440x2260x2250 |
4000x2260x2250 |
|
|
Net weight (kg) |
1800/1810/1910 |
2800/2810/2850 |
2900/2910/2950 |
5000 |
6000 |
|
|
Gross weight (kg) |
2100/2100/2210 |
3100/3110/3150 |
3200/3210/3250 |
6000 |
7000 |
|
Standard accessories:
Grinding wheel; Wheel flange; Wheel balancing base; Wheel balancing arbor; Extractor; Diamond dresser; Leveling pad; Anchor bolt; Tool box with tools
Optional accessories:
Permanent magnetic chuck; Tiltable permanent chuck; Electro-magnetic chuck; Demagnetizer; Overhead parallel dresser; Angle dresser; Radius dresser; Chuck control; Rapid elevation; Micro feed; Digital readout system; Rear splash guard; Suction device; Cooling & suction device; Magnetic separator; Cooling c/w magnetic paper filter.
