GWC Series automatic steel mesh welding line,wire mesh making machine,steel mesh welder China manufacturer
- Category: >>>
- Supplier: Langfang Cabr Construction Machinery Technology Co. Ltd.
Share on (325625683):
Product Overview
Description
Product Overview

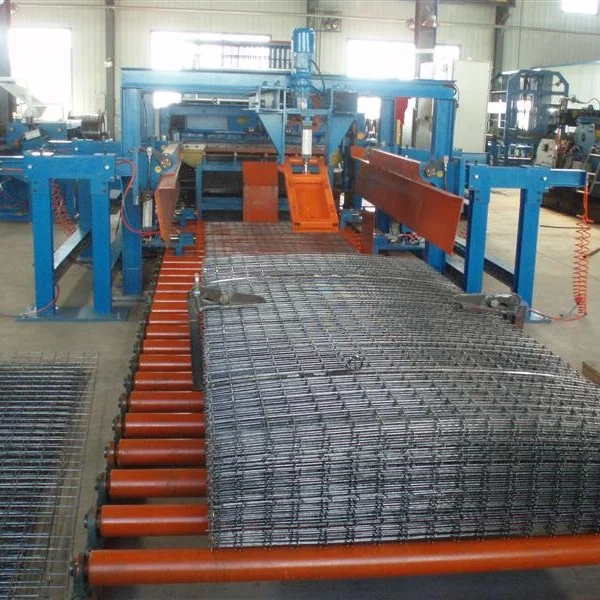

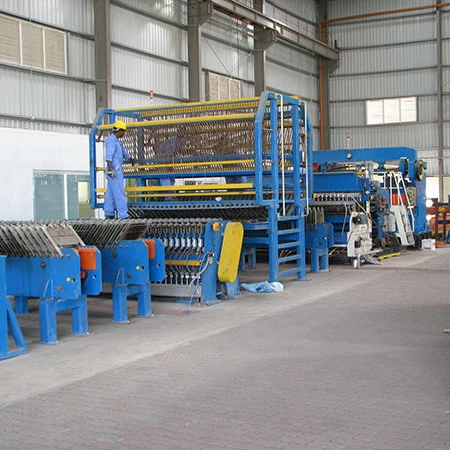

Automatic Steel Mesh Welding Line

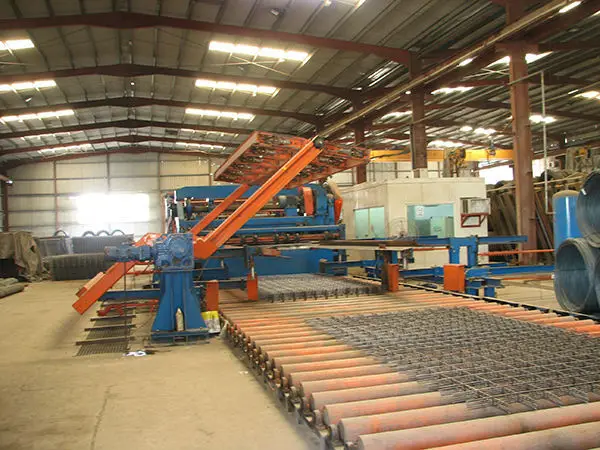

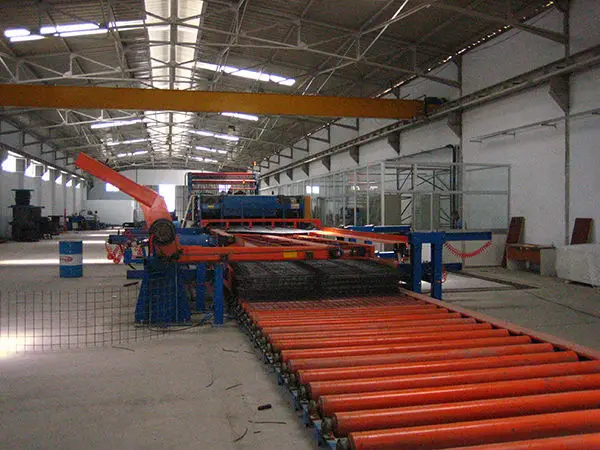

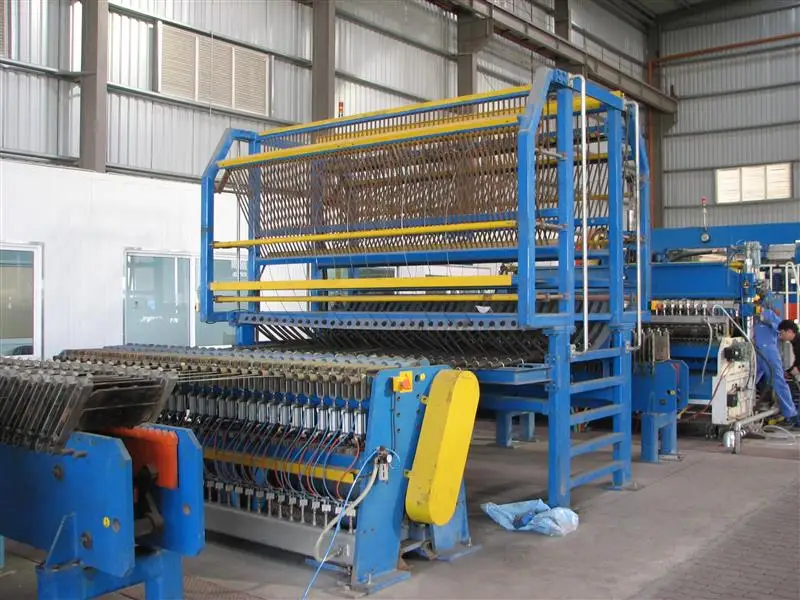

Automatic Steel Mesh Welding Line, Straight Bar + Straight Bar
Line wire and cross wire are pre-straightened and cut to length.
This machine is easy to operate, extremely fast and easy to adjust and produce all mess configurations, able to adapt to a variety of conditions, and has high production efficiency.
This machine has line wire auto feeding system and automatic mesh stacker. The maximum mesh width reach to 4000mm.
Technical Advantages
1) Both the line wire and cross wire are fed from pre-cut wires.
2) The cross wires are fallen automatically by step motor, the line wires are fed by the rebar feeding auto-car.
3) The transformers are equipped with water cooling system to prolong the service life.
4) Power of the motor is a synchronous control technique, separate welding and welding time by the PLC programming system for digital control.
5) Input panel is a touch screen, operation is more intelligent, rationalization.
6) The line wire’s distance is adjustable, and the cross wire’s distance can be changed by the control cabinet.
7) Application is building mesh , bridge mesh, etc.
1) Both the line wire and cross wire are fed from pre-cut wires.
2) The cross wires are fallen automatically by step motor, the line wires are fed by the rebar feeding auto-car.
3) The transformers are equipped with water cooling system to prolong the service life.
4) Power of the motor is a synchronous control technique, separate welding and welding time by the PLC programming system for digital control.
5) Input panel is a touch screen, operation is more intelligent, rationalization.
6) The line wire’s distance is adjustable, and the cross wire’s distance can be changed by the control cabinet.
7) Application is building mesh , bridge mesh, etc.

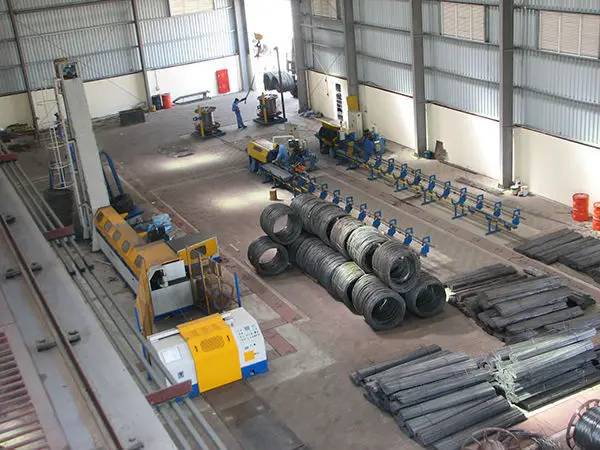

Automatic Steel Mesh Welding Line, Straight Bar + Coil Wire
Line wire is from spool and cross wire from pre-straightened and cut bar.
This machine is modular in design and production to meet the different needs of customers.
This machine has high productivity and mainly for mass production. This machine was designed for the large batch manufacture of standard as well as engineered mesh in sheet.
Welding materials：cold rolling ribbed steel wires and bars, hot rolled ribbed steel wires and bars, hot rolled ribbed steel wires and bars, plain steel bars, galvanized steel wire rope, and so on.
Welding materials：cold rolling ribbed steel wires and bars, hot rolled ribbed steel wires and bars, hot rolled ribbed steel wires and bars, plain steel bars, galvanized steel wire rope, and so on.
Technical Advantages
1. High welding quality.
2. High accurate steel mesh size
3. High automatically working;
4. high production efficiency
5. Easy and convenient operation;
6. PCC control style
7. Wide range of welding
1. High welding quality.
2. High accurate steel mesh size
3. High automatically working;
4. high production efficiency
5. Easy and convenient operation;
6. PCC control style
7. Wide range of welding

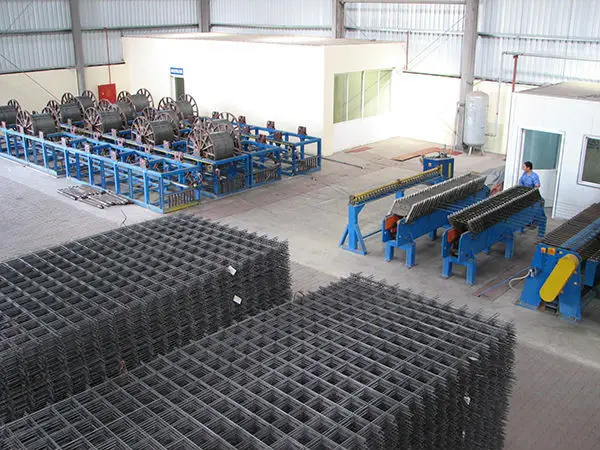

Automatic Steel Mesh Welding Line, Coil Wire+ Coil Wire
Automatic Double Coil Wire Steel Mesh Welding Line.
Mesh Line Wire and Cross Wire all feed from coil wire.
This machine is modular in design and production to meet the different needs of customers.
This machine has high productivity and mainly for mass production.
This machine was designed for the large batch manufacture of standard as well as engineered mesh in sheet.
Welding materials：cold rolling ribbed steel wires and bars, hot rolled ribbed steel wires and bars, hot rolled ribbed steel wires and bars, plain steel bars, galvanized steel wire rope, and so on.
Welding materials：cold rolling ribbed steel wires and bars, hot rolled ribbed steel wires and bars, hot rolled ribbed steel wires and bars, plain steel bars, galvanized steel wire rope, and so on.
Technical Advantages
1. High welding quality.
2. High accurate steel mesh size
3. High automatically working;
4. high production efficiency
5. Easy and convenient operation;
6. PCC control style
7. Wide range of welding
1. High welding quality.
2. High accurate steel mesh size
3. High automatically working;
4. high production efficiency
5. Easy and convenient operation;
6. PCC control style
7. Wide range of welding
PRODUCT SPECIFICATIONS
Model | GWC-ZA | GWC-ZB | GWC-PA | GWC-PB |
Max. Working width (mm) | 2600,2800,3300 | 2600,2800,3300 | 2100 | 2600,2800,3300 |
Line wire space (mm) | 100,150,200,250, 300,350,400 | 100,150,200,250, 300,350,400 | 50~200 | 100,150,200,250, 300,350,400 |
Cross wire space (mm) | 50~400 steplessly | 50~400 steplessly | 25~200 steplessly | 50~400 steplessly |
Line wire diameter (mm) | 5.0~12.0 | 5.0~12.0 | 3.0~5.0 | 5.0~12.0 |
Cross wire diameter (mm) | 5.0~12.0 | 5.0~12.0 | 3.0~5.0 | 5.0~12.0 |
Max. welding capacity (mm) | 12+12 | 12+12 | 5+5 | 12+12 |
Max. Working speed (cws/min) | 60~100 | 60~100 | 60~100 | 60~100 |
Rated electrical power (kw) | 1300~1600 | 1300~1600 | 250 | 1300~1600 |
Delivery
Company Profile
CABR Construction Machinery Technology Co., Ltd. is a high-tech enterprise set up by Beijing Institute of Construction
Mechanization Co.,Ltd.Our company was founded in March 2003 with the registered trademark of “CABR/M”.
Beijing Institute of Construction Mechanization Co.,Ltd. is a professional research institution specialized in construction
machinery technical application and development, with a history of more than 50 years. It has cooperated with more than 3,000 enterprises both at home and abroad. Relying on the solid technical strength of the research institute Co.,Ltd, CABR Construction Machinery Technology Co., Ltd. constantly provides new products and technology for the construction market with perfect testing methods, advanced processing equipment and a strict quality system.
Mechanization Co.,Ltd.Our company was founded in March 2003 with the registered trademark of “CABR/M”.
Beijing Institute of Construction Mechanization Co.,Ltd. is a professional research institution specialized in construction
machinery technical application and development, with a history of more than 50 years. It has cooperated with more than 3,000 enterprises both at home and abroad. Relying on the solid technical strength of the research institute Co.,Ltd, CABR Construction Machinery Technology Co., Ltd. constantly provides new products and technology for the construction market with perfect testing methods, advanced processing equipment and a strict quality system.
Our Advantages
1 We are factory affiliated to China Academy of Building Research.All of our technical engineers are staff of China Academy of Building Research,one fourth of whom are senior engineers.
2 We are the administrative department of national standard.We have the qualification of drafting national standards,inspecting and certifying.So we are at leading position in technology.
3 Our core goal is to make excellent products, quantity is our destination.
4 We have a high-caliber after sales team.
5 We promise our technician can find out electrical problems within 10 minutes and solve them within another 10 minutes.And for mechanical problems, we can solve them within 3 hours.
6 Our price is neither the highest nor the lowest.We engage in good quality and reasonable prices.Our products are cost effective.
