Conference Wireless Microphones Vote Alphanumeric Voting System For Conference Room Electronic Voting And Conferences System

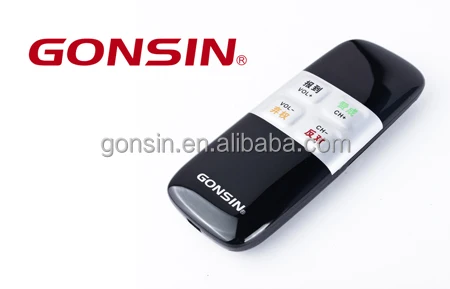

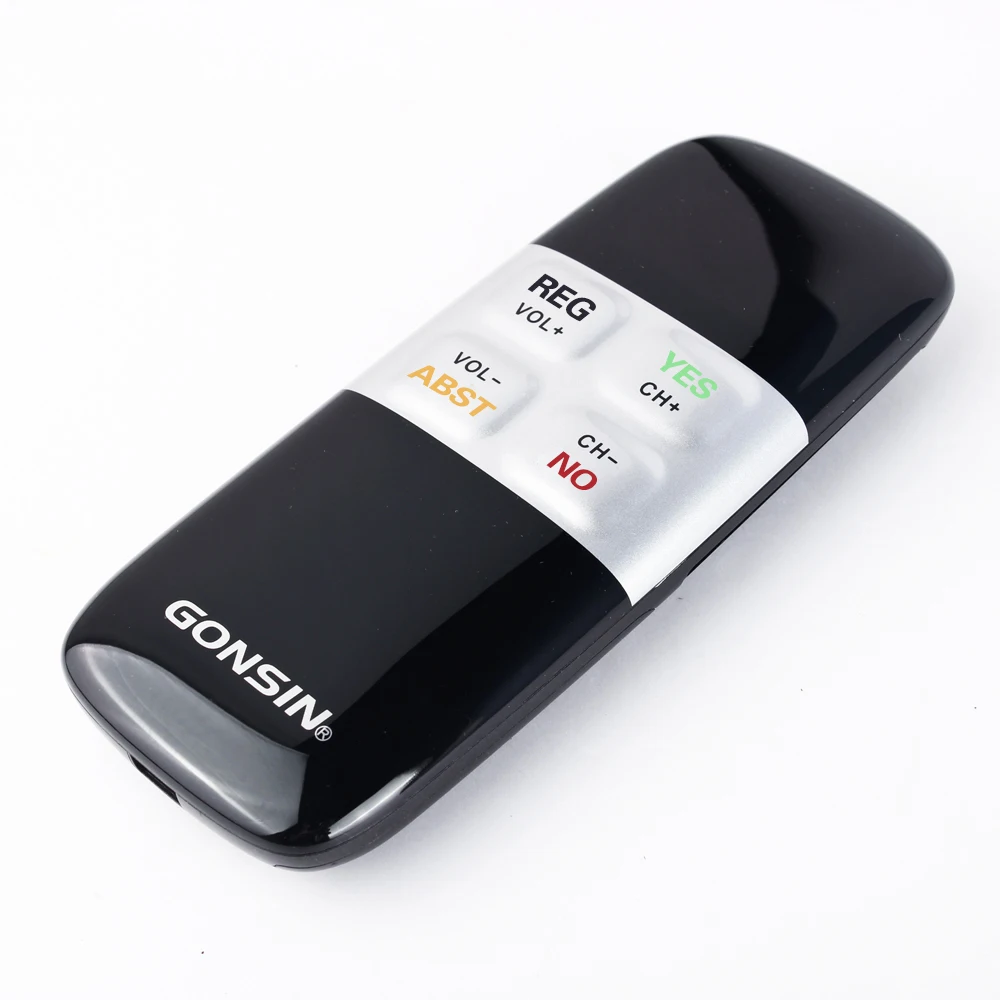

 FS-FHSS BJ-W5 Voting System

By the BJ-W5 wireless voting unit, the participant can realize registration ( by button pressing, inserting card, supplementary registration), voting ( Yes/No/Abstain, or the customized voting way by software), evaluation( Good, Fair, Poor and Abstain or the customized way by the software), election( elect one or more from M candidates), Grading( 0-100 points). The system can automatically collect the statistic of voting, election, evolution, and display the results on the big screen, projection screen and other display devices. The results can also be printed or burned into CD to preserve.

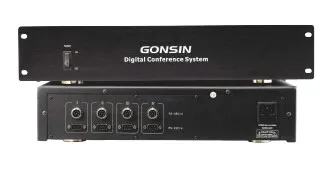

ZJ-W5  Wireless Base Station Unit

Wireless base station unit has A/B output channels. As one channel is out of the service, it can use the backup channel to ensure the conference is normal; it comes with the signal detection function, it can automatically scan the wireless environment of the conference scene and select the best communication without any interference, ensure the stable operation; Single standard equipped base station unit can support up to 200 wireless voting units. The maximum capacity of the system is up to 4000 units.

Features

• Channel detection and channel selection, chose the not-interference channel to ensure stable communication


• Double Units backup functions to ensure stable operation of the system


• Different antennas for different distance


• Single base station can control up to 200 wireless voting units


• Flexible deployment in accordance to the conference environment


• Fashion appearance design

Functions

• A/B 485 interfaces for larger system


• With up to 200 voting units, it can connect with the central controller to support 4000 voting units


• With A/B 232 interface, it can be connected to PC


• Antenna connectors for A/B channels to connect small size or medium size antenna


• With 232 detection interface and detection antenna connector, detect the wireless signal on site.


• A/B channel selection switch

Gonsin Conference Equipment Co., Ltd. is China top branding conference system manufacturer with independent R&D and export licence.

We specialize in conference microphone, simultaneous interpretation system, voting system, camera tracking system for more than 10 years; Our products have very good quality and favorable prices, have completed projects in over 130 countries covering governments,international conferences,universities, hotels,churches,ect.
