3M9735 CYLINDER BLOCK GRINDING MILLING MACHINE
- Category: Other Machine Tool Equipment >>>
- Supplier: Shenzhen Richon Industry Co. Ltd.
Share on (326500754):
Product Overview
Description
Products Description

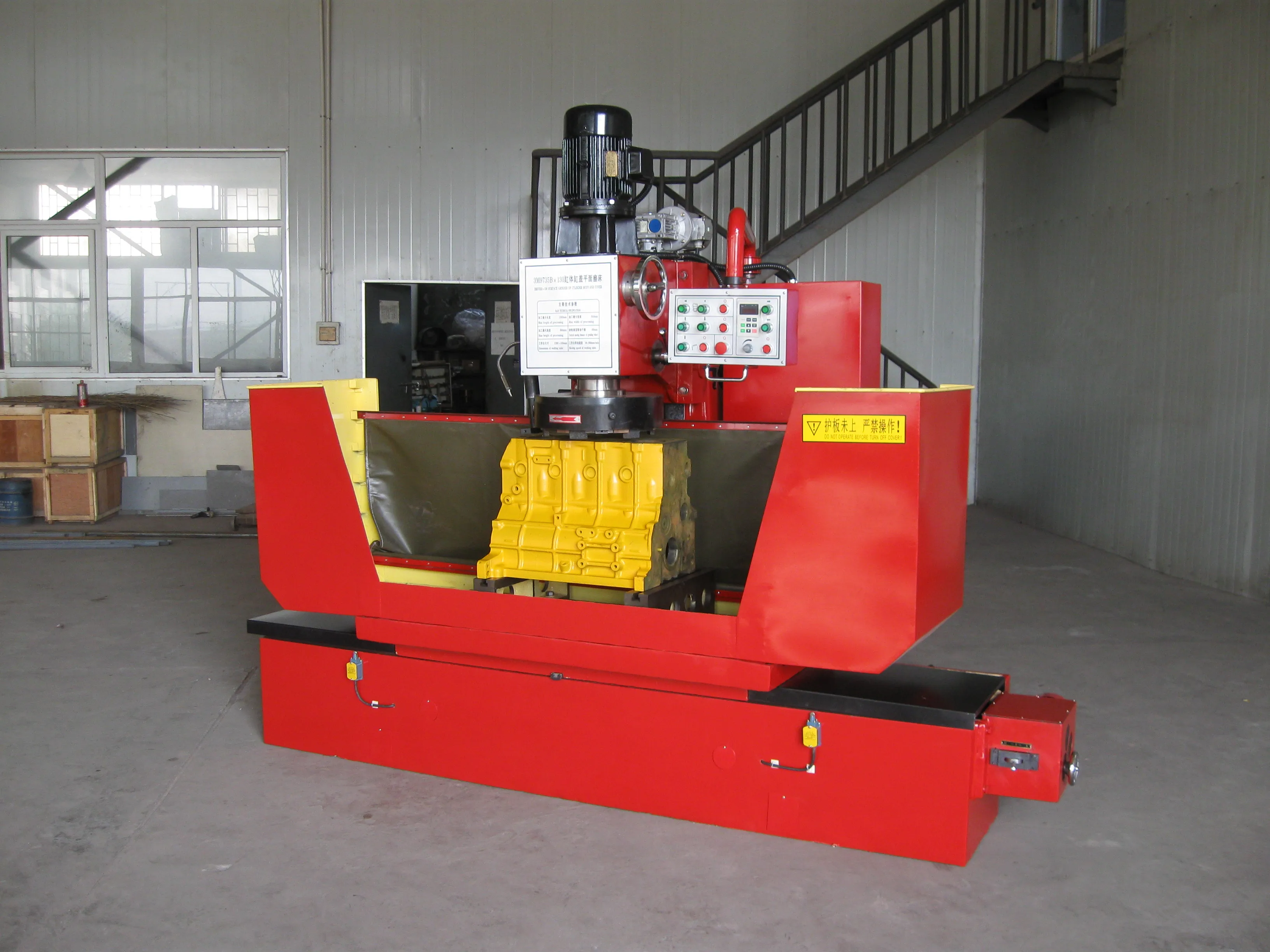

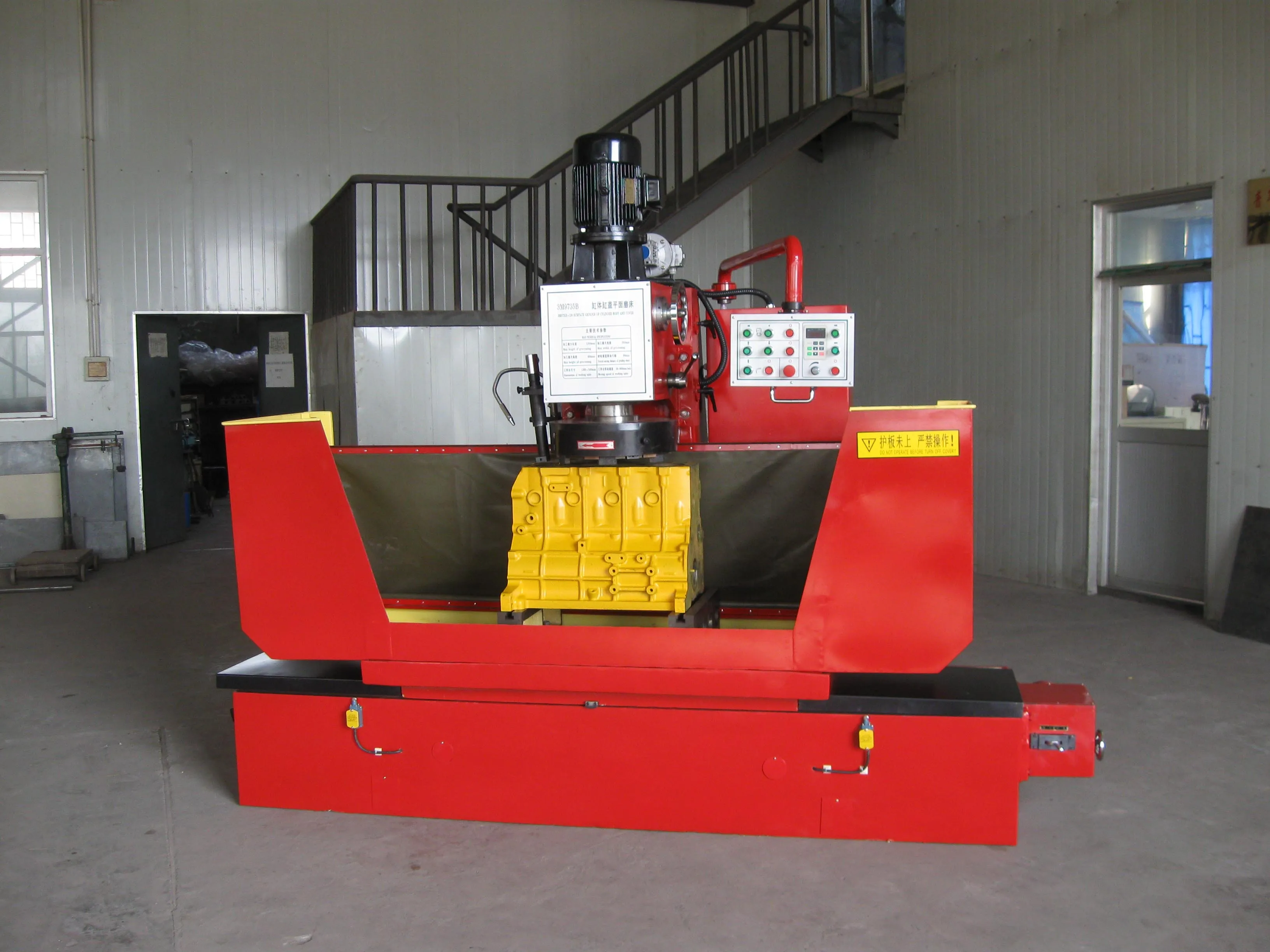

3M9735 CYLINDER BLOCK GRINDING-MILLING MACHINE
Cylinder block grinding-milling machine suitable for grinding every kind of motor’s cylinder body and cover plane.
Structure characteristic:
1. Spindle use high precision bearing with high machining precision.
2. machine run smoothly and with small resistance.
3. working table movement use frequency conversion stepless variable speed, suitable for machine different material parts.,
Structure characteristic:
1. Spindle use high precision bearing with high machining precision.
2. machine run smoothly and with small resistance.
3. working table movement use frequency conversion stepless variable speed, suitable for machine different material parts.,
CODE | ITEM | 3M9735A×120 | 3M9735A×150 | 3M9735B× 120 | 3M9735B× 150 |
1 | Dimensions of working table(mm) | 1000×500 | 1300×500 | 1000×500 | 1300×500 |
2 | Max. length of processing(mm) | 1200 | 1500 | 1200 | 1500 |
3 | Max. width of processing(mm) | 350 | 350 | 350 | 350 |
4 | Max. height of processing(mm) | 600 | 760 | 800 | 800 |
5 | Grinding wheel vertical travel(mm) | 120 | 120 | 60 | 60 |
6 | Grinding head vertical travel(mm) | 0 | 0 | 800 | 800 |
7 | Moving speed of working table(mm/min) | 30~900 | 30~900 | 30~900 | 30~900 |
8 | Grinding segment Plate dia.(mm) | 360 | 360 | 360 | 360 |
9 | Main motor power(kw) | 1.5/2.4 | 1.5/2.4 | 1.5/2.4 | 1.5/2.4 |
10 | Overall dimension(LxWxH)(mm) | 2700*1000*1960 | 2950*1000*2100 | 2700×1000×1960 | 2950×1000×1960 |
Company information
Customer Review
FAQ
Q1: How long guarantee period you offer?/ how is warranty?
A1: 12 month guarantee after machine on board.
Q2: What services are available during the guarantee period?
A2: Free replacing parts available in the warranty period.
Cost-value replacing parts available beyond the warranty period.
Quick action and reply for the technical questions at any time.
Q3: Can you provide training for operation CNC machines?
A3: Yes, free training in our factory or engineer overseas service available as customer requirements(relative cost born
A1: 12 month guarantee after machine on board.
Q2: What services are available during the guarantee period?
A2: Free replacing parts available in the warranty period.
Cost-value replacing parts available beyond the warranty period.
Quick action and reply for the technical questions at any time.
Q3: Can you provide training for operation CNC machines?
A3: Yes, free training in our factory or engineer overseas service available as customer requirements(relative cost born
by customer.
Q4: Can you provide customized machine or Special purpose machine?
A4: Yes, we provide different kinds processing solutions for customers, in order to meet different requirements.
Q5: Can we visit your factory before order?
A5: Sure, we warmly welcome you to visit our factory at any time. The more you know us, the more you trust us! So you can rest assured on our quality products and our best services.
Q6: Where is your factory located?
A6: Our factory is located in Kunming city, Yunnan province, in the southwest of China.
Q4: Can you provide customized machine or Special purpose machine?
A4: Yes, we provide different kinds processing solutions for customers, in order to meet different requirements.
Q5: Can we visit your factory before order?
A5: Sure, we warmly welcome you to visit our factory at any time. The more you know us, the more you trust us! So you can rest assured on our quality products and our best services.
Q6: Where is your factory located?
A6: Our factory is located in Kunming city, Yunnan province, in the southwest of China.
