Dry Herb Coarse Crushing Grinding Cutting Machine
- Category: Other Pharmaceutical Machinery >>>
- Supplier: Jiangyin Xinda Medicine And Chemical Machinery Co. Ltd.
Share on (327781219):
Product Overview
Description

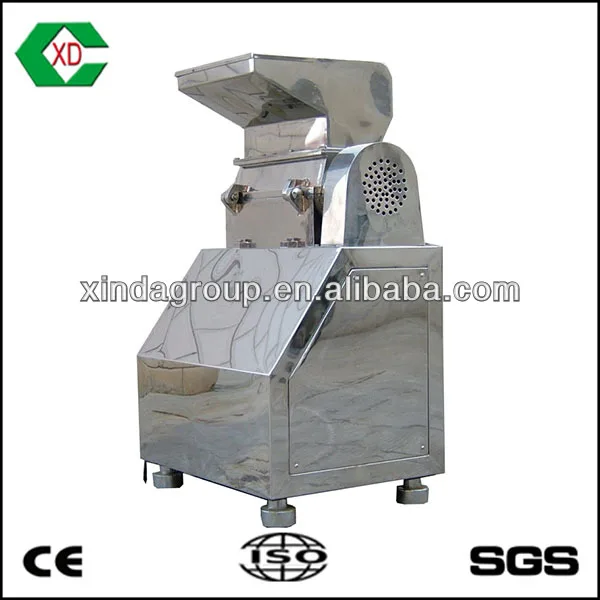

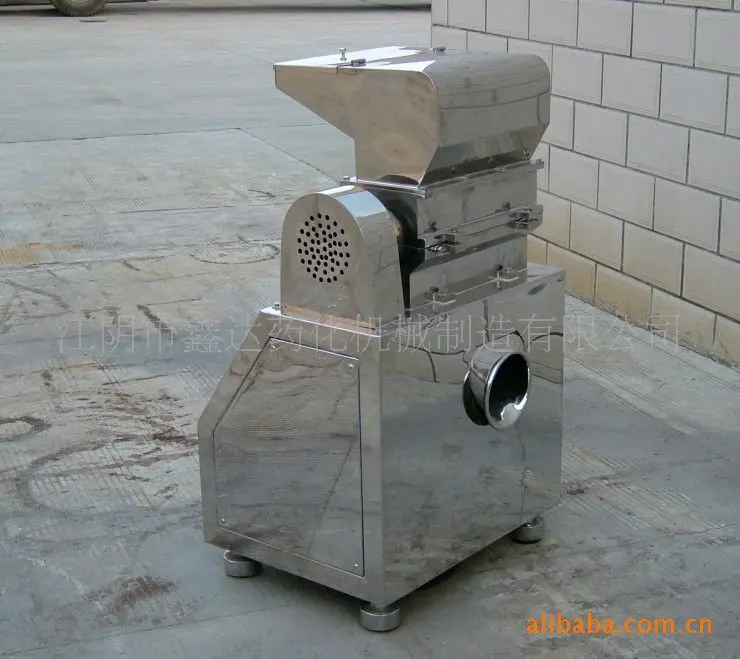

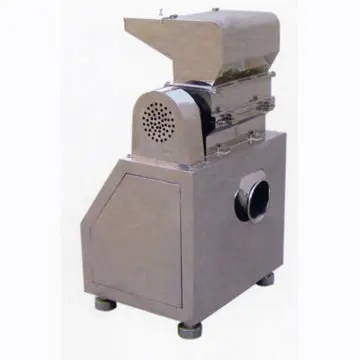

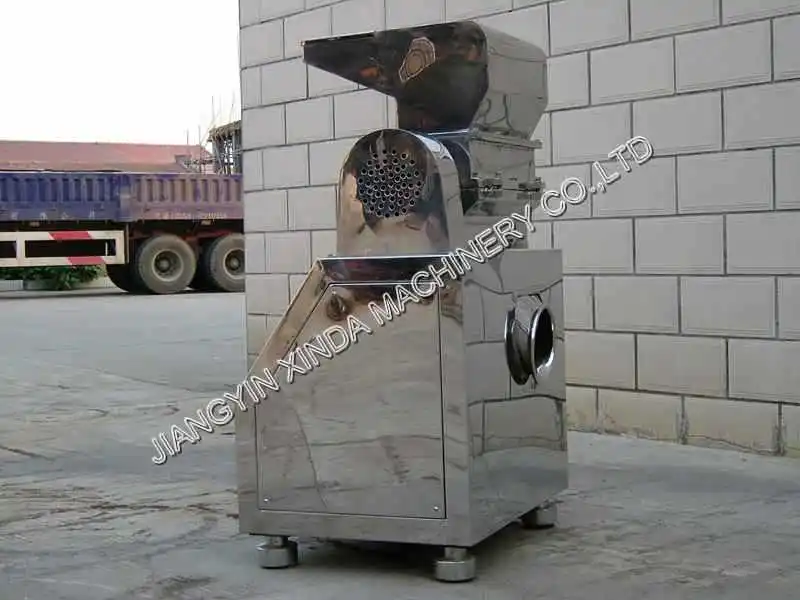

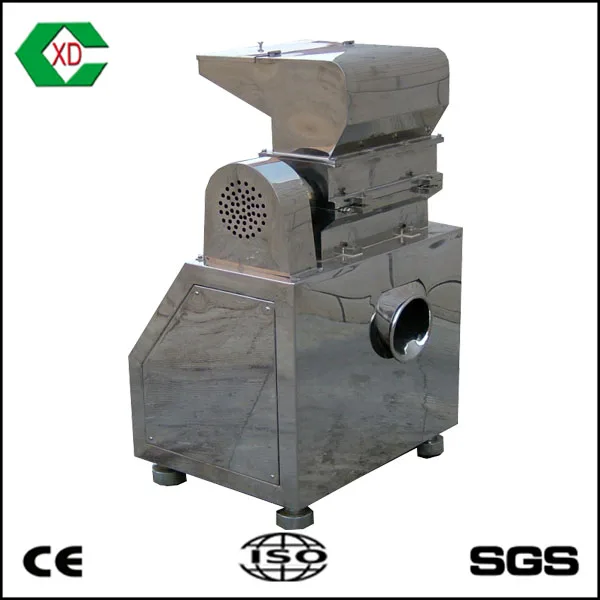

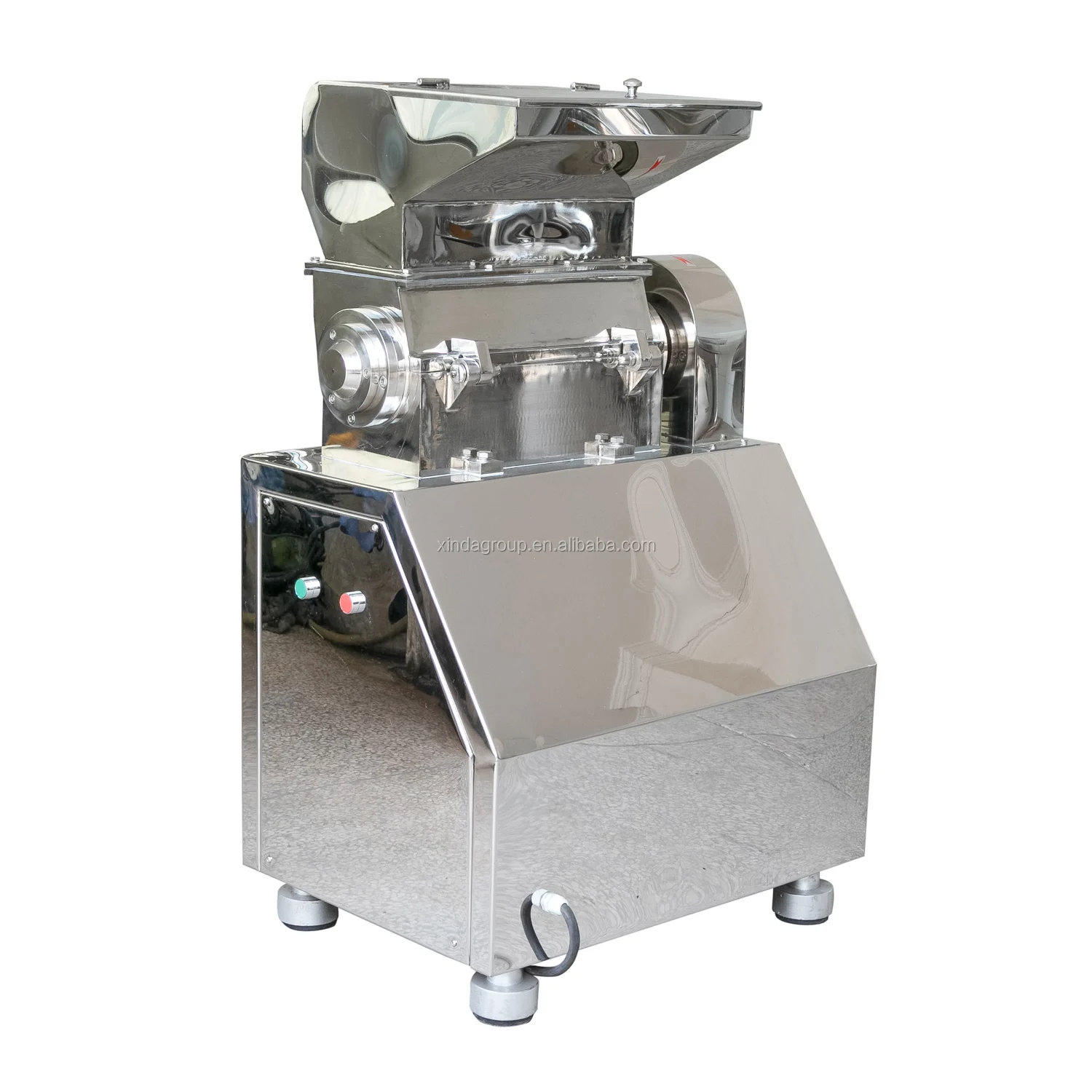

Dry Herb Coarse Crushing Grinding Cutting Machine
Main Application
The crusher is applied for industries such as pharmaceutics,chemical,metallurgy and foodstuff. It is used as specialized equipment for coarse crushing of material
in preparatory process, and can crush hard and tough material like plastics and steel wire. Especially it is not limited by viscosity, hardness, softness and fiber shape
of material and has good effect to all materials.
Working Method
The machine has horizontal crushing structure and the whole machine is made of
The machine has horizontal crushing structure and the whole machine is made of
stainless steel. Any raw material, being feed into the grind chamber through the upper
feeder, stroked by the revolving and fixed knives, cut and grinded and then automatically
runs to the exit by the centrifugal force of revolving object. The machine is designed according
to GMP standard, with the characteristics of compact structure, easy washing, and low noise.
So it is the most ideal new product in current crusher market.
Technical Data
Technical Data
|
Model
|
Model 80
|
Model120
|
Model 200
|
|
Capacitykg/h
|
10200
|
100500
|
150800
|
|
Size of input granulesmm
|
≤50
|
≤100
|
≤100
|
|
Fineness of productsmm
|
0.5-20
|
0.5-20
|
0.5-20
|
|
Speed of principal axis r/min
|
400
|
400
|
400
|
|
Powerkw
|
1.5
|
3
|
5.5
|
|
Weightkg
|
120
|
250
|
500
|
|
Overall Size L×W×Hmm
|
600×500×950
|
700×800×1100
|
880×900×1250
|
