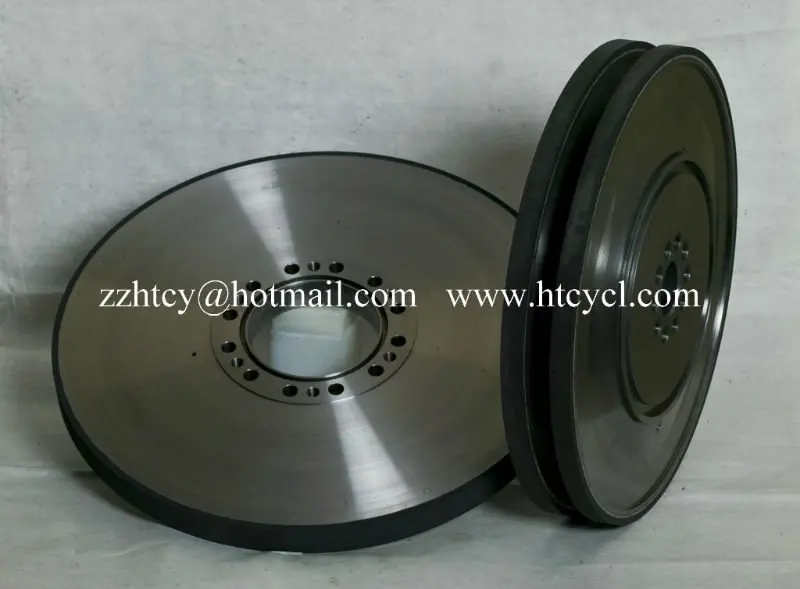

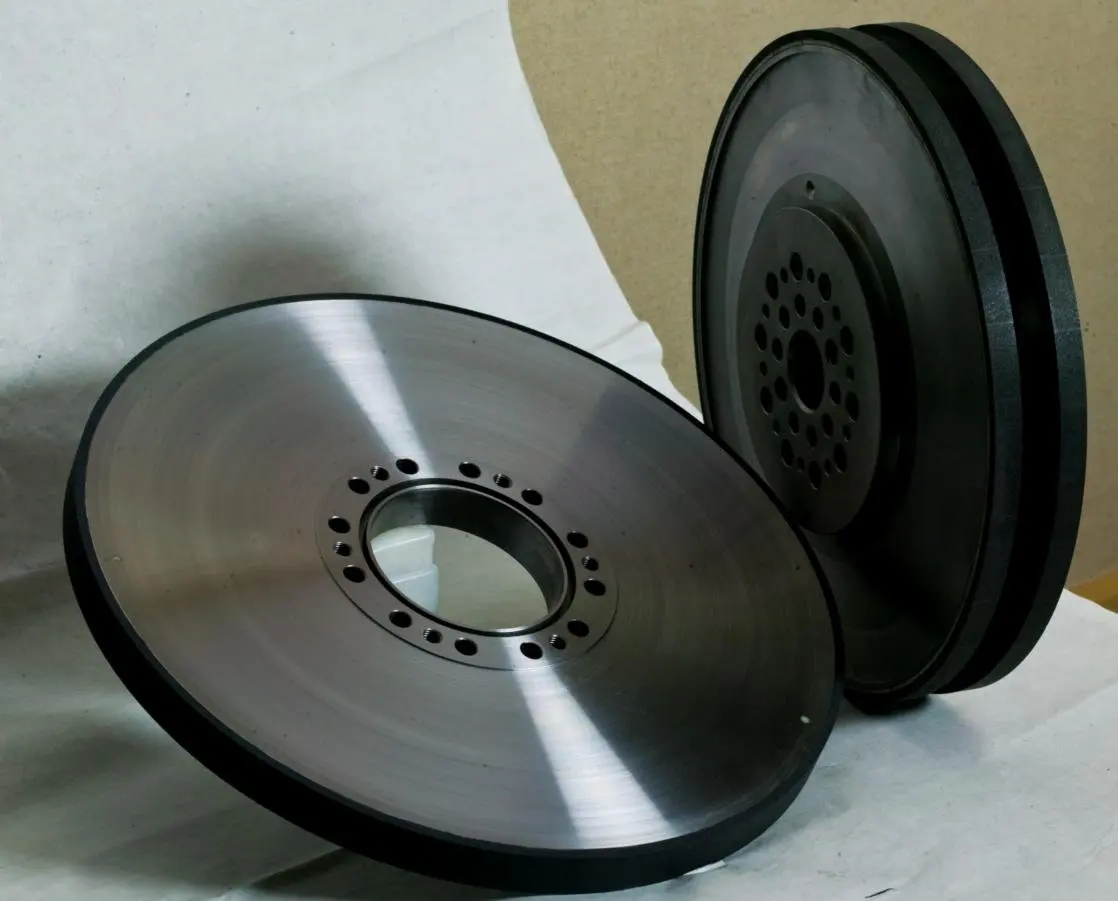

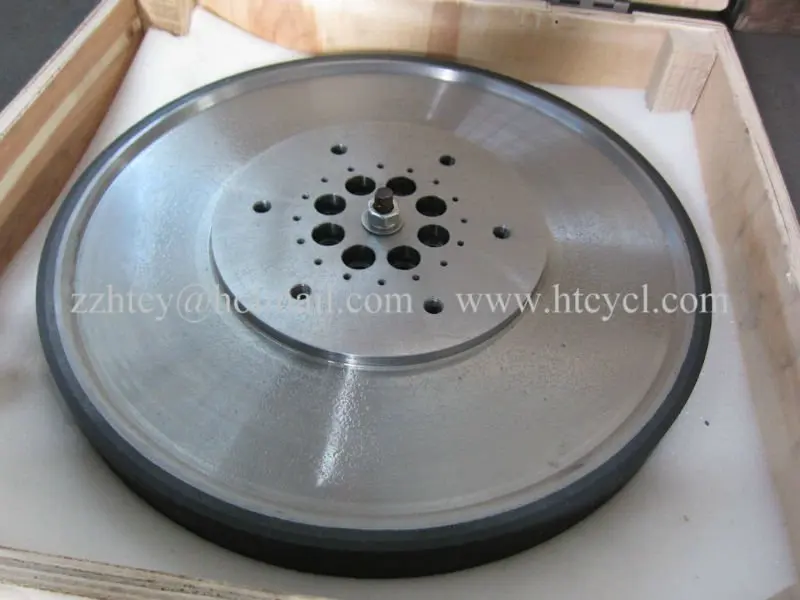

Vitrified bond CBN Wheel for Camshaft CNC grinding

Product Overview

Description

Camshaft Grinding With Vitrified bonded CBN Grinding Wheels



Vitrified bonds CBN wheels for CNC Camshaft lobe and journal grinding, which are designed used on LANDIS, TOYODA, SCHAUDT, JUNKER, EMAG and other CNC grinders.



Peripheral Speed: 80m/s to 160m/s



Shape 1A1

Customized Specification is available.

D	H	T	X
150	32	6, 8, 10, 12	3, 5
200	32	10, 15, 20, 25	3, 5
250	75, 152.4	10, 13, 18, 22,	3, 5
300	152.4, 127	12, 15, 20, 25, 30	3, 5
350	152.4, 40, 25	15, 18, 19, 20, 25	3, 5
400	100	14, 20, 22, 25	3, 5, 8
450	127	15, 25, 35, 40	3, 5, 8





We require the following application date in order to determine the best possible quality.

Workpiece material, hardness, stock removal, feed rate, surface finish, dresing type etc.
