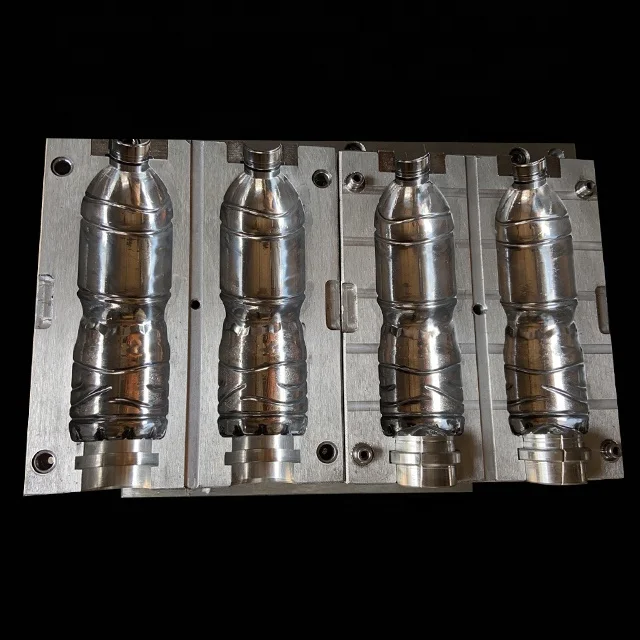

4 cavity Semi automatic PET bottle blow molding machine

Product Overview

Description

4 cavity Semi automatic PET bottle blow molding machine



Semi-auto PET bottle blow molding machine.PET blowing machine
PET preform blowing machine,PET bottle blowing machine,

- Come with components imported from overseas to ensure optimized and consistent running.
- Rotary infrared heating oven bottle-blowing brings quick, high-efficiency and quality bottle blowing with high yield.
- The heating system features automatic feedback compensation unit to ensure consistency of temperature inside the oven, resulting in oven heating of preforms.
- One infrared heating oven can serve two blow molding machines at the same time, contributing to space-saving and cost-saving purpose.



ITEM	UNIT	SM-880S	SM-880B
Cavity	Pcs	2	2
Max.container volume	L	1.5	2.5
Max.nek diameter	mm	75	80
Max.container diameter	mm	100	110
Max.container height	mm	310	320
Max.mould thickness	mm	110-210	110-250
Mould opening stroke	mm	155	160
Theoretical output	bph	800-1000	800-1200
Operating pressure	Mpa	0.8-1.0	0.8-1.0
Blowing pressure	Mpa	2.0-3.0	2.0-3.0
Heater power	kw	3.6	14
Machine weight	kg	550	650
Heater weight	kg	150	230
Machine dimension(L*w*H)	m	1.45*0.65*1.6	1.5*0.7*1.65
Heater dimension(L*W*H)	m	1.1*0.6*1.1	1.8*0.7*1.5
