Осушитель для планшета, сушилка из силикагеля, колпачок с пружинной застежкой, машина для сборки и запечатывания крышек tapa
- Category: Other Machinery & Industry Equipment >>>
- Supplier: Ruian Furi Packaging Machinery Co. Ltd.
Share on (345141705):
Product Overview
Description
Product Description
Product Application
Filling Desiccant gel or powder inside Spring caps per pre-set quantity,then inserting cardboard liners into caps,and hot sealing to keep cardboard and desiccant stay inside caps.
Main Features
1,All the machine will be Automatic, PLC control.
2,Control board: touching screen.
3,Defective Rate：>99.5%.(without desiccant or cardboard).
4,Desiccant dosage: ±2%.
5,Machine Capacity:60 pcs/Min
6,Power:2.5KW
7,Air consumption: 0.5 Mpa/Hour
8,Machine Rate Current: 220V,single phase,50 HZ
9,With counter installed for counting.（outlet Shift Device is optional)
10,Cap Detective sensor: Once the sensor detect no caps in one head,the machine will stop ,the worker can manual add one cap under the sensor to move on with production.
11,Desiccant detective sensor &Liner detective sensor: these 2 sensors will detect the caps without desiccant filling and without cardboard liner inserting,and give order to the rejection unit to reject these caps automatic,the caps will not stop for replacing.
12,Desiccant will be feeding by manual to the desiccant container. And measurement automatic.

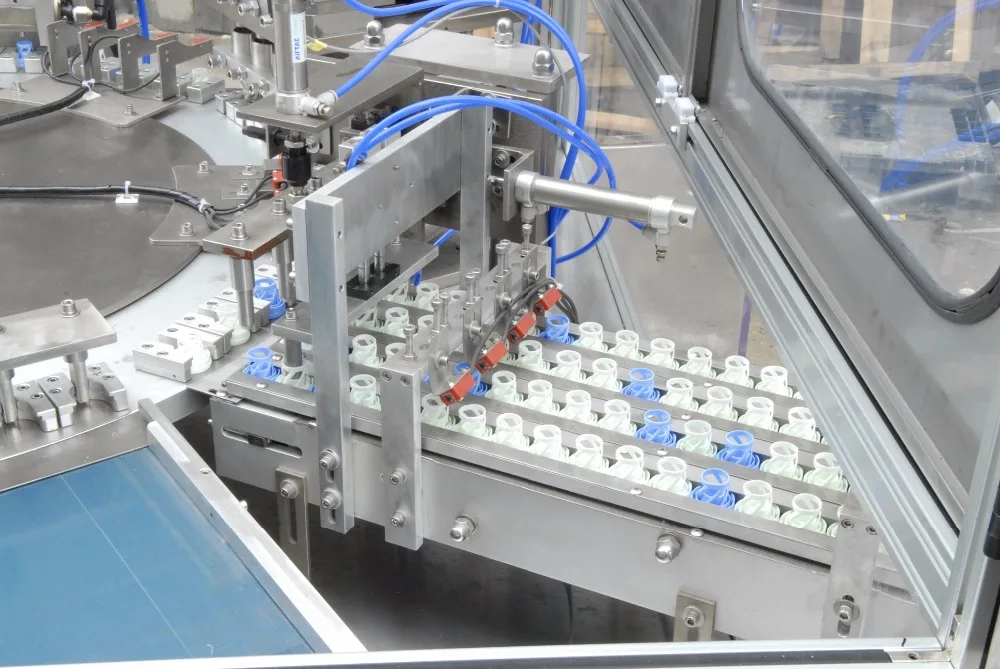

Detailed Images
Machine Caps
Name: Desiccant Caps
Machine filling and sealing desiccant into these caps.

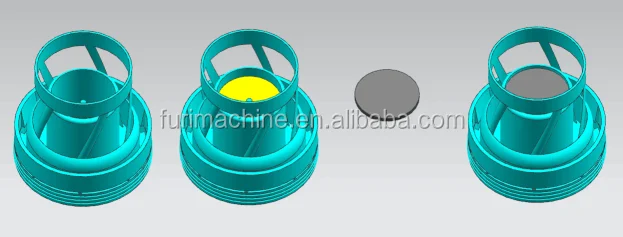

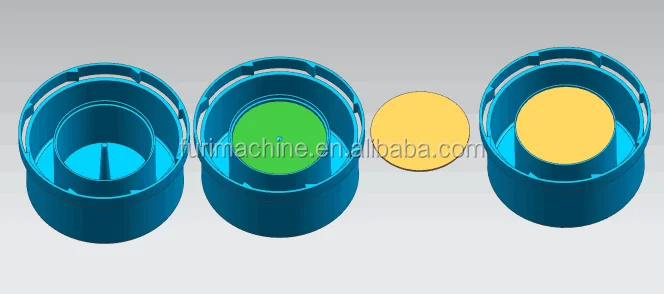

Caps Process
Filling Desiccant into caps, then inserting cardboard liners to hot sealing deciccant inside caps.

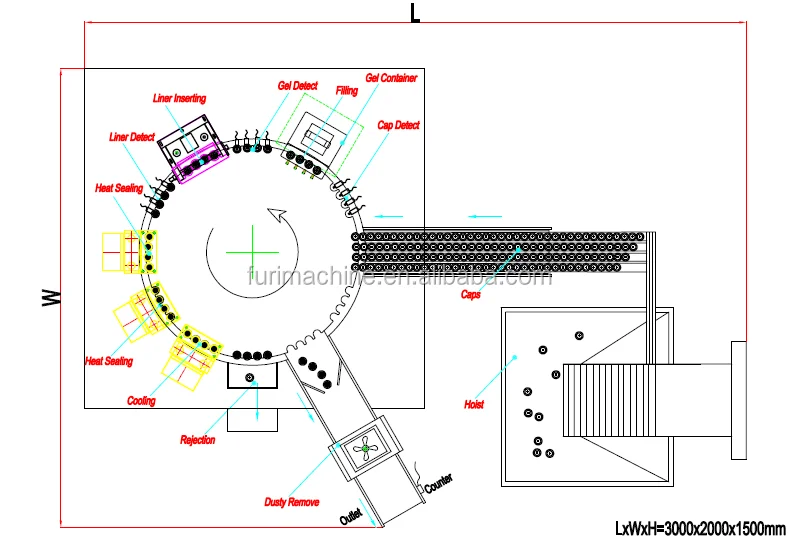

Machine Layout drawings
Layout drawings showing the machine details structure and production processes.

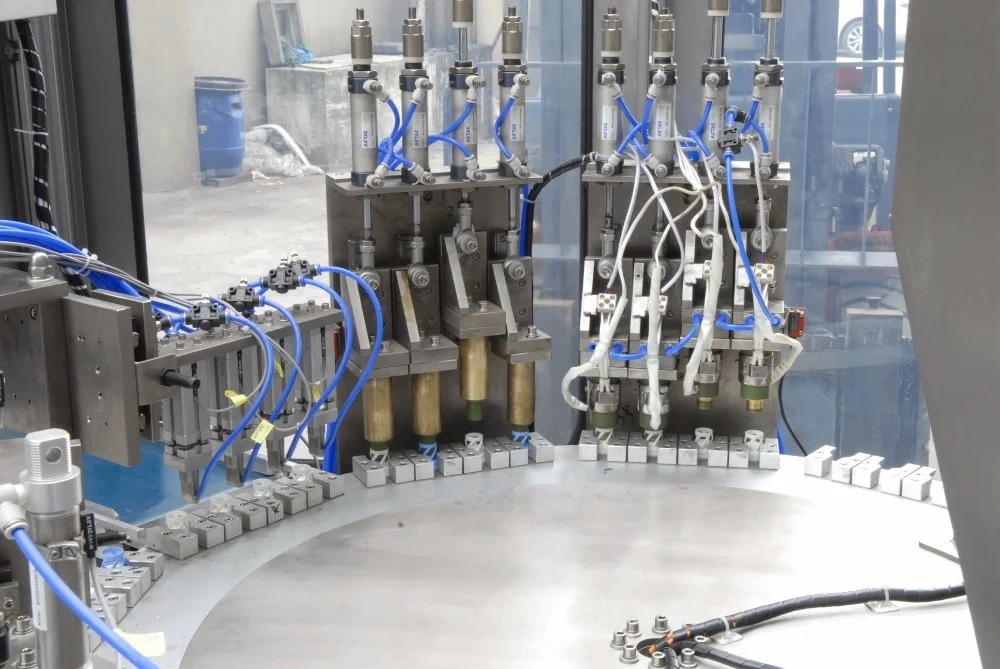

Filling & Sealing Heads
one filling process with Double sealing process .
install inspection sensors for every steps to reject the caps without desiccant filling or cardboard sealing.
Certifications
Packing & Delivery
Packaging | ||
Size | 145(L) * 135 (W) * 1.95 (H) | |
Weight | 1000 KGS | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
