19L water 5 gallon cap lining machine cap wadding machine gasket inserting machine

Product Overview

Description

5 gallon water cap lining machine

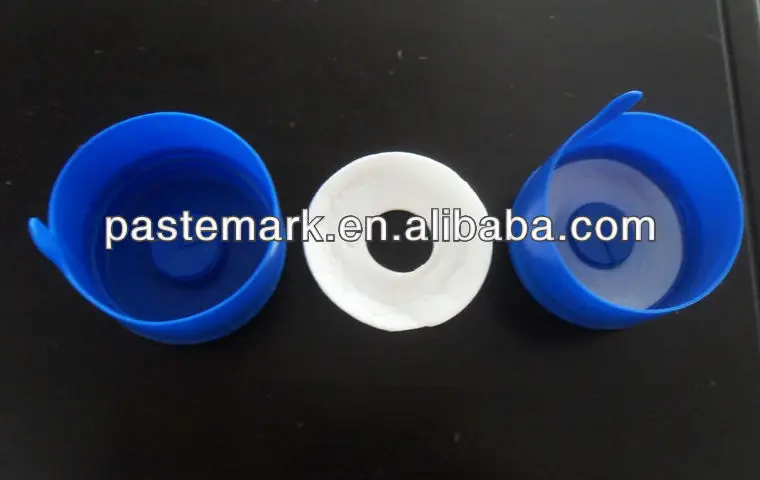

Scope of application: apply to gallon barrel cap to insert washer pad.
1> Features:

1. With trim cap function, through the trimming device to trim the cap into the tracking slot and then transferred to the conveyer belt, the cylinder to push the cap into turning slot for inserting washer

2.  through accurate gas, electricity control mechanism to complete the holding washer, sending washer, inserting pad, with stable and high efficiency.

3. the machine is equipped with a washer container, the operator simply put the trim washer into the container is ok.

2> Specification

Power	2.2KW  50HZ
Voltage	380V
Cap type	gallon cap
Productivity	4000 pcs/hour
Machine dimension L×W×H(mm)	1500×1300×1500
Machine weight	400KG
