Портативный Инжекционный станок высокого давления для Ремонта Трещин

Product Overview

Description

IE-04 Polyurethane Grout Injection Pump

          high pressure portable injection hand pump



Product Description

1. Item: IE-04


2. Weighing 9 KGS, portable, easy to carry & maintain, maximum output pressure up to 70MPa.


3. Injection pressure:0-70Mpa(8000-10000Lb)


4. 1 ways of material feed-in: pour


5. The Drill is Ruth. The power consumption:500W/220V



Material of application

WPU and OPU foam stop leakage agent, Epoxy resin.



Application Field

Subway Station, Tunnel, Culvert, Foundation Improvement, Soil Settlement, Reservoir, Port Project, Top Slab, Crack, Construction Join, Shrinkage Crack, Basement hairline crack etc. water stop projects.



Specification

Weight	9 kg
Maximum output pressure	70MPa
Pressure of restarting	less than 20 MPa
Safe range of high-pressure hose	less than 70 MPa
Safe range of switch valve	less than 50 MPa

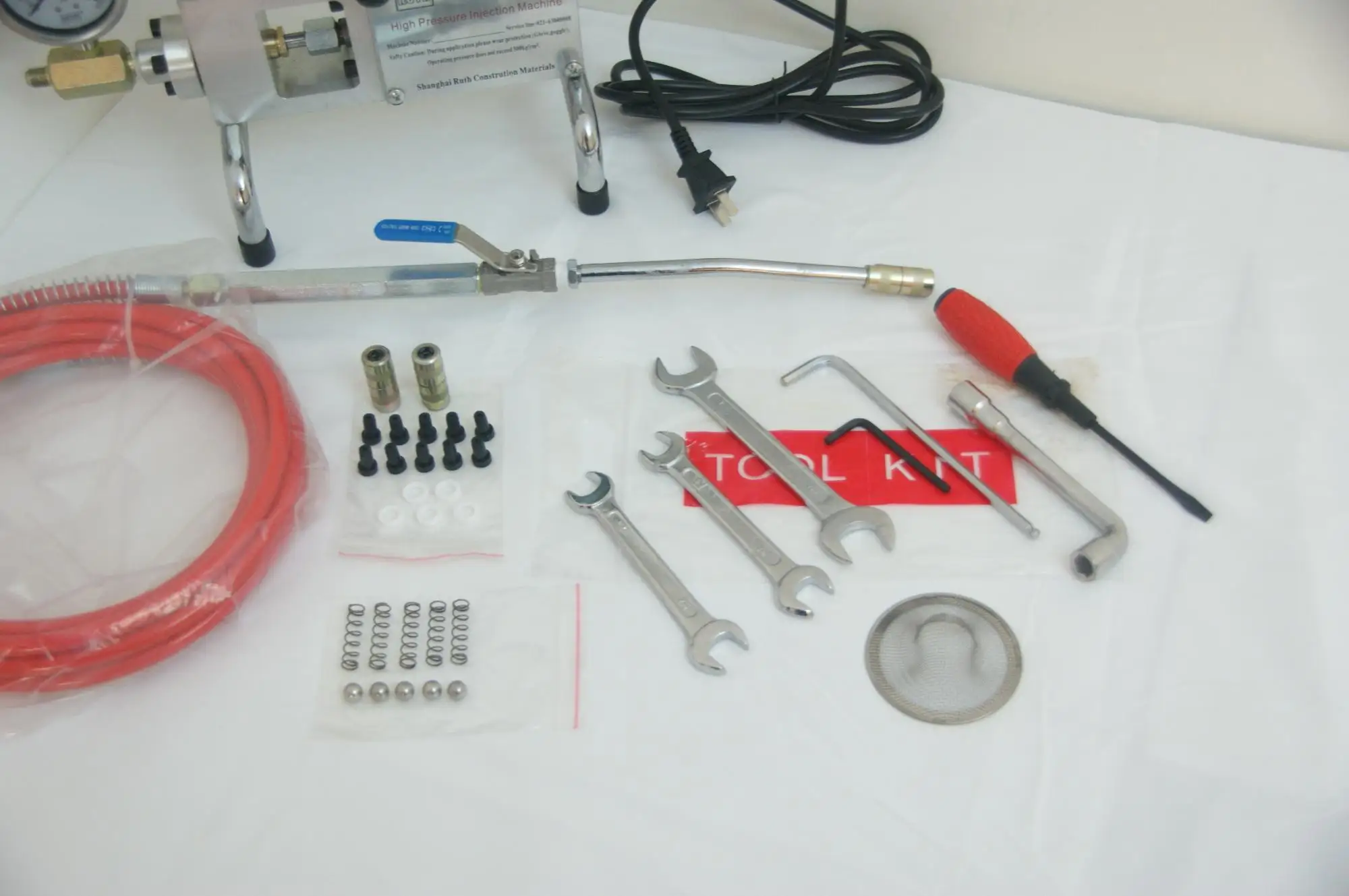

Full set of machine include:

1. The machine


2. Accessories, including high pressure hose (4.5m), on &off valve, grease head.

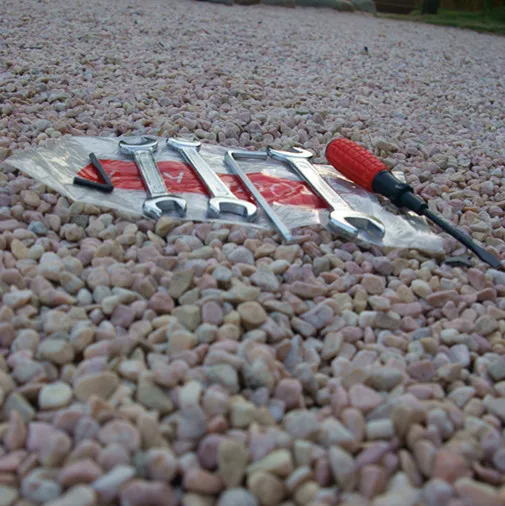

3. Standby tools





   Injection Grouting Pump for 1-component polyurethane resins,
   1 set per Carton
   Carton size, 26 X22 X49 CM
   Package weight, 9kgs
