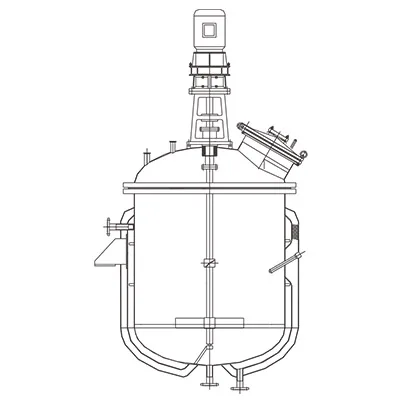

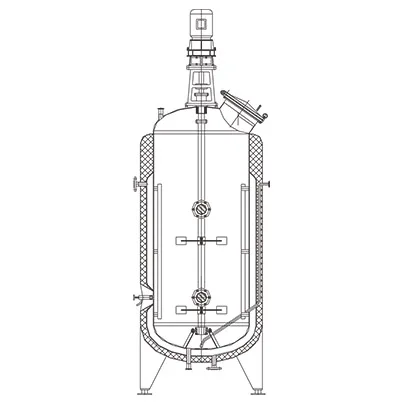

TQ D Upside down taper type facilities

Product Overview

Description







Specification:

modle	TQ-D-0.5	TQ-D-1.0	TQ-D-2.0	TQ-D-3.0	TQ-D-6.0	TQ-D-8.0
Volume(L)	750	1200	2300	3400	6400	8500
Tank design pressure(MPA)	0.09	0.09	0.09	0.09	0.09	0.09
Interlayer design pressure (MPA)	0.3	0.3	0.3	0.3	0.3	0.3
compressed air pressure(MPA)	0.6~0.7	0.6~0.7	0.6~0.7	0.6~0.7	0.6~0.7	0.6~0.7
charging mouth diameter(mm)	150	200	200	300	350	400
slag discharge gate diameter(mm)	800	1000	1200	1500	1700	1900
Heating area(m²)	2.0	3.2	5.3	6.8	8.5	10.5
Condensing area(m²)	3	4	4	6	8	12
Cooling area(m²)	0.5	1	1	1	2	2
Envload (kg/h)	145	195	258	300	552	728



Welcom to contact  us!
