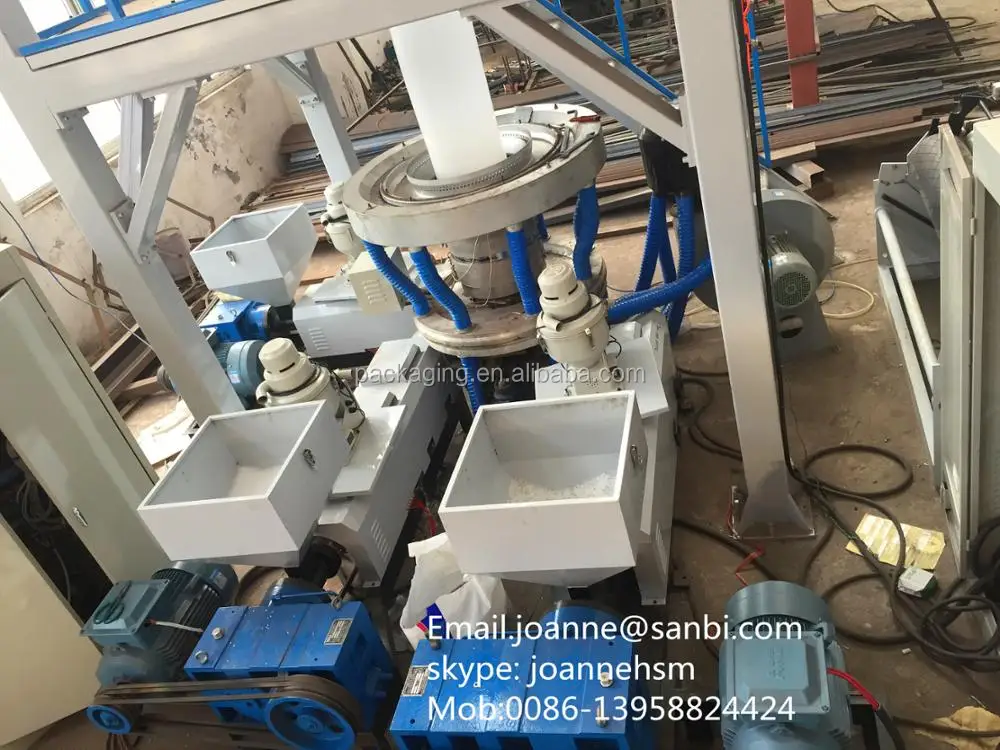

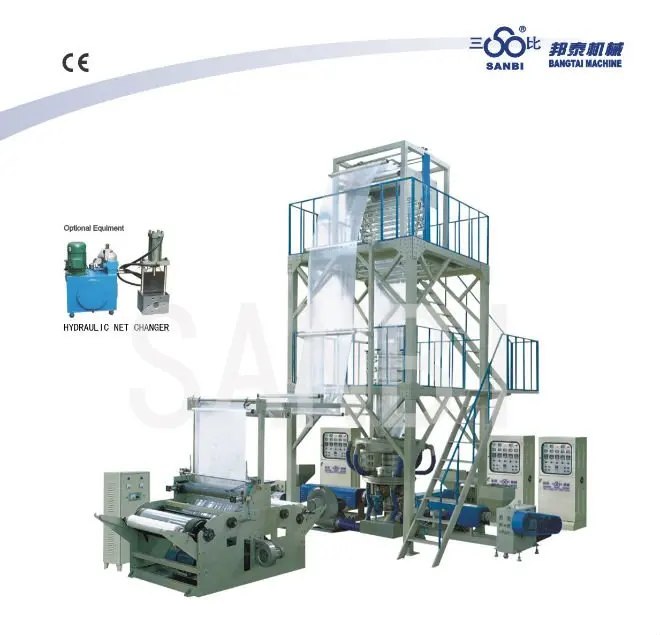

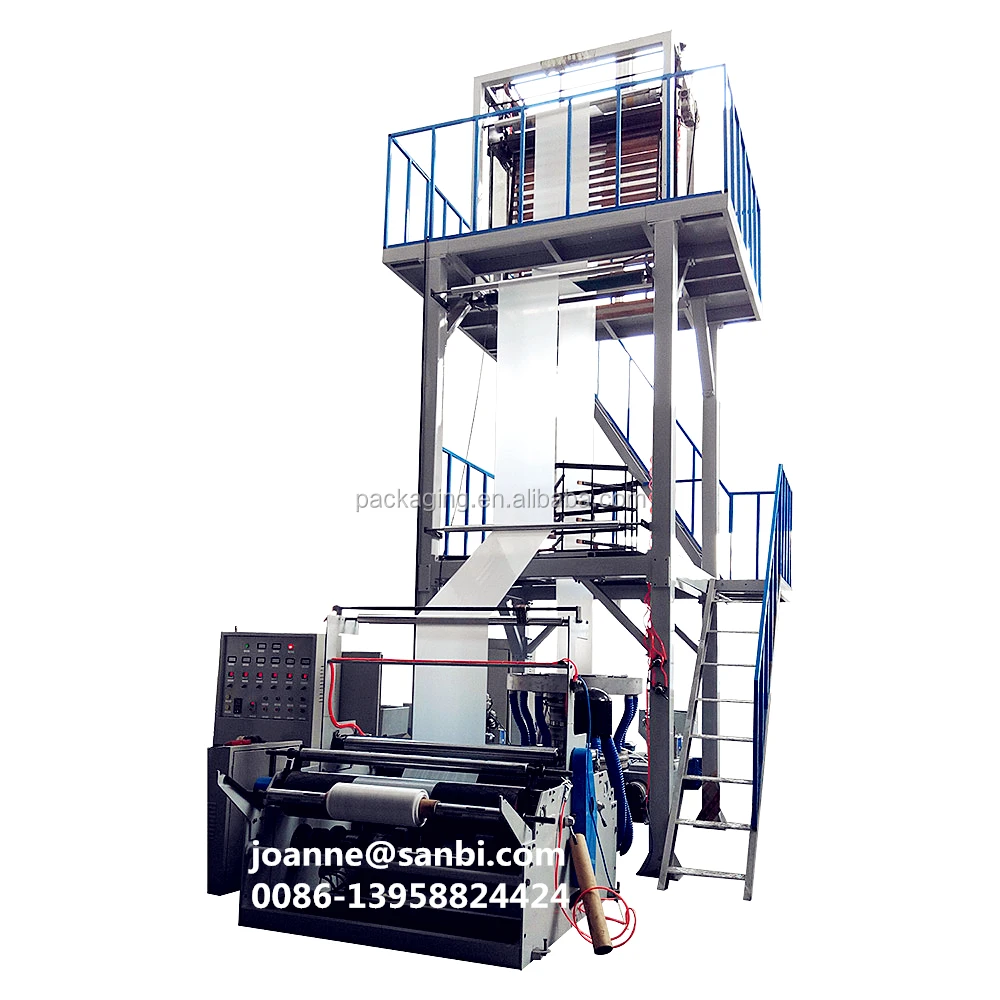

3 layers Agricultural film blowing machine

Product Overview

Description

3SJ-G1000, 1200 ,1500 Film Blowing machine/ 3 layer film blowing machine/ Agricultural  film blowing machine



1. Usage:

   The lines are designed developed by our corporation according to market need, they reach the advanced levels in the 90s, come up with analogous lines in home. It is optimum designed on the trounds  of  preference  of analogous lines in foreign and home. The lines can be blown cotinuous 800/1500mm in  fold  width 0.08mm in the thickness packaging films, film has good insulation, for instance holding temperature,  anti-humid, anti-freeze, anti-rain, anti-rost, insulation oxygen, oil resistive, and so used for light and heavy-duty packaging,  for example fresh fruits, meats, salt vegetables, fresh milk, drink and so on.



2. Characteristics:

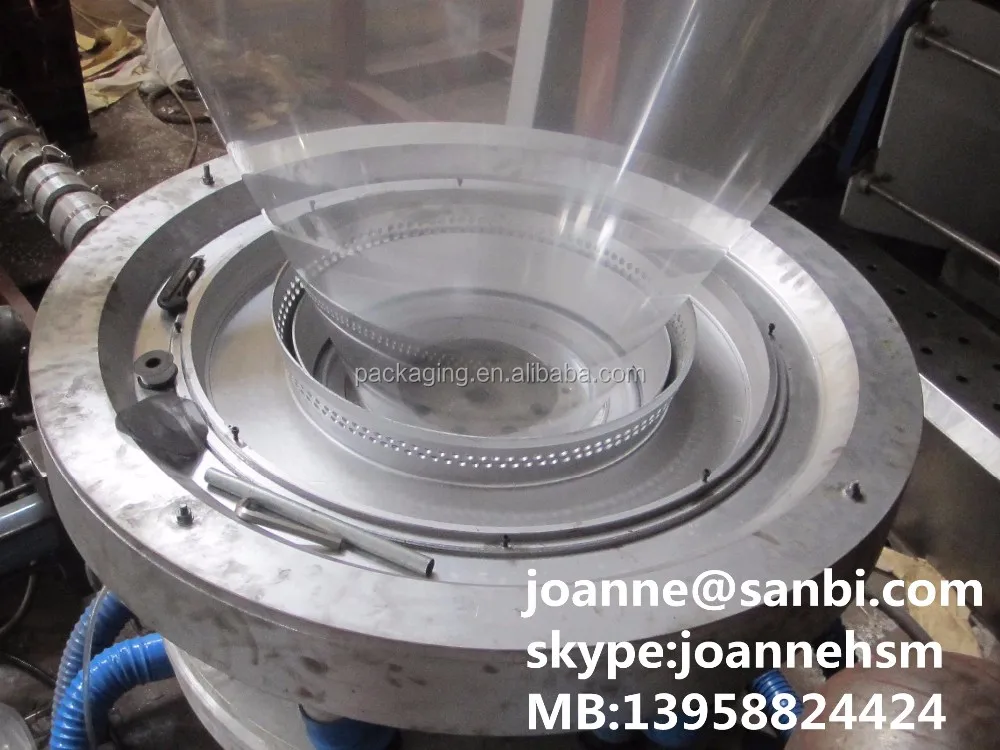

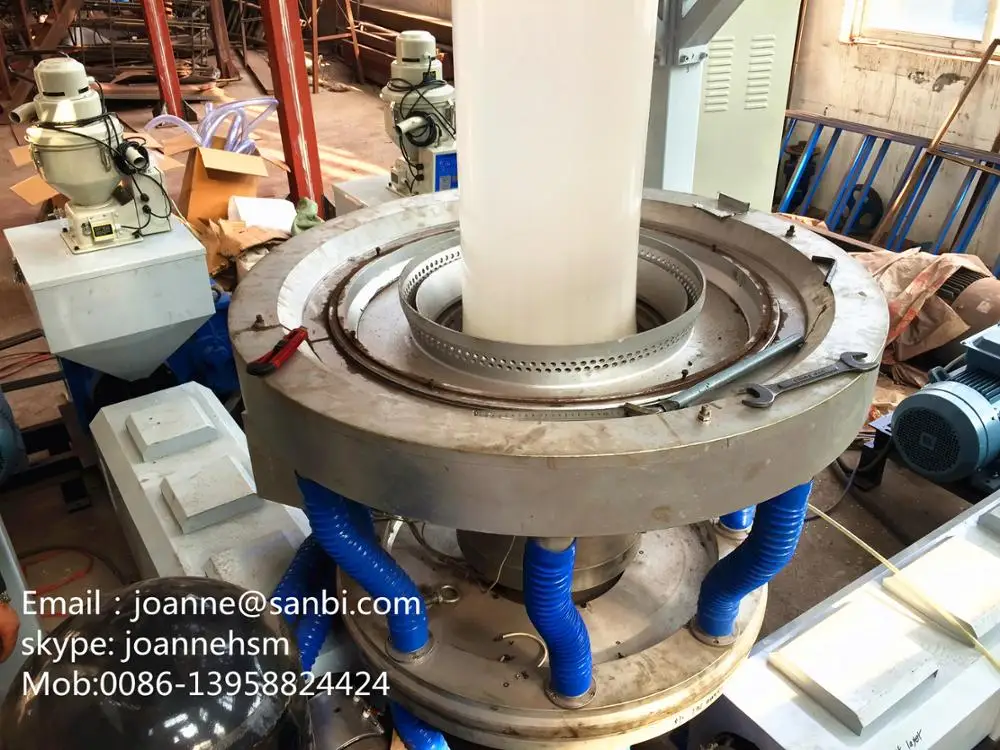

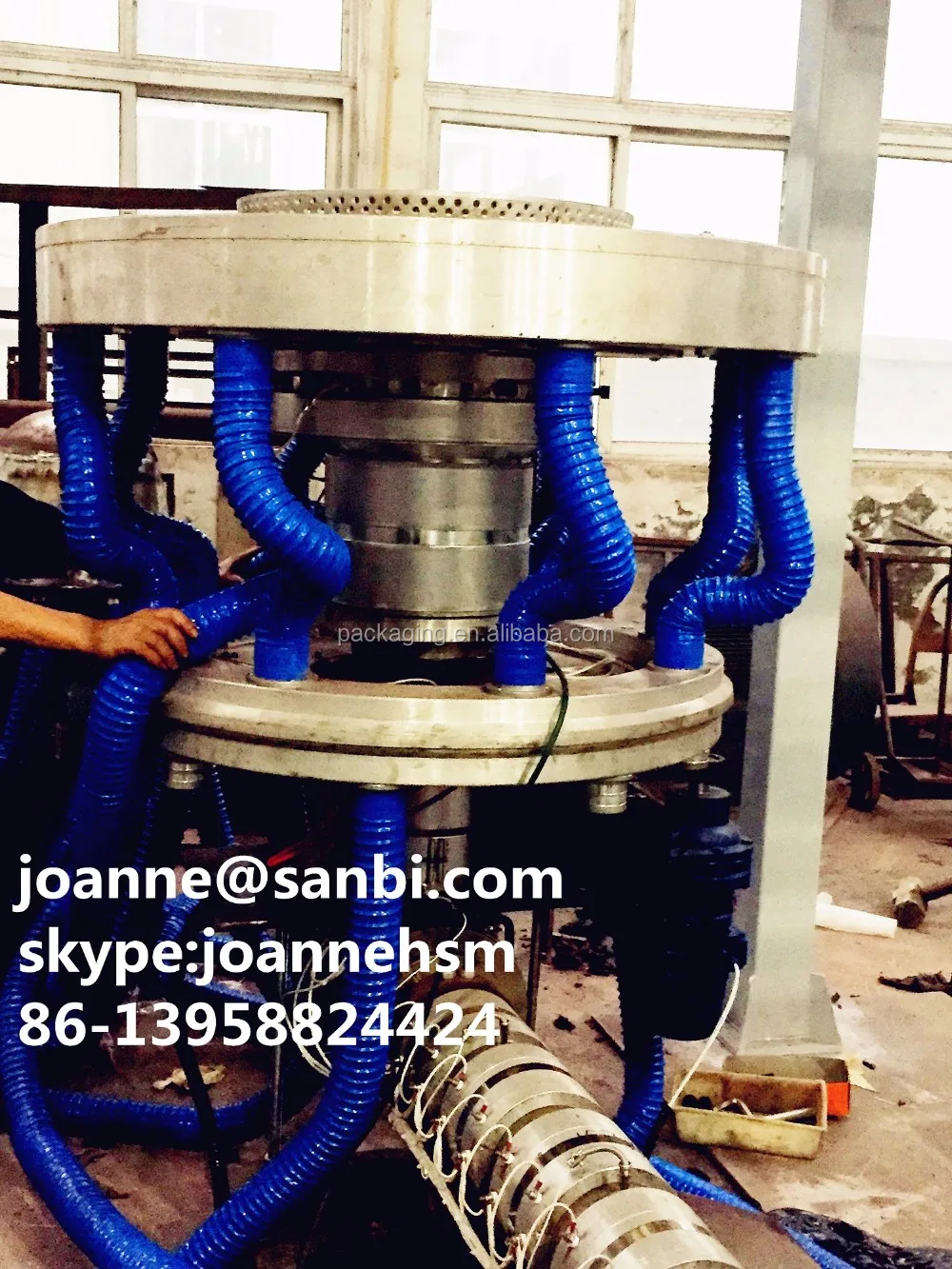

a. Die head is layer type spiral mandrel, continuous 360 rotation.

b. Screen  pack changer design is   reliable,  safe in operation and change the fitter  screen easier.

c. Various functional parts may be installed  to  the  lies.,such as length counting device, vertical cutting device,  cooling  water  row  pipe,  film  spreading roller,   scrap collecting device.





3. Main Technical Parameter:

Model	3SJ-G1000	3SJ-G1200	3SJ-G1500
Diameter of Screw(mm)	55*2, 60*1	60*2, 65*1	65*2, 70*1
L/D Ratio of Screw	28:1	28:1	28:1
Speed of Screw(r/min)	15-150	15-150	15-150
Main Motor Power(kw)	15*2, 18.5*1	18.5*2, 22*1	22*2, 30*1
Output(Single)(kg/h)	50	80	100
Size of Die(mm)	200	250	300
Thickness of Film(mm)	0.01-0.10	0.01-0.10	0.01-0.10
Max. Lay-flat Width of Film(mm)	1000	1200	1500
Electric Total Capacity(kw)	76	88	102
Overall Dimension(mm)	6600*4100*5000	6800*4300*6000	7000*4800*7500
Weight(T)	4	5	6





CERTIFICATE

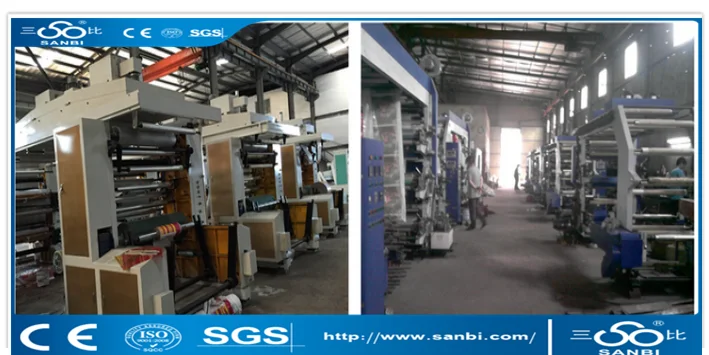

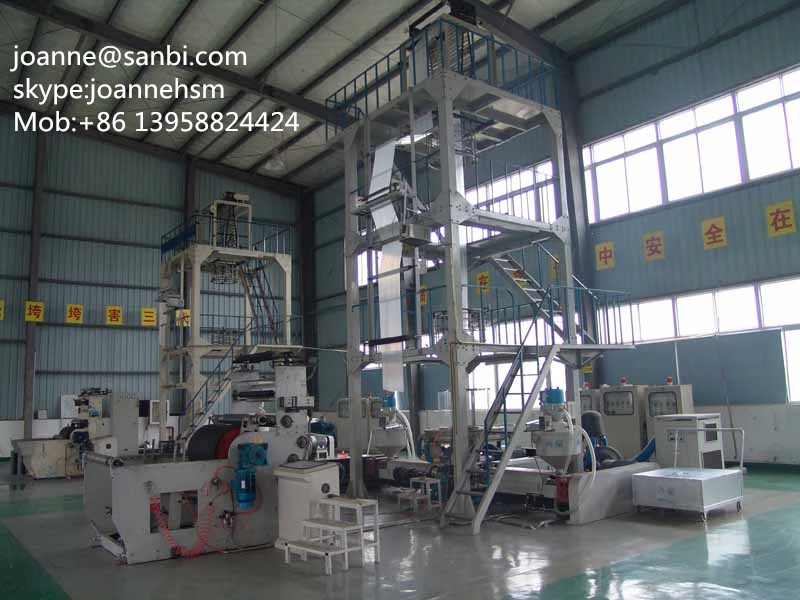

FACTORY WORKSHOP
