Air Driven Concrete Spraying Machine/Shotcrete machine 9m3/hour For Sale
Product Description
RISEN has engaged in the manufacturing and export of RISEN PZ-9 air driven concrete spraying machine / shotcrete machine since 2004. Among RISEN PZ series, the PZ-9 is a large-size model with output 9m3/hour and is a very popular model, mainly applied for dry or damp mix shotcreting.
Based on the excellent quality, mature work principle and competitive price, RISEN PZ-9 has been exported to many countries, such as, Malaysia, Singpore, philppines, Sri Lanka, Lebanon, South Afrida, French, Oman, Australia, Peru, etc, widely applied in the slope engineering, railway and super highway engineering, underground engineering, tunneling, mining operations, hydropower project, etc
Technical Data
Output Capacity:
9 cubic meter/hour
Maximum Conveying Distance:
150 m
Desired Shotcrete Ingredient Ratio:
Cement/sand and gravel < 0.35
Maximum Aggregate Size:
20 mm
Inner Diameter of Conveying Hose:
64mm
Working Compressed Air Pressure:
29 ~ 87 psi (0.2 ~ 0.6 MPa)
Total Air Consumption:
19~ 20 cubic meter / min
Ideal Rotor Speed:
11 rpm
Main Motor Power:
Air motor, 8kW (11hp)
Dimensions:
1650 x 900 x 1250 mm
Net Weight:
900 Kg
Noise:
Less than 80dB
Chasis:
Rubber wheel (railway wheel or skid steel is optional)
Application

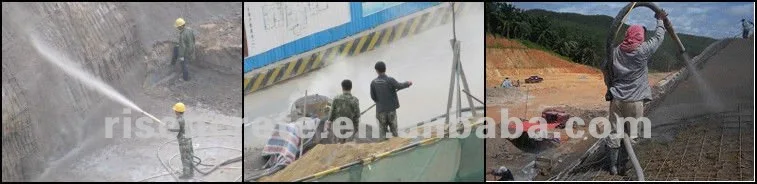

Shotcreting for tunnels, hydro-power engineering, mines, underground engineering, civil engineering and slope stabilization, etc.
Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface.
Refractory spraying and repair for industrial kilns or kilns’ inner liner.
Features

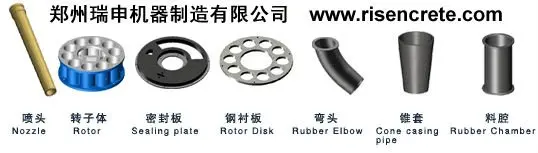

Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
Thin follow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dust leak and prolong consumption parts life.
Particularly used for dry, damp mix and steel (polymer) fibre reinforced shotcrete.
For the most specific risks of this machine, safety and compliance with the essential health and safety requirements of the Directive 2006/42/EC.
Advantages
High-accuracy Gearbox, high clean degree inside;
High wear resistance and longer use life consumable parts;
Military standard solid wheels for different construction site;
100% new air motor with high-quality and excellent work principle;
National standard bearing, valve and screw etc.;
All the casting units manufactured as our special design to ensure the enough strenght and some key parts are the welded parts not the casting;
The sheet metal parts made of the thicker steel plate to have a stronger quality, such as the hopper;
Serious handle for details, such as, protector for pressure gauge, special part for dust escaping down to the ground;
Painted after sandblasting for a pretty appearance;
