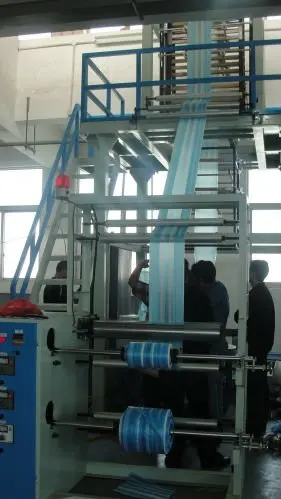

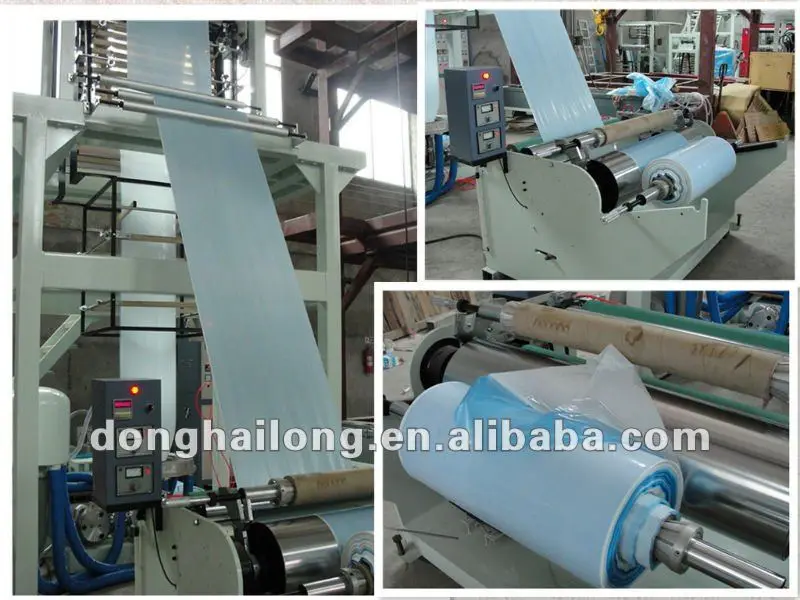

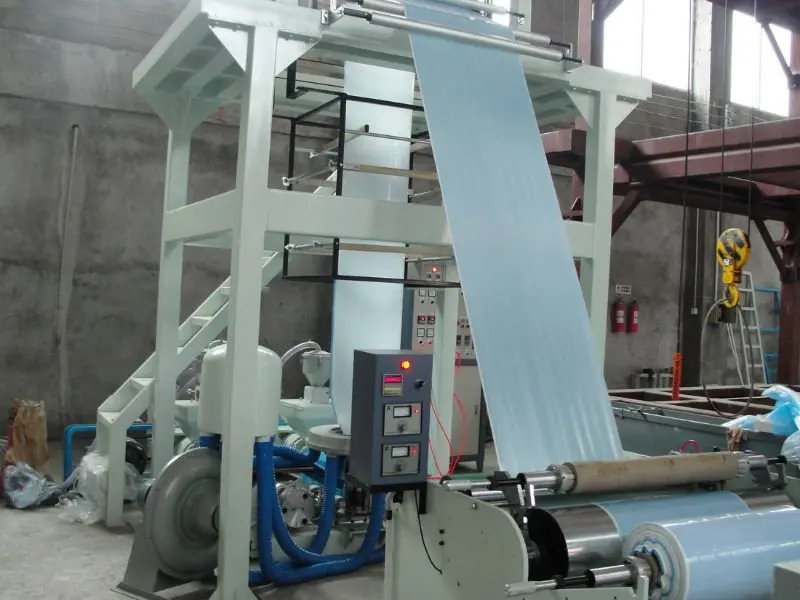

PE film blowing machine with double colors

Product Overview

Description

DOUBLE COLOR PE FILM BLOWING MACHINE



FEATURES

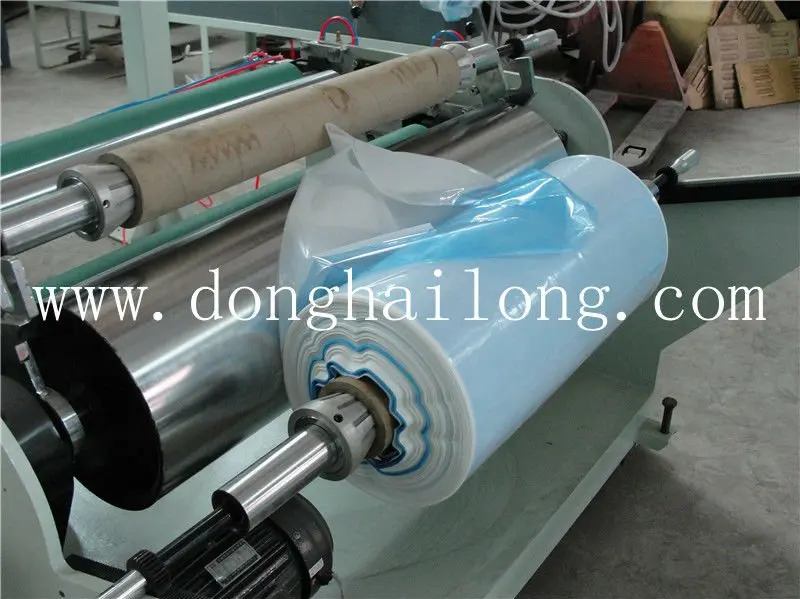

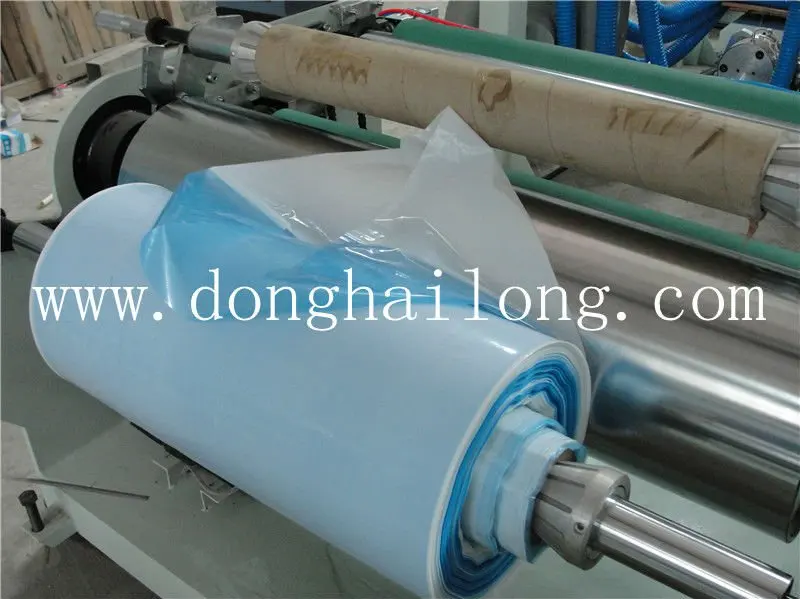

THE  Double Color Film Making Machine  IS EMPLOYED TO PRODUCE DOUBLE-COLOR STRIP FILM MADE OF LOW DENSITY POLYETHYLENE(LDPE) AND HIGH DENSITY POLYETHYLENE(HDPE).WHICH MAKES THE PRODUCT DIVERSIFID.IT IS MAINLY USED IN THE APPLICATION OF SHOPPING AND GARMENT PACKAGE.THE PRODUCTS INCLUDE VEST BAG,SHOPPING BAG AND GARMENT BAG.



MAIN TECHNICAL PARAMETERS

1.)MODEL NO. :SJ50/50-FMJ1100D

2.)LAYER NO. :SINGLE LAYER

3.)MAX.FOLDED FILM WIDTH :1000MM

4.)OUTPUT :80KG/H

5.)RAW MATERIAL :LDPE/LLDPE/HDPE

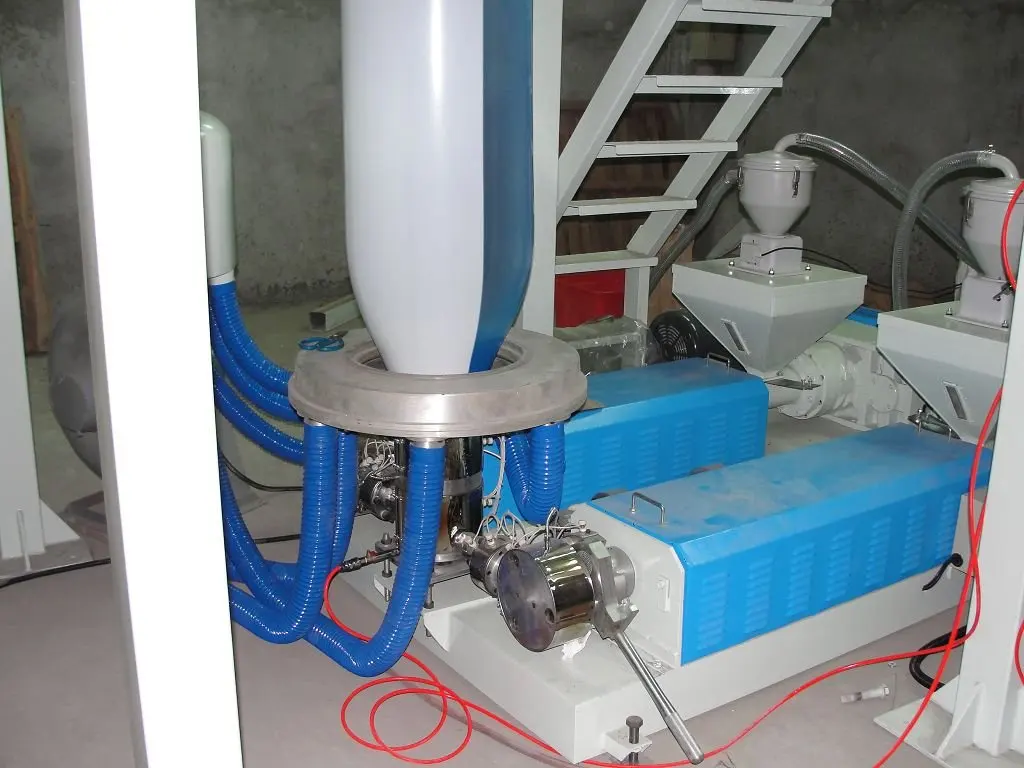

EXTRUDER

1.)SCREW DIAMETER:2*Φ50MM

2.)HEATER CAPACITY :2*10.5KW

3.)DRIVING MOTOR :2*15KW



DIE HEAD (OPTION ONE)

1.)DIA DIAMETER :LD Φ200MM HD Φ60MM,Φ80MM

2.)HEATER CAPACITY :LD 4.8KW HD 3.45KW

3.)COOLING AIR BLOWER :4kw

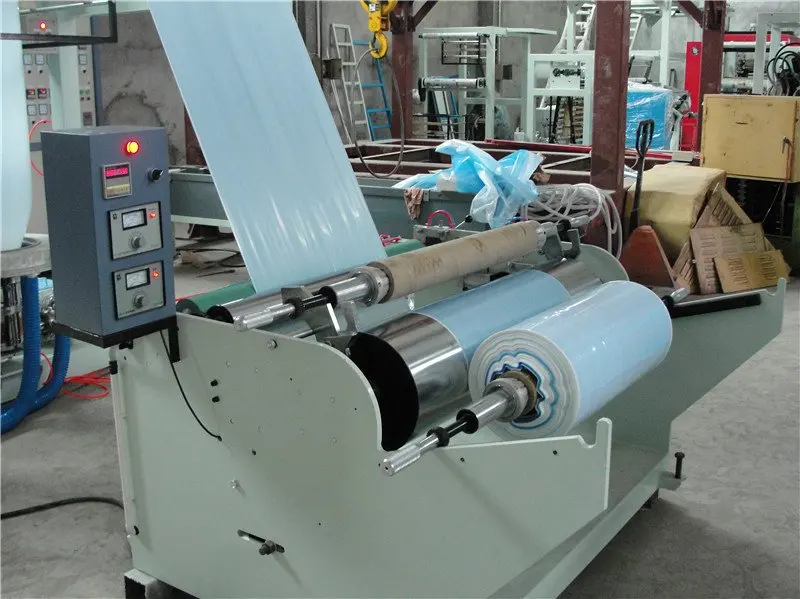

HAUL-OFF

1.)DRIVING MOTOR: 1.5KW

2.)TAKE-UP SPEED :10-70M/MIN

3.)WINDER DRIVING MOTOR :4.5KW

4.)TEMPERATURE CONTROL :9UNIT

5.)TOTAL POWER OF THE MACHINE :65KW

6.)SHAPE SIZE :5.2*2.5*4.0M

7.)WEIGHT :3.8T
