Popular Electric Cement Injection Grout Pump Grouting Cement Pump Machine
Popular Electric Cement Injection Grout Pump - Grouting Cement Pump Machine
Popular Electric Cement Injection Grout Pump - Grouting Cement Pump Machine
Popular Electric Cement Injection Grout Pump - Grouting Cement Pump Machine

Popular Electric Cement Injection Grout Pump Grouting Cement Pump Machine

Share on (451331760):


Price:

Quantity:


Product Overview

Description


Product Description

Popular Electric Cement Injection Grout Pump - Grouting Cement Pump Machine


Product Instruction & Application

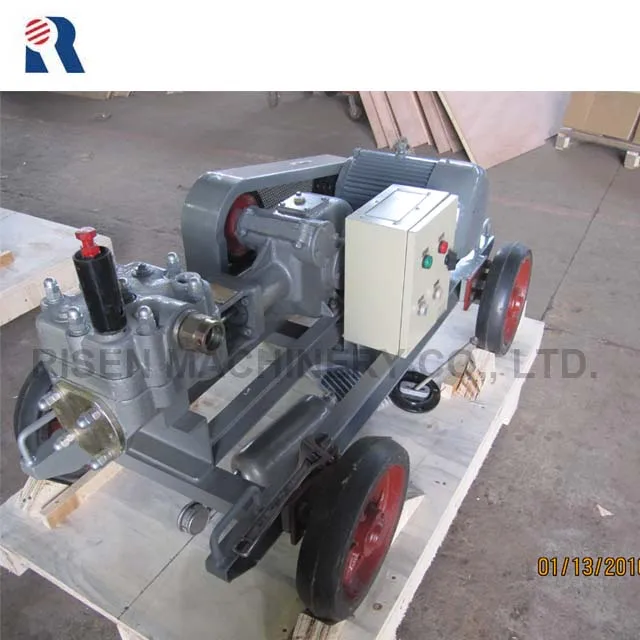

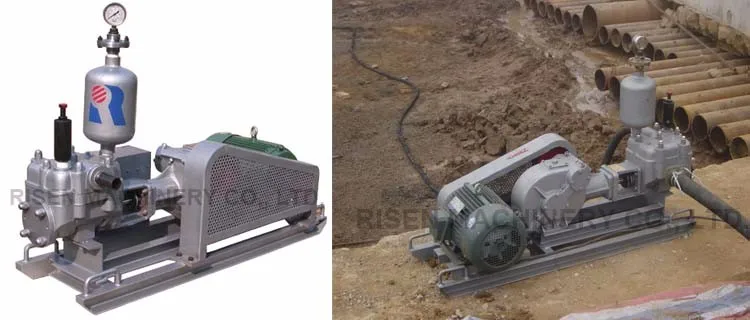

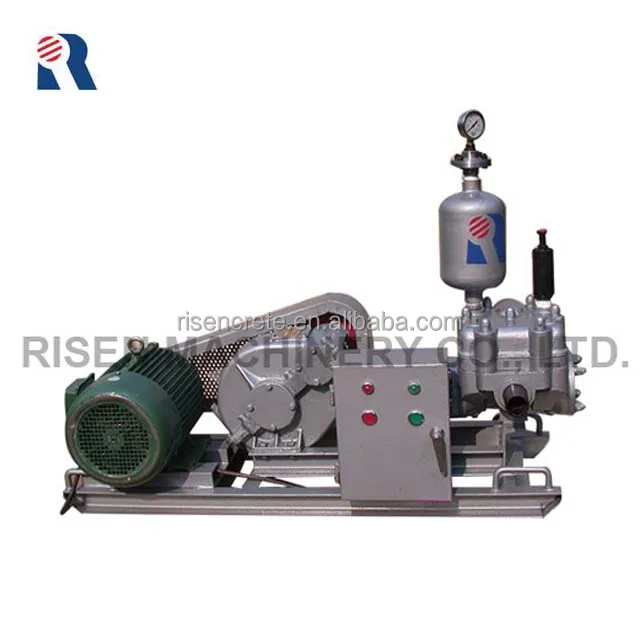

Electric cement grout pump RISEN RG130/20 is a kind of single cylinder piston grouting machine with double-acting. It is applied for the processing of lower pressure grouting. This machine is suitable for grouting with single slurry.

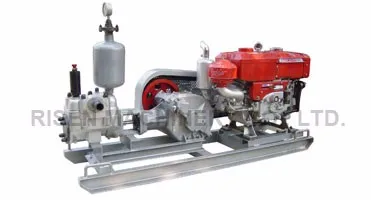

The RG130/20 can be driven by E-motor or diesel engine or air motor.
The main application is:
Lower pressure grouting the cement slurry or similar slurry to do the sealing, strengthening and stabilizing of rock and soil in Tunneling, Mining, Hydro-power Project, Slope Stabilizing and underground project, etc

\t
SPECIFICATIONS FOR RG130/20 (Electric)
\t
Engine
\t
Electric Motor Power
\t
kW
\t
5.5
\t





Main performance parameters
\t
Output:
\t
L/min
\t
130
\t
Working Pressure
\t
MPa
\t
2 (20 bar)
\t
Working Cylinder Dia.
\t
mm
\t
Φ75
\t
Piston Stoke
\t
mm
\t
85
\t
Piston Speed
\t
times/min
\t
180
\t
Inlet Hose Dia.
\t
mm
\t
51
\t
Outlet Hose Dia
\t
mm
\t
38
\t
Net Weight
\t
KG
\t
230
\t
Overall Dimension (L×W×H)
\t
mm
\t
1280*485*645

Main Festures

\tSingle piston double acting
\tGear & Vee belt transmission makes this pump high mechanical efficiency and working reliability
\tIntegrated valve house and ball valve, together with compact structure
\tBody of pump is made of aluminum casting, low weight is an advantage for transport.
\tGrouting/pumping mud slurry, cement slurry, soluble glass etc.

Advantages

\tGearbox housing manufactured by thicker plate as our drawing;
\tStandard gears and shaft to ensure the enough strength;
\tIP55 100% new electrical motor;
\tElectrical control box manufactured by thicker plate and standard Schneider electrical elements;
\tStandard seal parts to ensure the excellent seal quality;
\tAll the casting units manufactured as our special design to ensure the enough strength;
\tPainted after sandblasting for a pretty appearance;

Factory Images
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
\t
Packaging
\t
Size
\t
150 (L) * 90 (W) * 120 (H)cm
\t
Weight
\t
330KG, G.W.
\t



Packaging Details
\t
For one RG130/20 with accessories, the normal package is a plywood crate (Estimated Size: L 150* W 90* H 120 cm). If container is too tighter, we will use the pallet for packing or pack it according to customers special request.
\t
Packaging
\t
Size
\t
150 (L) * 90 (W) * 120 (H)cm
\t
Weight
\t
330KG, G.W.
\t



Packaging Details
\t
For one  RG130/20 with accessories, the normal package is a plywood crate (Estimated Size: L 150 *W 90 *H 120 cm). If container is too tighter, we will use the pallet for packing or pack it according to customers special request.
Related Products

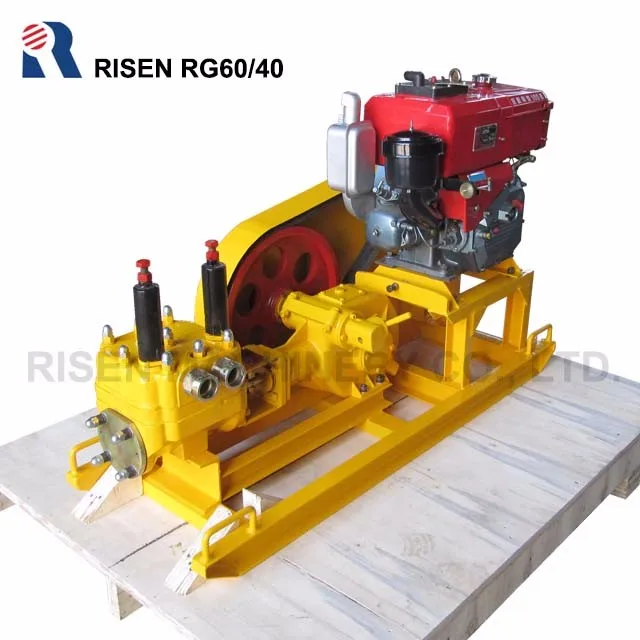

RISEN RG60/40
