Diesel Mortar Grout pump  for the grouting or pumping ofcement slurry or mortar


Product Description

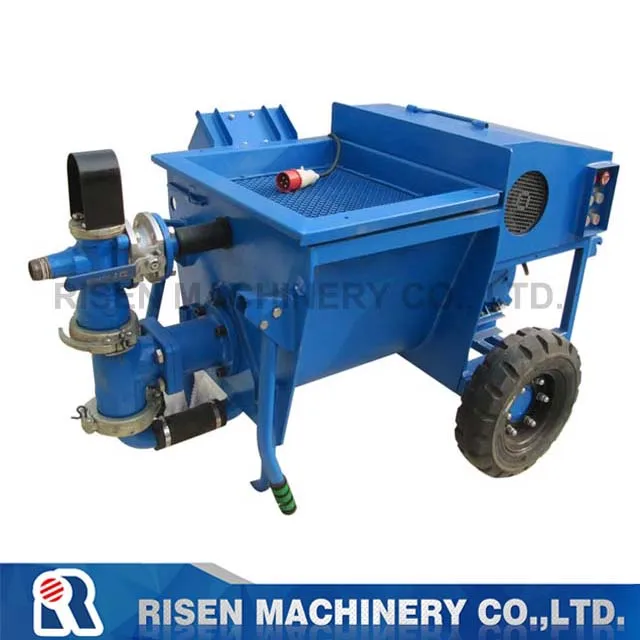

Diesel RISEN RG50/40 mortar grout pump is of single cylinder and single action. It is a mortar grouting / pumping piston pump driven by diesel engine. It is a kind of piston and ball control pump, and the conveying line, piston and cylinder is specially designed and processed. This machine is mainly applied for grouting / pumping the cement slurry or mortar.

Application

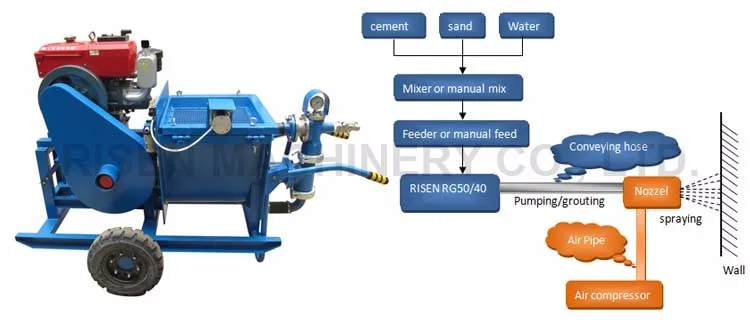

To pump/grout the wet ready-mixed cement slurry, mortar or similar materials in mine gallery, rail and road tunnel, hydropower construction, slope consolidation, underground engineering , subway and civil engineering etc.

\t
SPECIFICATIONS FOR RISEN RG50/40
\t
Engine
\t
Diesel engine power
\t
kW
\t
8.8
\t







Main performance parameters
\t
Output
\t
L/min
\t
50
\t
Cylinder Dia
\t
mm
\t
Φ90
\t
Working Pressure
\t
MPa
\t
4 (40bar,580psi)
\t
Piston Stroke
\t
mm
\t
85
\t
Piston Speed
\t
rpm
\t
95
\t
Inlet Diameter
\t
mm
\t
75
\t
Outlet Diameter
\t
mm
\t
38
\t
Max. Sand Size
\t
mm
\t
5
\t
Suitable Ratio of Cement /Sand:
\t
\t
≥1:3
\t
Overall dimension:
\t
mm
\t
1900*1000*1350 (L*W*H)
\t
Weight
\t
kgs
\t
420

Main Features

\tSingle piston single acting pump.
\tSwitch by ball balve.
\tMechanical transmission, low failure rate.
\tIntegrate pump head and hopper; prevent education and deposition together with the paddle agitating.
\tCompact structure, conveniently for maintaining.

Advantages

\tAdopt separating vibrating sieve, good vibrating and easy to clean and maintenance;
\tShot blasting handling for all the sheet metal parts;
\tAdopt the industrial plug for the safe operation;
\tIP55 100% new electrical motor;
\tElectrical control box manufactured by thicker plate and standard Schneider electrical elements;
\tStandard seal parts to ensure the excellent seal quality;
\tPainted after sandblasting for a pretty appearance;

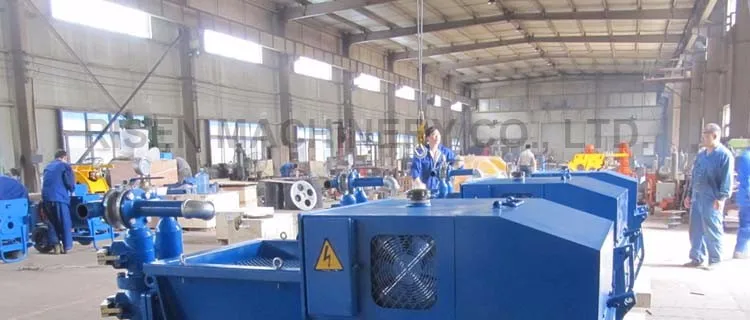

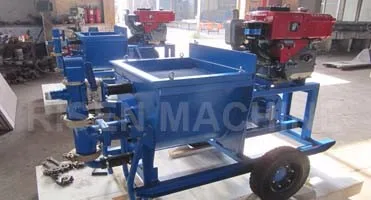

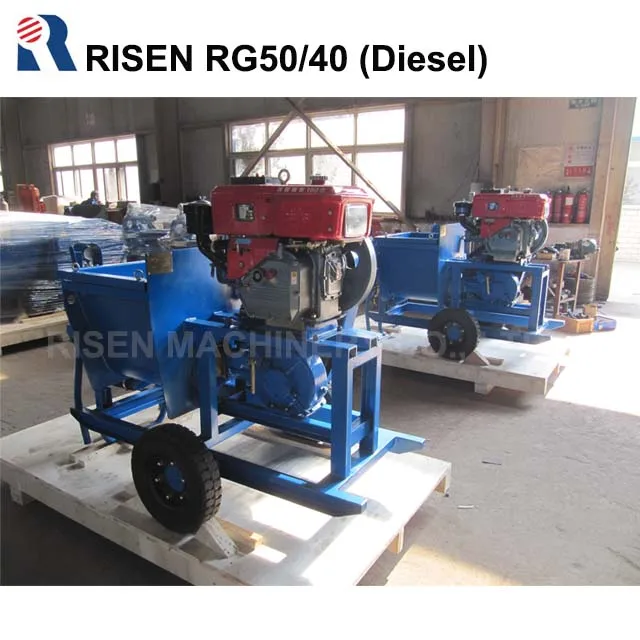

Factory Images

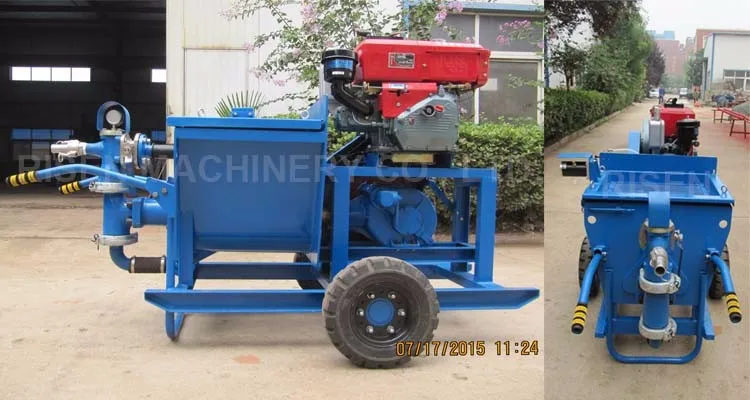

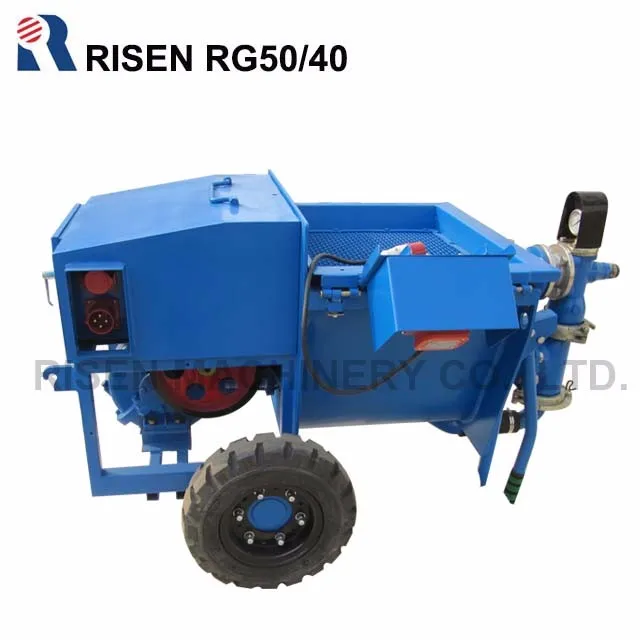

Detailed Images

Machine Features

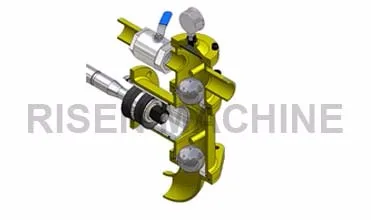

Name: Pump Head Assy.
Brand: RISEN
Original: China
Single-piston pump head, designed by Risen engineers and manufactured in Risen factory against the excellent quality

Main Parts

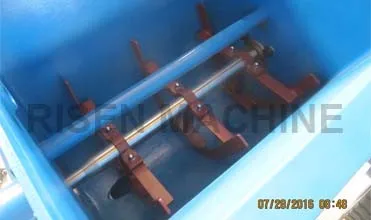

Name: Hopper with Paddle Agitator
Brand: RISEN
Original: China
Made of the thicker steel plate to have a stronger quality; Prevent education and deposition

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
\t
Packaging
\t
Size
\t
210 (L) * 118 (W) * 113 (H)cm
\t
Weight
\t
610KGS
\t



Packaging Details
\t

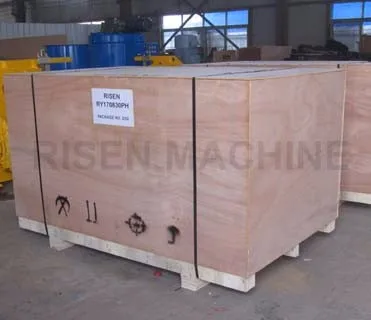

The normal package of one diesel RG50/40 with accessories is one plywood crate (Size: L210*W118*H113cm). If container is too tighter,we will use the pallet for packing or pack it according to customers special request.
