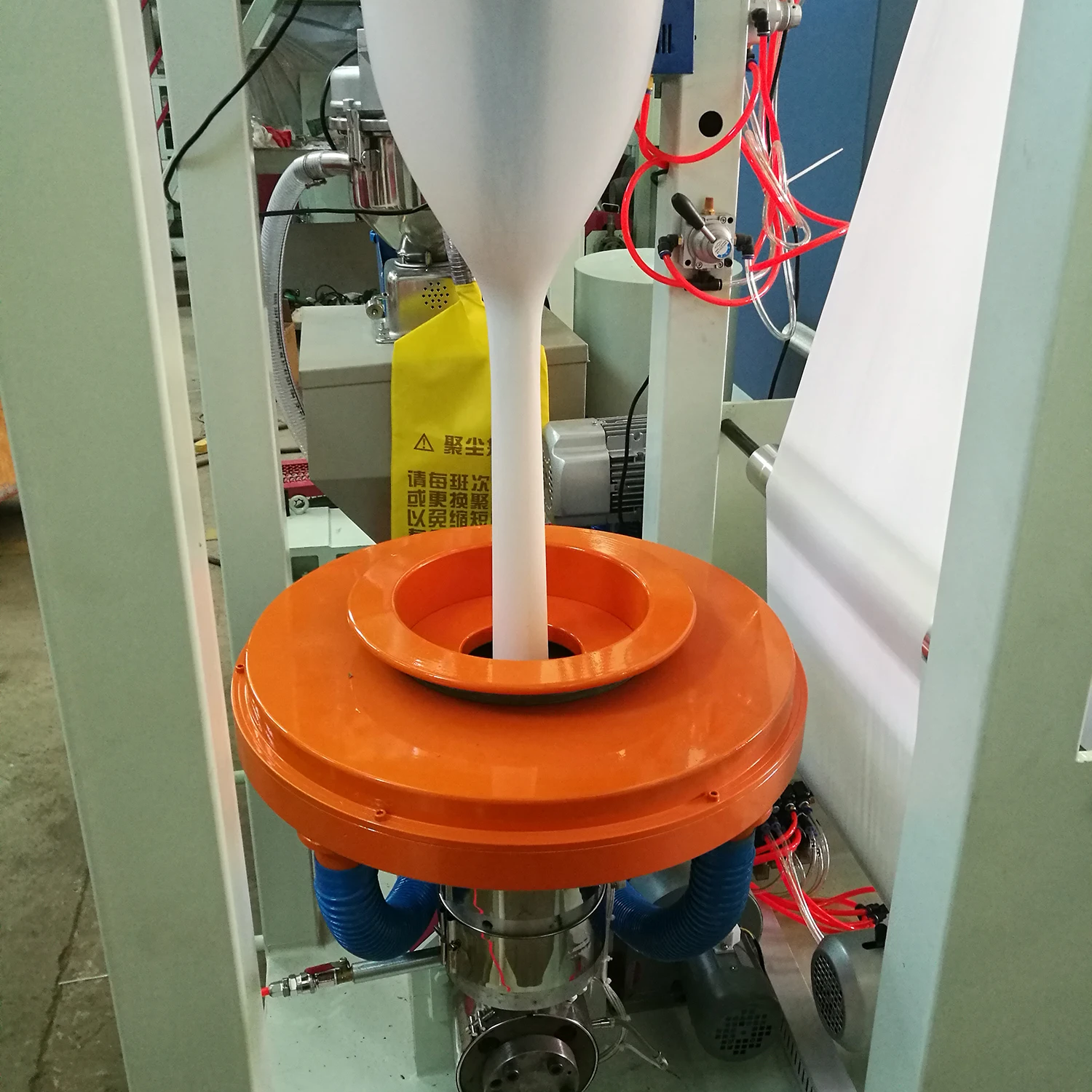

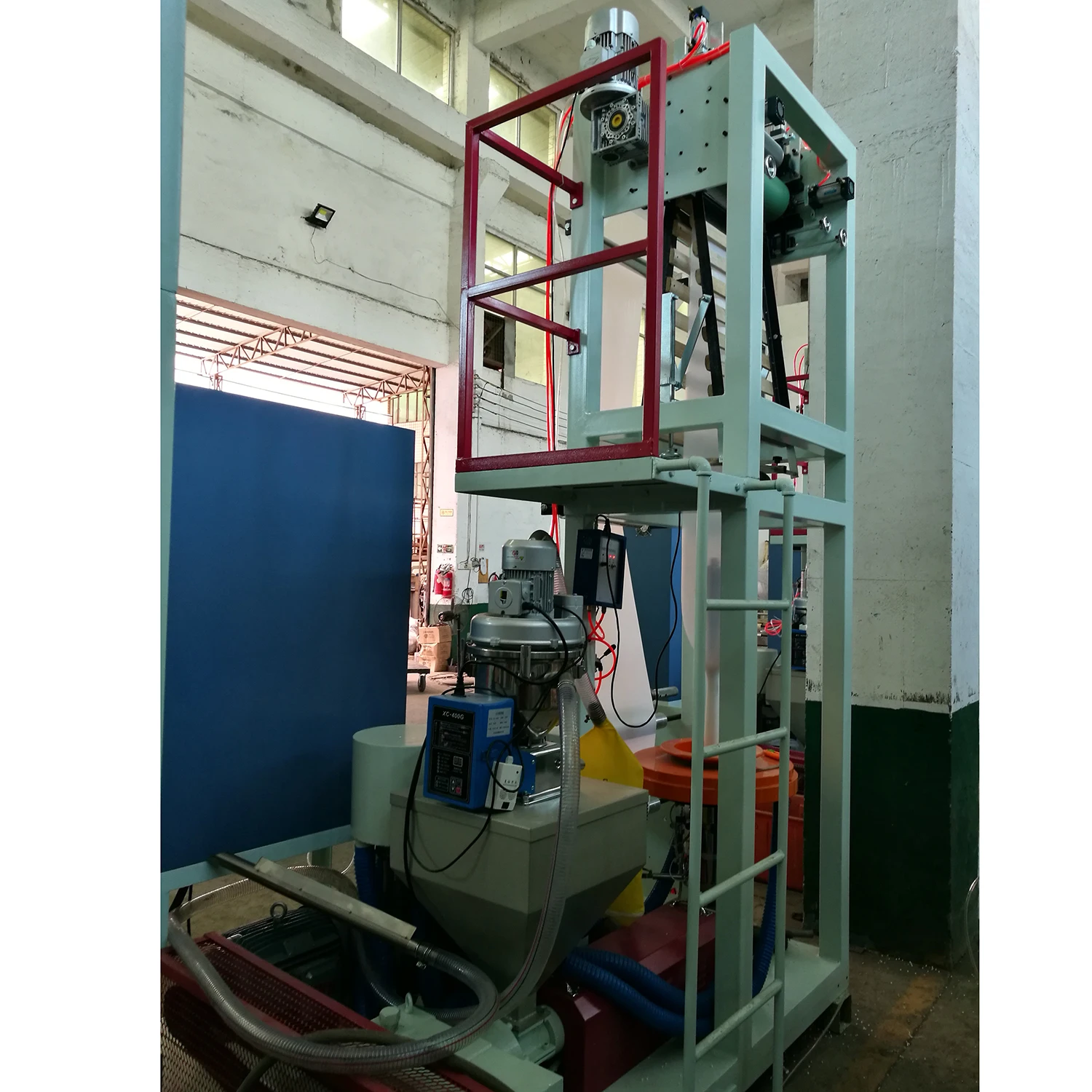

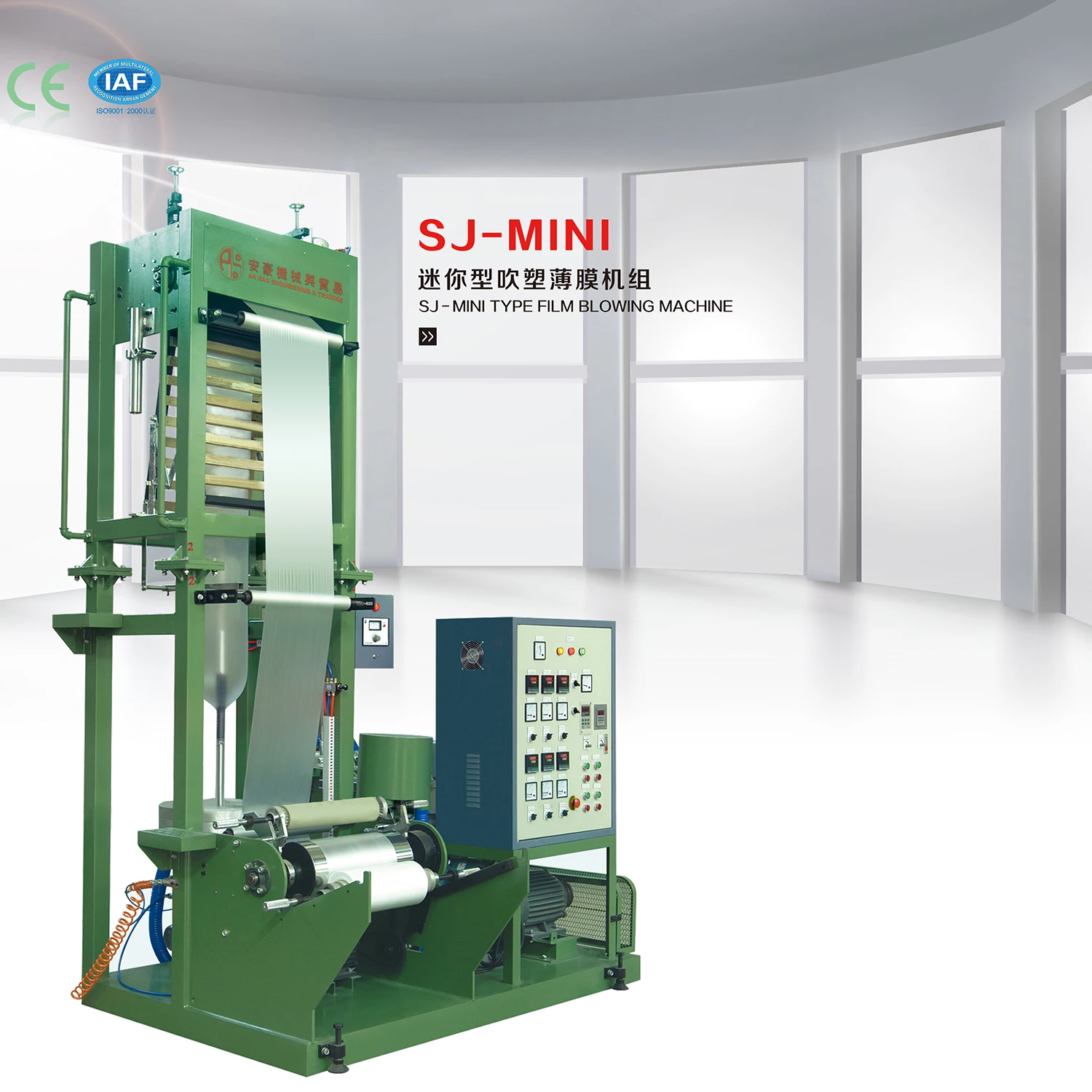

Latest Mini Type PE Film Blowing Machine

Product Overview

Description

Features:

The  Film Blowing Machine  is employed to produce plastic film made of LDPE, HDPE, LLDPE and mLLDPE. The products are widely used in application of package of civil and industrial products such as food, garment, textile and daily necessities etc. It is the ideal choice for small sizes products.





 Main Technology Parameters:

1) LAYER NUMBER: one layer

MAX. FILM WIDTH: 400mm

FILM THICKNESS: 0.008-0.10 mm

RAW MATERIAL: HDPE/ LDPE/LLDPE

Output: 15~20kg/h



2) EXTRUDER:

SCREW DIAMETER: Φ35mm

SCREW L/D: 28:1

HEATER CAPACITY: 8.3 kw

DRIVING MOTOR: 5.5kw



3) DIE:

DIE DIAMETER: HDPE Φ30mm, Φ50mm,LDPEΦ100mm

HEATER CAPACITY: HDPE: 3.45KW, LDPE: 3.45KW

COOLING AIR BLOWER:  1.5kw



4) HAUL-OFF:

DRIVING MOTOR: 0.75 KW

TAKE-UP SPEED: 10-70 m/min

WINDER DRIVE MOTOR: 1.5 KW

TEMPERATURE CONTROL: 6 units

WHOLE POWER WITH TOTAL MACHINE: About 23 KW

SHAPE SIZE: (L x W x H) 3.5 X2.5X3.0m

WEIGHT: About 1500KG
