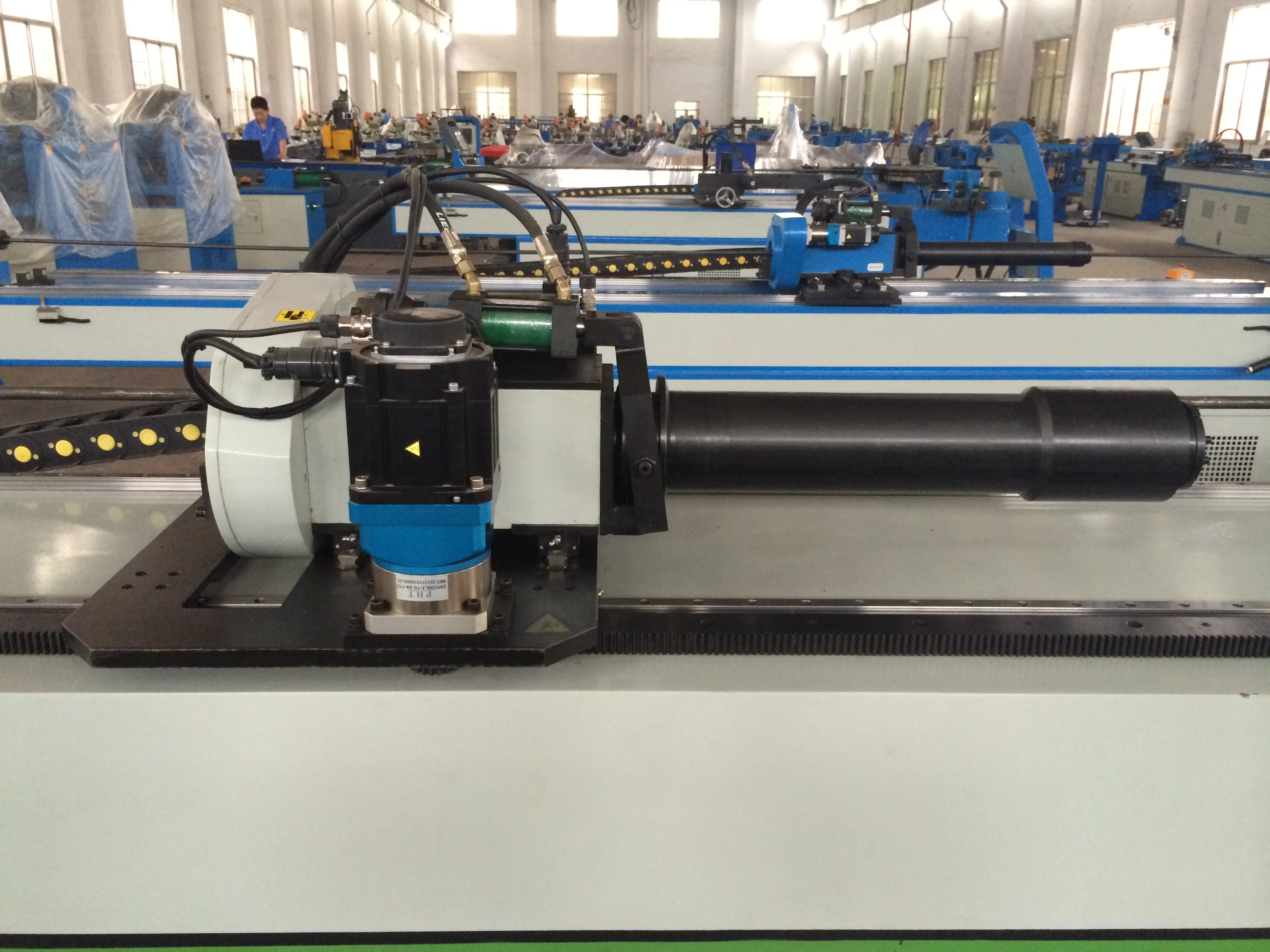

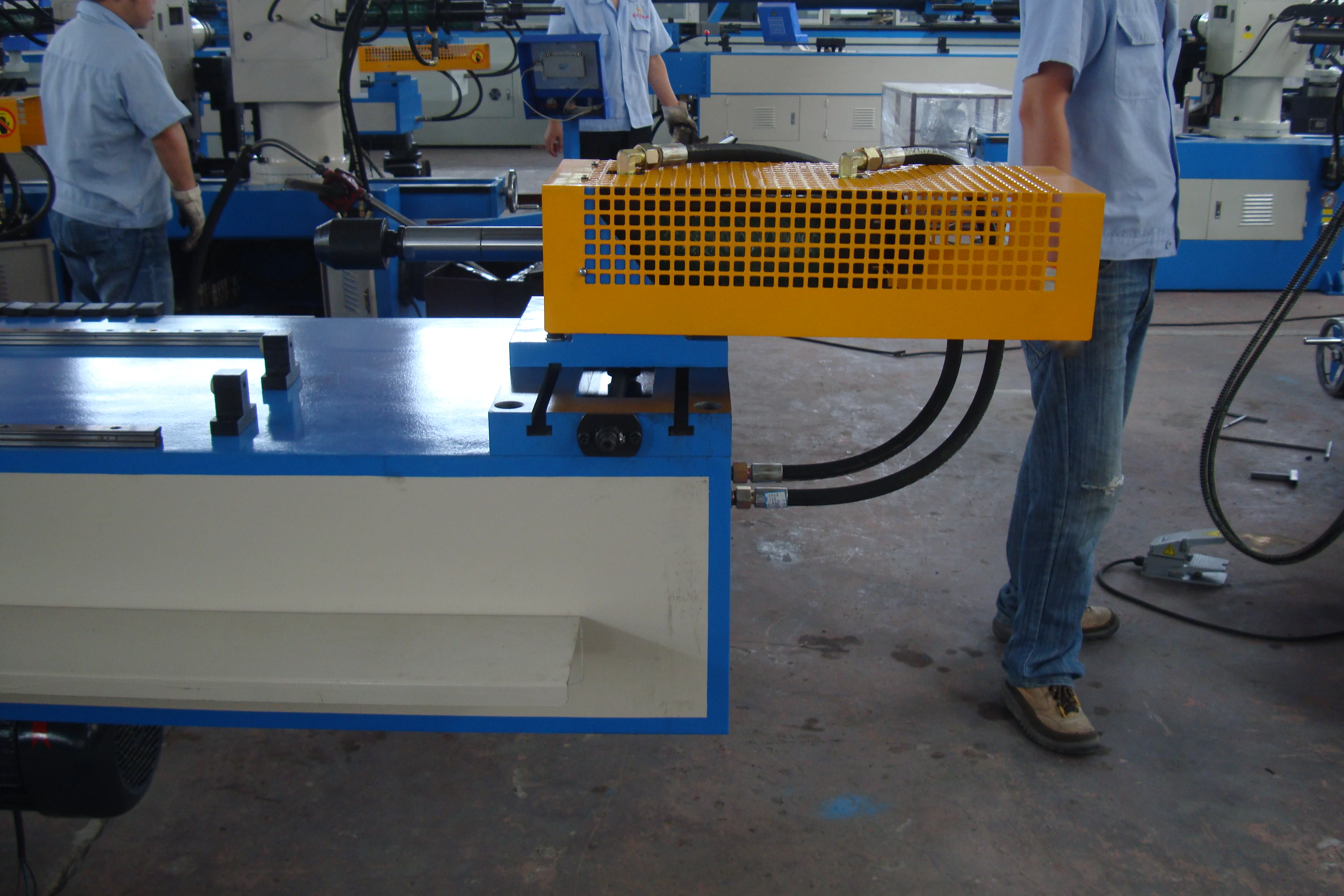

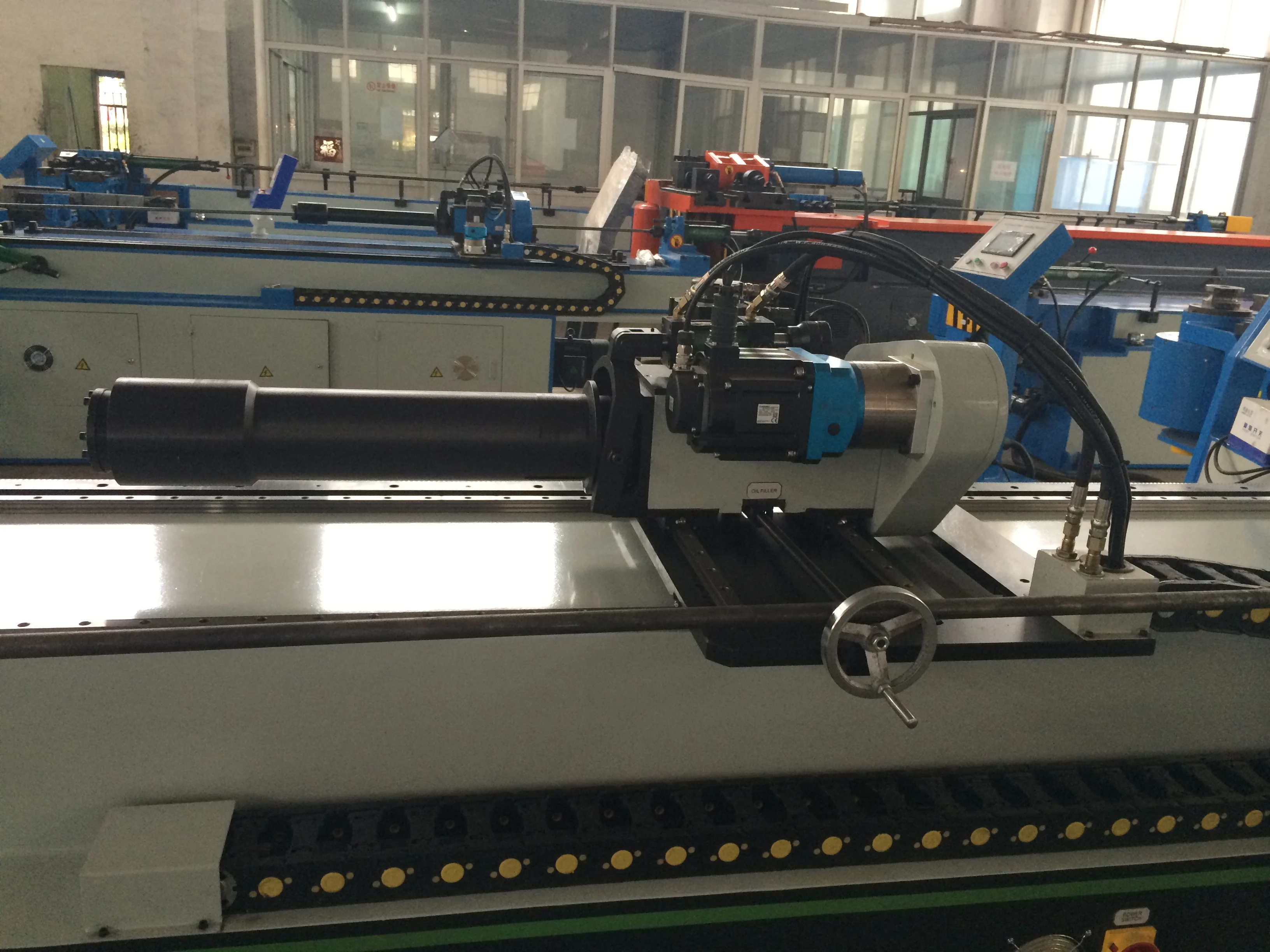

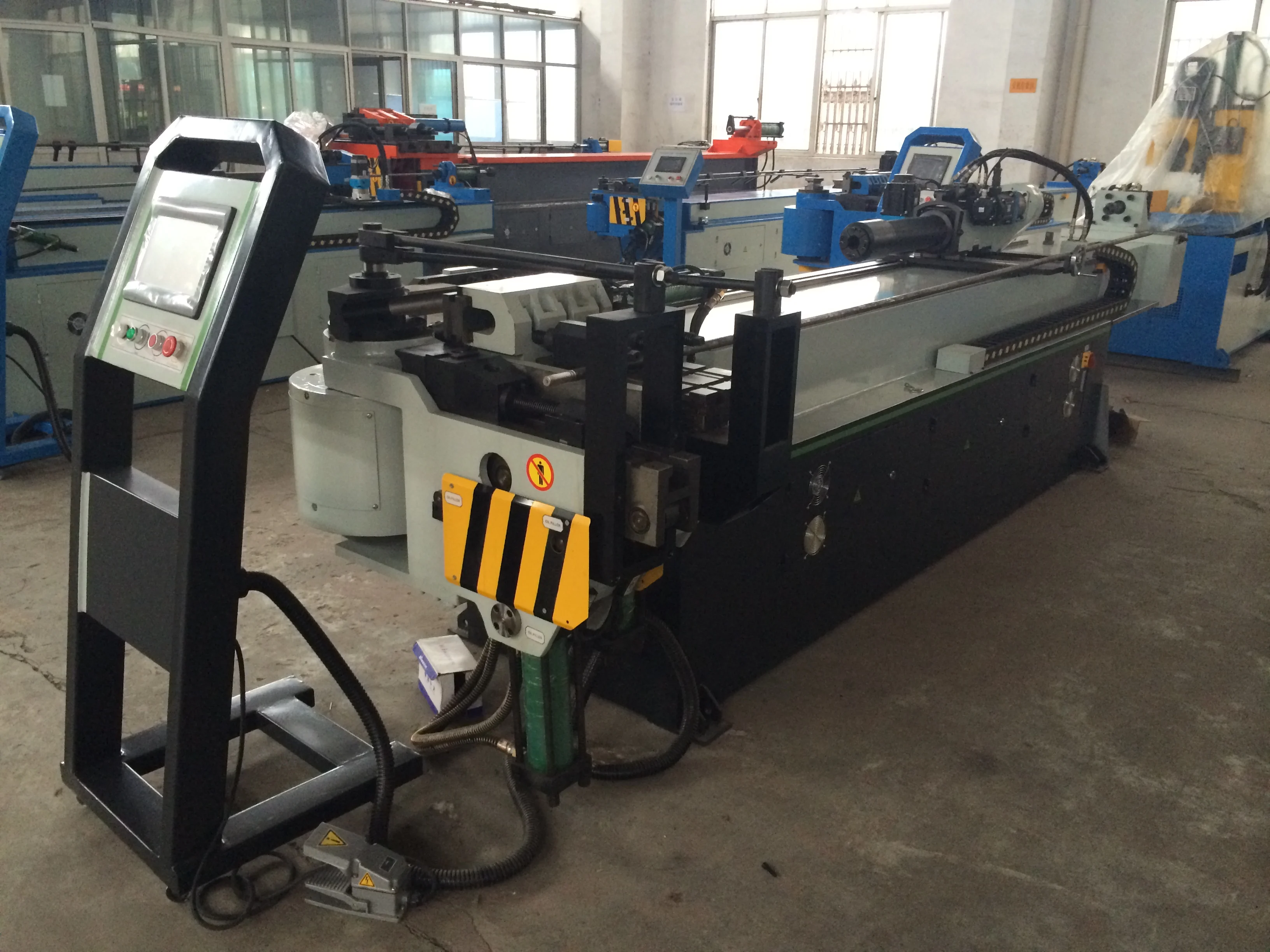

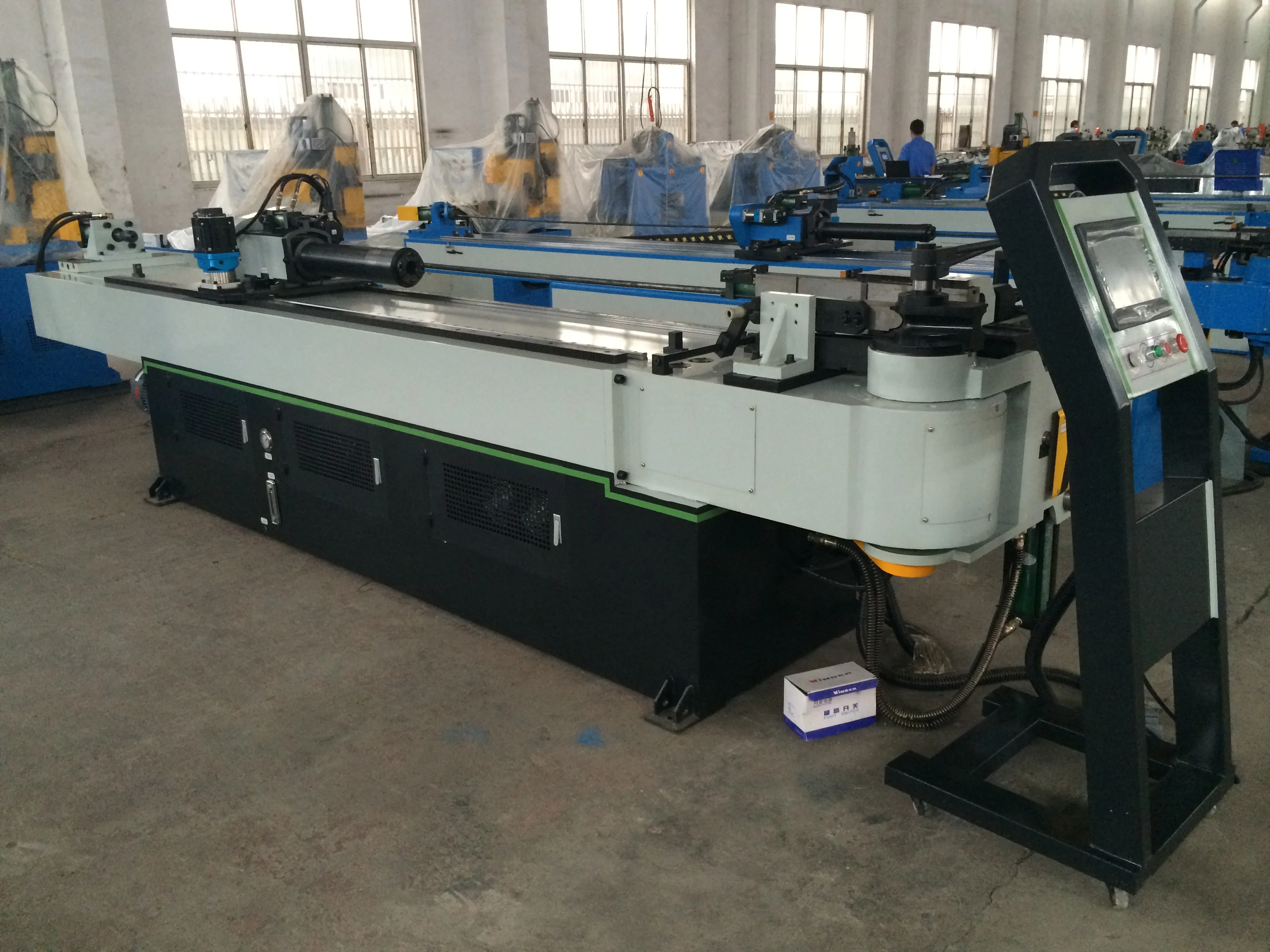

Technical Parameter and Configuration for Automatic Pipe Bending Machine GM-SB-76CNC
CNC Series numerical control single-head pipe bending machine is the product from the combination with our technology and advanced Italian technology, integrated with machine, hydraulic, and electricity.
- Main Technical Parameter
Name | Unit | Parameter |
Max. Bending Capacity | mm | 76*4 |
Bending Radius Range | mm | 30-350 |
Max. Bending Angle | ° | 190 |
Bending Speed | °/sec | 30 |
Turning Speed | °/sec | 160 |
Feeding Speed | mm/sec | 800 |
Bending Precision | ° | ±0.10 |
Turning Precision | ° | ±0.10 |
Feeding Precision | mm | ±0.10 |
Turning Servomotor Power | kW | 1 |
Feeding Servomotor Power | kW | 1.5 |
Though Effective Distance | mm | 2500 |
System Motor Power | kW | 7.5 |
Max. Pressure | Kg/cm | 160 |
Oil Pump Delivery Volume | L | 25 |
L*W*H (Packaging Dimension) | mm | 5000*1200*1350 |
Weight | T | 3.5 |
- Configuration of Hydraulic and Electronic Control System
Name | Manufacturer |
Hydraulic Motor | Taiwan Xianma,Taiwan Guangyuan( Imported) |
Hydraulic Pump | Yuken,HYDROMAX(Imported) |
Hydraulic Valve | American Bestar,Taiwan CHIYOUNG(Imported) |
Oil way Board | Taiwan Shanghong (Imported) |
Cylinder | Taiwan Hisaoka(Imported),Shanghai Jingsheng |
Oil tube | Taiwan TATUNG(Imported) |
Industrial Computer | Taiwan |
Angle controller | Japan NEMICON(Imported) |
Switch power | Taiwan Mean Well(Imported) |
Turning Servomotor | Panasonic,Delta(Imported) |
Contactor | Taiwan SHIHLIN(Imported) |
Other Electric Parts | Taiwan SHIHLIN,German SCHNEIDER(Imported) |
