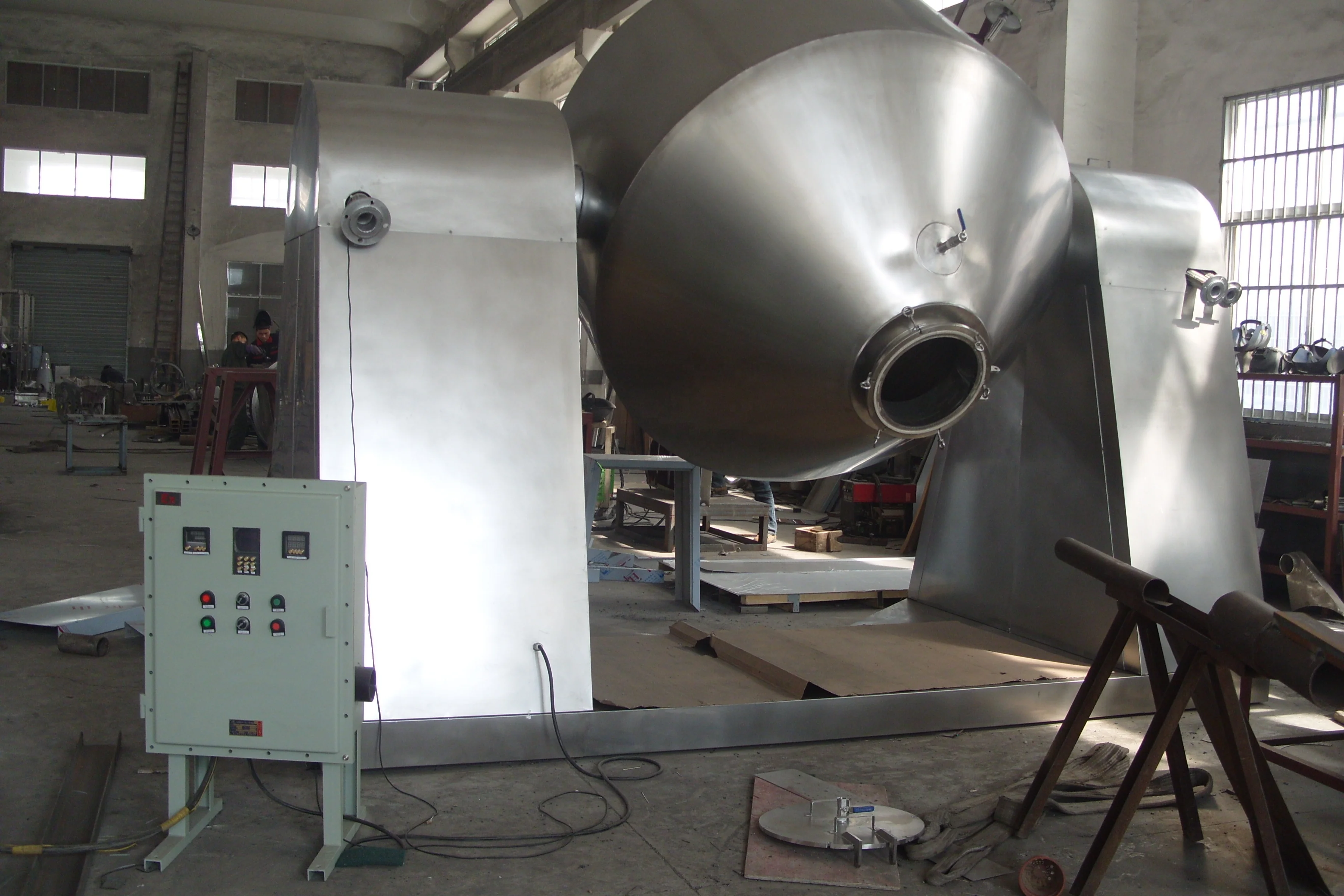

Ротационная коническая Вакуумная сушилка
- Category: Vacuum Drying Equipment >>>
- Supplier: Jiangyin Lingling Machinery Manufacturing Co. Ltd.
Share on (475926604):
Product Overview
Description
Product Description
This vacuum dryer can be widely used for drying or mixing powder or granule materials in pharmaceutical, chemical, foodstuff industries etc. It is especially suitable for the following materials:
Heat sensitive materials
Materials that is easy to oxidize and have dangerous
Materials that solvent and toxic gases are need to recover
Materials that have special requirement of crystal form.
Materials that have special requirement for the content of residual volatile.
The heat source are : steam, hot water and conduction oil.
technical parameter
Model | SZG-100 | SZG-350 | SZG-500 | SZG-750 | SZG-1000 | SZG-1500 | SZG-2000 | |
Total volume (L) | 100 | 350 | 500 | 750 | 1000 | 1500 | 2000 | |
Loading volume (L) | ≤50 | ≤ 175 | ≤ 250 | ≤ 375 | ≤ 500 | ≤ 750 | ≤ 1000 | |
Rotary speed (r/min) | 3-13 | |||||||
Motor power (kw) | 0.75 | 1.1 | 1.5 | 2 | 3 | 3 | 4 | |
Rotary height (m) | 1.75 | 2.1 | 2.25 | 2.49 | 2.8 | 2.94 | 2.99 | |
Tank inner pressure (Mpa) | -0.1-0.15 | |||||||
Clip set pressure (Mpa) | ≤ 0.3 | |||||||
Working temp.(°C) | Inner tank ≤ 85 Clip set ≤140 | |||||||
Heating media | Steam, Hot water, Heat transfer oil | |||||||
Weight (kg) | 800 | 1100 | 1200 | 1500 | 2800 | 3300 | 3600 | |
Floor area (L*W) | 2160*800 | 2260*800 | 2350*800 | 2550*1000 | 2860*1300 | 3260*1400 | 3760*1800 | |
Packaging & Shipping
use the wood case as package, shipping : by sea, LCL, FCL
