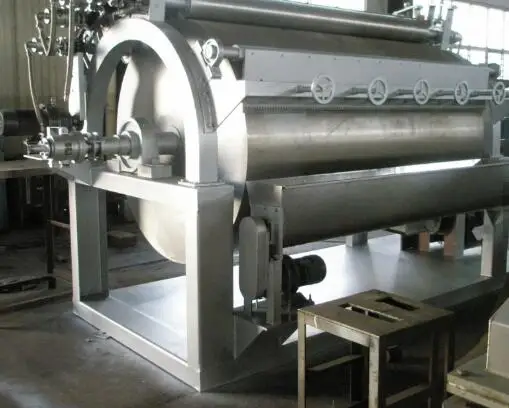

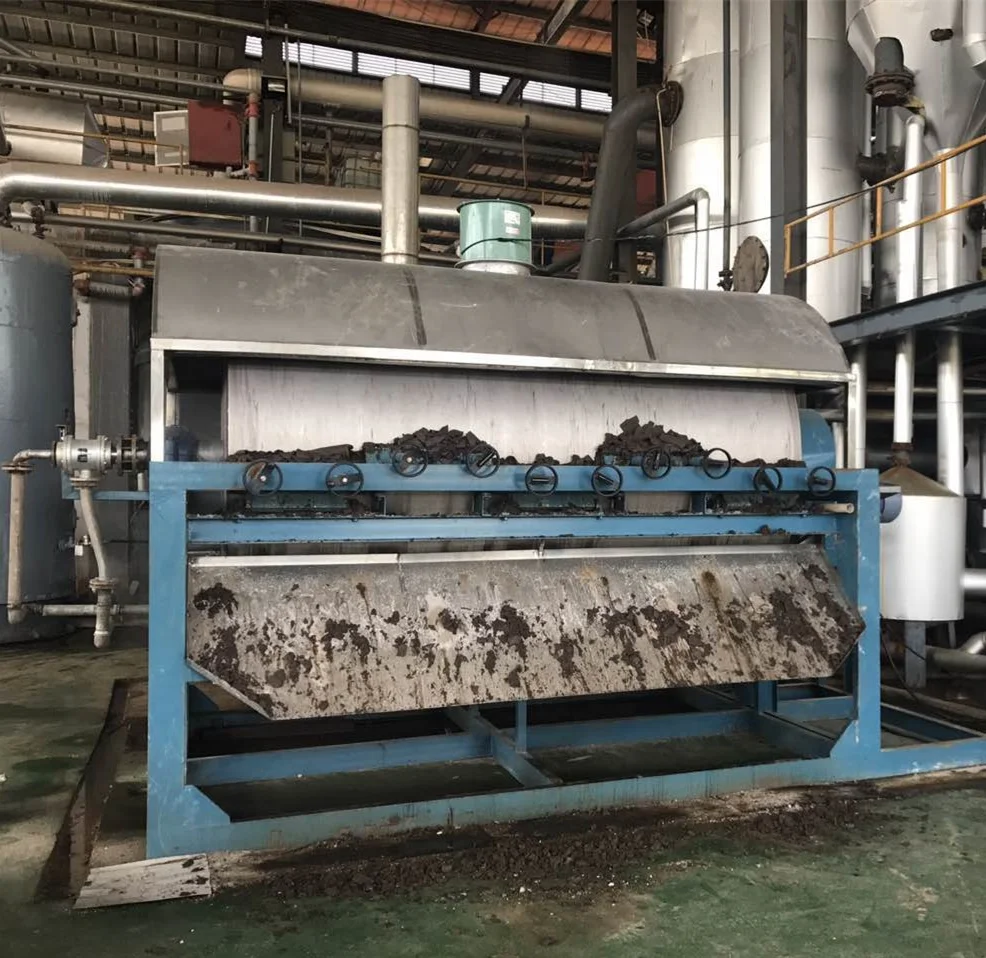

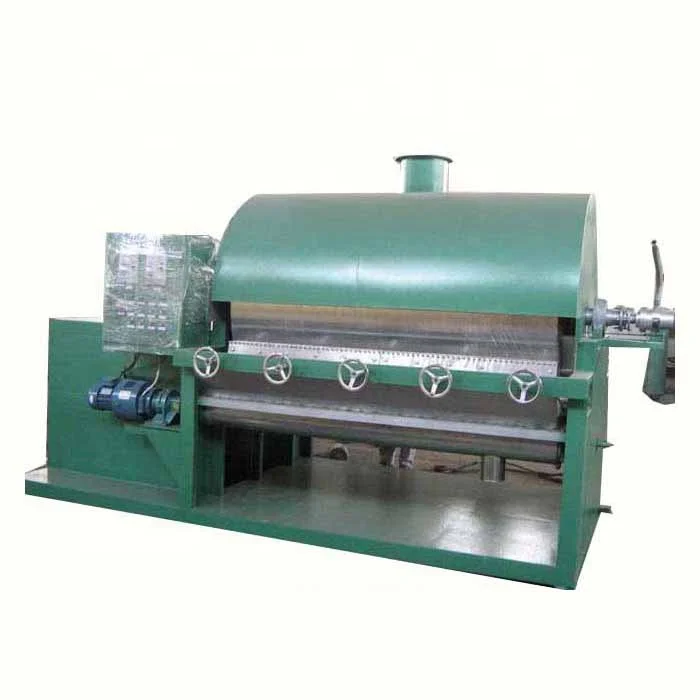

HG rotatary scraper roller drying machine is a kind of rotating continuous drying equipment with internal heating conducting-style. Certain thickness of materials film attach to the drum from material liquid vessel under the drum. Heat is transferred to the internal wall of the cylinder through pipes and then to the external wall and to materials film, to evaporate the moisture in materials film so as to dry materials. Dried products are then scraped off by the blade fitted on the surface of the cylinder, fall down to the spiral conveyor under the paddle, and are conveyed, collected and packed.
Scope of application:
It is suitable for drying liquid raw material or sticky material in chemical industry, dyestuff industry, pharmaceutical industry, foodstuff industry, and metallurgy industry and so on.
It is inner heating conductive drying equipment; the wet materials gain the heating from the wall of the roller to dehydrate the water. The heating is transferred from the inner roller wall to the outer wall and then goes through the film. The thermal efficirncy is very high, so it can be continuously operated. It is widely used for drying liquid or paste materials.
1. High thermal efficiency. The principle of heat transfer of rotary dryer is heat conduction which heat conducting direction keeps identical with operation cycle. Except cap heat dissipation and radiation loss, all heat energy can be used for evaporating wet materials on the wall of roller. Thermal efficiency could reach 80%-90%.
2. Large operation elasticity and wide application. Various drying factors of the rotary drier can be adjusted, such as density of feeding materials, thickness of materials film, temperature of heating medium, rotating speed of roller etc, which can change drying speed. As these factors have no interrelations with each other, it brings great convenient to dry operation, and makes it applicable to suit various materials and to meet different requirement of production.
3. Short drying period. The drying period of material is normally 10 to 15 seconds, so it is suitable for heat-sensitive material. It can be also working under less pressure condition if it is put in vacuum device.
4. Drying rate is very quick. As material film coated on the wall of roller is very thin. Normally thickness is 0.3-1.5 mm, plus heat and mass transfer direction are identical, the evaporation capacity on the surface of film can keep at 15-70kg.H2O/m2.h.
Product technical parameter:
1.We will provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
2. Consultant services for whole machine life, 24 hours technical support by email and telephone.
3.Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
