Price:$25,000.00

Quantity:


Product Overview

Description


Product Description

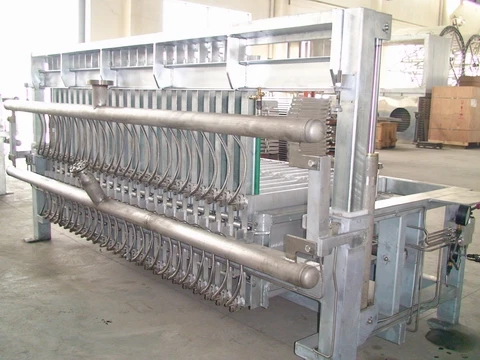

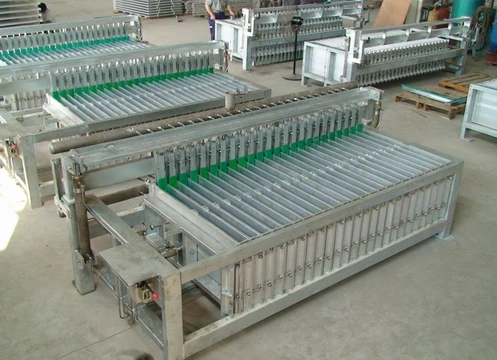

Vertical plate freezer is used for fast freezing seafood, meat solids, high liquid content or water based solids, fruit juices and fruit pulps in bulk on land or on vessel.

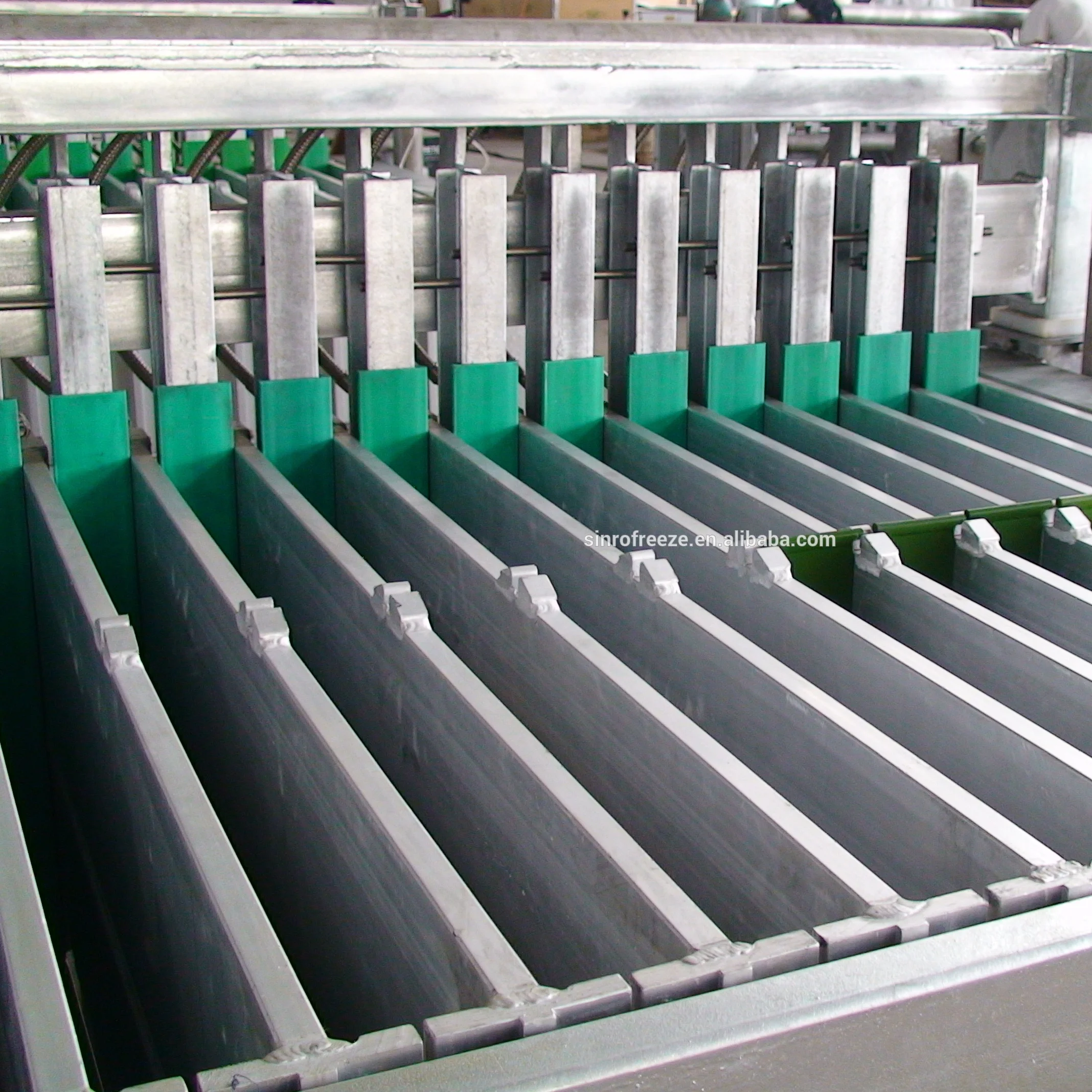

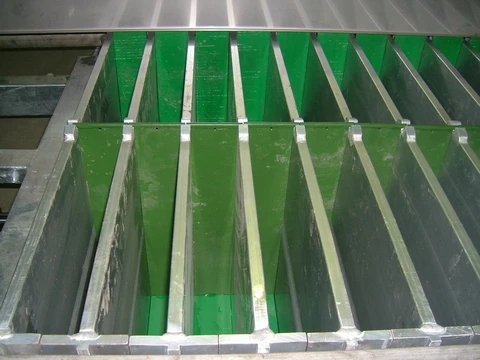

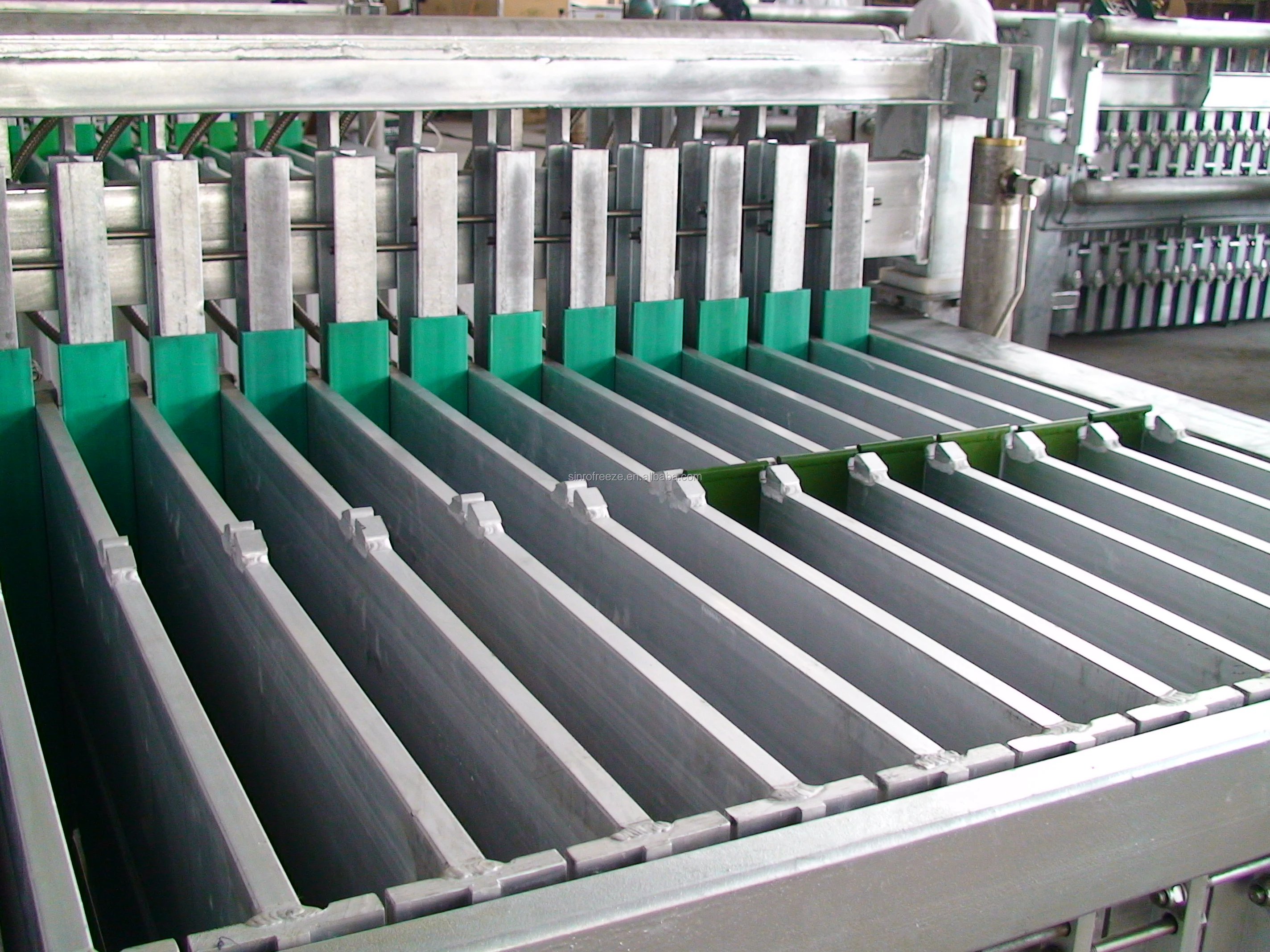

Products are simply placed or poured into vertical pockets between aluminum freezing plates. After freezing, the blocks can be unloaded by defrosting and lifting the products. Within minutes the cycle can begin again.
Main features
Aluminum alloy extrusion plates. Hygeian and long lasting.
High strength galvanized frame.

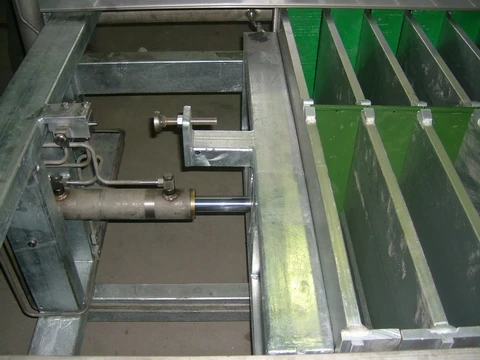

Main features

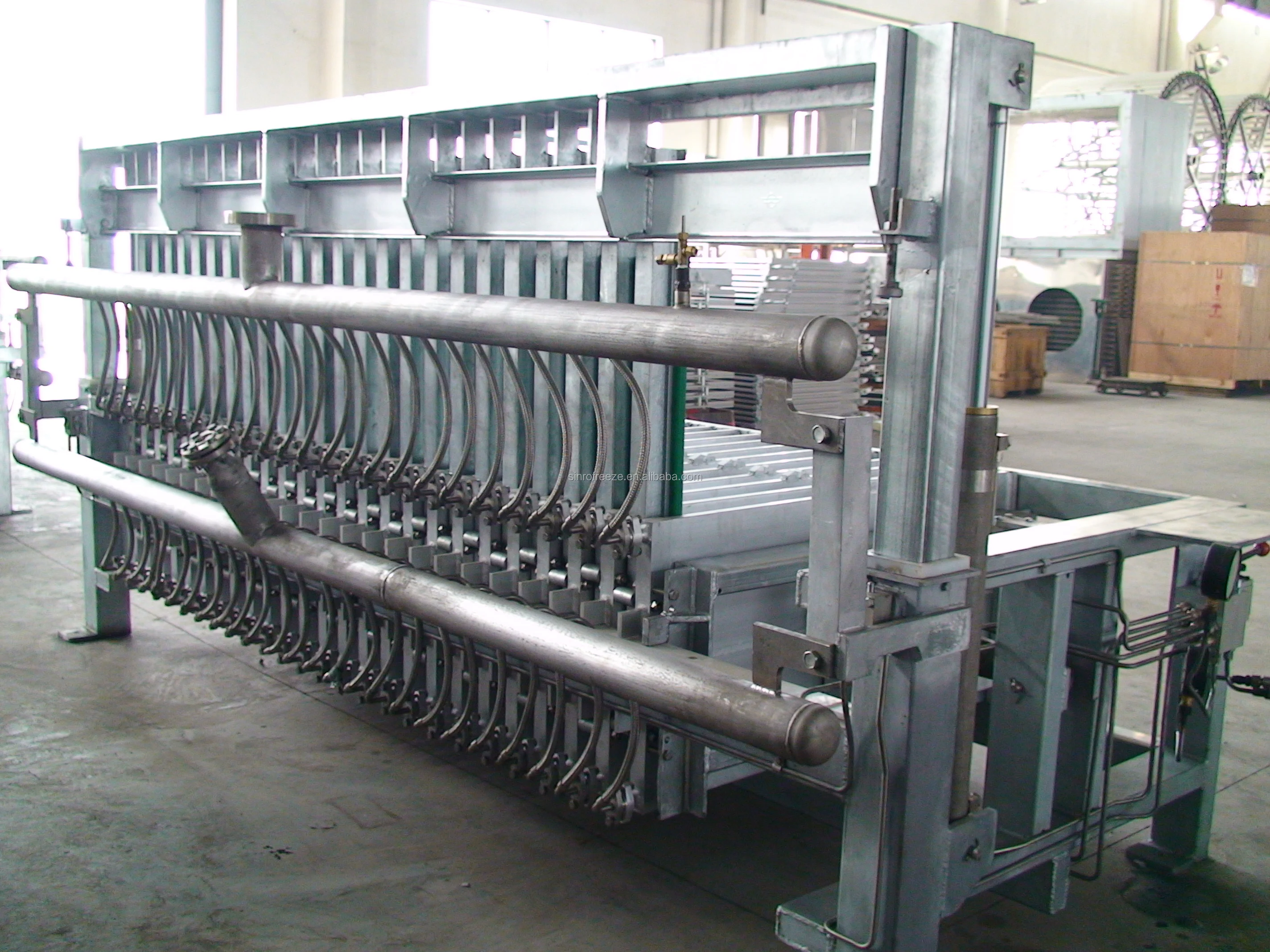

Stainless steel cylinder and hoses. Long lasting.

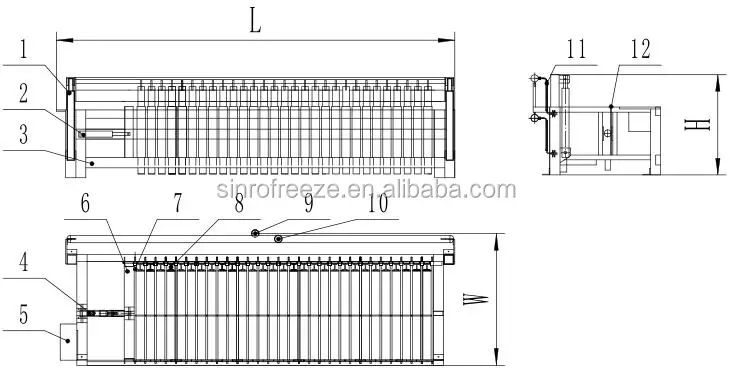

1. Lifting cylinder
2. Clamping cylinder
3. Supporter
4. Switch
5. Integral valve
6. Plate tractor
7. Evaporating aluminum plate
8. Product holder
9. Liquid supply pipe
10. Suction pipe
11. Metal hose
12. Block clapboard
Size Information
Model
Freezing capacity
(kg/batch)
Plate no.
Tier pitch
(mm)
Refrigeration capacity
(kw)
Overall dimension
(mm)
LA15-75
600
16
75
29
2500×1500×1200
LA20-75
800
21
75
38
3000×1500×1200
LA25-75
1000
26
75
47
3500×1500×1200
LA32-75
1280
33
75
61
4300×1500×1200
LA12-100
600
13
100
29
2500×1500×1200
LA16-100
800
17
100
38
3000×1500×1200
LA20-100
1000
21
100
47
3500×1500×1200
LA26-100
1300
27
100
62
4300×1500×1200
Related Products
Company Introduction
Nantong Sinrofreeze Equipment Co., Ltd. was established in 2005. SINROFREEZE is a company engaged in designing, manufacturing, selling, maintaining and assembling of food freezing equipments and complete sets of refrigeration units.
SINROFREEZE provides products and after-sell service to different application customers include seafood, meat and poultry, pastry, diary foods, fruits and vegetable and refrigeration field.

FAQ
Q1. When can I get the price ?
A1: We usually offer the quotation within 1-2 work days after receiving your detailed inquiry.
Please provide detailed requirements like the capacity, freezing product, block size, inlet &outlet temperatures, refrigerant and other special requirements if any.

Q2. What is the Trade Term?
A2: We accept Ex-work factory , FOB Shanghai, CNF or CIF, as your requirement.

Q3. How long is the production time?
A3: 30days after receiving down payment or Letter of credit.

Q4 .What is the Payment term?
A4: By 100% T/T before shipment or By L/C at sight.

Q5. What are your terms of packing?
A5: Packing: export worthy package suitable for container transportation.

Q6. Do you test all your goods before delivery?
A6: Yes, we have 100% test before delivery.

Q7: Where is your factory located?
A7: Our factory is located in Nantong, Jiangsu province.

Q8: What is your warranty?
A8: Warranty: 12months after commercial running.

Q9: Can you arrange thirty party pre-shipment inspection
A9: Pre-shipment inspection: Supplier’s pre-shipment inspection is Final; pre-shipment inspection by third Party on buyers cost.

Q10: Can we do our OEM logo?
A10: Yes, for the products with drawing supplied by you, we of course apply your logo
