Top Quality Single Component Polyurethane Injection Pump for Professional Contractors

Product Overview

Description

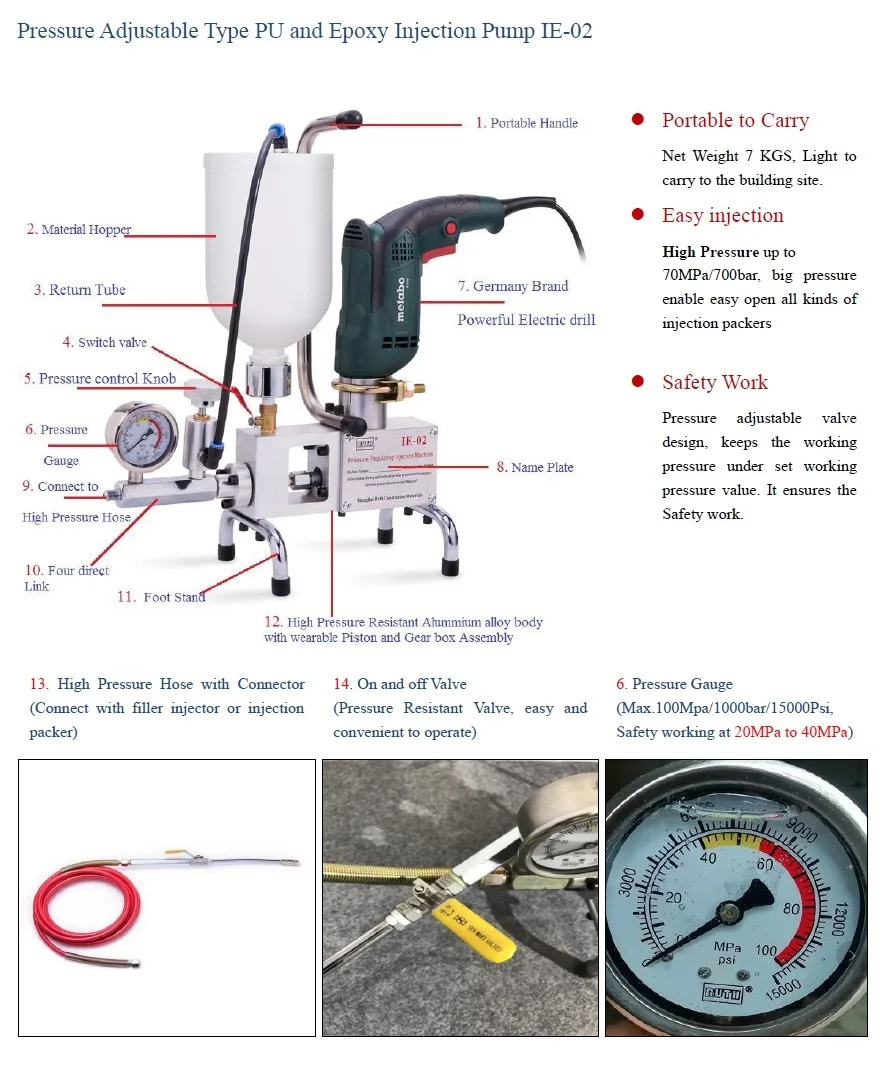

Portable construction Resin Injection grout pump



Product Description

1. Item: IE-02


2. Weighing 9 KGS,portable, easy to carry & maintain, maximum output pressure up to 70MPa.


3. Injection pressure:0-70Mpa(8000-10000Lb)


4. One ways of material feed-in: pour

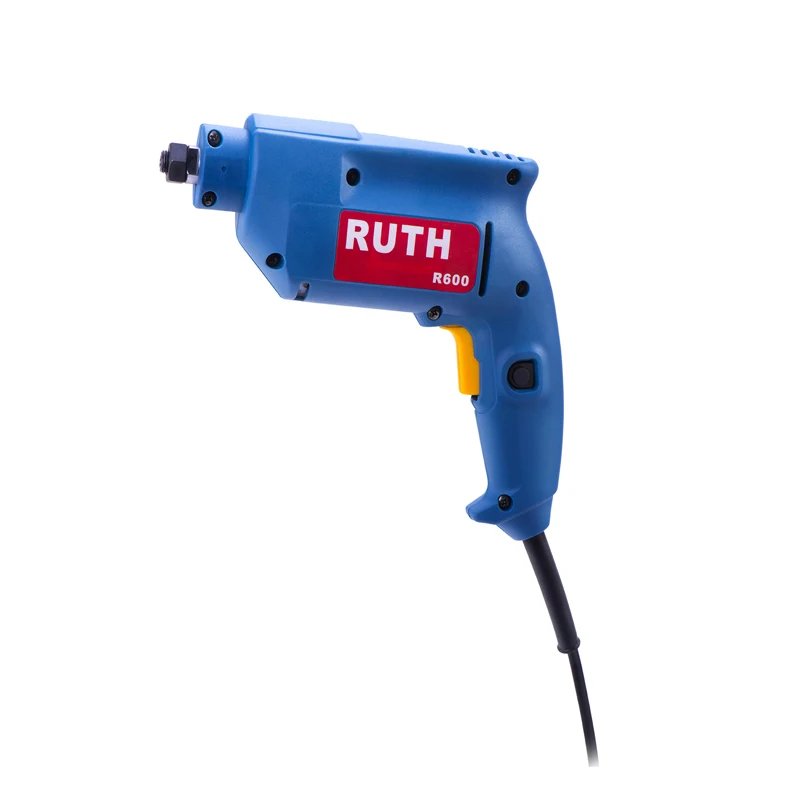

5. The Drill Brand is Matabo. The power consumption:560W/220V

Material of application

WPU and OPU foam stop leakage agent, Epoxy resin.



Application Field

Subway Station, Tunnel, Culvert, Foundation Improvement, Soil Settlement, Reservoir, Port Project, Top Slab, Crack, Construction Join, Shrinkage Crack, Basement hairline crack etc. water stop projects.



Specification



Weight	9 kg
Maximum output pressure	70MPa
Pressure of restarting	less than 20 MPa
Safe range of high-pressure hose	less than 70 MPa
Safe range of switch valve	less than 50 MPa

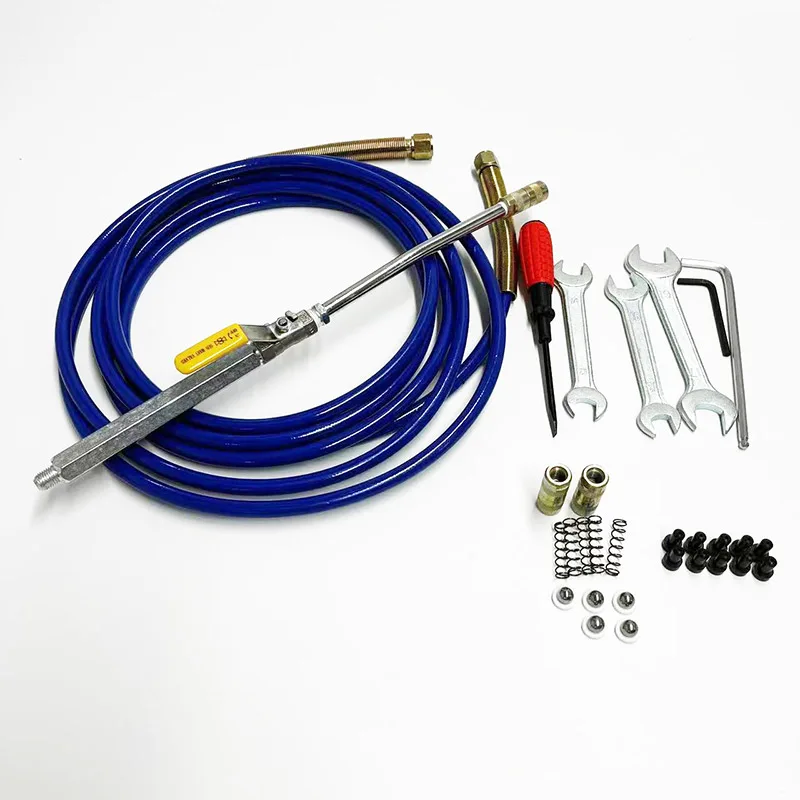

Full set of machine include:

1. The machine

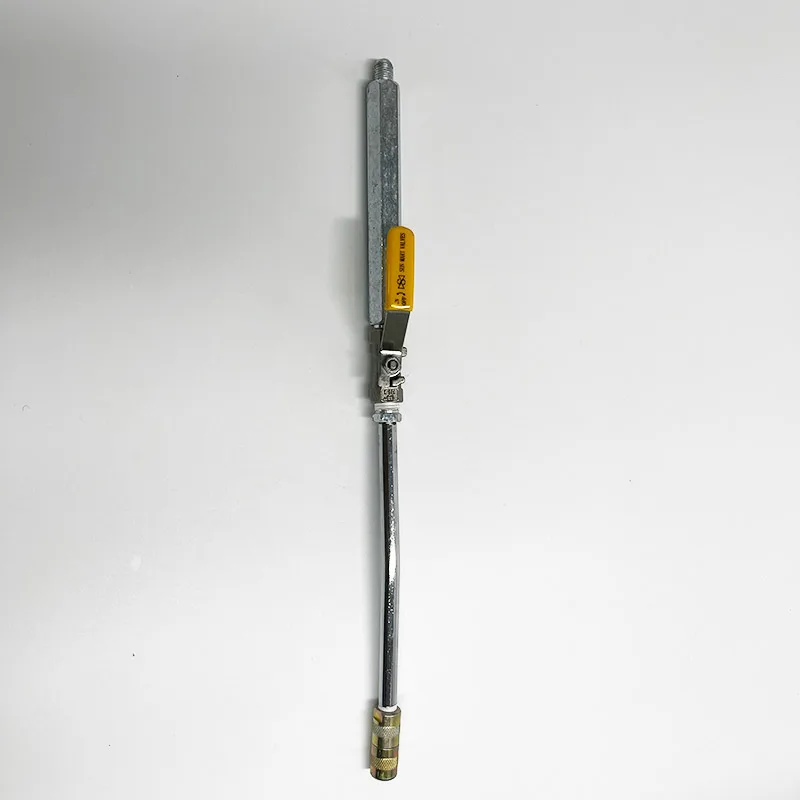

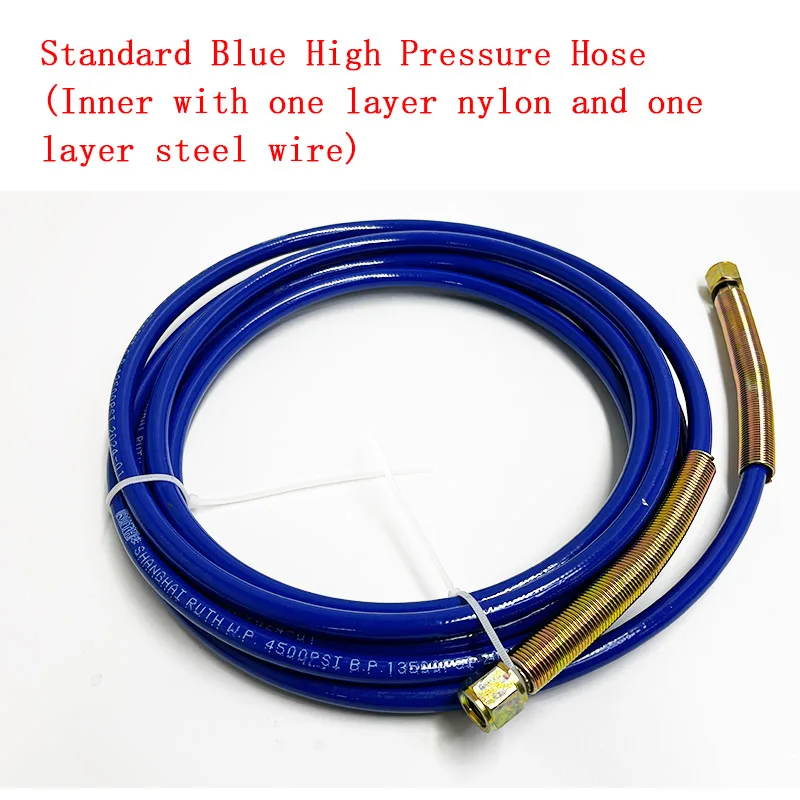

2. Accessories, including high pressure hose(4.5m), on&off valve, grease head.


3. Standby tools



NOTE:

We are speicalize in the whole series of water stop system: high pressure injection pump, injection packer,  Polyurethane grouting material,  epoxy injection resin, etc.
