30N 6.6Lb Digital Push Pull Force Gauge With Clamp Manufacturer
US $15000-$155000
Аналоговый датчик силы серии SN/SKN
- Category: Force Measuring Instruments >>>
- Supplier: Wenzhou Sundoo Instruments Co. Ltd.
Share on (494308655):
Product Overview
Description
Product Description

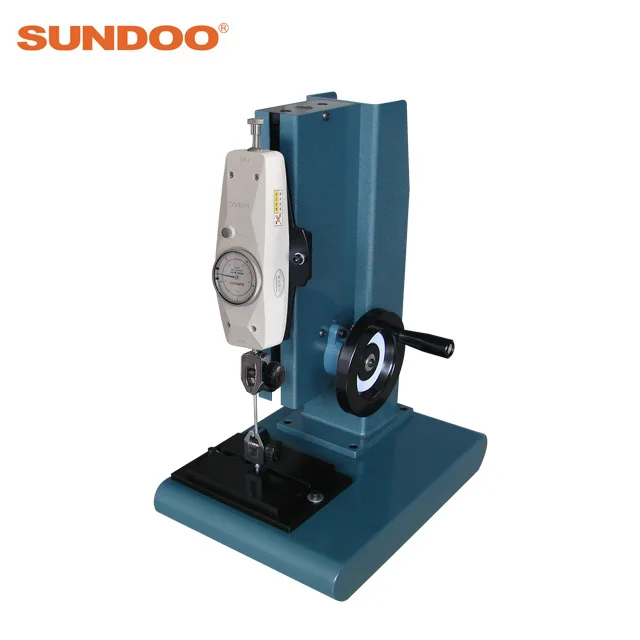

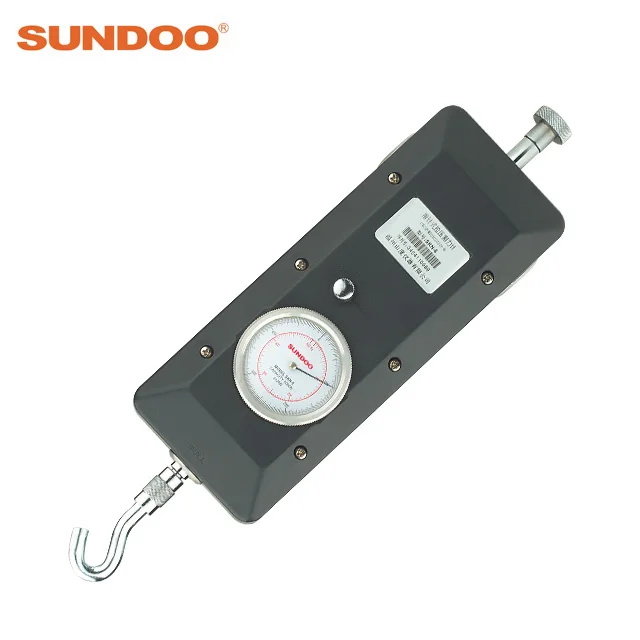

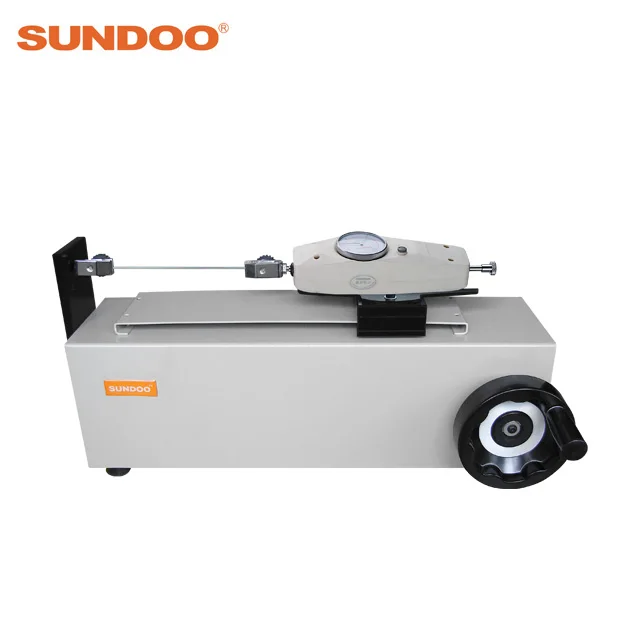

SN/SKN Series Analog Force Gauge with compact size and high accuracy could perform for tension and compression force measurement,combined with test stand and clamp together.
Product Features
1. Real-time value and peak-hold function
2. Tolerance indicator, upper and lower limit setting
3. N and kgf units display on the dail at the same time
Product Parameter
Model | SN-10 | SN-20 | SN-30 | SN-50 | SN-100 | SN-200 | SN-300 | SN-500 |
Capacity | 10N | 20N | 30N | 50N | 100N | 200N | 300N | 500N |
Resolution | 0.05N | 0.1N | 0.2N | 0.2N | 0.5N | 1N | 2N | 2N |
Accuracy | ±1% FS | |||||||
Dimension | 232*60*51mm | |||||||
Weight | About 0.6kg | |||||||
Model | SKN-1 | SKN-2 | SKN-3 | SKN-5 |
Capacity | 1000N | 2000N | 3000N | 5000N |
Resolution | 5N | 10N | 20N | 20N |
Accuracy | ±2%FS | |||
Dimension | 290*94*70 mm | |||
Weight | About 3.5kgs | |||
Product Structure
Product Package
