Product Overview

Description

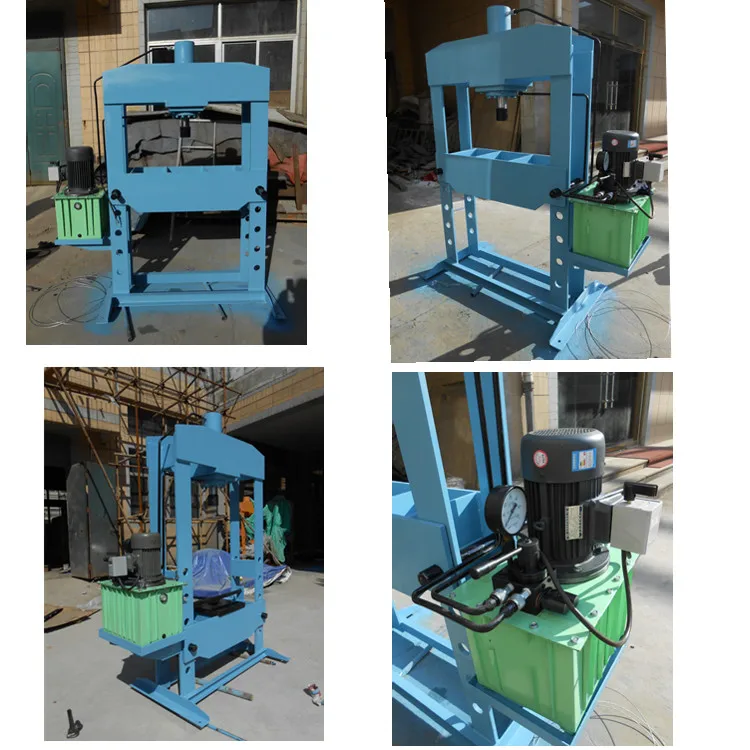

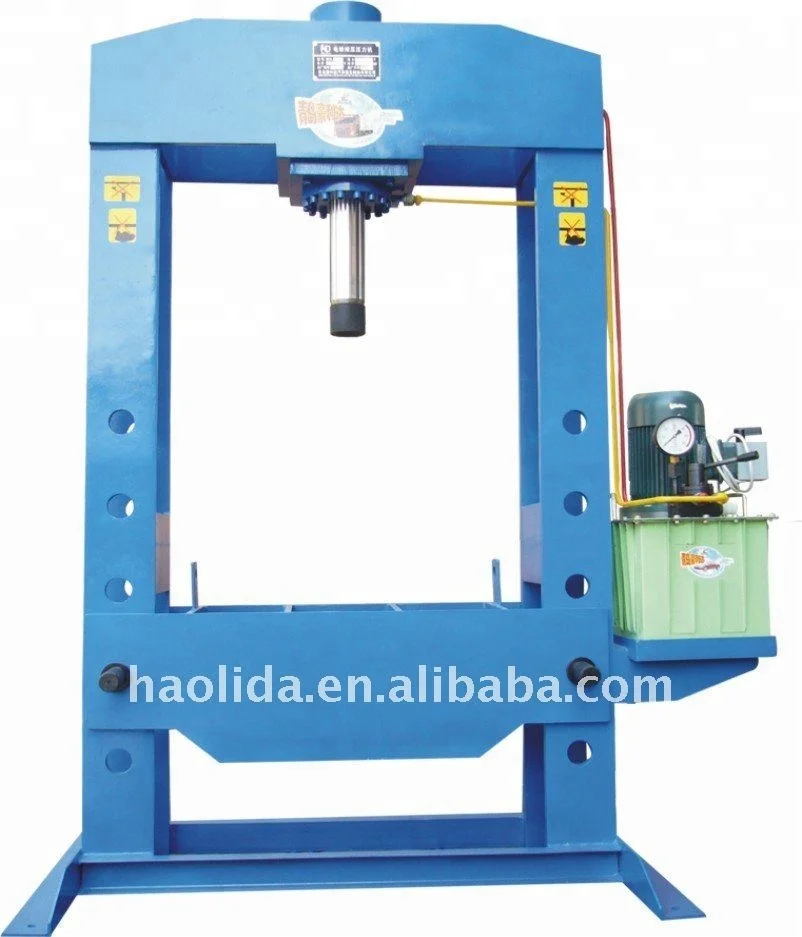

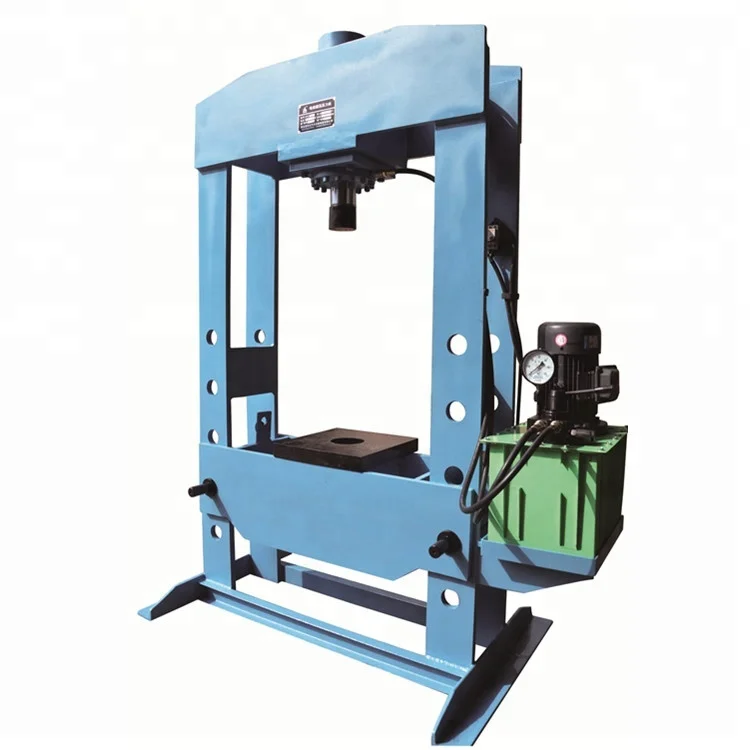

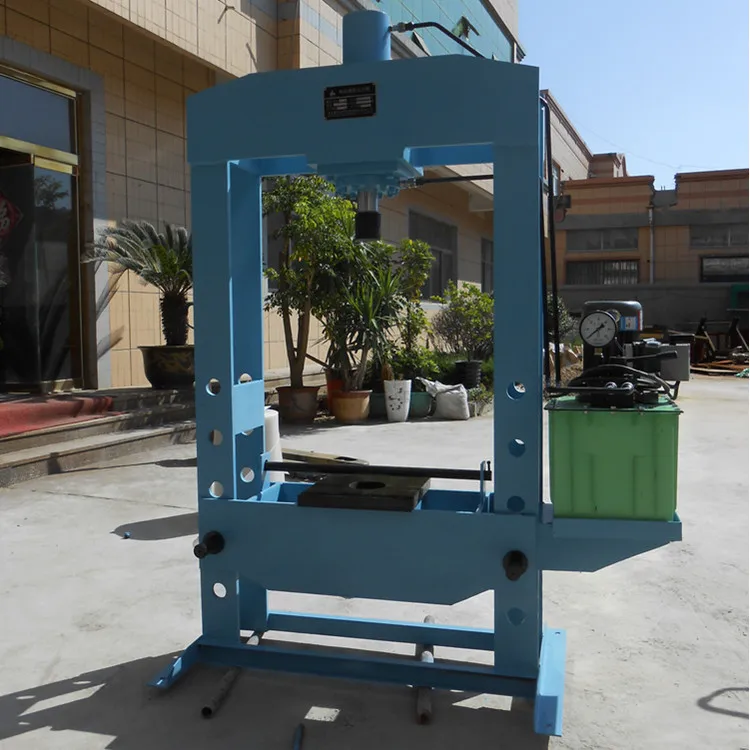

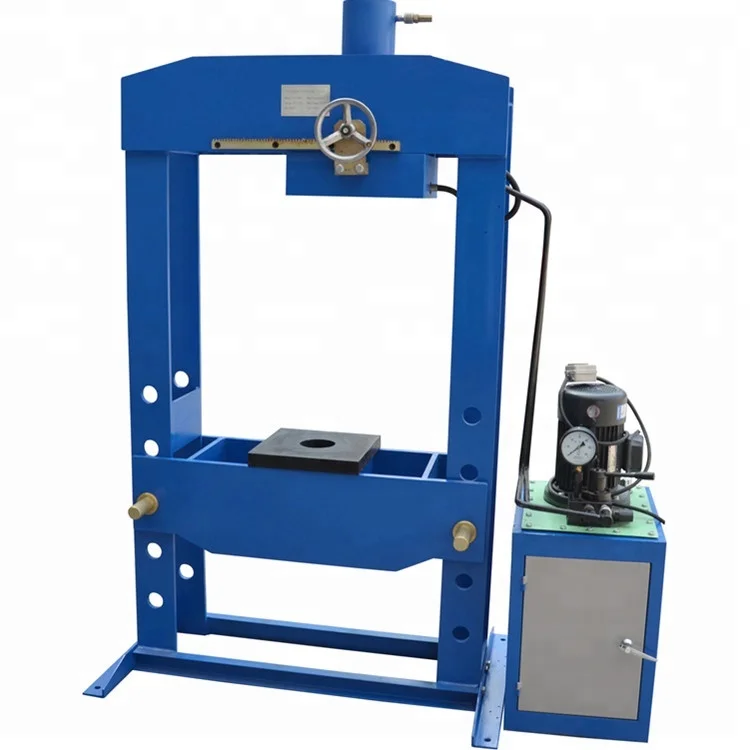

DYYL-100 50T/ 100T/300T Model Electric Hydraulic Press Machine



1.Function Introduction

• After absorbing advantages of similar products from home and abroad on the basis of keeping improving, electric oil press is upgraded product which adopts door type steel structure and one piston and double oil cylinders.
• High-low pressure pump with parallel connection, high-low pressure is available when it is low pressure in order to enhance the speed. Only high pressure pump can provide oil with low flux when it is high pressure, it is newly developed ultra high pressure piston pump of our company. Manual direction changing to control stroke of piston rod, hydraulic pressure can drive workbench to lift.
• It has elegant appearance, easy and safe operation, stable performance and reliable performance.
• Fit for dismantling, installing, moulding, straightening, drawing and moulding for machinery industry, as well as once cold riveting and moulding of pot-angle tooth, thus it is necessary press for auto repair industry in modern society.


      2. Technical Parameter

Type	DYYL-40	DYYL-50	DYYL-65	DYYL-100	DYYL-150	DYYL-200
Maximum working pressure  KN	400	500	650	1000	1500	2000
Cylinder stroke work mm	300	300	350	350	350	350
Motor Power KW	1.1	1.5	1.5	1.5	2.2	2.2
Maximum working height     mm	850	900	950	1000	1000	1020
Maximum working width      mm	750	750	800	850	850	890



 Similar press machines:
