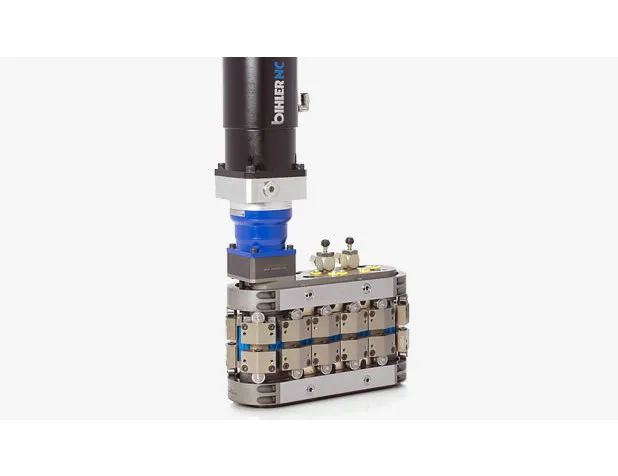

Compact RZV 2.1 feeding system for highly dynamic positioning of strip or wire

Specifications:

Stroke rate: max. 1,200 strokes/min (20 mm feed pitch)
Feeding speed: max. 3.2 m/s
Feeding force: 1,000 N
Feeding accuracy: +/- 0.02 mm
Hydraulic clamping pressure: 3,000 N - 7,000 N
Transport temperature: max. 60degC
Strip thickness: max. 9.0 mm
Strip width: max. 300 mm
Strip diameter: max. 9.0 mm

Characteristics:

Pictures:

We offer various payment options. Please contact us for futher details.

1. Our products are packed according to the international export packing standards for seaworthy packing: carton box, plastic bag, wooden or iron/steel pallet or container.


2. We can also deliver our products carefully packed according to customer requirement. Please contact us for getting further details.


3. Packaging includes the full set of documents and (if necessary) operate maintenance and engine operate manual, spare parts list and set of inspection certificate issued by manufacturer.

Otto Bihler Maschinenfabrik GmbH & Co. KG

//ky.to/www.bihler.de

As world's leading system supplier in the areas of stamping, forming, welding and assembly technology, Bihler stands for certified top technology inchesMade in Germany”. The family-owned company with 1.100 employees offers manufacturers of stamping and forming parts as well as assembly producers powerful machine systems, flexible process modules and intuitive control technology combined with highly cost-effective automation solutions. Since the company was founded in 1953, Bihler has successfully implemented more than 12,000 customer-specific solutions. In addition to machine and plant engineering, Bihler is a premium provider of 3D technology software for the construction of stamping and forming tools.
