DFHQ 450X2 Manual Used Multicolor Automatic Vest Bag Plastic Bag Making Machine

Product Overview

Description

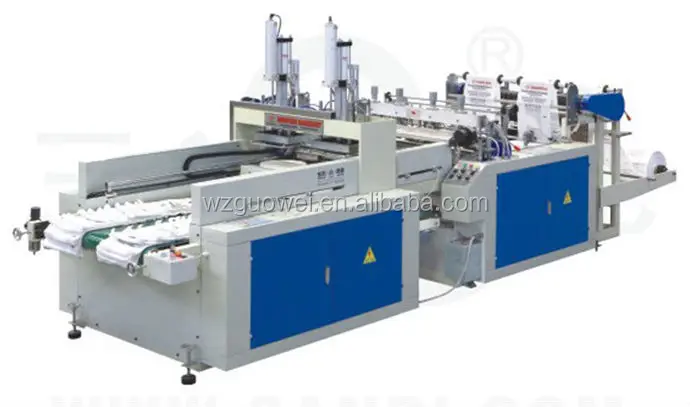

DFHQ-450X2 Full Automatic Plastic Bag Making Machine

1.Characteristics :

This machine is applied to manufacturing and printing the uncolored vest bags made of HDPE, LDPE roll film.

It adopts PLC control, double servo(step) motor fixed length and the liquid crystal touch screen actual display to finish the feeding, sealing, cutting, punching holes and transporting only in one process.

It is of high degree of automation and good economic result.





2.Main Technical Variables:



Model	DFHQ-450X2
Max. rubble roll width	450mmX2
Max. effective width of  bag	350MMx 2
Max.Bag-making length	650mm
Bag-making thickness	0.015-0.035mm
Bag-making speed	140-180pcs/minX2
Air pressure	5kg/cm2
Total Power	9kw
Weight of machine	1600kg
Overall dimensions	6000X1600X1600mm(L X W X H)

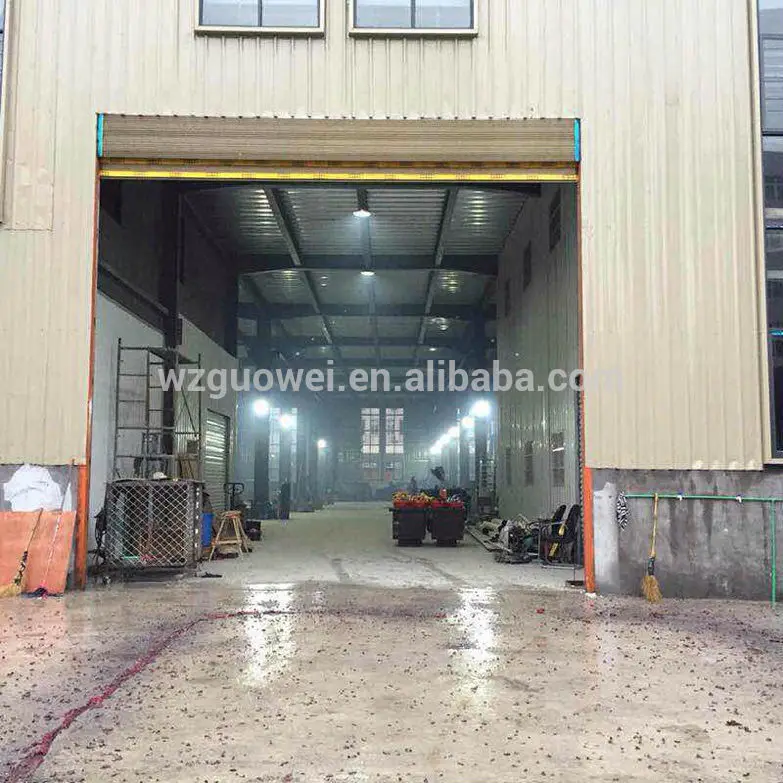

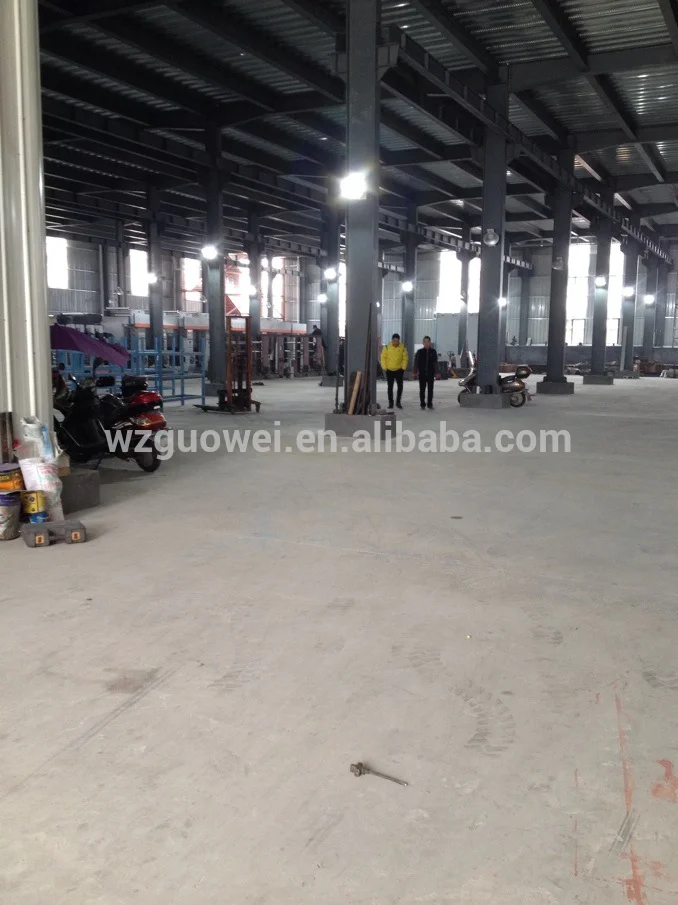

Wenzhou Guowei Printing Machinery Co.ltd established in 1998,in Wenz hou Ruian city,Zhejiang Privice,China.   We are a manufacturer specializing in the production of Rotogravure Pr inting Machine ,Laminating Machine ,   Slitting Machine and Flexible packaging machines over 20 years. Good quality and excellent performance in printing crafts with Good af ter-sales service is our superiority.   Taking every project as unique,customized manufacturing and service total s olutions is our production principle. Choose us, choose best machine for you!
