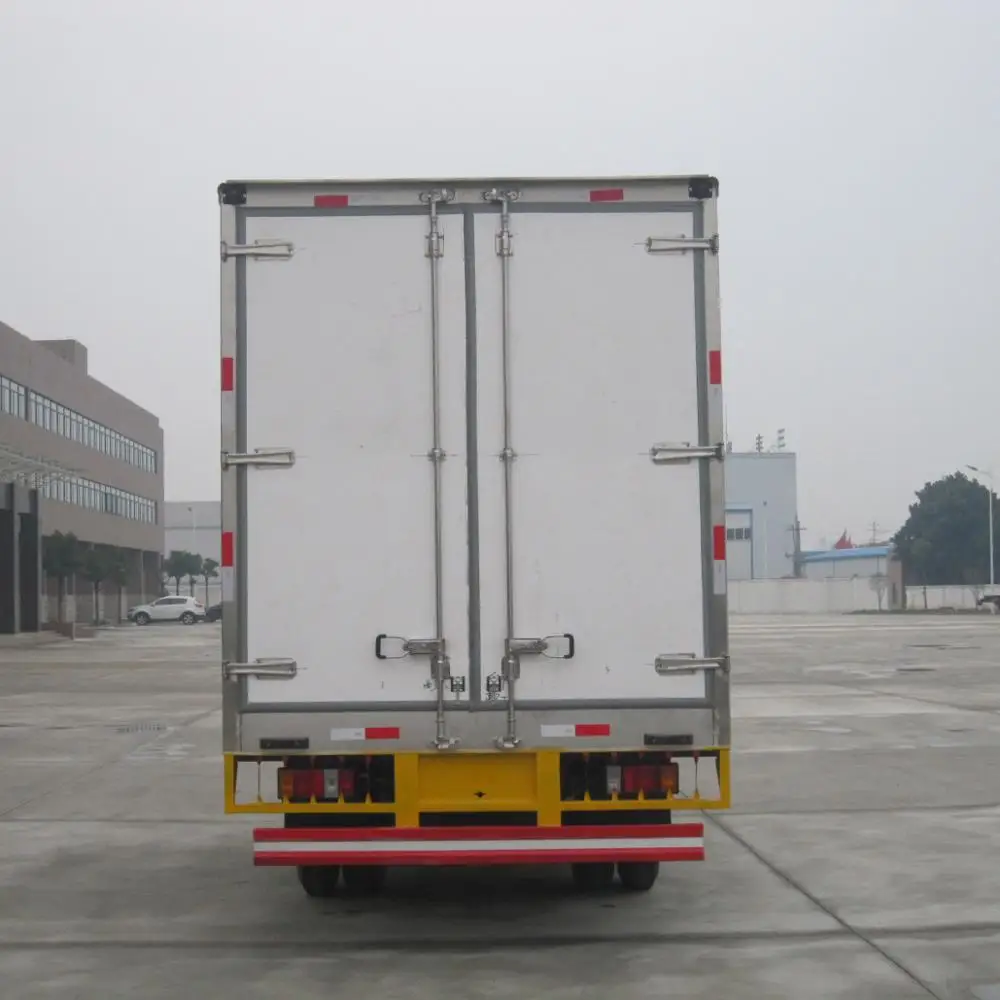

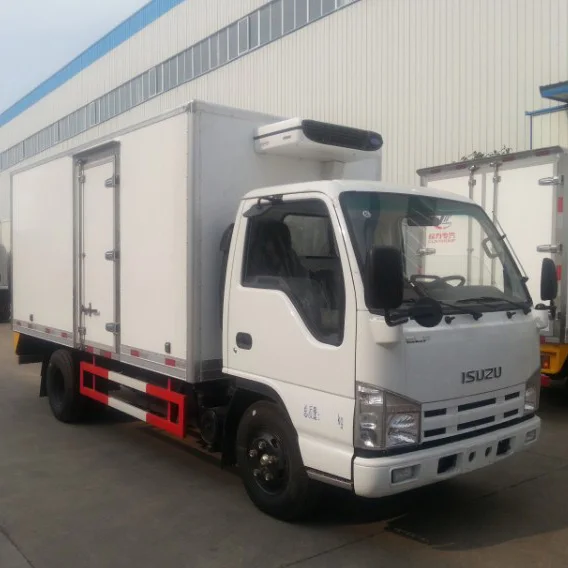

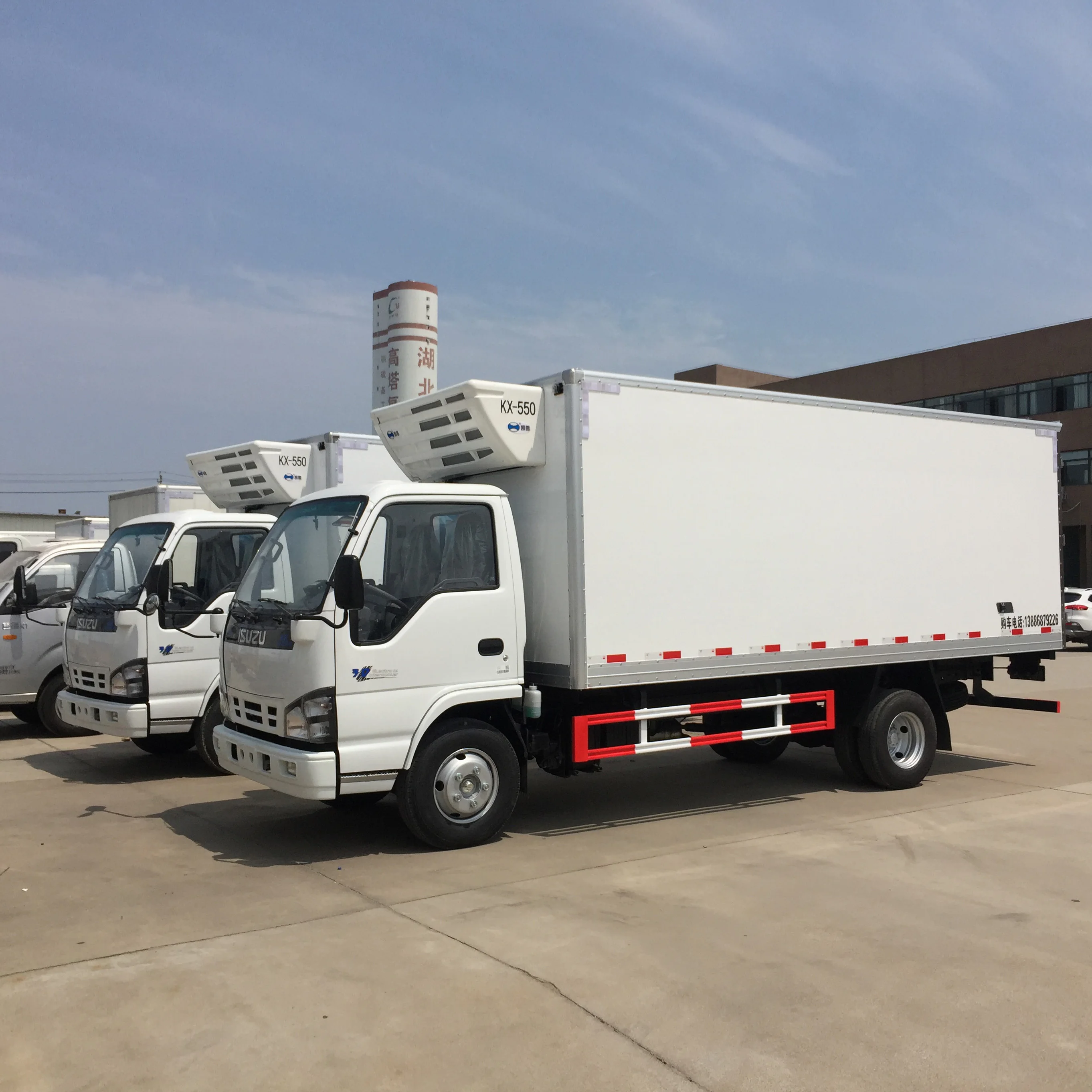

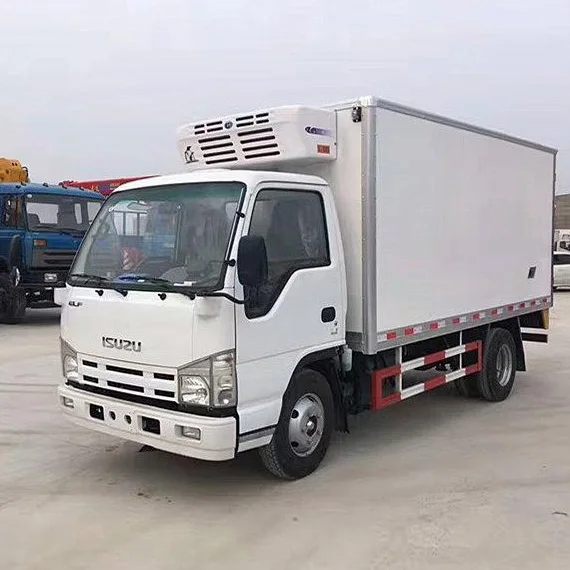

Japanese used refrigerator truck for sale food truck refrigerator freezer

Vehicle parameters

Vehicle Model

EHY50703XLCQ

Vehicle Brand

HUAYI

Overall dimensions

6940X2140X3135mm

Curb weight

3720kg

Van dimensions

5035X1900X1935mm

Loading capacity

18m3

Chassis parameters

Chassis model

QL10703KARY

Chassis brand

ISUZU

Overall dimensions

6645X1880X2220mm

Wheel base

3815mm

Front/rear wheel track

1504/1425mm

Front/rear suspension

1015/1815mm

Approach/departure angle

24/14°

Maximum speed

95km/h

Chassis Manufacturer

QingLing Motors (Group) Co., Ltd.

Cab

Configuration

100P,single row cab, allowable 3 passengers,air conditioner, USB radio interface, with oil brake vacuum booster pump.

Color

White,other color is optional

Engine

Model

4JB1CN

Emission

Euro 4

Type

4 cylinders, in-line, 4-stroke,diesel engine

Rated power

98hp

Displacement

2771ml

Manufacturer

Isuzu Engine (Chongqing) Co., Ltd.

Tire

Size

7.00-15 10PR nylon tire

Number

6+1 nos

Frame

172X65(4)mm

Front axle

2.5 tons

Rear axle

3-4.8 tons

Drive form

4X2

Suspension

Multi leaf springs

Rated voltage

24V,DC

Transmissions

Isuzu MSB five speed transmission, 5 speed forward 1 reverse.

Steering device

Power assisted steering

Steering wheel

Left hand drive

Selective configuration

If there is a slight change in the chassis parameters above,please take the actual product as the standard

Van body structure parameters

Van dimensions

5035X1900X1935mm

Loading capacity

18m3

Van material(inner)

Color steel

Van material(outer)

Glass steel

Insulation layer

Polyurethane foam

Thickness of insulation layer

8cm

Temperature

Domestic,

Color and Logo

Optional

Standard configuration

Chassis,sub frame,van body(inner color steel, outer glass steel,8cm polyurethane foam insulation),stainless steel locks,stainless steel door frame,with overhead light and anti collision device,domestic refrigeration unit
