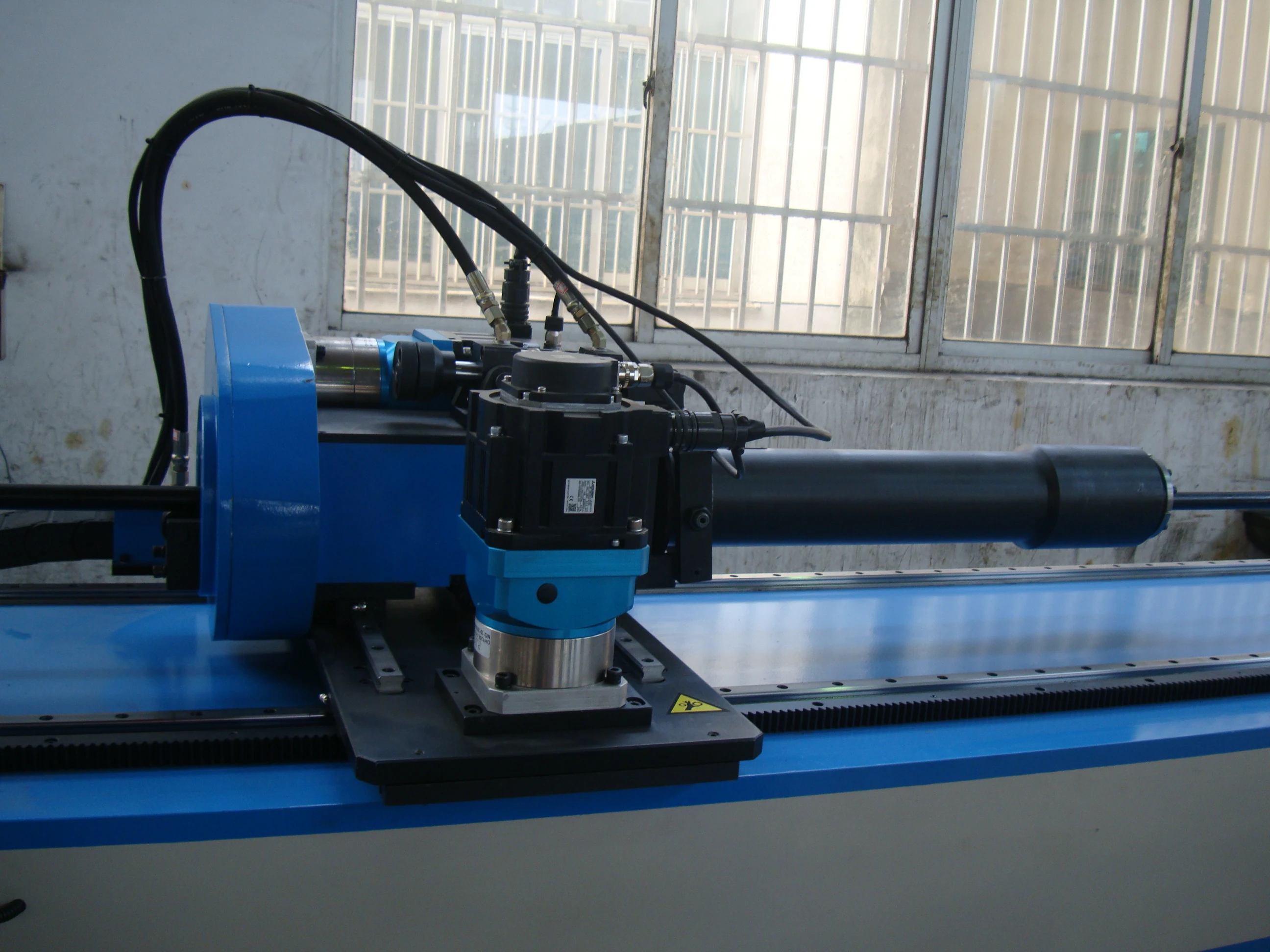

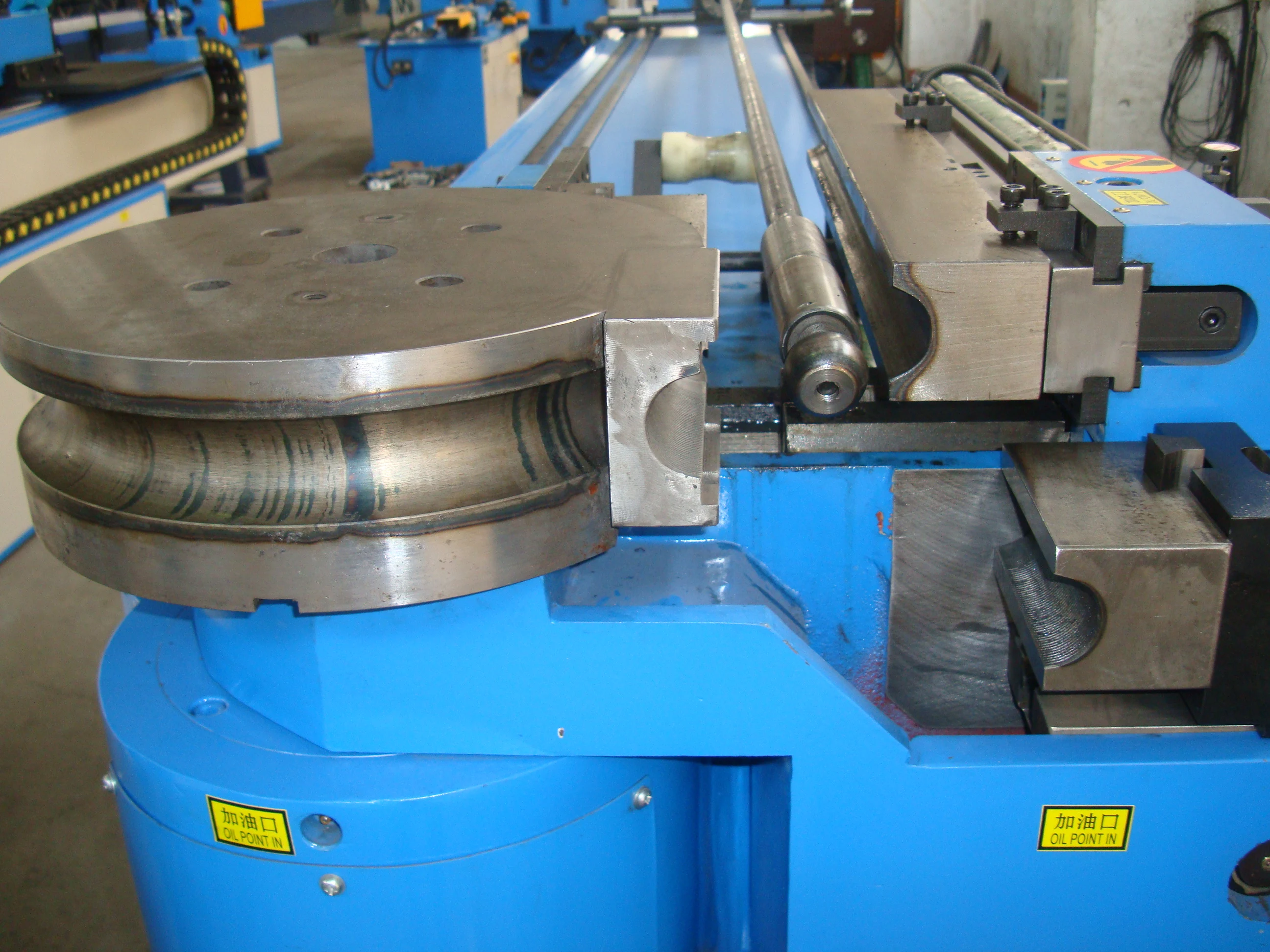

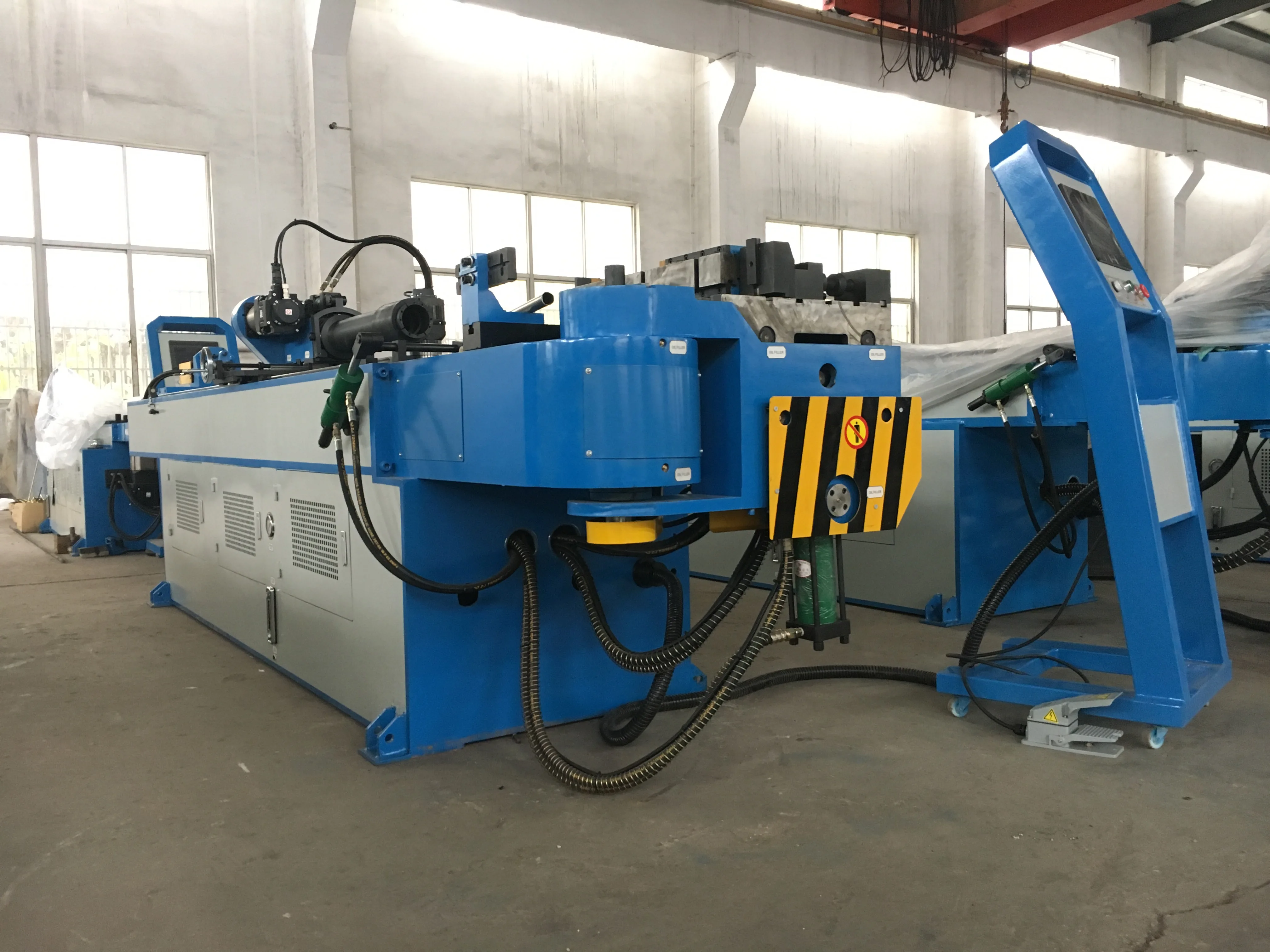

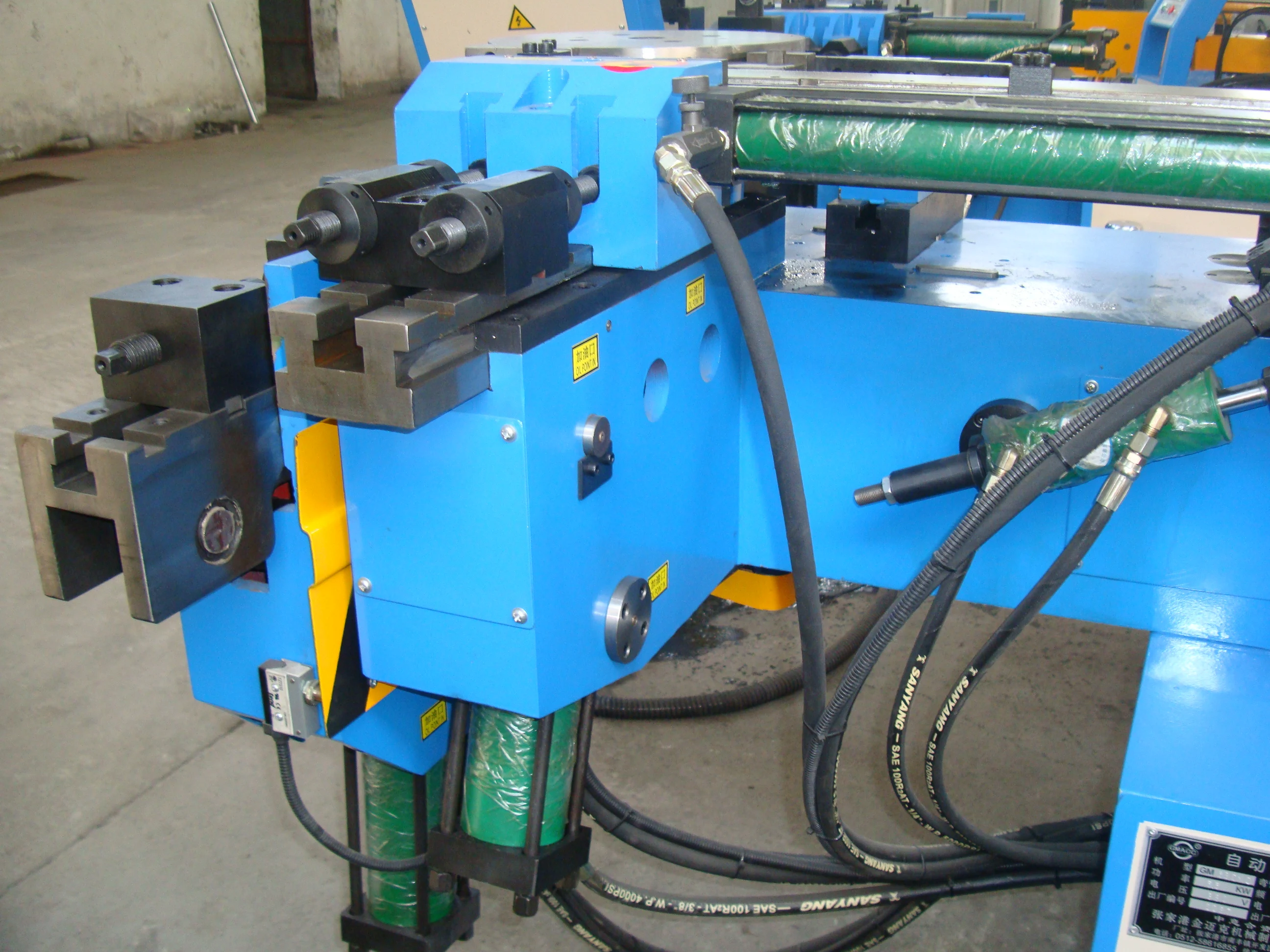

GM-SB-50CNC Series numerical control single-head pipe bending machine is the product from the combination with our technology and advanced Italian technology, integrated with machine, hydraulic, and electricity. This series adopt VDU touch screen operating panel, which can input, store, and display various bending data and order. Y, B, C three coordinatesofmotions under precision control by industrial computer can realize full-auto mandrel on or mandrel off rapid bending, CNC machine also with advanced functions, such as components bending springback compensation, errors self diagnose alarm, memory store after power off, automatic lubrication and safety protection. Pipe rotating (B axis), and pipe feeding(Y axis) are both driven by servomotor. Pipe bending(C axis) is hydraulic by cylinder.
Ø Main Technical Parameter
Name
Unit
Parameter
Mild steel round tube
mm
50*2
Bending Radius Range
mm
20-250
Max. Bending Angle
°
190°
Bending Speed
°/sec
45
Turning Speed
°/sec
200
Feeding Speed
mm/sec
1000
Bending Precision
°
±0.10
Turning Precision
°
±0.10
Feeding Precision
°
±0.10
Turning Servomotor Power
kW
0.75
Feeding Servomotor Power
kW
0.75
Though Effective Distance
mm
3500
System Motor Power
kW
5.5
Max. Pressure
Mpa
16
Oil Pump Delivery Volume
L
17
L*W*H (Packaging Dimension)
mm
4500*1100*1600
Weight
T
2.5
Ø Configuration of Hydraulic and Electronic Control System
Name
Manufacturer
Hydraulic Motor
Siemens Beide or Suzhou Jialifan
Hydraulic Pump
Wuxi Tuoli
Hydraulic Valve
Japan Yuken(Imported)
Oil way Board
Suzhou Boguan
Cylinder
Shanghai Qifan
Oil tube
Suzhou Kejia
Touch screen
Taiwan Weinview(Imported)

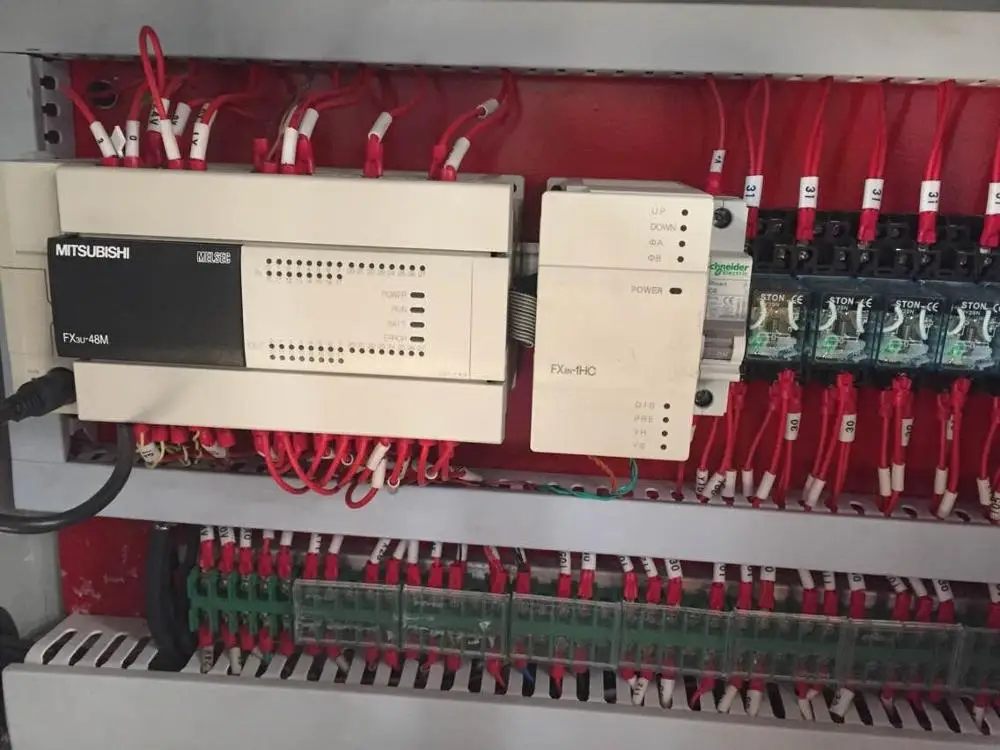

PLC
Japan Mitsubishi(Imported)

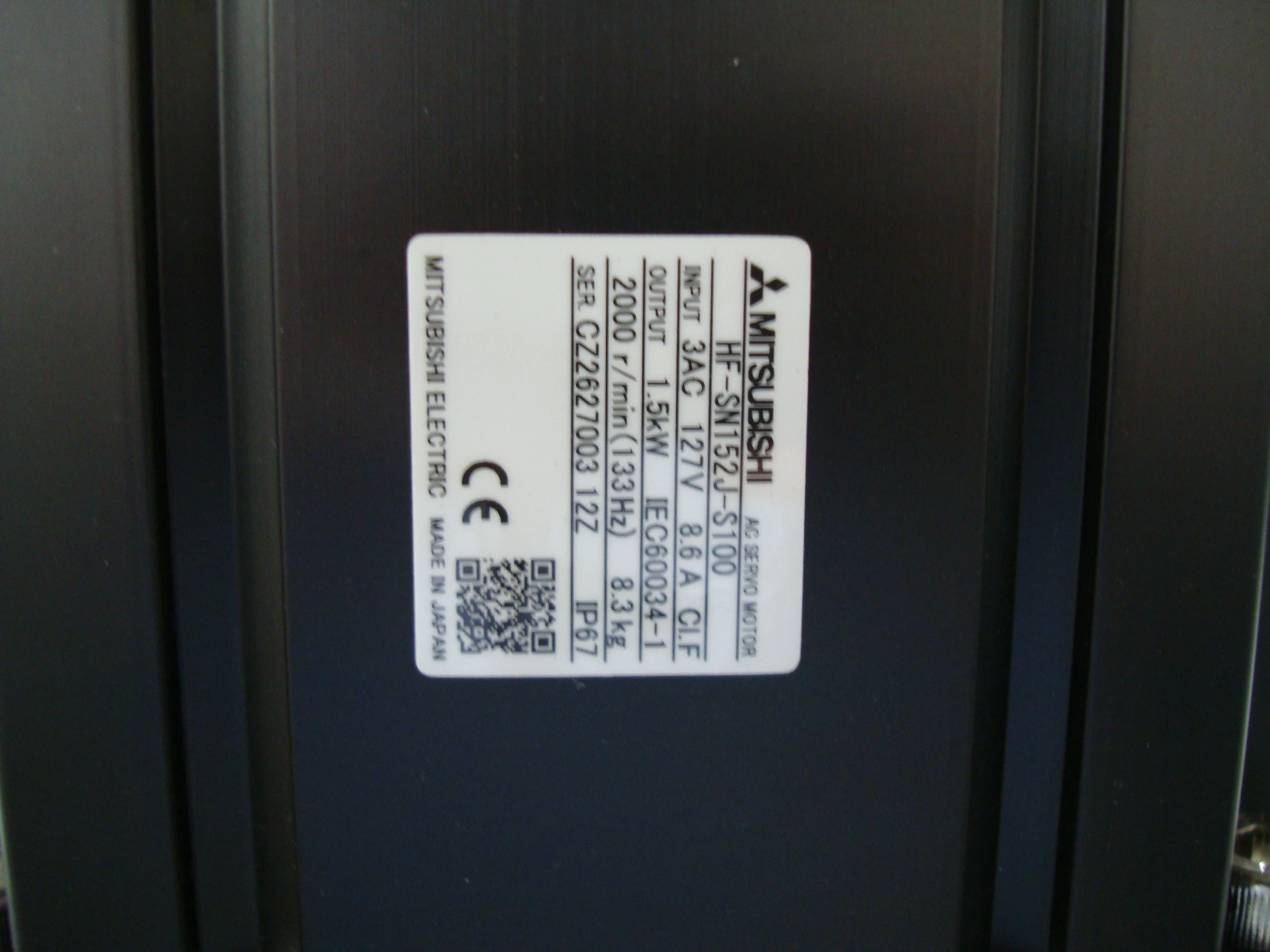

Servo Motor
Japan Mitsubishi(Imported)
Angle controller
Japan Nemicon(Imported)
Switch power
Wenzhou Changxing
Contactor
German SCHNEIDER(Imported)
Packaging & Shipping
Company Information
FAQ
1. Q: How to choose the pipe/tube bending machines?
A: You have to inform us following details:
- Max. outside diameter:
- Wall thickness range:
- Bending radius (CLR):
- The pipe material:
- The drawings if possible:
2. Q: What is the difference for NCB, NCBA and CNC machines?
A: NCB is standard hydraulic pipe bending machines, feeding and rotation are manual, and bending is hydraulic automatic.
NCBA is semi-automatic pipe bending machines, mechanical gear feeding, servo motor automatic angle rotation and hydraulic automatic bending.
CNC is fully automatic pipe bending machines, servo motor for feeding and rotations, and hydraulic or servo motor for bending, multiple tooling stack are available for two and more different bending radius (CLR).
4. Q: What is the machine’s control?
A: Standard control is Mitsubishi PLC, Special is IPC controls. IPC with function of 3D view, 3D simulation, DWG readout, remote assistance etc.
5. Q: What is the biggest bending capacity you could offer?
A: As of now the biggest bending capacity is 325mm outside diameter for cold bending. For hot bending, the capacity would be 1450mm.
6. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Suzhou city (near to Wuxi).You can fly to Shanghai or Wuxi airport & train station.
7. Q: How is the training and after sales service?
A: Customer is welcome to visit our factory for pre-shipment, and we wil provide trainning service FOC, or we can send our professional engineer to be abraod in customer's plant, and customer will pay for the air tickets, accommodation, meals, and USD100 per day.
