Wastewater evaporators price
US $7800
Single double effect rising film evaporation concentrator rotary agitated thin film evaporator
- Category: Evaporator >>>
- Supplier: Wenzhou Chinz Machinery Co. Ltd.
Share on (508925756):
Product Overview
Description
Products Description

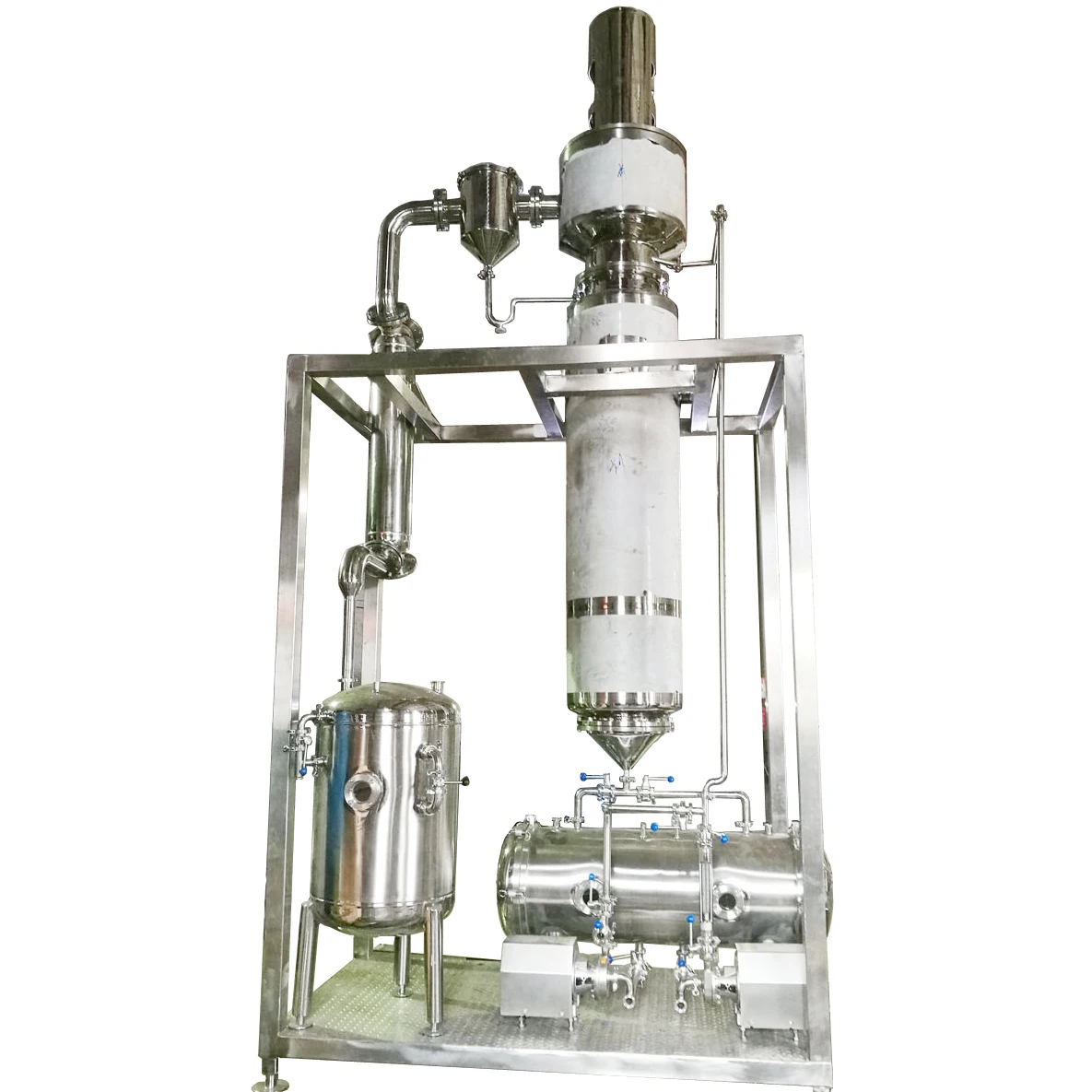

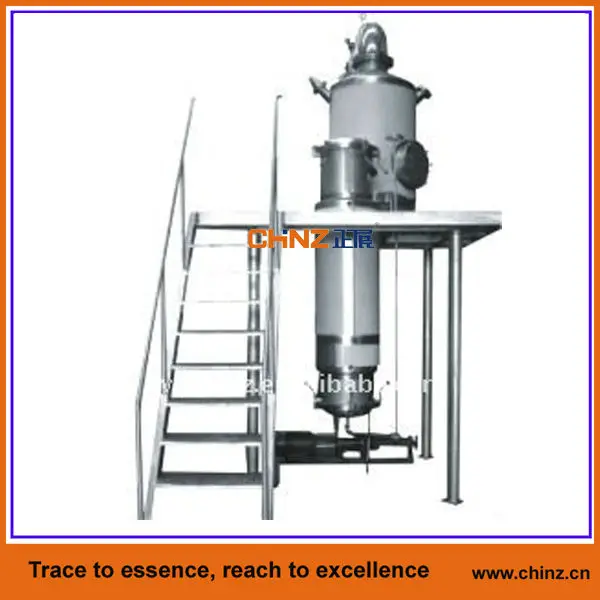

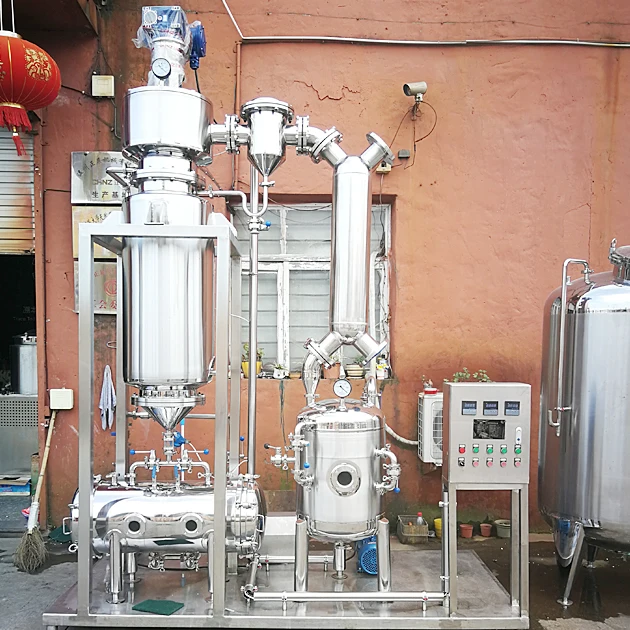

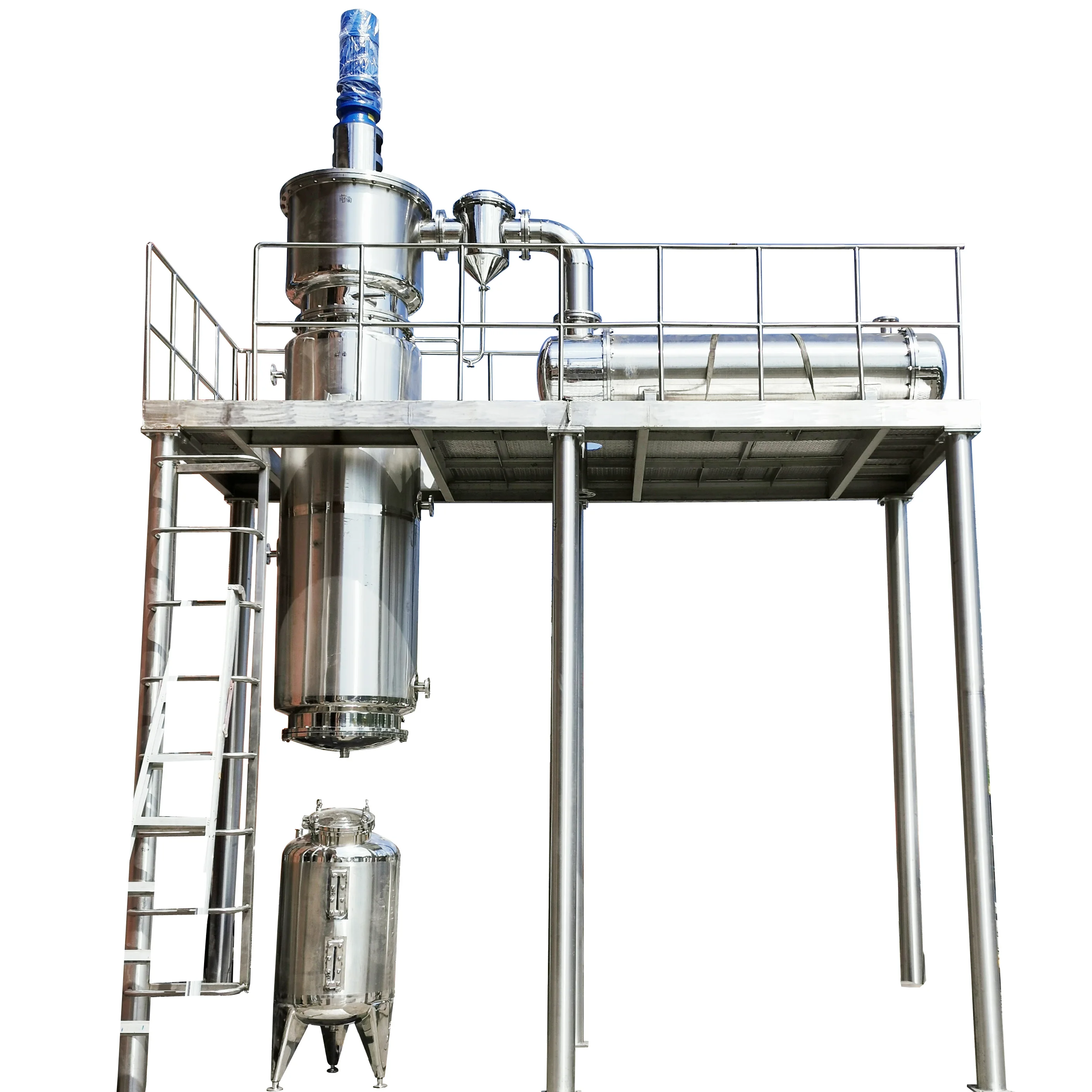

Single double effect rising film evaporation concentrator rotary agitated thin film evaporator
Scraper thin film evaporator is a kind of high efficient evaporation equipment utilize high speed rotary agitator make the liquid uniformly distributed as membrane when evaporation, it also process for deodorization, deaeration and heating, cooling unit operation, it is widely usedd in the industry of pharmacy, food, light industry, petroleum, chemical, environmental protection.
Thin film evaporator suit for the feature with high concentration, high viscosity, heat sensitive, easy to scale such as: honey, fructose, gravy, pigment, essence and flavor, enzymic preparation, lactic acid, organosilicon polymer, antibiotic, syrup etc.
This equipment adopt centrifugal type sliding groove rotor, it is the most advanced construction evaporator so far it could een membrane situation when flow rate is small, the sediment on the inner surface of evaporator body will be moved by movable scraper mixer, the mainly characteristic are:
* High heat exchange coefficient, evaporation strength can reach 200kg/m2hr.
* Short heating time with 5s-10s, it is working under vacuum, suit for heat sensitive material, keep the product quality without any decompose.
*Suit for kind of material, included high viscosity material max 100,000cp.
*Changed the scraper groove rotating direction will control the material processing time in the evaporator.
*Evaporator body adopt mirror polishing, surface hard for scaling or coking.
*Easy operation, under completely seal, it could achieve continue production.
* Equipment required small space, easy construction, easy to maintain and clean.
* High heat exchange coefficient, evaporation strength can reach 200kg/m2hr.
* Short heating time with 5s-10s, it is working under vacuum, suit for heat sensitive material, keep the product quality without any decompose.
*Suit for kind of material, included high viscosity material max 100,000cp.
*Changed the scraper groove rotating direction will control the material processing time in the evaporator.
*Evaporator body adopt mirror polishing, surface hard for scaling or coking.
*Easy operation, under completely seal, it could achieve continue production.
* Equipment required small space, easy construction, easy to maintain and clean.
Product Paramenters
Model | GN1.0 | GN2.0 | GN4.0 | GN6.0 | GN8.0 | GN10.0 | |||||
Heat exchange area ㎡ | 1 | 2 | 4 | 6 | 8 | 10 | |||||
Steam pressure Mpa | 0.4 | ||||||||||
Vacuum degree Mpa | -0.095 | ||||||||||
Evaporation capacity kg/h | 80 | 160 | 320 | 480 | 640 | 800 | |||||
Steam consumption | 200 | 300 | 400 | 500 | 580 | 700 | |||||
Motor power kw | 3.0 | 4.0 | 5.5 | 7.5 | 11 | 11 | |||||
Speed r/min | 135 | ||||||||||
Height mm | 4000 | 4500 | 5000 | 7000 | 8000 | 9000 | |||||
Details Images
Product packaging
Company Profile
Wenzhou Chinz Machinery Co., Ltd. is a specialized high technology enterprise integrating the design, manufacture and service of biochemical pharmaceutical equipment, dairy food and beverage equipment, chemical equipment and sanitary fluid equipment. Our company is devoted to technology investment and culture construction. We have modern workshops and complete manufacturing facilities. We absorb and train various talented people. We have one batch of capable, specialized and talented persons of design, manufacture and installment. Our company establishes a machinery R&D center, a fluid equipment machining and inspecting center and a machinery manufacturing center. After more than ten years of continuous development, our company has formed a troop of scientific and innovative team. Many of our products have obtained national invention patents. Our company has been awarded many titles, including Zhejiang High-Tech Enterprise, etc. Wenzhou Chinz Machinery Co., Ltd. is always devoted to the research and development of machinery project and high precision sanitary fluid equipment. Through several years of efforts, our company has successfully designed and developed various specifications of methanol and ethanol reclaimers, low temperature concentrators, heat hump type water-alcohol concentrators, multi-purpose countercurrent extraction tank groups, integral functional application machine sets, dynamic counter-current adsorption resin units, and so on.
FAQ
1. Q : How can customer know the processes of order?
A : We will take photo or video during manufacturing every two weeks to make
customer clear about the order. When goods is finished,we will take more detailed photos or video for inspect. You can also come to our factory to inspect by yourself.
2. Q : Do you supply installation equipment in oversea? A : Yes, if need, we can also send
our installation engineer to your factory to help you do installation and testing. And you need to provides round-trip ticket and accommodation for our engineer. The extra salary of one installation engineer is 200USD/day.
3. Q : How to control quality?
A : All material we use has material certification. Before any piece of equipment leaves CHINZ. It goes through a complete quality and assurance control inspection. This inspection assures your equipment meets all specifications and is in proper working order before it leaves our facility and arrives at your door.
4. Q : What is the shipment schedule?
A : We will send you photographs of your order being loaded into the shipping container at the factory. The shipping container will generally leave port 3-4 days
after loading. We will send you a bill of lading and final statement of account within one week of that time. The bill of lading will include the shipping container numbers. You can track your shipping container. Approximately 10 days prior to delivery, we will send you an ETA (Estimated Time of Arrival) notice from the shipping time. Please remember that the listed delivery date is only an estimate, and is subject to port unloading schedules, customs processing, and the dictates of the local delivery truck company. You will be directly contacted by the shipping company's local truck delivery services approximately 48 hours prior to the date of delivery to schedule a delivery time. If you need to delay the final delivery, there will be a "pull" fee of approximately $100, and a storage fee of approximately $150 per shipping container per day.
A : We will take photo or video during manufacturing every two weeks to make
customer clear about the order. When goods is finished,we will take more detailed photos or video for inspect. You can also come to our factory to inspect by yourself.
2. Q : Do you supply installation equipment in oversea? A : Yes, if need, we can also send
our installation engineer to your factory to help you do installation and testing. And you need to provides round-trip ticket and accommodation for our engineer. The extra salary of one installation engineer is 200USD/day.
3. Q : How to control quality?
A : All material we use has material certification. Before any piece of equipment leaves CHINZ. It goes through a complete quality and assurance control inspection. This inspection assures your equipment meets all specifications and is in proper working order before it leaves our facility and arrives at your door.
4. Q : What is the shipment schedule?
A : We will send you photographs of your order being loaded into the shipping container at the factory. The shipping container will generally leave port 3-4 days
after loading. We will send you a bill of lading and final statement of account within one week of that time. The bill of lading will include the shipping container numbers. You can track your shipping container. Approximately 10 days prior to delivery, we will send you an ETA (Estimated Time of Arrival) notice from the shipping time. Please remember that the listed delivery date is only an estimate, and is subject to port unloading schedules, customs processing, and the dictates of the local delivery truck company. You will be directly contacted by the shipping company's local truck delivery services approximately 48 hours prior to the date of delivery to schedule a delivery time. If you need to delay the final delivery, there will be a "pull" fee of approximately $100, and a storage fee of approximately $150 per shipping container per day.
