Load capacity 2048 pixel rgb led controller music

Product Overview

Description

rgb led controller music
Load capacity: 2048pixels,
Animated effects as music step
Support SD card
CE & RoHS,





Composition:
This led controller is composed of two parts:
1. Single LED controller(YM-H803SE)-- provide 2 ports for data output,  each port can control 2048 pixels, but the data of the two outputs are same, so totally it can actually control 2048 pixels
2. Lighting control software- install you computer, edit the display effects or video you want, transfer them to SD card, and then playback in controllers.





Features:
1.According to the rhythm and intensity of the music, the controller can automatically play a variety of effects, also it can play DAT files as a general controller.
2.With the DIP switches, it can sent Sensitivity, playback speed, select  the mode and effect.
3.Support SD card 2GB Max, can play 63 DAT effect files in one unit at most.
4.Play speed can be adjusted from 1 to 25 Frame/s, and working frequency from 0.1MHz to 2.0MHz.

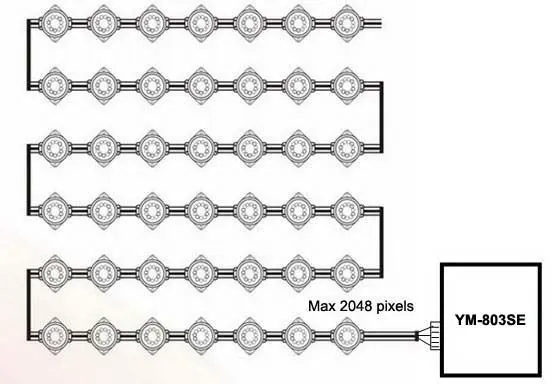

Conjunction:



Application:
