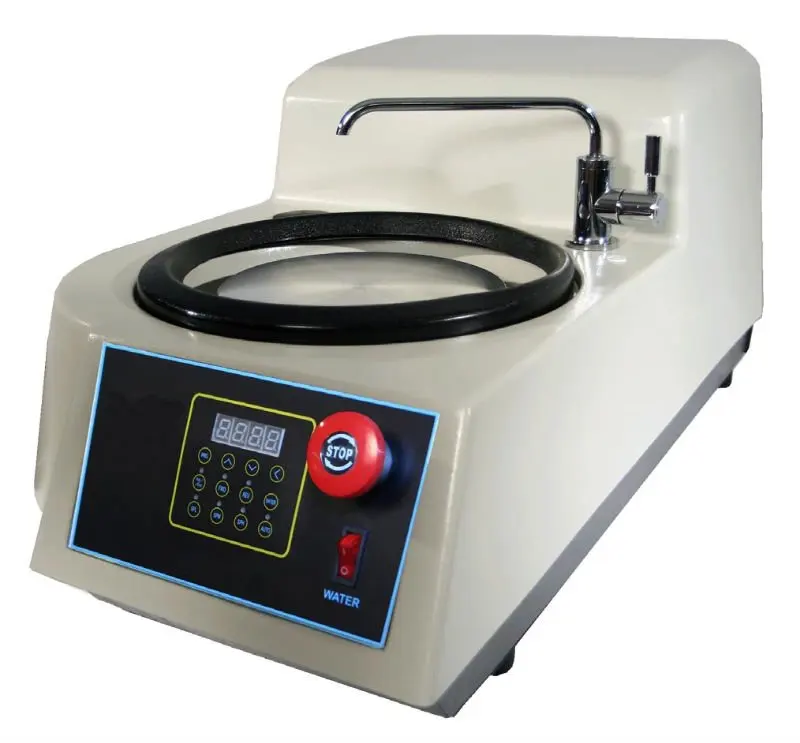

METAPOL 1300/1350/1400 SERIES METALLOGRAPHIC GRINDING & POLISHING MACHINE

Product Overview

Description

METAPOL 1300/1350/1400 SERIES METALLOGRAPHIC GRINDING & POLISHING MACHINE



Features:

1. Variable speed up to 1000 rpm

2. CCW and CW direction control

3. Rapid speed selection ( approximately 100, 200, 300 rpm)

4. Timer (count down to zero and turns off) range 1 to 9999 seconds

5. Emergency stop switch

6. Swinging water spout for positioning over the grinding wheel

7. Control access easily accessible at the back of the machine -designed for multiple voltage requirements - easy to change at the back of the machine (110V, 220V).

8. 1 hp high torque motor

9. Splash guard and cover



Technical Specifications:



PRODUCTS	METAPOL SERIES METALLOGRAPHIC GRINDING & POLISHING MACHINE
MODEL	METAPOL 1300D/ METAPOL 1350D/ METAPOL 1400D	METAPOL 1300S/ METAPOL 1350S/ METAPOL 1400S		METAPOL 1300SE/ METAPOL 1350SE/ METAPOL 1400SE
Working wheels	300MM/ 350MM/ 400MM diameter
Number of stations	Single wheel
Speed	300/600RPM	Variable up to 1000 rpm	Variable up to 1000 rpm
Power Supply	380V3P	change at the back of the machine (110V, 220V)	change at the back of the machine (110V, 220V)
Weight	42 kg		60 kg
Dimensions (WxDxH)	20” x 22” x 13” (510 mm x 560 mm x 330 mm)
Foundation base	Post sleeve in sheet metal		Post sleeve in casting
Optional power head	AUTOPOL 1000
