Product Overview
Description

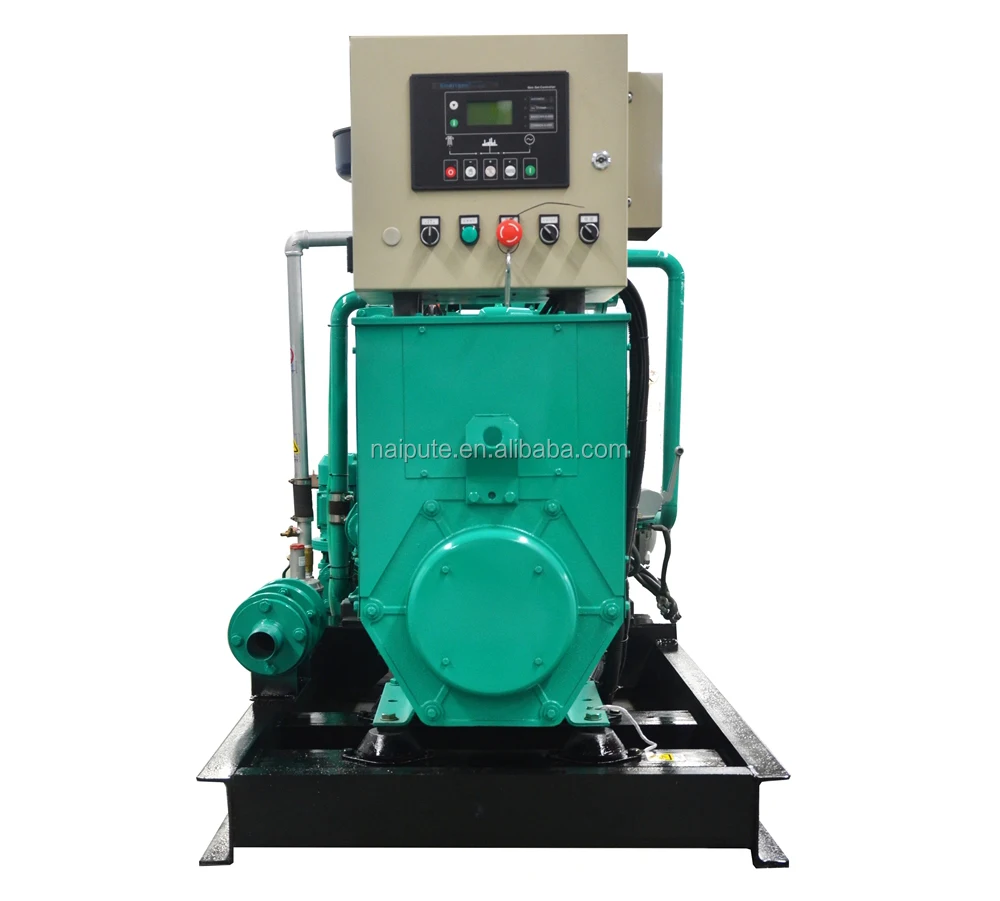

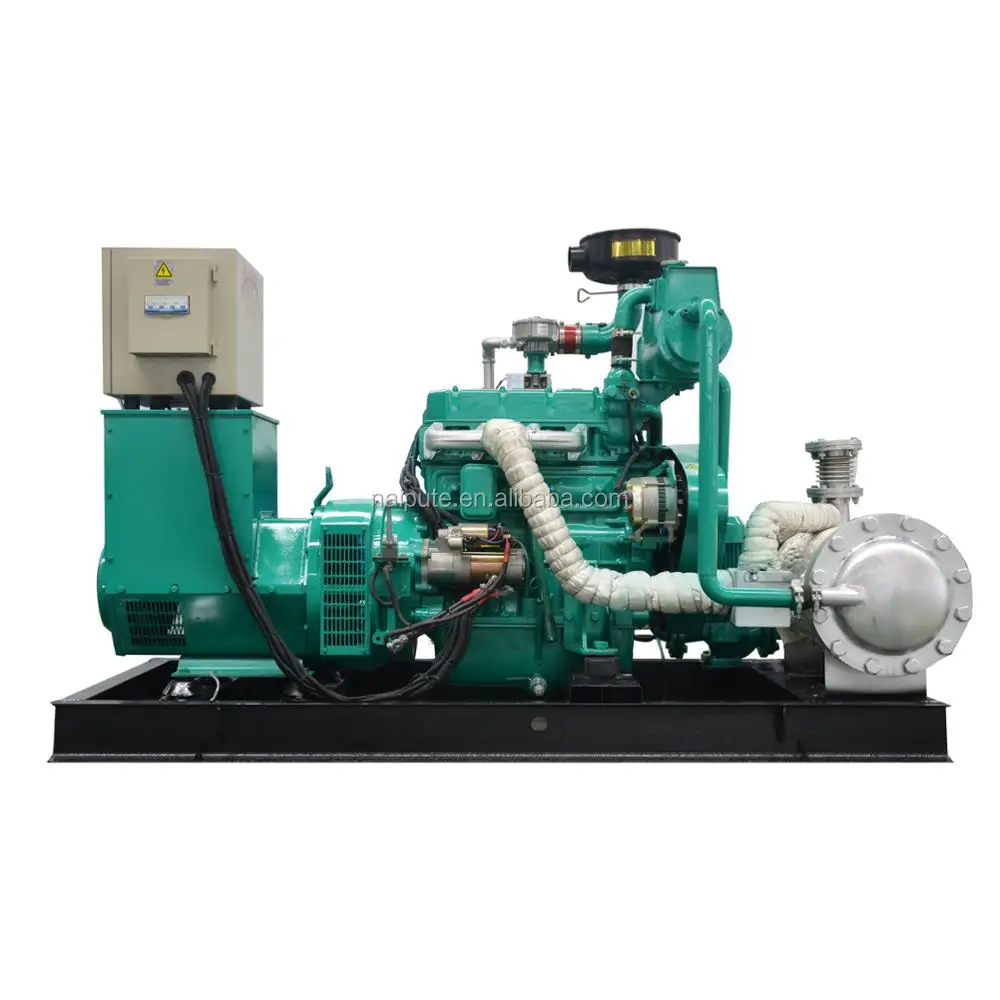

180kW natural gas generator set
Main Technical Parameters:
Generating set general Model | 180GFT | ||||
Structure | integral | ||||
Exciting method | AVR Brushless | ||||
Rated Power (kVA/kW) | 225/180 | ||||
Rated Current(A) | 325 | ||||
Rated Voltage(V) | 400/230 | ||||
Rated Frequency(Hz) | 50 | ||||
Rated Power Factor | 0.8 LAG | ||||
Overall dimension (L x W x H)(mm) | 2245X1250X1550 | ||||
Net weight (kg) | 1600 | ||||
Gas Engine | Model | ND119D19TL (Deutz TCG2015 V6) | |||
Type | V type 4 stroke, electric control ignition, pre-mixed lean burn, turbocharged after cooled | ||||
Cylinder number | 6 | ||||
Bore x Stroke (mm) | 132X145 | ||||
Total displacement (L) | 11.9 | ||||
Compression Ratio | 11.5 | ||||
Rated Power (kW) | 194.8 | ||||
CHP recovery heat power (kW) | 274 | ||||
Rated Speed (r/min) | 1500 | ||||
Fuel type | Natural Gas (CH4≥86.3% ) | ||||
Fuel consumption(Nm3/h) (Calculate heat value is 38.18MJ/Nm3) | 194.8kW(100%) | 175.3kW (90%) | 97.4kW (50%) | 48.7kW (25%) | |
49.6 | 43.5 | 25.5 | 13.1 | ||
Control panel | NPT Brand180KZY | LCD display | |||
Circuit Breaker type | ATS SKT1-400 | ||||
Control module | Smartgen HGM6320 | ||||
Alternator | Model | XN274J | |||
Brand | MBH( Germany) | ||||
Shaft | Single bearing | ||||
Rated Power (kW) | 180 | ||||
Rating(kVA) | 225 | ||||
Enclosure protection | IP23 | ||||
Efficiency(%) | 92.4 | ||||
.Option
| i | CHP device |
| ii | gas pre-treatment device |
| iii | Canopy |
| iv | Parallel grid connection system |
Parallel Connection System
*Economical and low-cost running
*Using advanced Biogas generating set safety running control system---enhance the safety of the running of gensets
*Several gensets can be parallel connection, which can increase the total power range. In addition, the gensets can take maintenance in different times, which will make little influence to the normal performance of gensets.
