Hot airflow monitor for air flow LC 013/LCF 013

Product Overview

Description

SAIP MEANING:

A global quality electric organization

In order to obtain the highest quality all of

Products according to international IEC normative.



SAIP VISION:

To be an enterprise lasting 103 years and beyond

To be an enterprise with a network of 20000 sales personnel and 2000 design engineers

To be the choice brand manager of major worldwide electrical brands



SAIP MISSION:

To create products that deliver happiness to everyone



SAIP BUSINESS PRINCIPLE

To conduct business in a simple straightforward manner.



SAIP WORKING PRINCIPLE

To work and live happily







Mechanical switch contact

Versatile fields of application

Small size

Easy to connect



The airflow monitor (NC / NO) is designed to indicate the loss of air movement of a fan or filter fan. The contact detects the loss of air movement caused by fan failure or blocked filter media regardless of direction of air. Its simple mechanical operation makes it a viable alternative to electronic monitoring systems
Technical Data

Contact type	reed / magnet contact
Normally closed (NC)	switch contact open when air is flowing
Normally open (NO)	switch contact closed when air is flowing
Max. switching voltage	NC: 240VDC (UL), 240V AC/DC (VDE) / NO: 60VDC
Max. switching current	NC: DC 500mA / NO: DC 170mA
Max. switching capacity	10W (resistive load)
Switching threshold of airflow velocity	> 2.5m/s (hysteresis: > 1m/s)
Max. airflow velocity	50m/s
Contact resistance	< 370mOhm (with wire)
Max. air humidity	70% RH (not precipitating)
Service life	> 100 000 cycles
Connection	2 x single strand AWG 28, length 500mm, tip of stranded wire 5mm stripped and tinned (NC: black, NO: blue)
Mounting	alternatively integrated in protective grille (see table), mounting clamp or mounting clip
Casing	plastic according to UL94-HB, black
Fitting position	bidirectional tab perpendicular to airflow
Operating/Storage temperature	-20 to +50°C (-4 to +122°F) / -20 to +80°C (-4 to +176°F)
Protection type	IP20
Approvals	VDE + UL File No. E250507
Note	The product of switching voltage and switching current must not exceed 10W. The max. voltage and max. current must not be exceeded, not even short-term (voltage/current peaks). The resulting voltage and current peaks of inductive or capacitive loads must be restricted by a contact protection circuit.



Description	Art. No. (NC)	Art. No. (NO)	Dimensions	Weight (approx.)
Airflow monitor with mounting clamp and mounting clip LC 013	01300.0-00	01300.1-00	34 x 17.5 x 7.5mm	5g

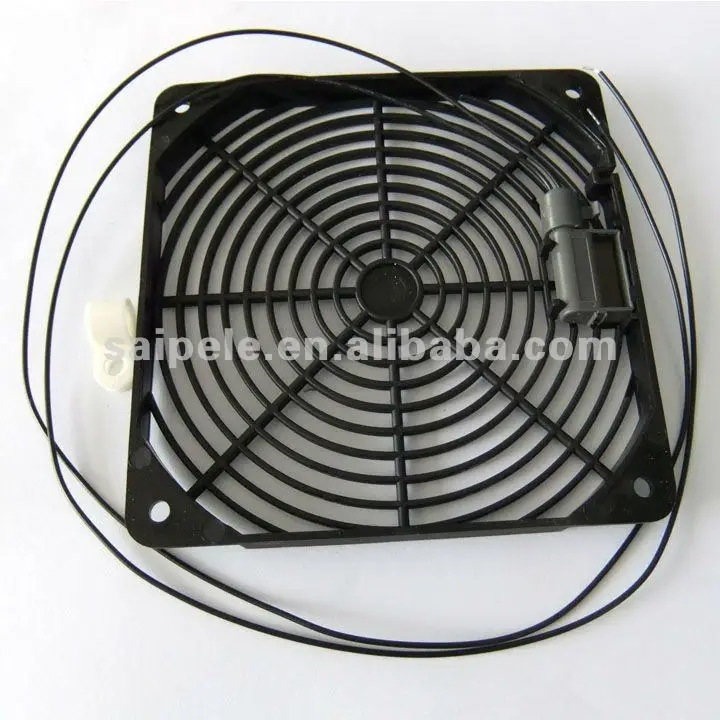

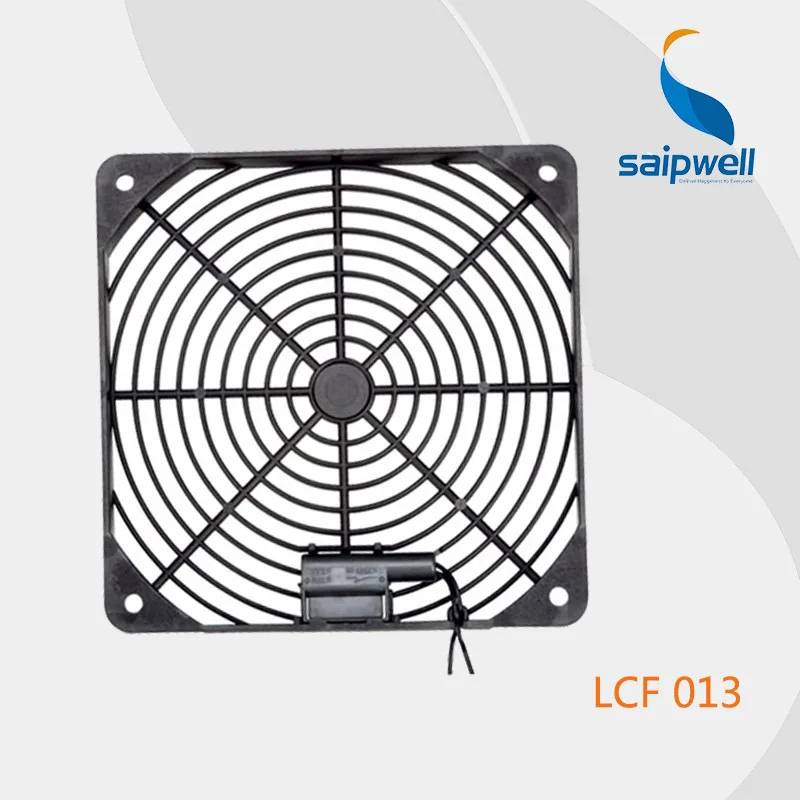

Airflow integrated in protective grille (plastic) LCF 013	01301.0-00	01301.1-00	80 x 88 x 10.5mm	20g
Airflow integrated in protective grille (plastic) LCF 013	01302.0-00	01302.1-00	92 x 92 x 10mm	20g
Airflow integrated in protective grille (plastic) LCF 013	01303.0-00	01303.1-00	120 x 120 x 10mm	30g
