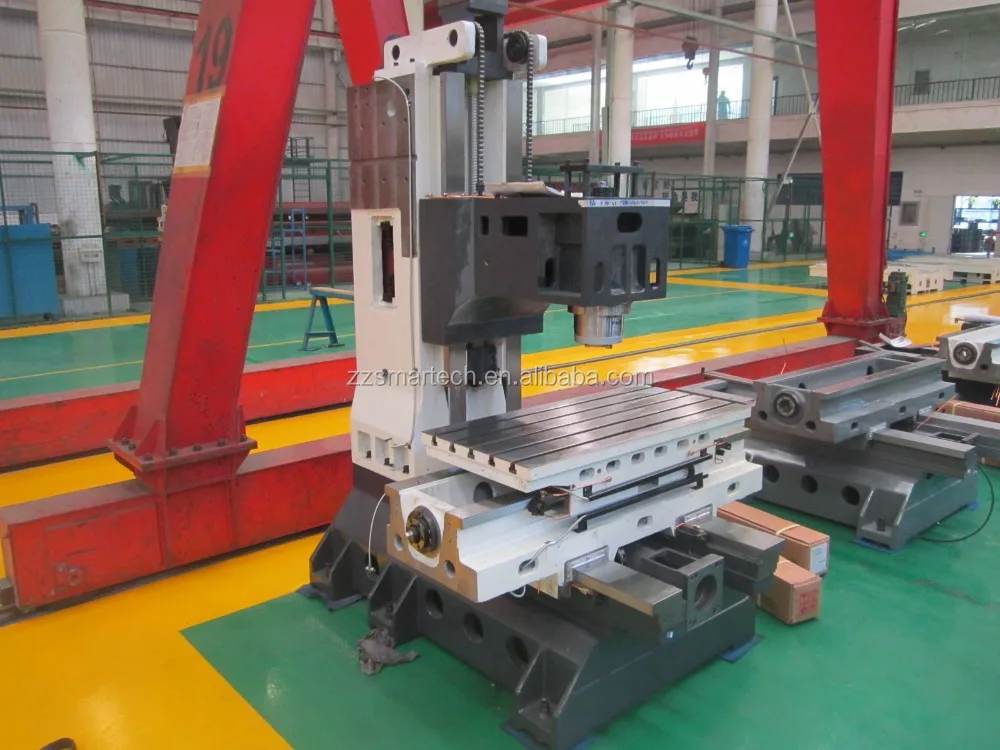

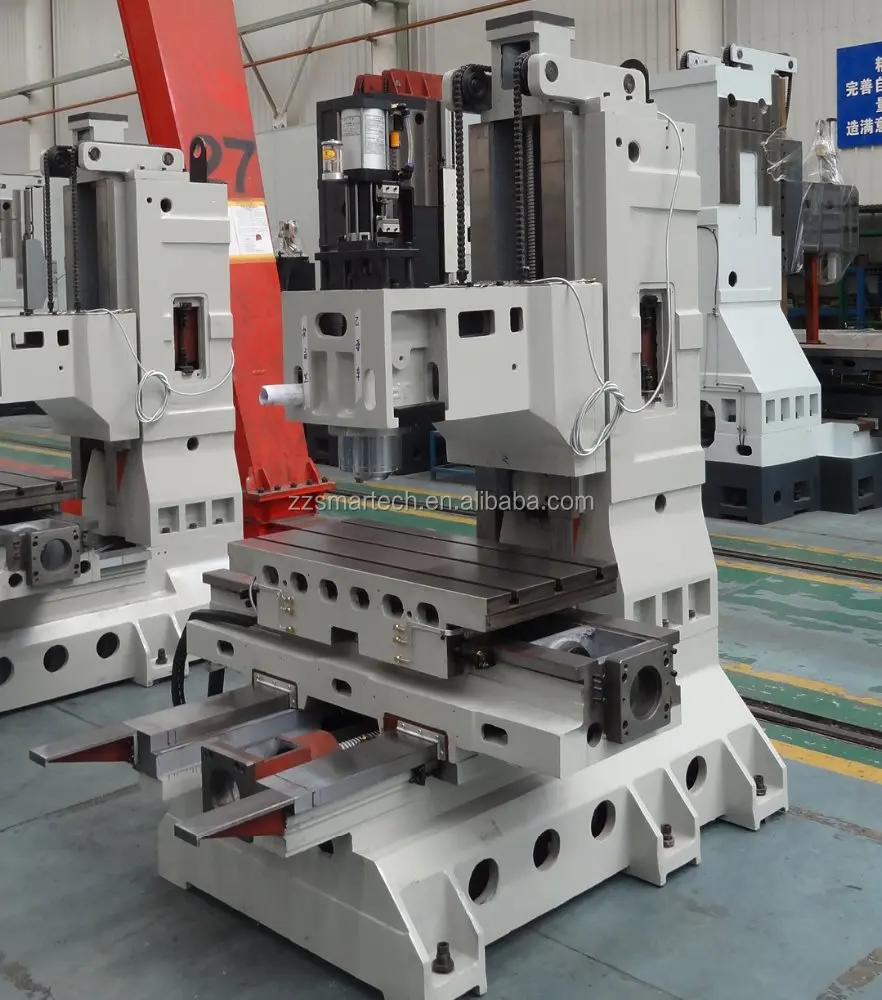

VMC850 VMC Structure Vertical Machining Center Frame Machine Body

Product Overview

Description

SMARTECH CNC VMC STRUCTURE

• MACHINE FEATURE:

1     High-class casting by resin sand and wood mould;

2     Top class imported ball screws sets and bearing ;

3     Imported spindle & tool clamping system ;

4     Imported drive connectors ;

5     Stainless steel telescopic protection on X/Y/Z axis ;

6     Central lubrication system ;

7     Coolant system ;

8      Harden&ground on all slideways and Turcite-B coated with precise scraping;



• OPTIONAL:

1     Spindle from Taiwan;

2     Direct drive structure for main motor with spindle ;

3     Central oil coolant for the spindle ;

4     Coolant through spindle ;

5     ATC: drum type, arm type or chain type ;

6     Outside guarding: standard or special made according to clients design

7     Chip conveyor

8     CNC pre-installed for clients: whole full ready package delivery according to clients design



• SPECS:










































































  MODEL	VMC-850B
  Table Size	530 x 1000
  Travel X	1000
  Y	500
  Z	700
  Spindle to Column Slideway	575
  Spindle Nose to Table Surface	110-810
  T-Slot(No-size/distance)	5-18/100
  Spindle Taper/outside dia	BT40/150
  Spindle Speed	8000rpm
  X,Y axis Ball Screw Spec.	40/10
  Z axis Ball Screw Spec.	40/10
  X,Y & Z Motor Connection	Direct drive
  Main motors recommended	5.5-7.5w
  Drive motors recommended X/Y/Z	10/12/12Nm
  Table  Work Load	600 Kg
  Net Weight	4500kg




                                            *Also provide linear-type slide ways.
















Machining Equipments Imported from Nicolas Correa Spain

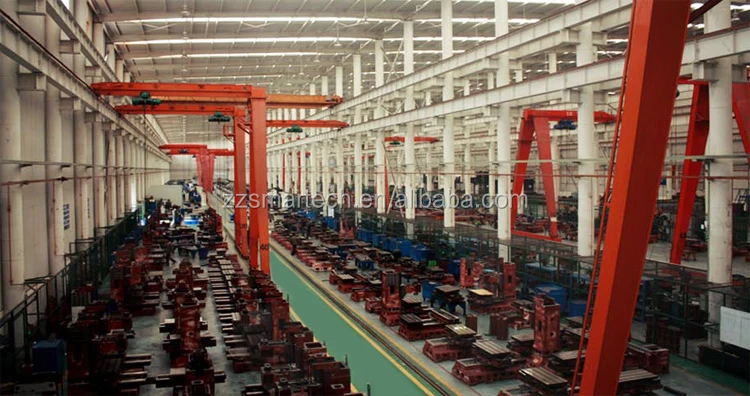

A Bird's Eye View of Plant of Plant 2nd (Box-way VMC Plant)
