High Speed Tile Forming Machine
- Category: >>>
- Supplier: Zhejiang Jinggong Integration Technology Co. Ltd
Share on (522875513):
Product Overview
Description
Equipment Overview-HL (HLM) SERIES TILE FORMING MACHINE

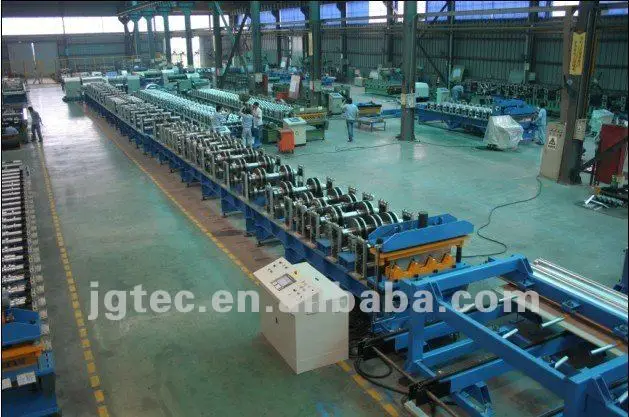

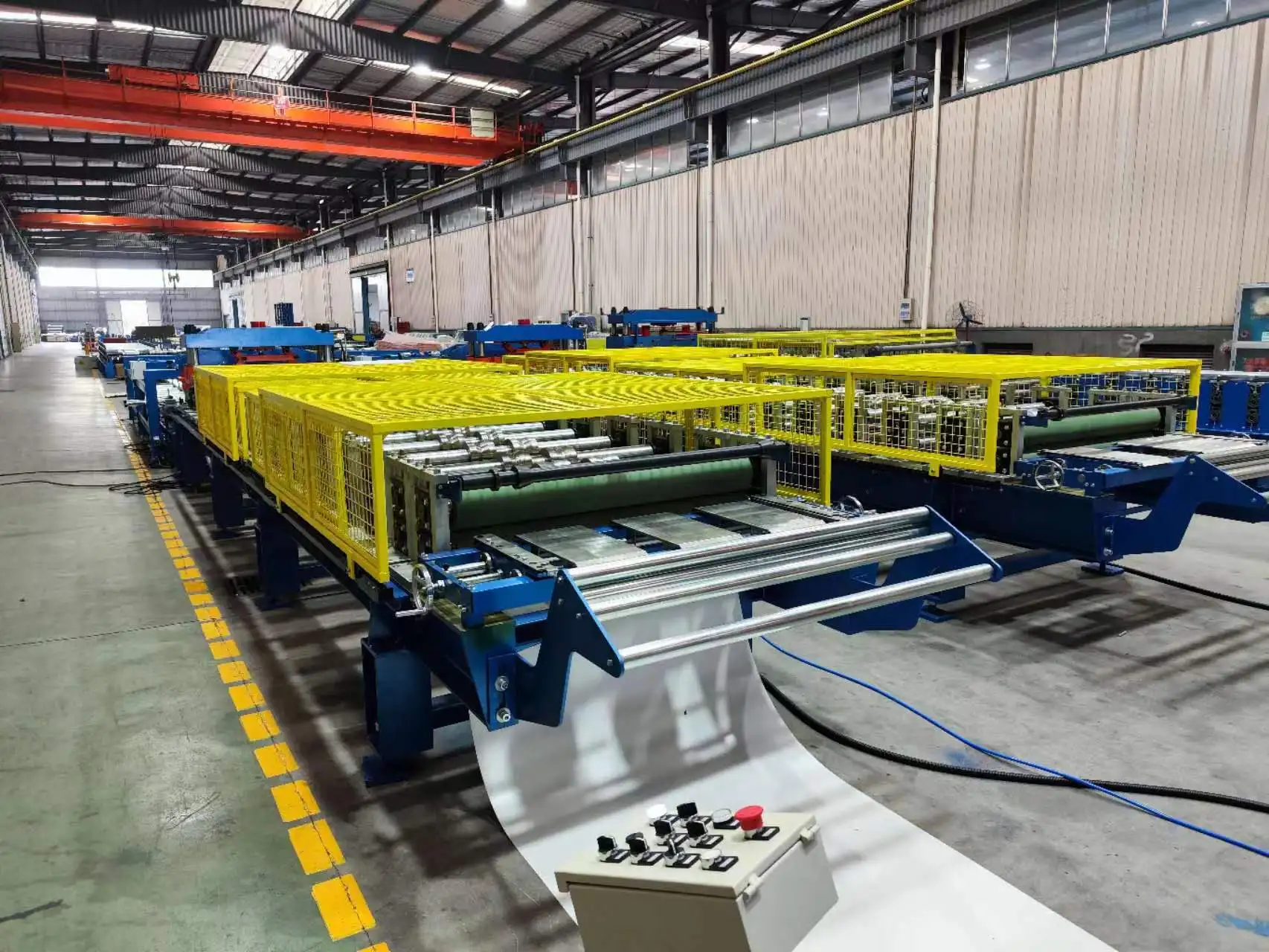

This series high speed tile forming machine is a new-generation type with high speed and high-efficient including decoler system，sheet guiding system, roll forming system, pressing system,cutting system, auto-stacker system, hydraulic system,controlling system etc.We can customize machine according to your requirement.

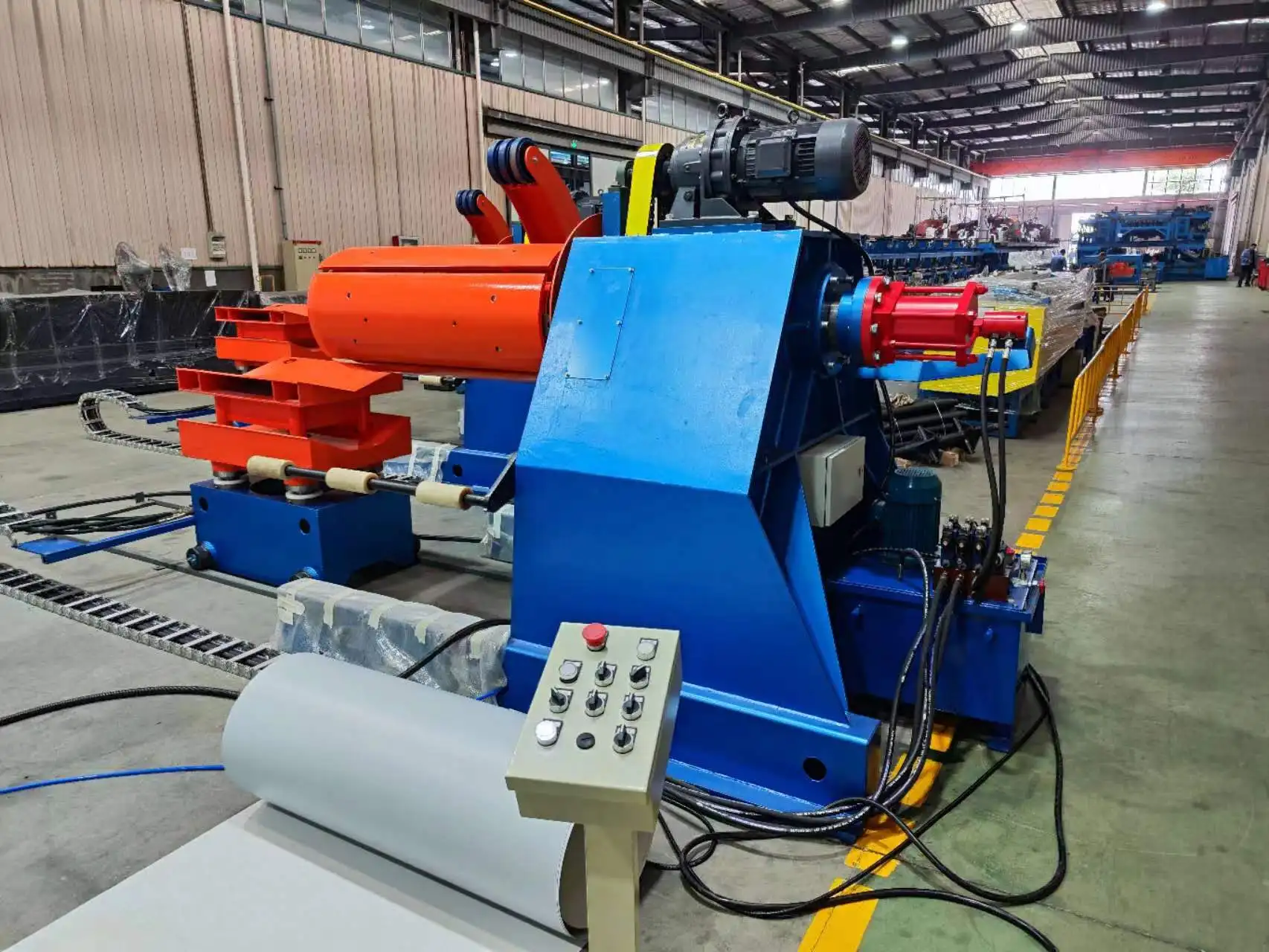

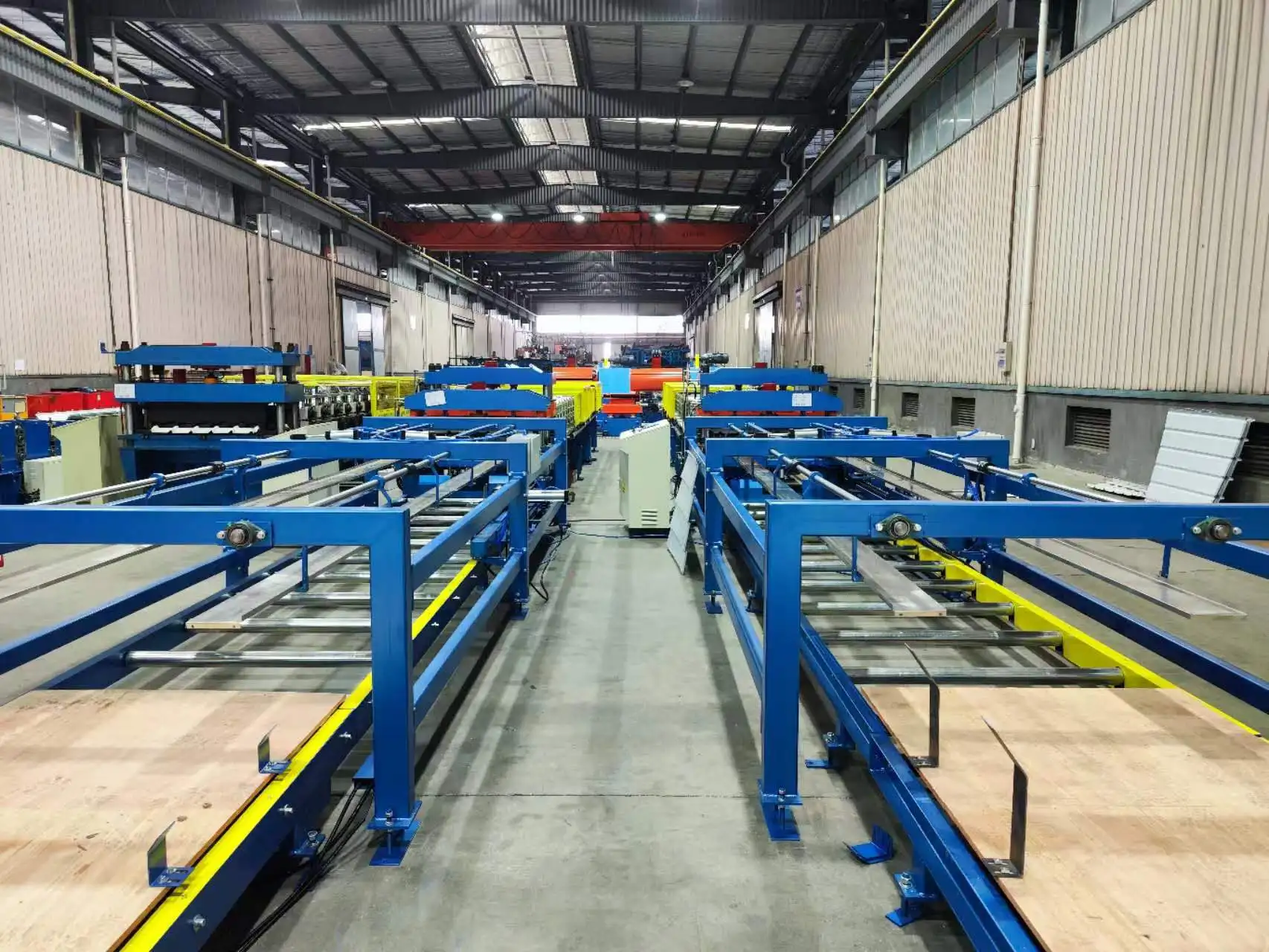

Decoiling guiding and feeding roll forming pressing cut to length run out table
Product Description
Item | Parameters | ||||||
Model | HLM-183 | ||||||
Material | Type | Color steel sheet | |||||
Thickness(mm) | 0.4-0.7 | ||||||
Yield strength(Mpa) | 230-350 | ||||||
Producing Speed (m/min) | 4-5(Not including cutting time) | ||||||

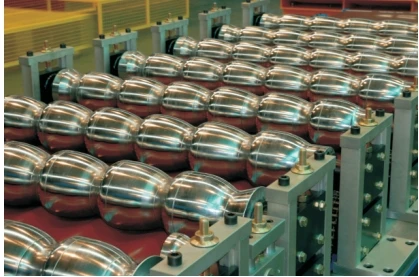

Roller material | 45# Steel with chrome coated | ||||||
Roller driven type | Chain transmission | ||||||
Control type | PLC | ||||||
Operation type | Touch screen +button | ||||||
Hydraulic system pressure(MPa) | 12 | ||||||
Hydraulic station motor power | 7.5 KW | ||||||
Main motor power | 3*2 KW | ||||||
Dimension (L×W×H, m) | 12×3×2m | ||||||
Working process
Guiding system→Roll forming→Punch to length→Cut to length→Output the finished products
Company Profile
FAQ
1.Does one machine can only produce one size?
Not exactly, it depends on the machine.
2.Do you have after sales support?
Yes, we are happy to give advice and also have skilled technicians available to maintain the machine if needed.
3.How to visit your company?
We can pick you up from Shanghai or Hangzhou airport. Or railway station Shaoxing North.
4.What can you do if the machine broken?
Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts replace the broken parts, but you need pay the express cost by yourself. if after warranty period, we can through negotiation for solving the problems, and we supply the technical support for the whole life of the equipment.
5.Can you be responsible for transport?
Yes, please tell us the destination port or address. we have rich experience in transport.
6.You are trade company or factory?
We are Manufacturer.
7.Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem.
8.Do you have overseas engineers?
Yes, we not only provide overseas engineers, but also provide technical training.
9.Do you provide customized?
Sure, we can design the equipment according to the data of the structural section you provide. We are professional sheet metal forming machine designer and manufacturer.
