Price:RUB 153,537.20 - RUB 307,074.40

Quantity:


Product Overview

Description

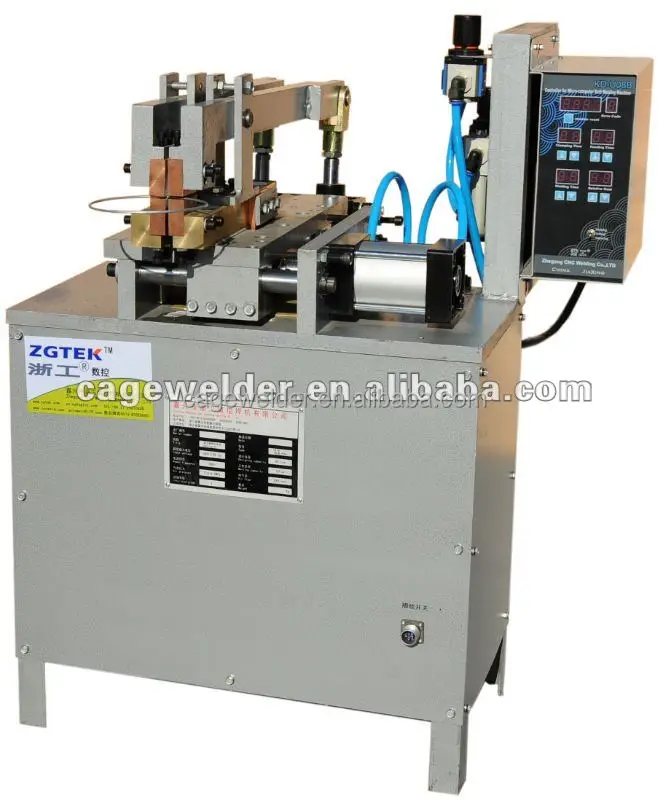

Ring Butt welder

Butt welder, filter cage welding machine

Butt welder for cages

Oval ring butt welder

Ring butt welder

  • Model: UR-40
  • Input voltage: 380V(2-phase) or specified by customer
  • Power frequency: 50Hz
  • Power capacity: 40KVA
  • Working load: 15KVA
  • Wire thickness: 2.5-6mm
  • Control unit: KD-U08B
  • Cooling method: natural cooling
  • Air pressure: 0.6-0.8MPa
  • Air flow: 150L/min


Features

  • High speed, capable of welding 10000 rings per 8-hour shift
  • Small heat affected area, approximately 3-4mm, especially applicable for welding galvanized wire
  • This machine is not recommended to weld stainless steel rings, there is an argon arc welding(tig welding) machine available specificly for welding stainless steel ring, the operating method is the same

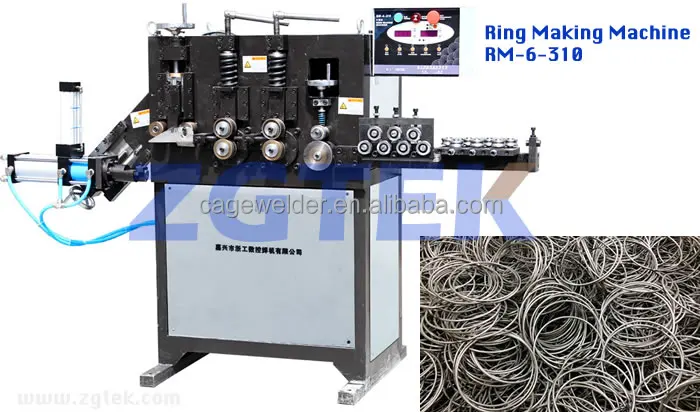

ZGTEK, the only one in the world specialized in filter cage welding technologies and the only one in China capable of supplying hi-quality automatic ring making machines!
