TTMC 3 IN 1/1016 Combanitation of Shear, Brake and Slip Roll machine Sheet Metal Fabrication Machines
- Category: Other Machine Tool Equipment >>>
- Supplier: Tengzhou Tri-Union Machinery Co. Ltd.
Share on (526402142):
Product Overview
Description
Product Overview

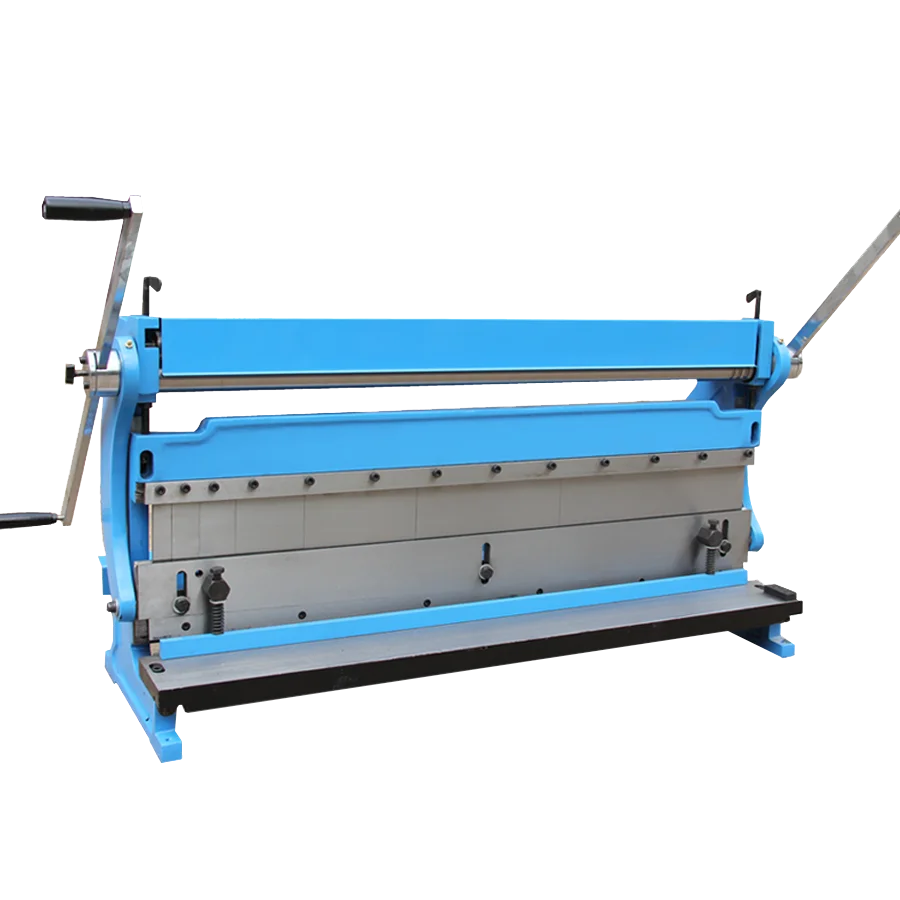

TTMC 3-IN-1/1016 3-IN-1 Combination of Shear, Brake and Roll Machine

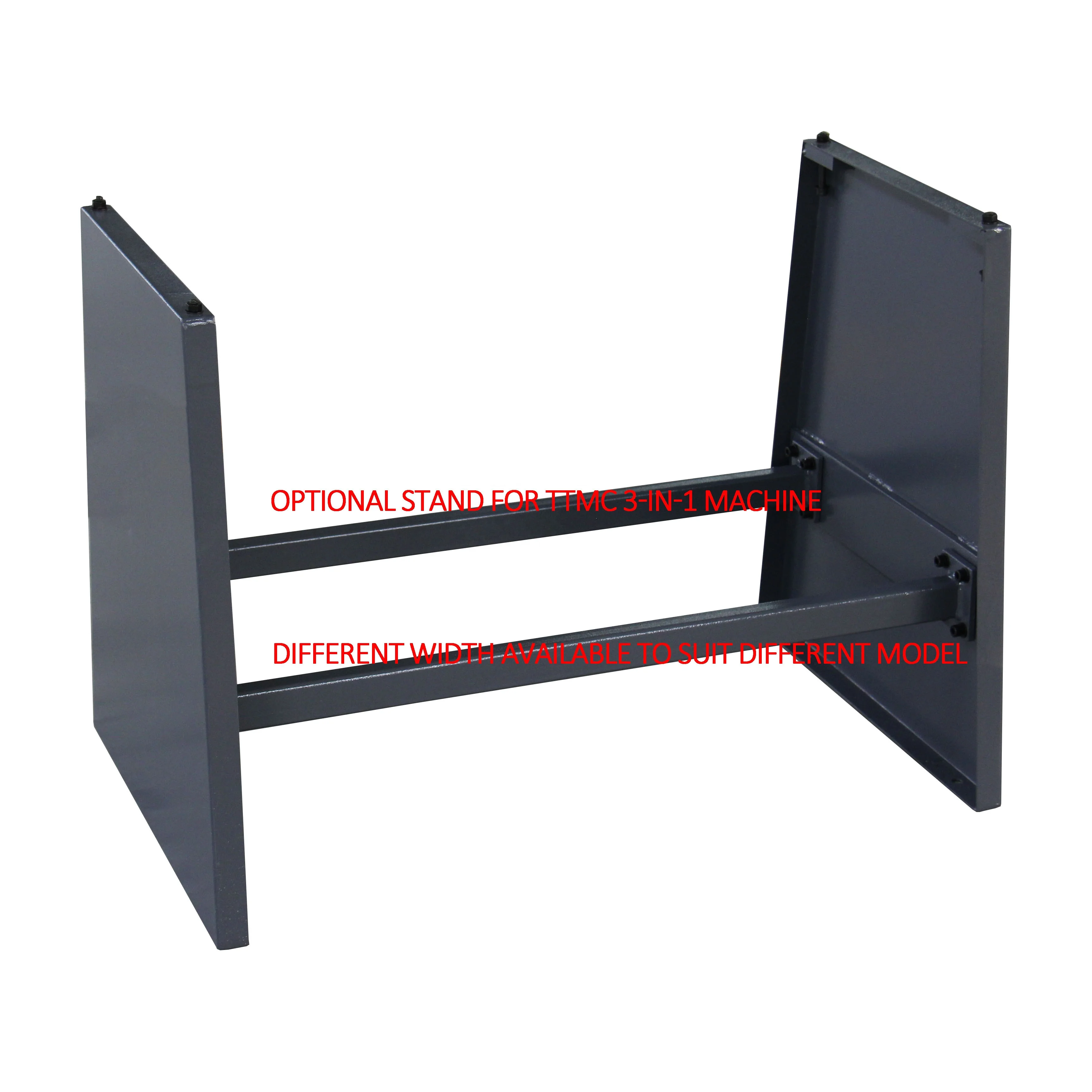

The 3-IN-1/1016 shear brake roll machine has a small floor plan for shops with limited space. You can mount this combination machine to a bench or stand. Get a durable 3 in 1 sheet metal machine for an affordable price
FEATURES AT A GLANCE
40” working width for rolling, bending, and shearing.
Maximum capacity of 20 gauge mild steel for all functions.
Manual slip roll on the top portion of the machine can create sheet metal rolls with a 1.70” minimum diameter.
Hardened rolls with 3 grooves can form wire or small round stock.
Manual press brake bends up to 90° and includes a V die set.
Crowning feature lets you set the camber of the tooling so it bends consistently across the machine’s full width.
Hardened adjustable dies (from 1” to 10-⅛”) on the upper beam of the press brake can make boxes and pans.

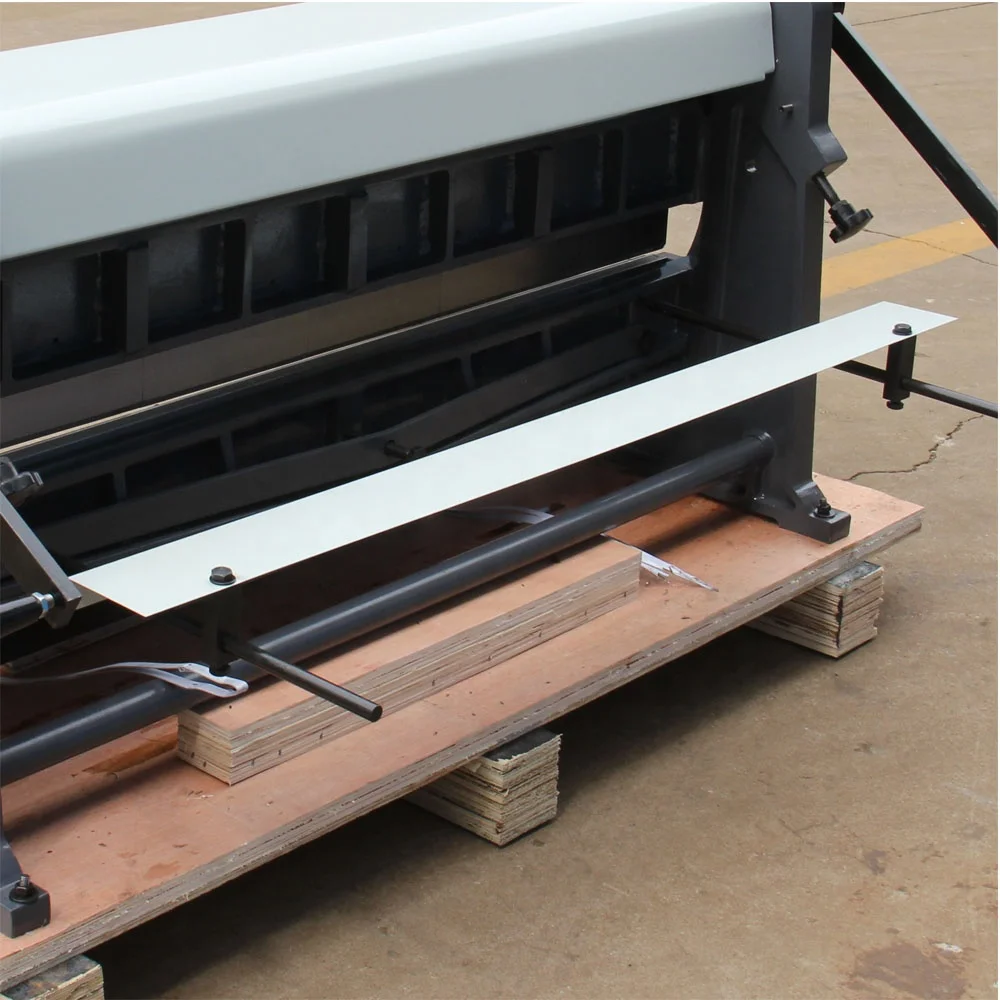

Metal shear on the bottom uses spring-loaded clamps to hold the material down and produce clean, crisp shearing across the machine.
Shear blades are hardened and reversible, so they stay sharp.
Large handles with grips on both sides allow 2 operators to combine their force and make the machine easier to use.
Each 360° turn of the handles gives you a full cycle on each of the machines.
Back gauge helps ensure repeatability.
Maximum capacity of 20 gauge mild steel for all functions.
Manual slip roll on the top portion of the machine can create sheet metal rolls with a 1.70” minimum diameter.
Hardened rolls with 3 grooves can form wire or small round stock.
Manual press brake bends up to 90° and includes a V die set.
Crowning feature lets you set the camber of the tooling so it bends consistently across the machine’s full width.
Hardened adjustable dies (from 1” to 10-⅛”) on the upper beam of the press brake can make boxes and pans.
Metal shear on the bottom uses spring-loaded clamps to hold the material down and produce clean, crisp shearing across the machine.
Shear blades are hardened and reversible, so they stay sharp.
Large handles with grips on both sides allow 2 operators to combine their force and make the machine easier to use.
Each 360° turn of the handles gives you a full cycle on each of the machines.
Back gauge helps ensure repeatability.
PRODUCT SPECIFICATIONS
TTMC 3-IN-1/1016 Combination of Shear, Brake and Roll Machine
Item No. | 371004 | 371005 | 371006 | ||
Model | 3-IN-1/1016 | 3-IN-1/1067 | 3-IN-1/1320 | ||
Bed width | 1016mm | 1067mm | 1320mm | ||
Max. shearing thickness | 1.0 mm | 1.0 mm | 1.0 mm | ||
Max. bending thickness | 1.0 mm | Hydraulic | |||
Max. rolling thickness | 1.0 mm | Hydraulic | |||
Max. bending angle | 90° | 3.0 kw | |||
Min. rolling dia | 40 mm | 42 mm | 50 mm | ||
Packing size | 135*45*72 cm | 139*54*78 cm | 168*54*78 mm | ||
N.W./G.W. | 195/212 kg | 276/297 kg | 349/388 kg | ||
