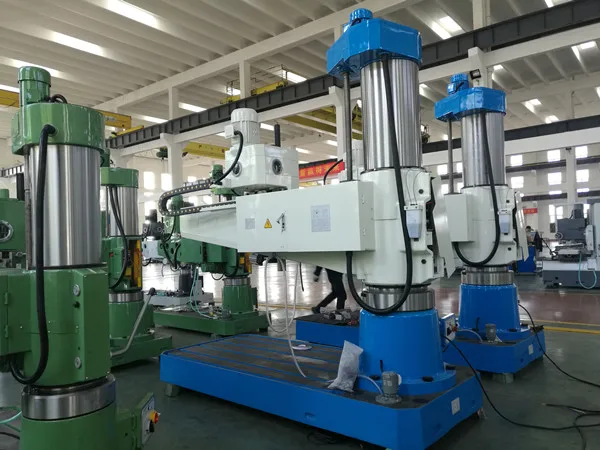

Z3080X25 High quality hydraulic clamping radial drilling machine for sale

Product Overview

Description

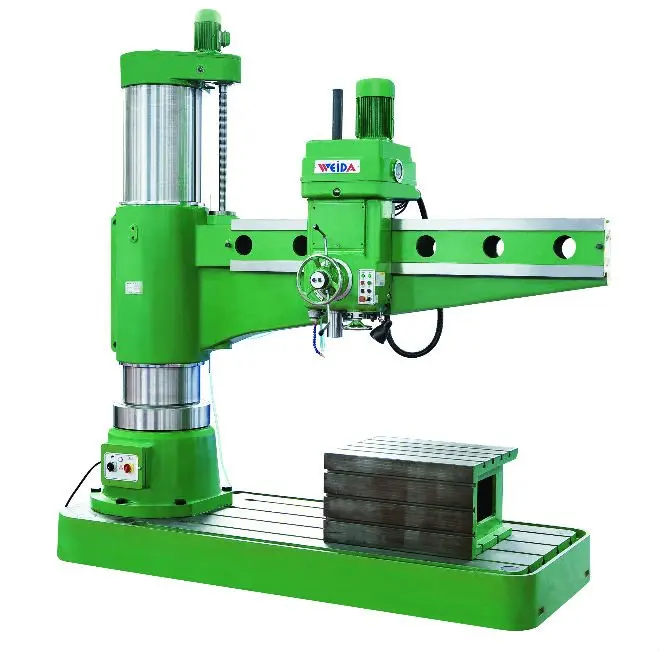

         hydraulic clamping radial drilling machine Z3080X25







	Unit	Z3080x25
Table
Dimensions of Box Table	mm	800X560X1000
T-slot No. of worktable	No.	7
Distance between two adjacent T-slots		150
Width of T-slot		22
Dimensions of base	mm	3730X1400X300
Working surface of base	mm	1200X2380
T-slot/Width/Distance of base		4/28/276
Distance from spindle axis to column	mm	500-2500
Distance from spindle nose to table surface	mm	550-2000
spindle head travel(horizontal)	mm	2000
spindle :
Spindle taper		Morse No.6
Quill travel	mm	450
Max.drilling diameter	mm	80
Speed Range /steps	rpm	16-1250(16)
Max.output torque of spindle	N.m	1568
Spindle feed/steps	mm/r	0.04-3.2/16steps
Motor
Spindle motor power	kW	7.5
Elevating motor	kW	3
Coolant pump	kW	0.125
Others

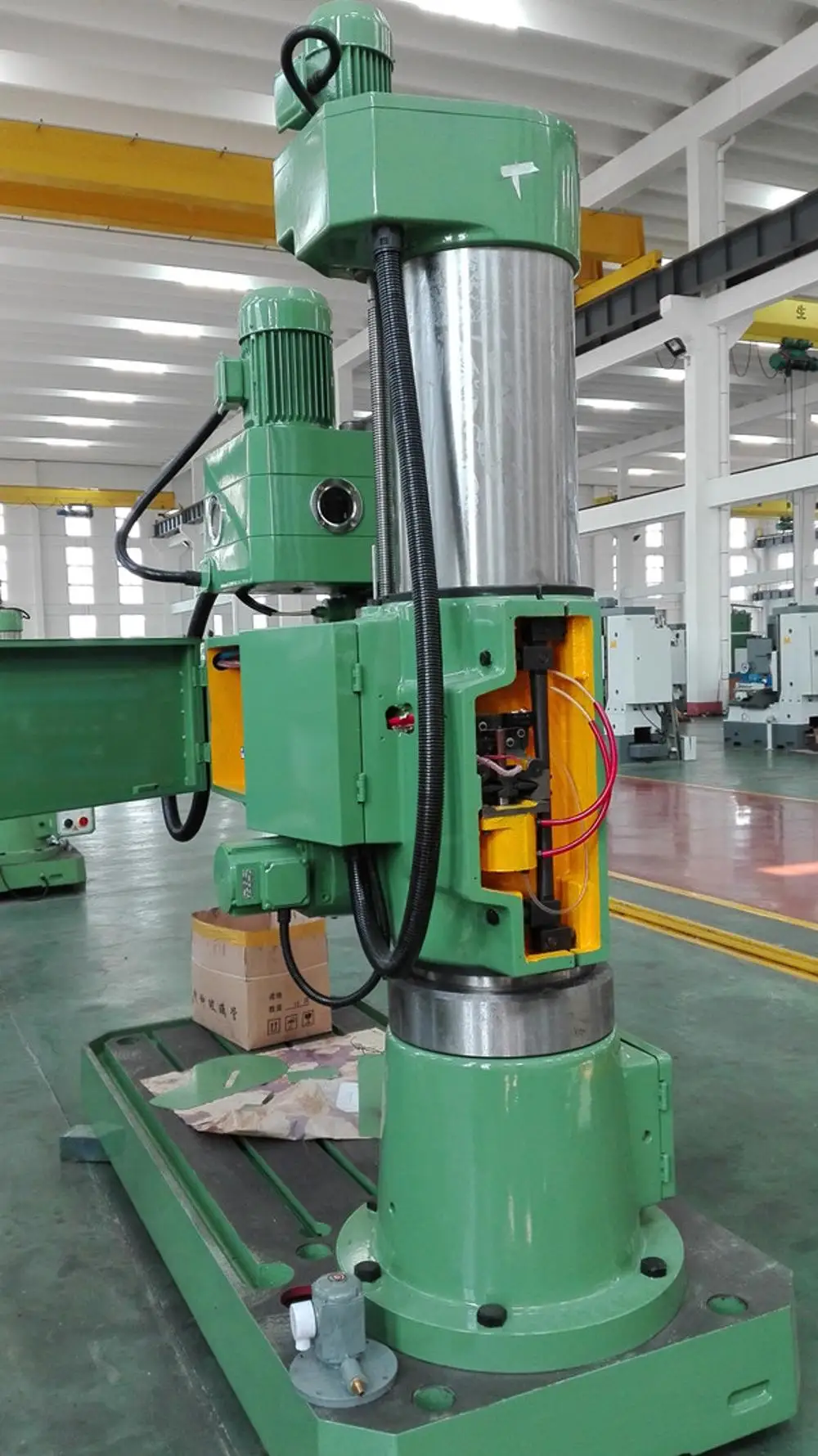

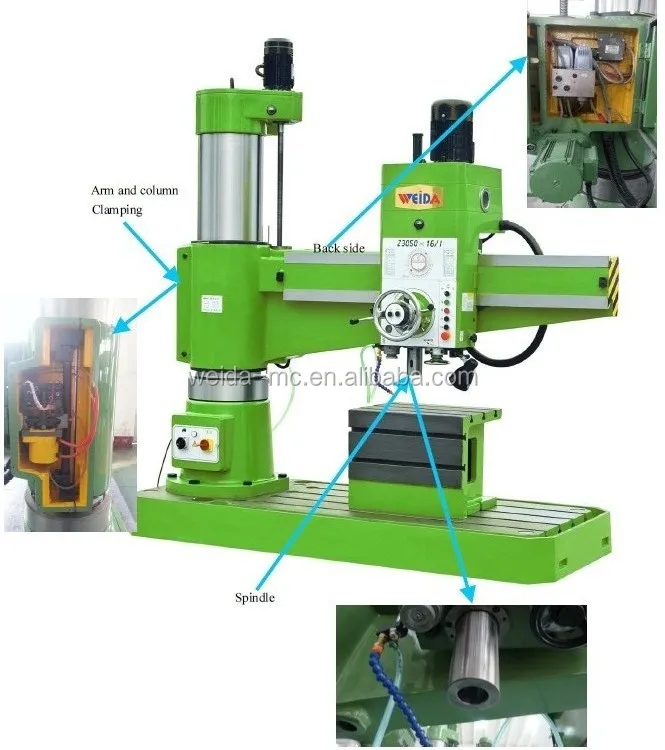

Clamping type		hydraulic
Overall dimension (L*W*H)	mm	3730X1400X4025
Net weight	kg	1100

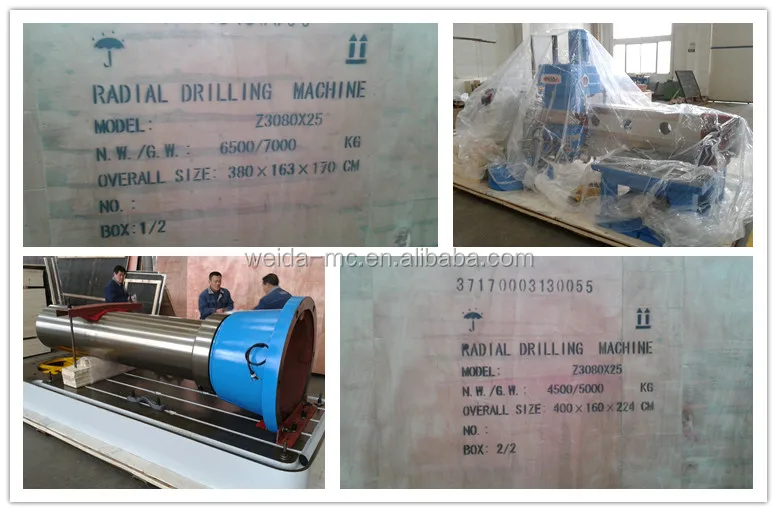

Type of package: Plywood case

Packing dimension:

380*167*170cm              N.W./G.W.: 6700/8100KGS

400*162*224cm              N.W./G.W.: 4600/6400KGS

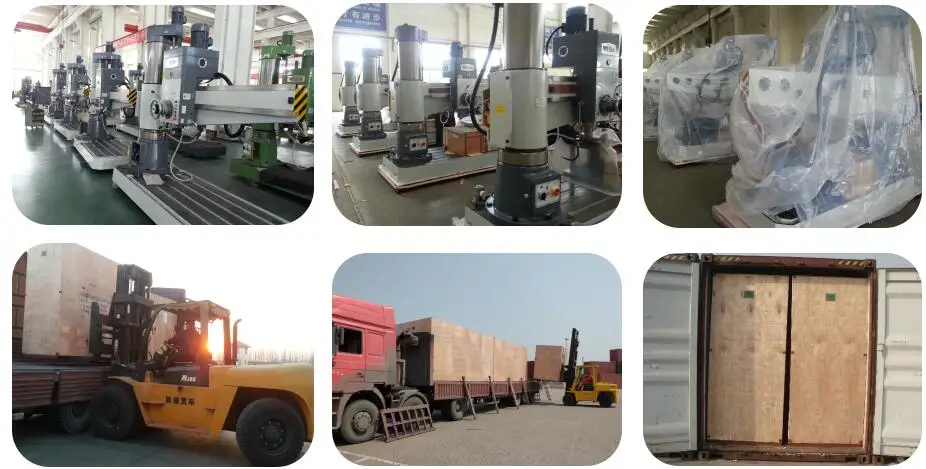

Suitable Container and quantity:

40' standard container:   1set

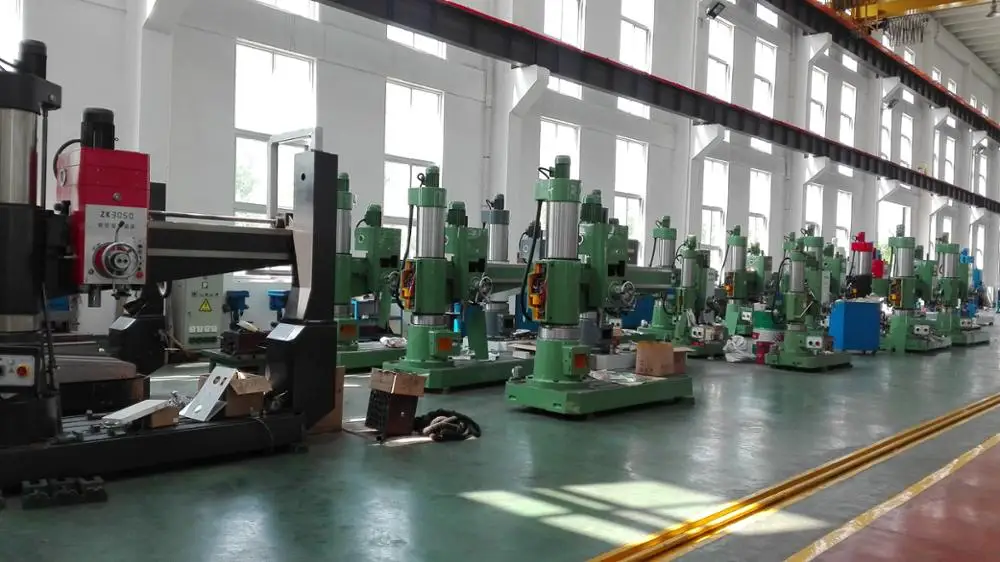

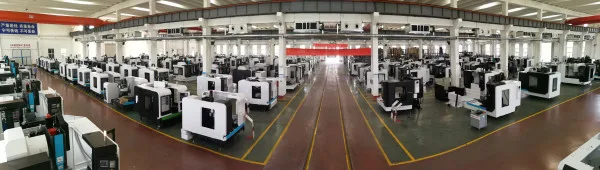

1. We are the biggest manufacturer in our city. Our products includes milling machine, radial drilling machines,

cnc machines etc.



2. We attend many home and abroad exhibitions every year. In China, we attend Beijing or Shanghai exhibition,

Canton fair.  In abroad, we attend EMO, Russia exhibition, Brazil exhibition etc.

3. Our market covers more than 70  ountries and regions, especially Europe & America market.

4. We have got many certifications, such as CE,ISO etc.
