SP 2505 CNC Gantry Machining Center Bridge type milling machine Portal Machining Center

Product Overview

Description

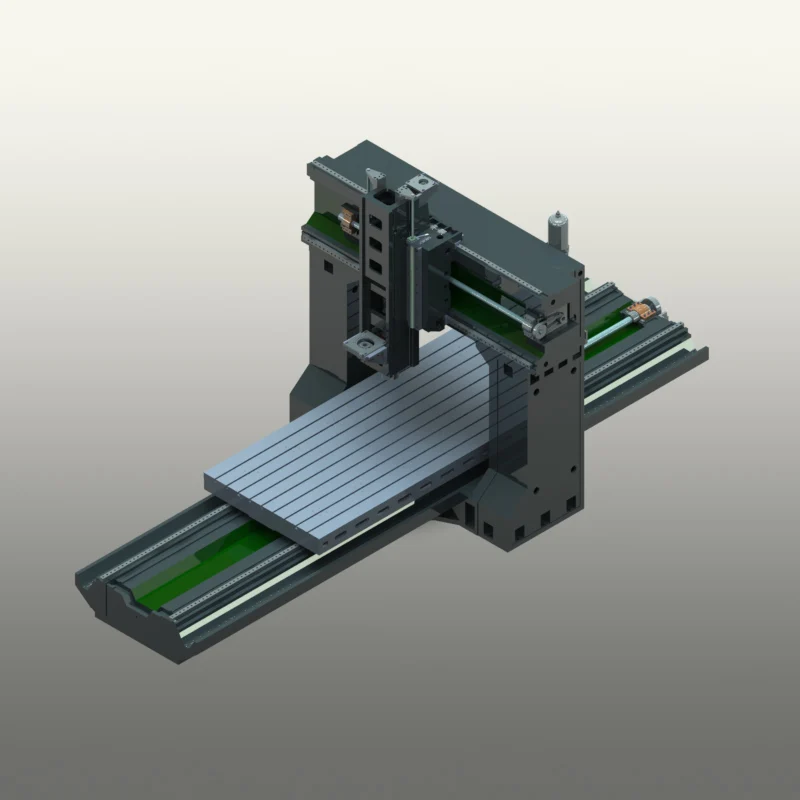

SMARTECH CNC GANTRY MACHINING CENTER FRAME

• MACHINE FEATURE:

1     High-class casting by resin sand and wood mould;

2     Top class imported ball screws sets and bearing ;

3     Imported spindle & tool clamping system ;

4     Imported drive connectors;

5     Telescopic protection on X/Y axis ;

6     Central lubrication system;

7     Spindle trunk hydraulic balance system;

8     Imported  coupling;

9     Harden&ground on all slideways and Turcite-B coated with precise scraping;



• OPTIONAL: Different type milling heads


• SPECS:

MODEL	BMC-2505L
Table Size	2300 x 5000
Travel X	5000
Y	2700
Z	1000
Distance between columns	2700
Spindle Nose to table surface	260-1260
T-Slot(QTY/size/distance)	11/28/200
Spindle Speed(max) with Gear box	3000rpm
Spindle Speed(max) with ZF Gear box	6000rpm
Spindle Speed(max)  standard	4000rpm(Direct Drive)
X axis Ball Screw Spec.	80/16
Y axis Ball Screw Spec.	63/16
Z axis Ball Screw Spec.	50/10
Drive motors recommended X/Y/Z	40/30/30Nm
Table  Work Load	15000 Kg
Net Weight	53000kg

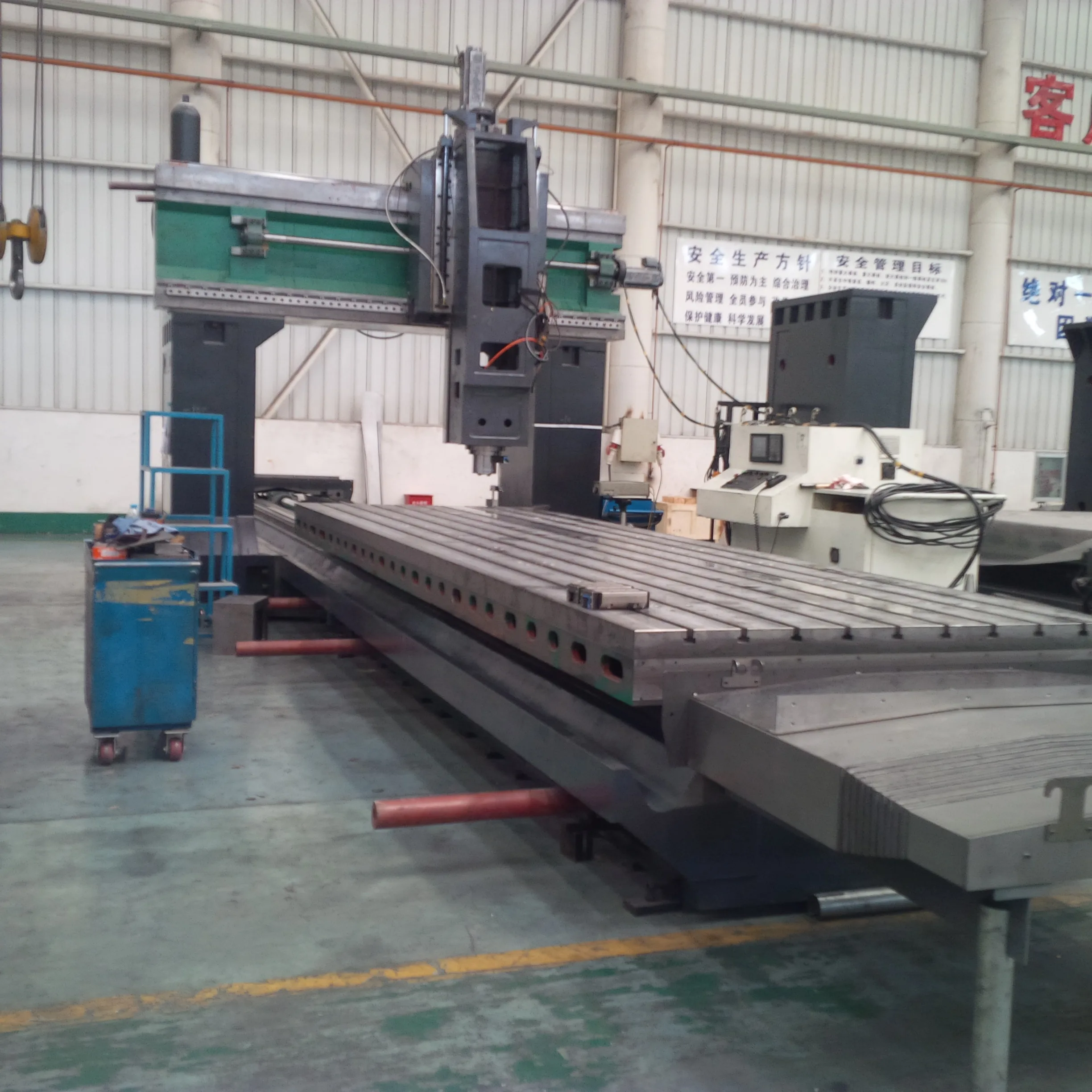

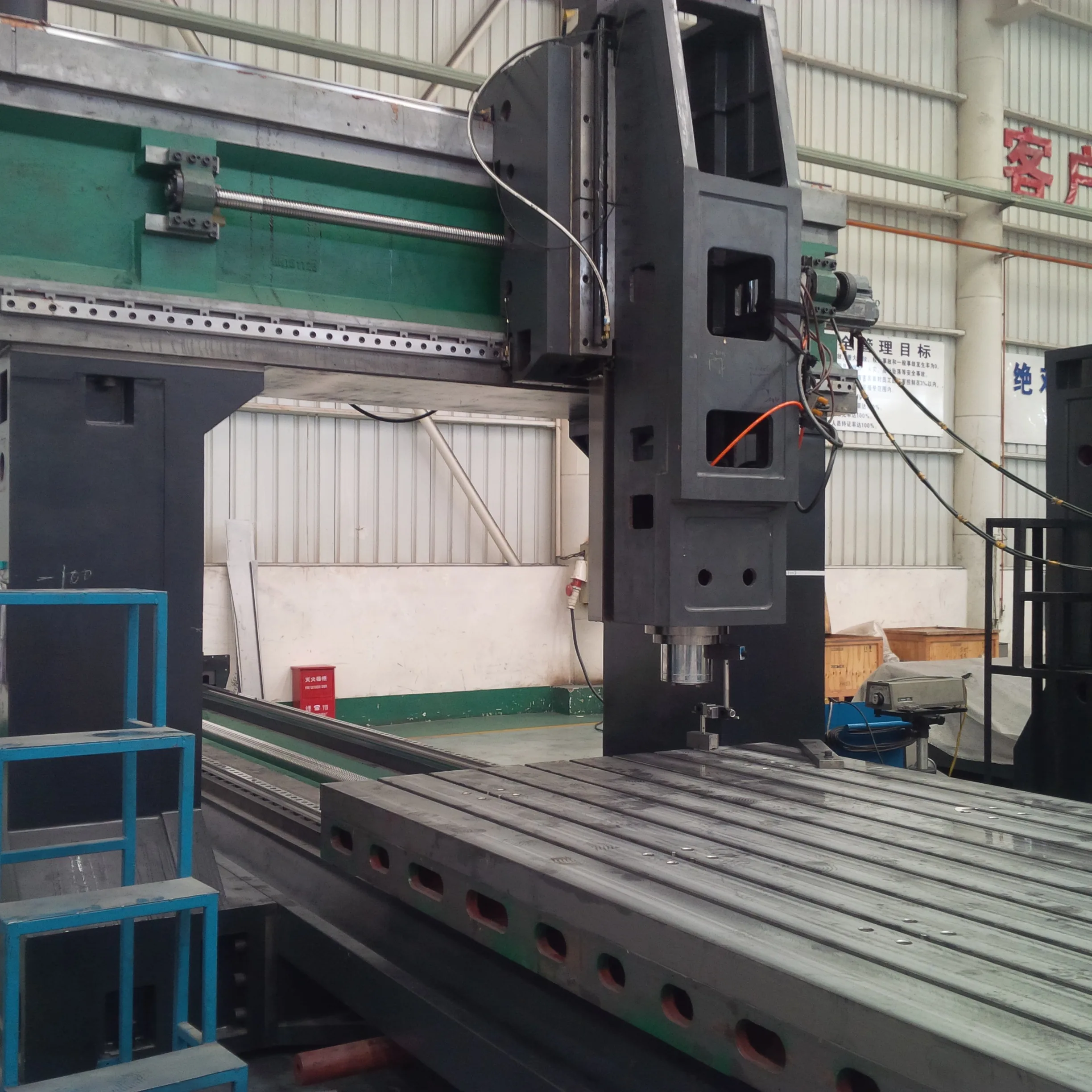

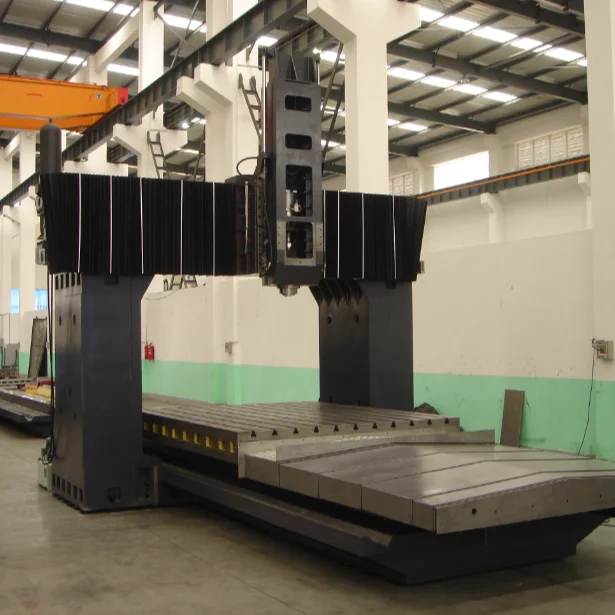

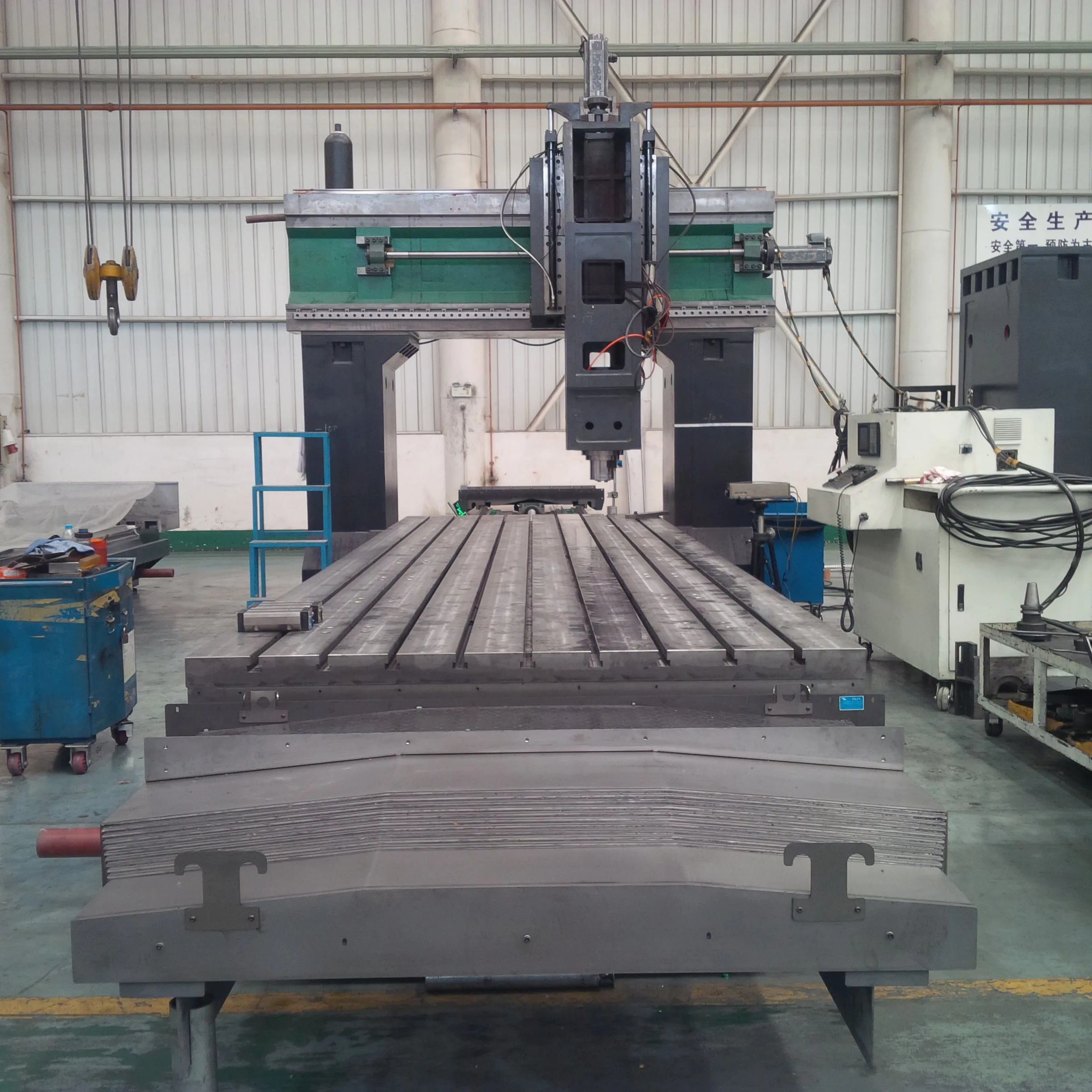

Frame Photo:

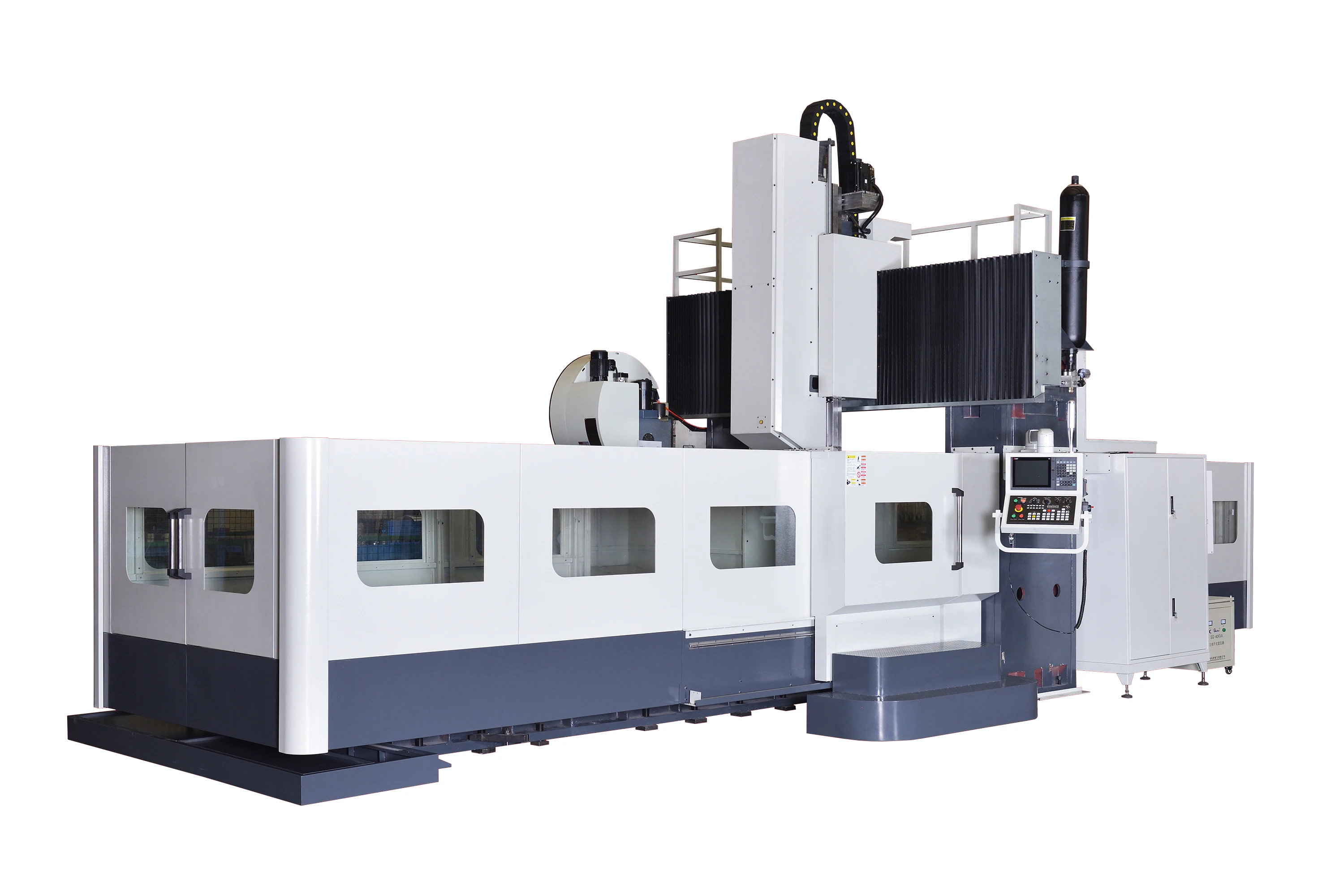

We also supply complete machine:
