Small Air Driven / Pneumatic Cement Grout Mixer Pump Mixer Grouting Machine
- Category: Other Construction Machinery >>>
- Supplier: Risen Machinery Co. Ltd.
Share on (537098919):
Product Overview
Description

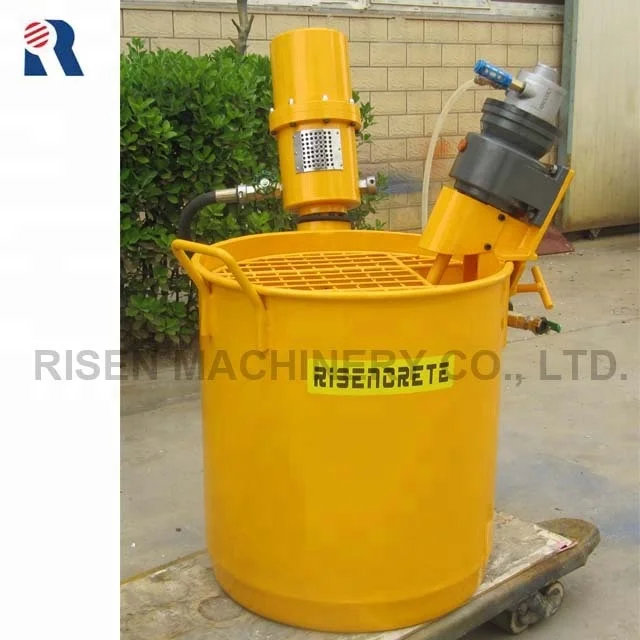

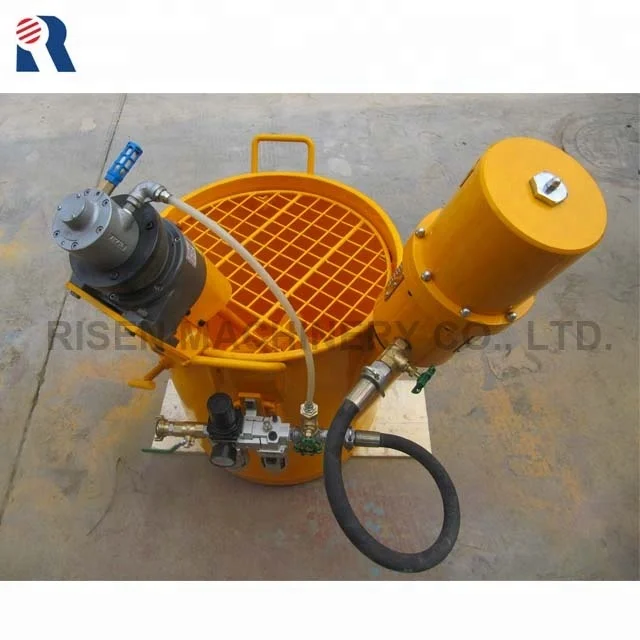

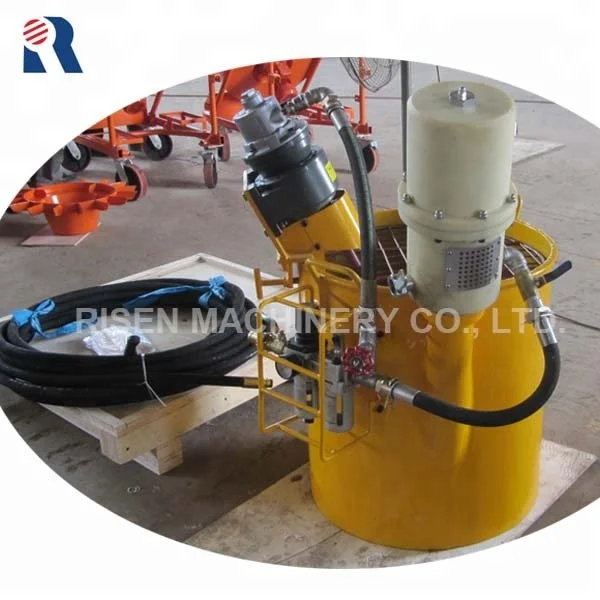

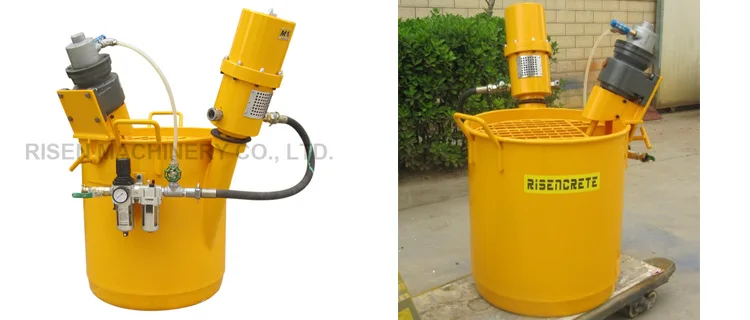

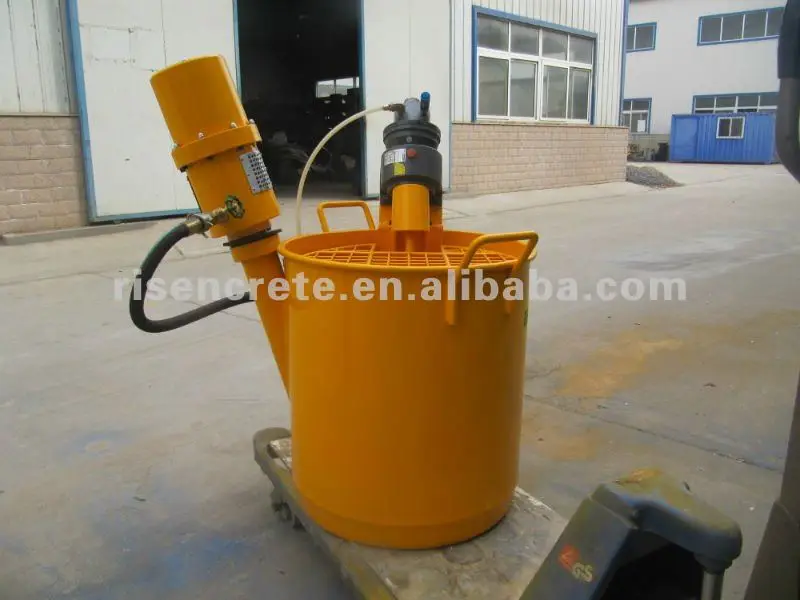

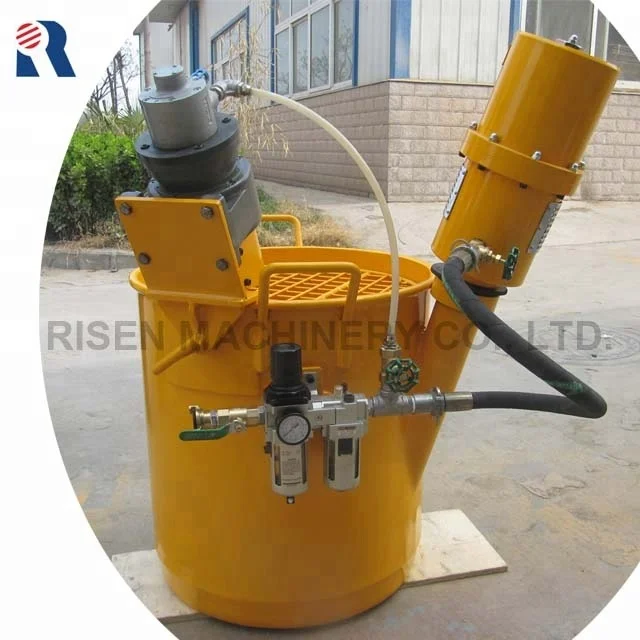

Small Pneumatic Cement Grout Mixer Pump / Mixer Grouting Machine
RISEN RG30/120
A small-size air driven grout pump with mixer
Output: 30Litre/min
Mixing tank volume: 120L
Air consumpiton: 2,200Litre/min
RISEN RG30/120 is a small-size air driven grout pump with mixer. The pump has the advantages of small size, light weight, reliable operation. It can work in the flammable & explosive places and the places with variable temperature and humidity.
Technical Data
| Item | RG30/120 |
| Output | 30L/min |
| Presssure | 3.2MPa |
| Pneumatic | 0.4-0.6MPa |
| Air consuption | 2.2m3 |
| ID of air pipe | 22mm |
| Capacity of mixer tank | 120L |
| Rated rotay speed | 180rmp |
| Weight | 95kg |
| Overall dimension | 940*840*1060mm |
Application
Our RG30/120 Pneumatic Cement Grout Mixer is mainly used for mine, tunnel, hydropower engineering , underground construction, bridge project, for grouting, filling in the fissure, the grouting consolidation of the broken rock strata, recover the road, the grouting of railway roadbed or foundation, exclude the hidden trouble in the flood.
Features
A small work group consisting of portable grout pump and mixer
Air driven unit, available to work in the flammable & explosive places;
Small size, light weight and reliable operation
