SHD315 plastic pipe butt fusion welding machine for welding pipes from 90 315mm

Product Overview

Description

SHD315 plastic pipe butt fusion welding machine for welding pipes from 90-315mm



Application and features:

♦ Suitable for butt welding of plastic pipes and fittings made of PE, PP and PVDF in a ditch in worksite or workshop.

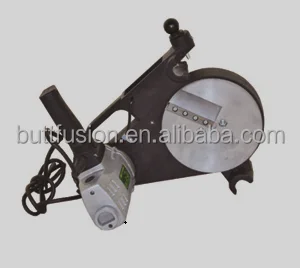

♦ Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool & heating plate, and optional parts

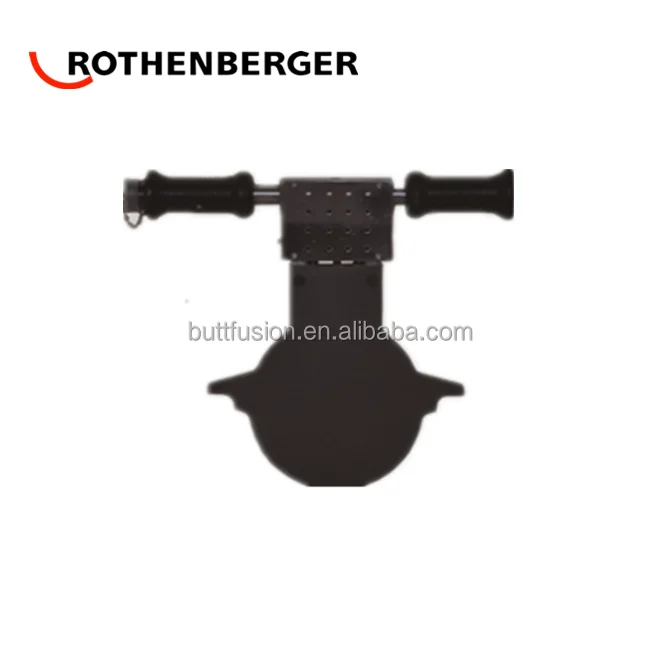

♦  Removable PTFE coated heating plate with high accurate temperature control system;
♦  Electrical planing tool.
♦  Be made of lightweight and high strength material; simple structure, small and delicate, user friendly.
♦  Low starting pressure ensures reliable welding quality of small pipes
♦ Changeable welding position enables to weld various fittings more easily.

♦  High accurate and shockproof pressure meter indicates clearer readings.

♦  Separate two-channel timer records time in soaking and cooling phases



The main parameters:



Model	SHD315
Pipe size(mm)	90,110,125,140,160,180,200,225,250,280,315
Heating plate Max. Temp.	270°C
Temp. deviation in surface(170~250°C)	<±7°C
Pressure adjustable ranges	0-6.3Mpa
Working voltage	220V,50Hz
Heating plate power	3.5KW
Planing tool power	1.1KW
Hydraulic unit power	0.75KW
Total power	5.35KW



Optional parts:



Stub end device for short flange stub

 Data logger







Packing list





Item	Dimension with packing(mm)	N.W(kg)	G.W(kg)	Remark

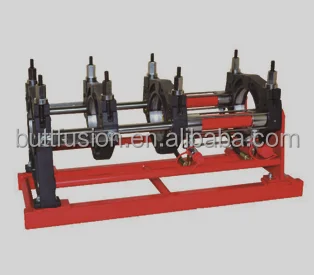

1	1100×710×700	118	136	Basic frame ,insert clamps(280~90mm)
2	770×570×720	56	72	Heating plate,planing tool, support, attachments and fittings
3	730×480×600	46	62	Hydraulic unit
Total	1.13CBM	220	270
