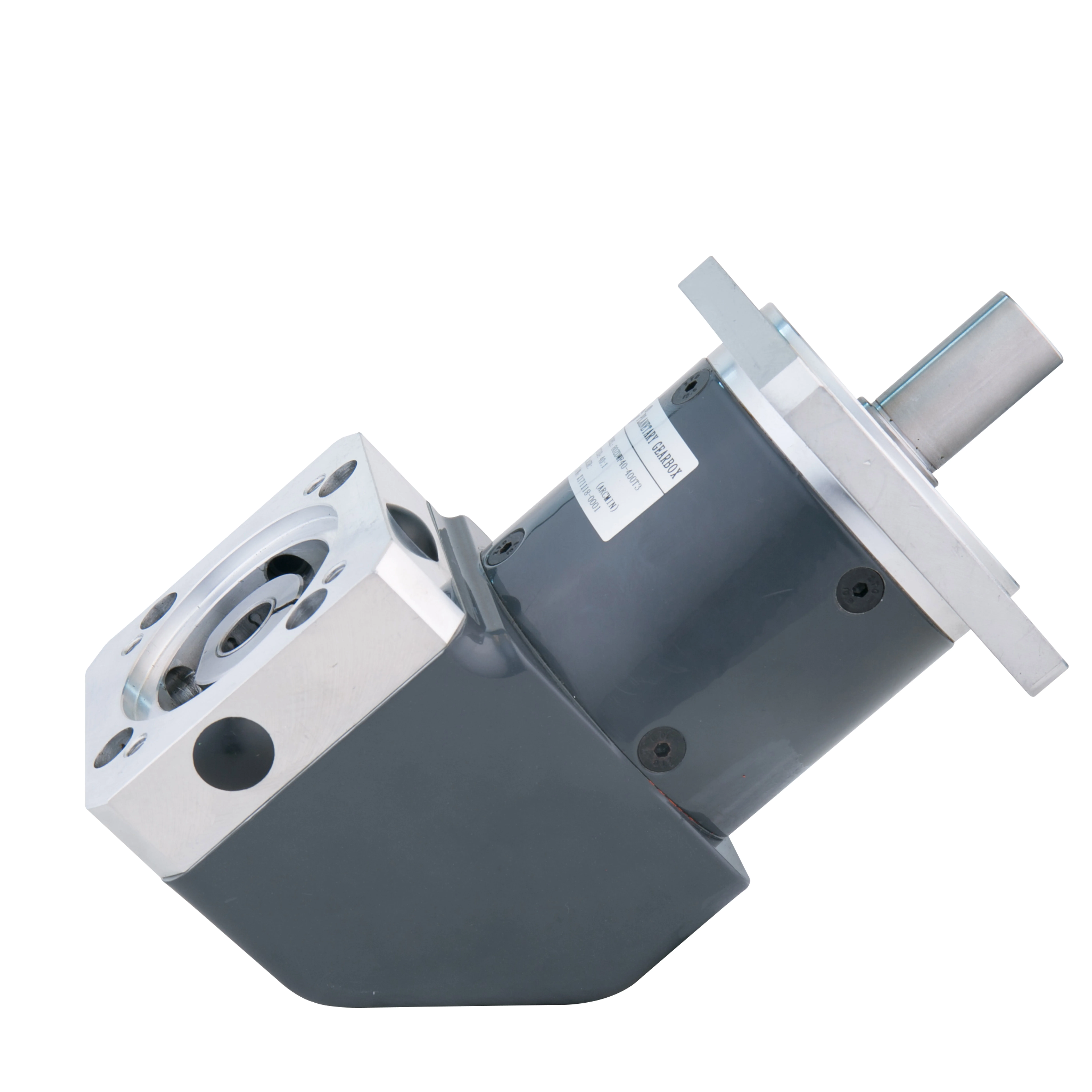

planetary worm reduction gearbox

Features:

Rated output torque	N.M	4.5-1800
Instant stop torque	N.M	Two times of rated output torque
Life	Hour	30,000
Full load efficiency		90%,94%,96%
Operating temperature	°C	-25---+90
IP		IP54
Lubrication type		Lifetime lubrication
Mounting type		Any



Product type		WPL40	WPL60	WPL80	WPL120	Number of stage
Torsional stiffness	N.M/arcmin	0.7	1.5	4.5	10	1
		1.1	2.5	6.5	13	2
		1.0	2.5	6.3	12	3
Noise	dB(A)	65	65	68	70
Max output speed	Min	18000	13000	7000	6500
Recommend input speed	Min	4500	3000	3000	3000

Noise test standard pressure level,distance 1m,measured on idle running with an input speed of 3000rpm



High precision planetary gearbox matched with serve motor,stepping motor are widely used.lowest backlash<3");high output torques;high efficiency(96%);honed toothings;22 ratios i=3,...,512;low noise(<65dB(A));any mounting position;easy motor mounting;life time lubrication;Figure diameters 40,60,80,120,160mm.more options.



Planetary gearbox:

ZDE:Precision planetary-round flange output

ZDF:Precision planetary-square flange output

ZDWE:Precise planetary-right angle round  flange output

ZDWF:Precise planetary-right angle square flange output

ZDS:Precise planetary-high rigidity,low back lash
