Share on (556451955):


Price:RUB 613,402.40 - RUB 920,103.60

Quantity:


Product Overview

Description

Product Description

Product Application

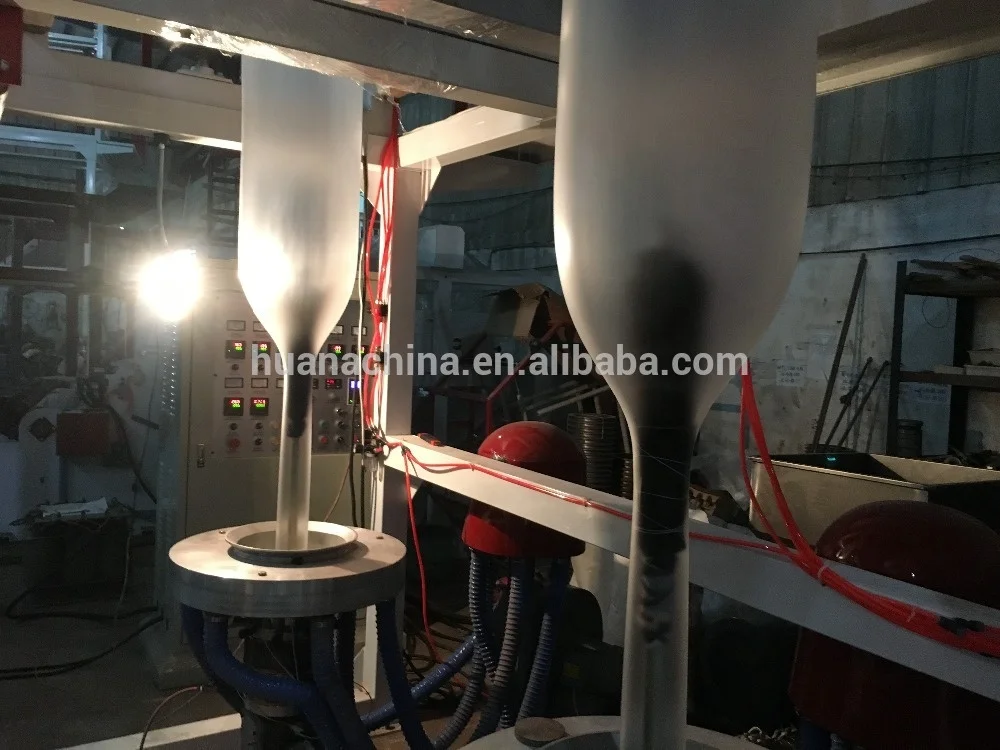

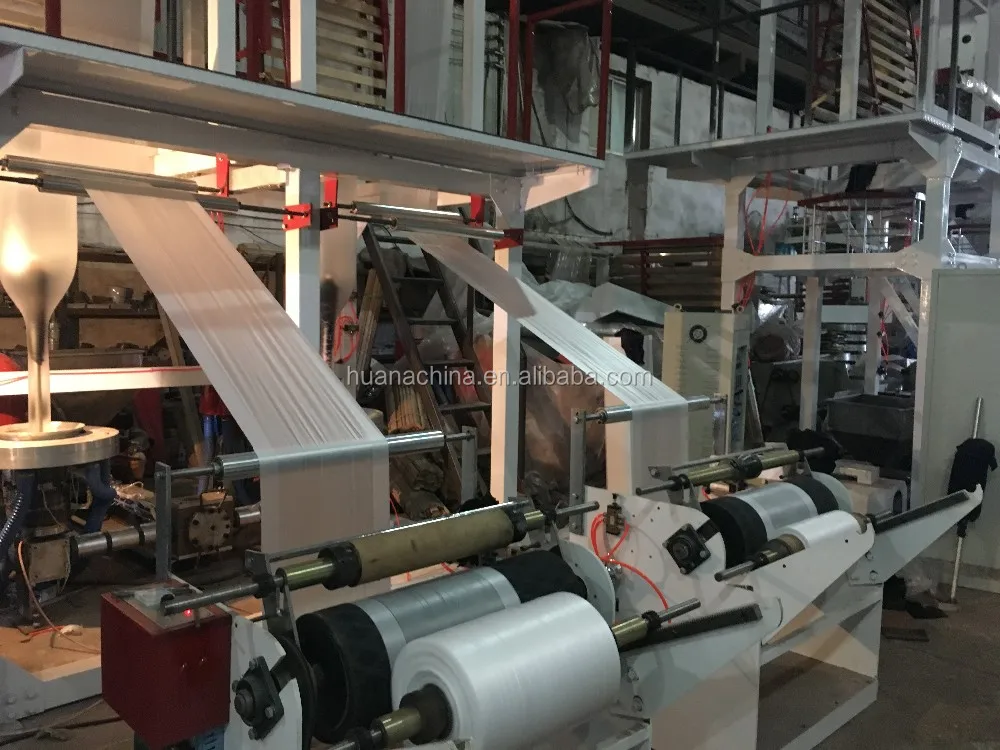

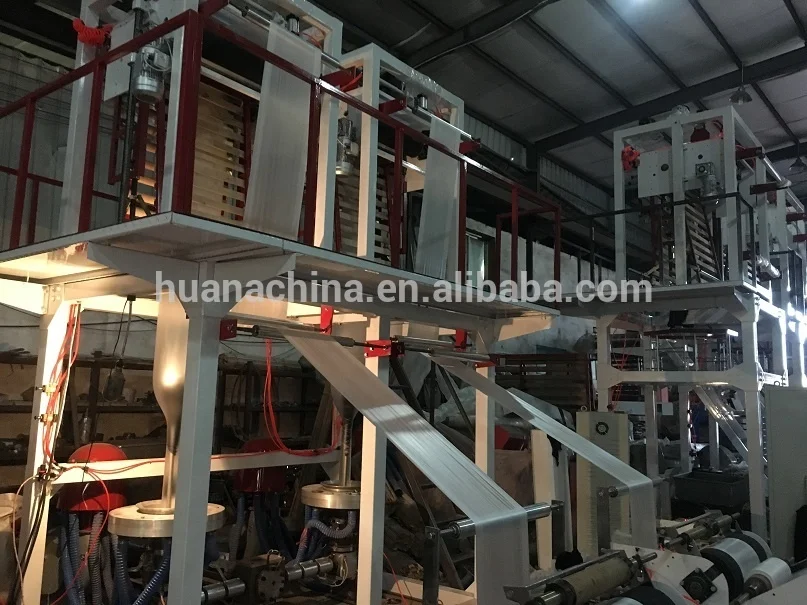

Both the cylinder and the screw of the extruder are made of high quality alloy steel through nitration and precision finishing with the best hardness and corrosion resistance,Scientifically designed,this machine set has two heads for one extruder with such advantages as increasing production capacity,saving energy,labour and workshop area,etc.


Main Technical Parameter
Model
SJ55-FM700
SJ55-FM800
screw diameter
Φ60
Φ65
screw ratio L/D
28:1
28:1
screw speed
15-100r/min
15-100r/min
main motor power
18.5kw-22kw
22kw-30kw
extrusion output(single)
50-60kg/h
60-80kg/h
range of die
Φ50×2 Φ80×2
Φ100×2   Φ150×2
single-sided thickness of film
0.008-0.10mm
0.01-0.10mm
max folding width of film
600mm
800mm
electric total capacity
44kw
58kw
overall dimension
4000×3500×4200
4500×4500×4500
weight of machint
3.8T
4.5T

Main Features

1.The extruder ,barrel and screw rods are made of high quality 30CRMOALA alloy steel that have been nitrized and processed in a precision way

2.It is good in hardness ,durable in corrosion resistance.

3.The special designed screw is of high quality .

4.Which helps increase the production capacity.

5.It is applied to blowing the plastic films like low density polytene(LDPE).

6.High density polytene(HDPE) and linear low density polyene(LLDPE).

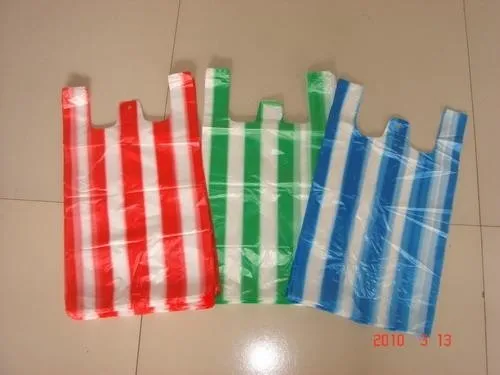

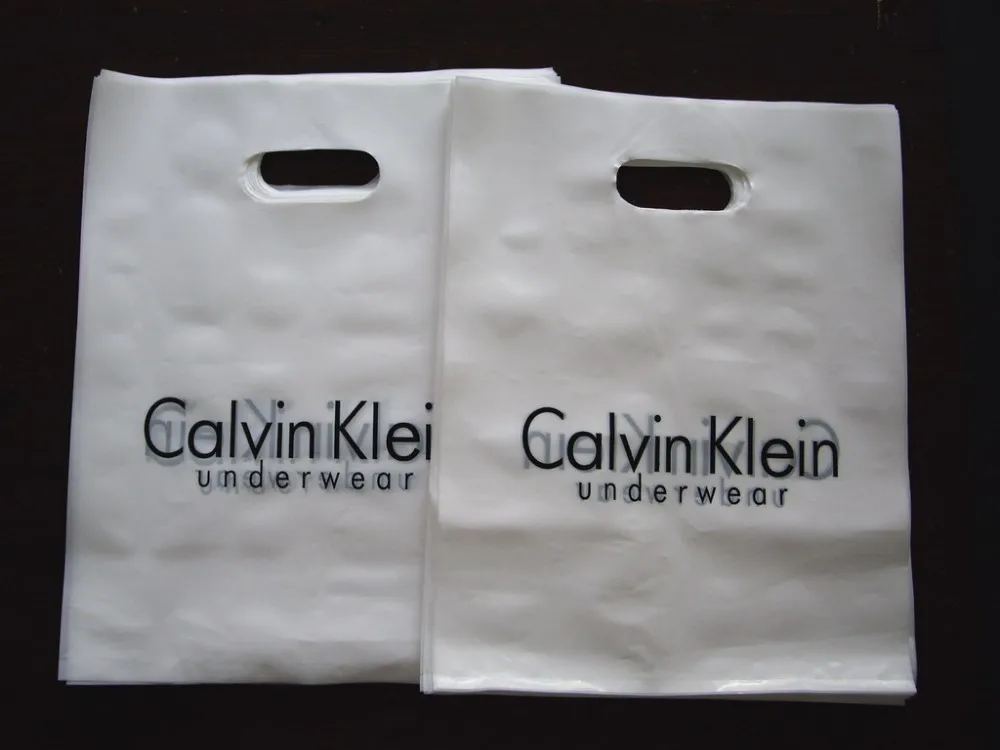

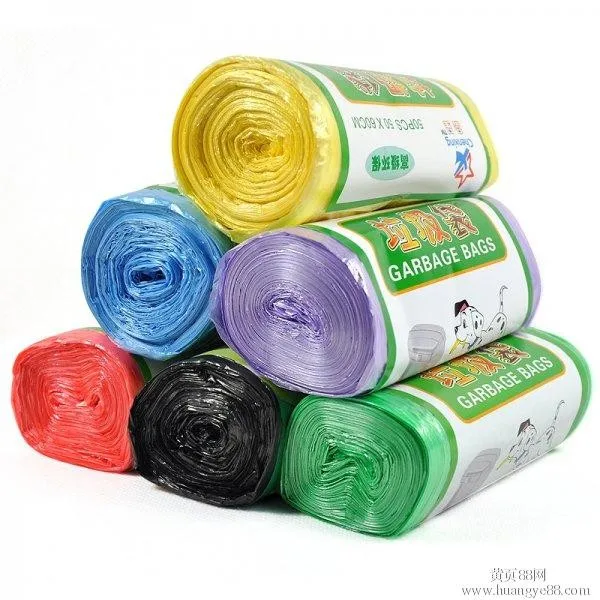

7.It is widely applied to producing the packing bags for foodstuff clothing ,rubbish bag and vest bag
