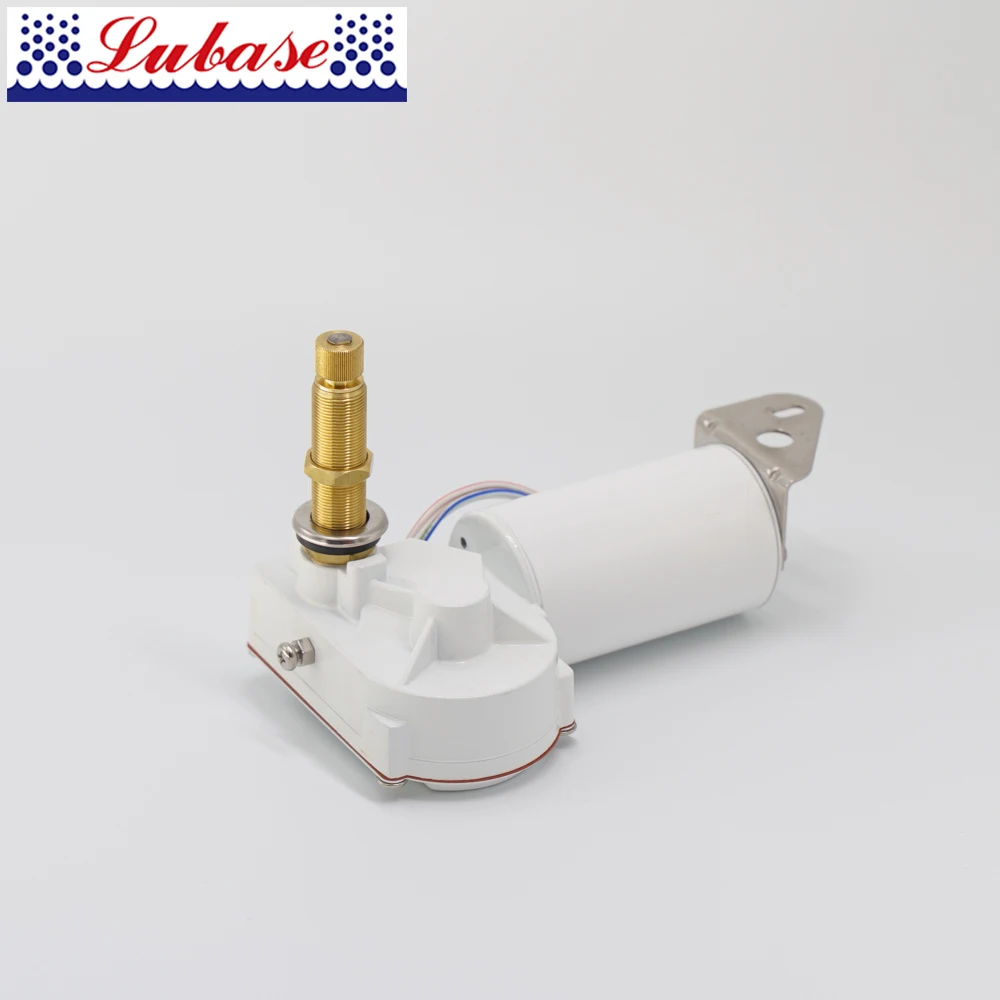

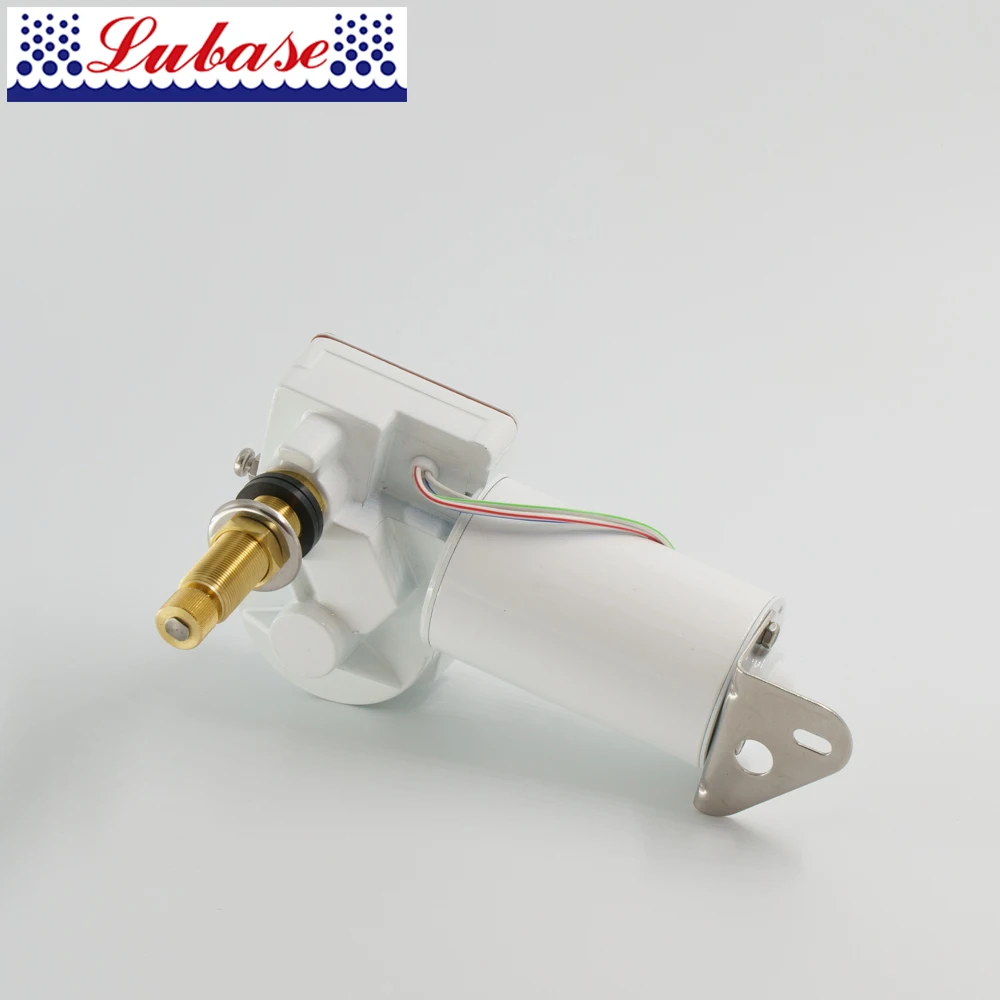

(For Boat, Yacht and Marine) 12V / 24V DC Heavy Duty Windshield Wiper Motor

Product Overview

Description

(For Boat, Yacht and Marine) 12V / 24V DC Heavy Duty Windshield Wiper Motor

The most classic windshield heavy duty motors in the global for over 20 years.

Two speed, Adjustable sweep angle, self-parking compose to be the most compatable wiper motor.

Also. this motor capable to drive longer arms and blades in heavy weather.



Specification

Torque: 18 Nm

Max arm length: 24" (610mm)

Max blade length: 24" (610mm)

Sweep angle: 40~110, 10 increments

Two speeds: Low 40 sweeps/min; High 60 sweeps/min

Park position: Adjustable & Self-parking; Left or Right

Shaft length: 2.5” (63.5 mm) [Optional]

Shaft adapter: 13.85 mm, L9.8 mm, 72 teeth [Optional]

Voltage: 12V/24V

Isolated ground; suitable for steel, aluminum, wooden and GRP boat

Stainless drive shaft with nickel-plated brass socket

Aluminum case

CE Approval

3 years warranty

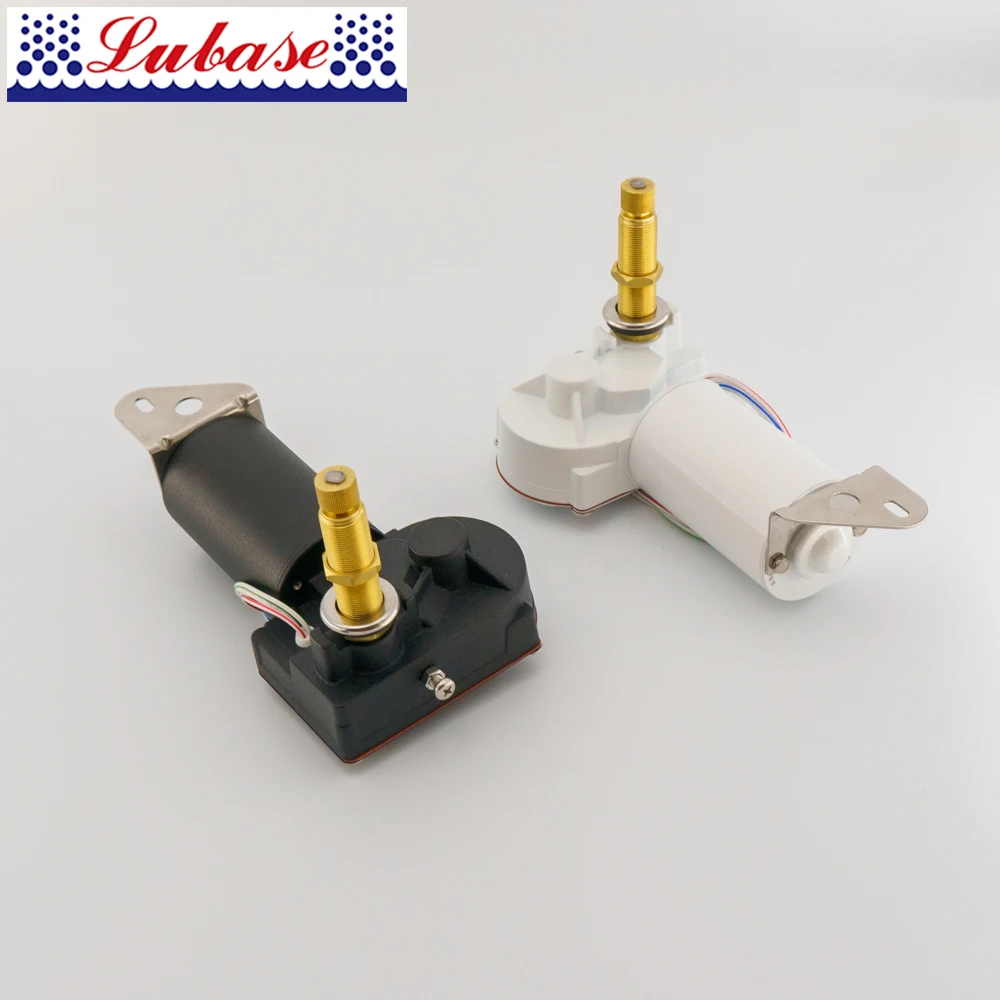

Black and white model (1671 Series, 4 poles model)



Item name	Item Number	Shaft Length	Color	Voltage
Heavy Duty Windshield Wiper Motor (1671 Series, 4 poles model)	167111-12CEB	1.5" (38mm)	black	12V
	167121-12CEB	2.5" (63mm)	black	12V
	167131-12CEB	3.5" (89mm)	black	12V
	167111-24CEB	1.5" (38mm)	black	12V
	167121-24CEB	2.5" (63mm)	black	12V
	167131-24CEB	3.5" (89mm)	black	12V
	167111-12 CE	1.5" (38mm)	White	12V
	167121-12 CE	2.5" (63mm)	White	12V
	167131-12 CE	3.5" (89mm)	White	12V
	167111-24 CE	1.5" (38mm)	White	24V
	167121-24 CE	2.5" (63mm)	White	24V
	167131-24 CE	3.5" (89mm)	White	24V



*All products are preset 110 degree & right parking. If you need other setting, please notify in advance.



If you need a quote, please provide 1. Item Number 2. Qtys 3. Your postal code. We will reply you with shipping ASAP.
