2019 машина для выдувания полиэтиленовой пленки

Product Overview

Description

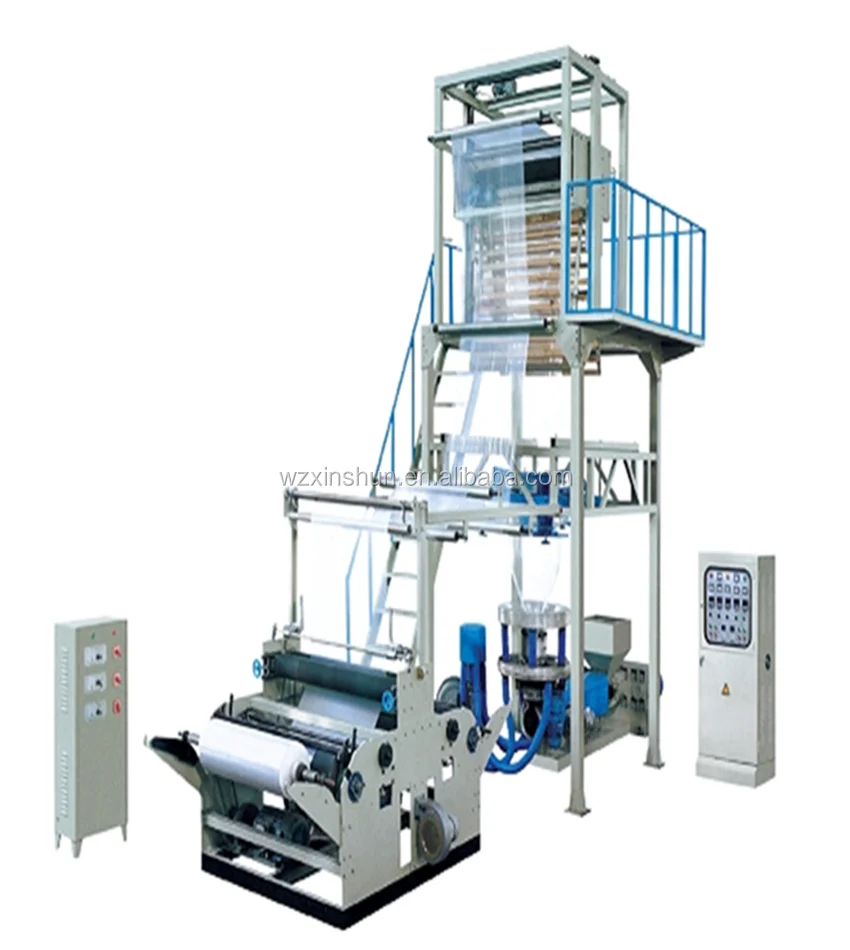

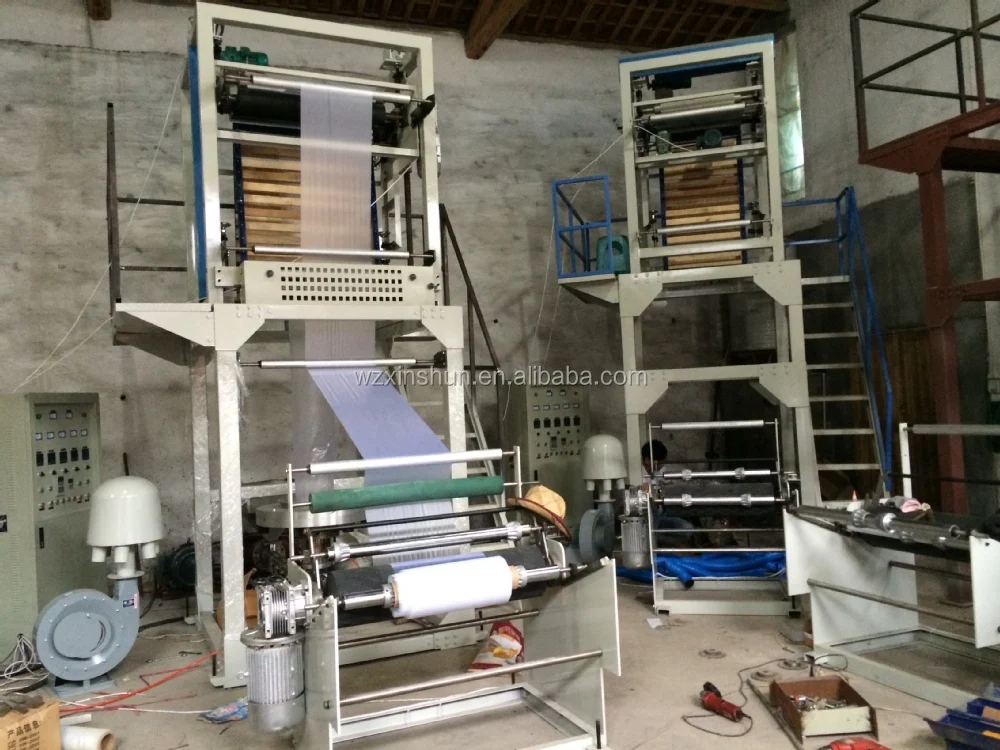

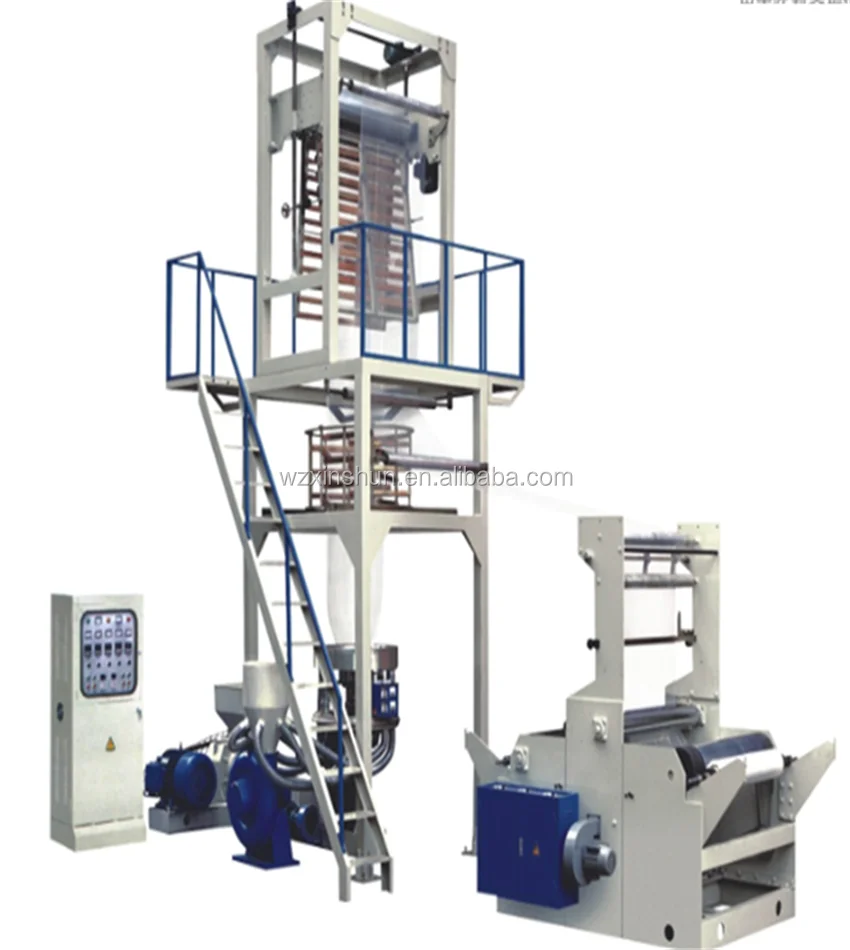

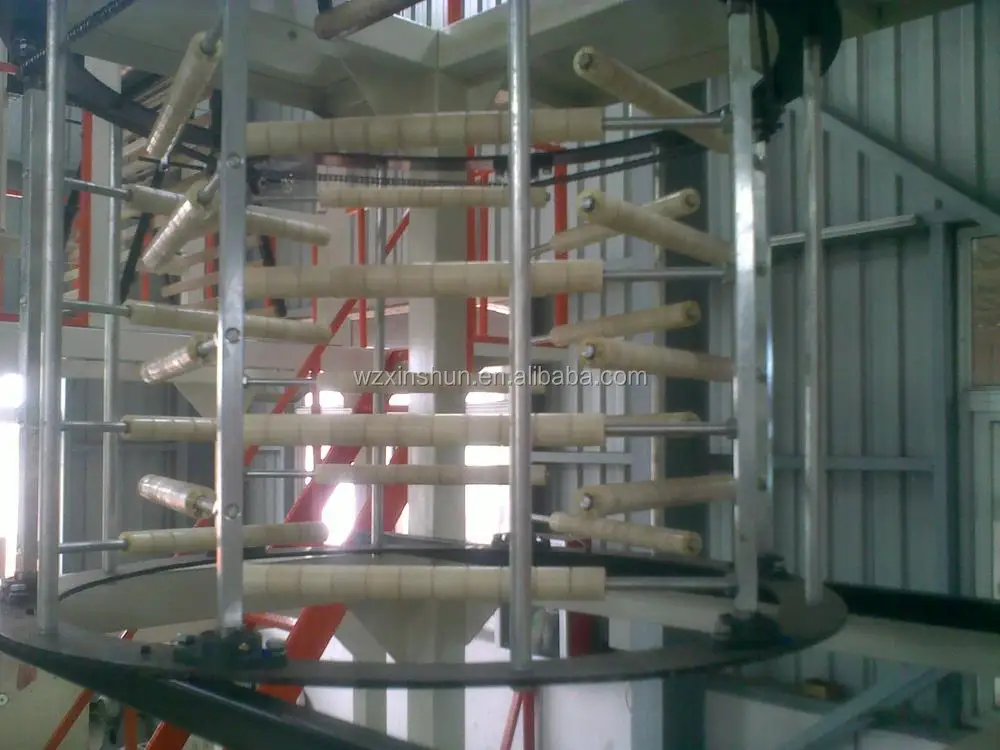

 SJ-H Elevator Rotary Machine Head Film Blowing Machine Set

(PE Heat-shrinkable Film Blowing Machine)







Performance and Characteristics:

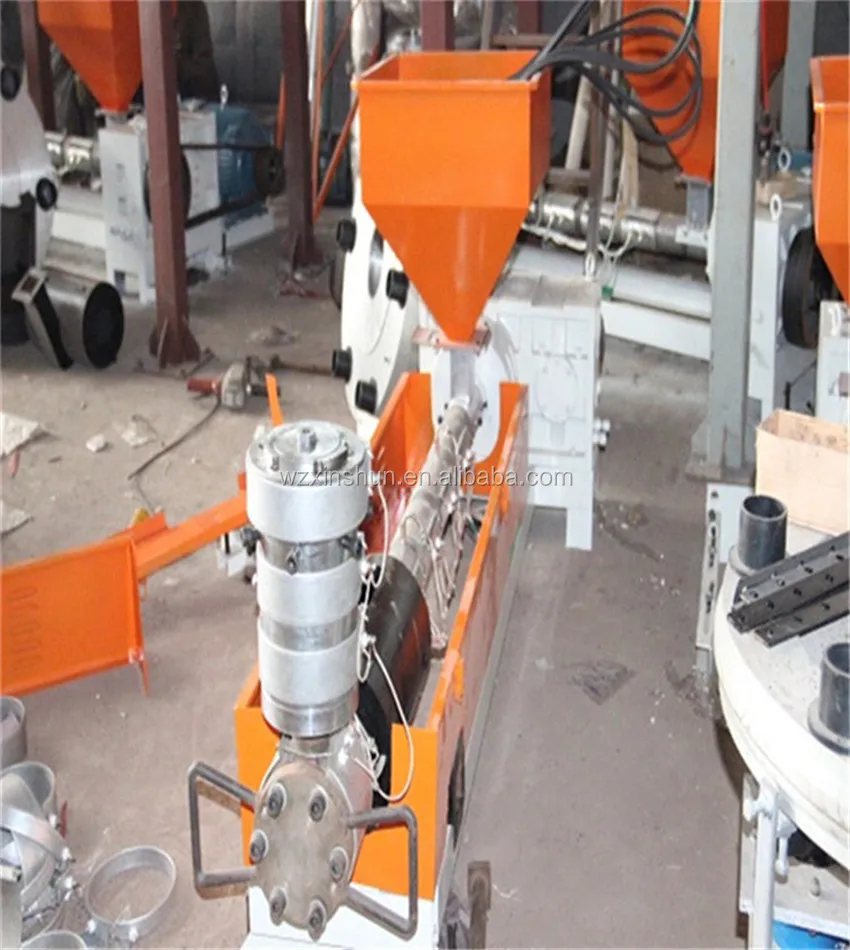

It is used for blowing various plastic film of low density polyethylene(LDPE),high density polyene(HDPE)and linear low density polyethylene(LLDPE)etc.,Which are widely used for packing liquid,industrial products,garments and textile and printing lamination.etc..The cylinder and the screw stems of the extruder are made of high-quality alloy steel with optimum hardness and strong corrosion resistance after nitroqen trea-tment and precision finishing.

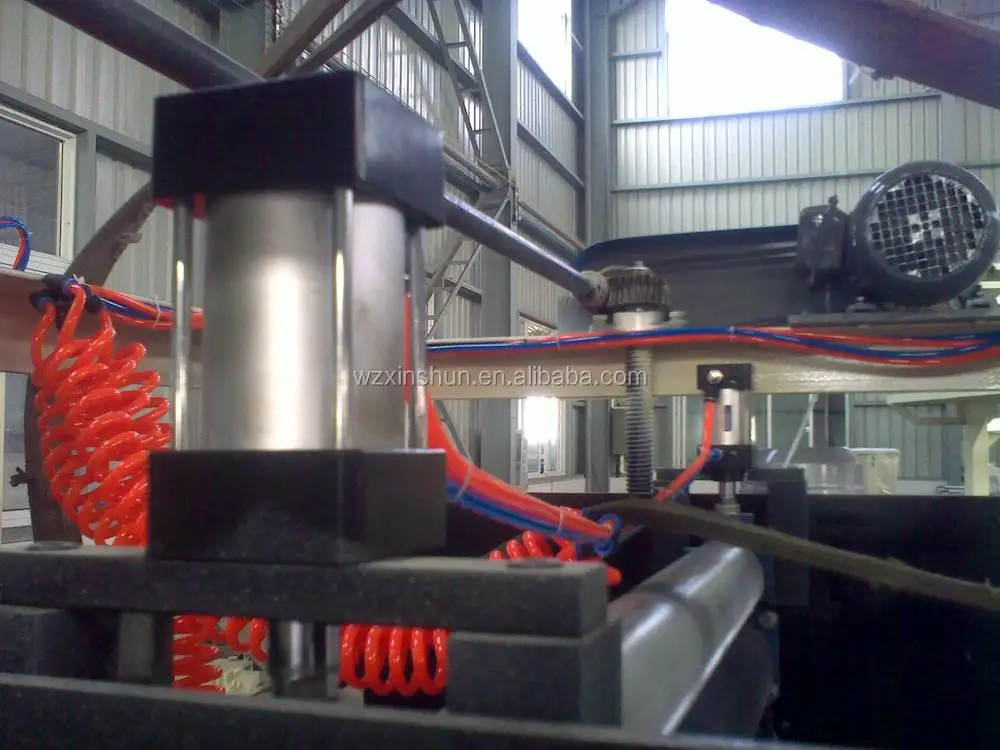

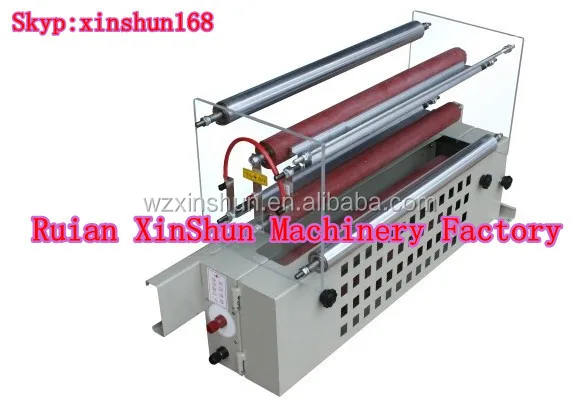

The auxiliary machine has a platform working table formaking operation easy and is equipped with dubble stabilizing ring.Double-rolling and double-cutting coiling unit adoptstorque motor to keep proper tension and make even and roll-changing easy.



Main Technical Variables:



Model	SJ-H45	SJ-H50	SJ-H55	SJ-H65
Suitable Material	LDPE,HDPE,LLDPE	LDPE,HDPE,LLDPE	LDPE,HDPE,LLDPE	LDPE,HDPE,LLDPE
Screw Diameter	45	50	55	65
Film Width(mm)	100-500	300-600	400-800	600-1200
Film Thickness (mm)(HD)	0.009-0.05	0.009-0.05	0.009-0.15	0.009-0.15
Film Thickness (mm)( LD)	0.02-0.15	0.02-0.15	0.03-0.15	0.03-0.15
Max Extrusion Output(kg/h)(HD)	40	45	55	65
Max Extrusion Output(kg/h)(LD)	45\\50	50	60	70
Screw L/D Length	28:1\\30:1	28:1\\30:1	28:1\\30:1	28:1\\30:1
Main Motor(kw)	7.5	11	15	22
Take-up Motor(kw)	0.75	1.1	1.1	1.5
Outline Dimension (L×W×H)(m)	5.0*2.0*4.1	5.0*2.2*4.5	5.5*2.5*4.5	5.8*2.8*6.3

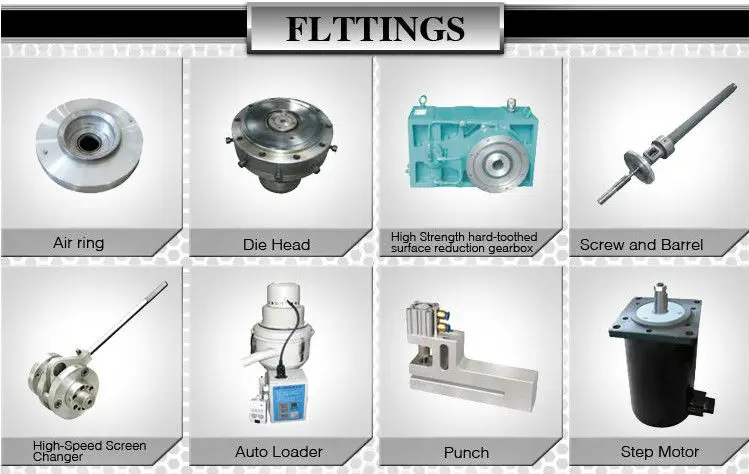

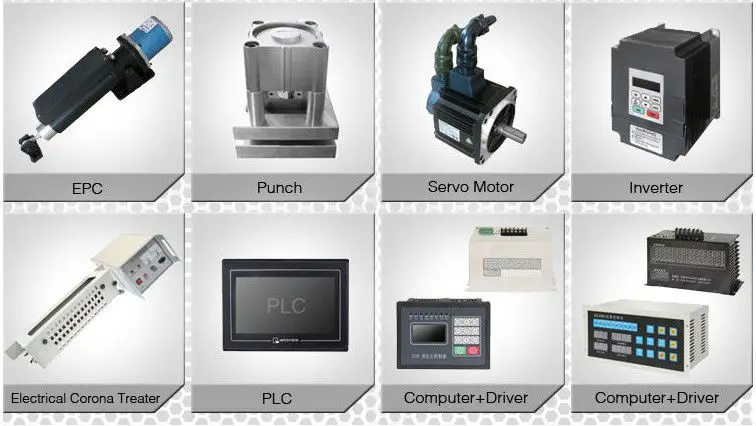

Optional Equipment

 1)Auto Leader

 2)Air Compressor

 3)Special Die

 4)Die Rotary Space

 5)Bouble Sides Winder
