DMX512 Signal Converter

Product Overview

Description

Signal Converter







Summarization

        DALI (Digital Addressable Lighting Interface) is an

international standard, popular lighting control protocol BUS, With digital addressing dimming, stable, various dimming ways, easy to install, compatible with many big factories such characteristic.



DMX512 is first by USITT (American theater technology association) develop and become from the console with standard digital interface control dimmers way. It has simple, reliable, flexible features. This



product transform the standard DALI dimming signal to the international widely used DMX-512 standard signal. It can realize DALI host machine to DMX module control, realize 2 kinds protocol seamless transition.



Technical parameters

l Working temperature: -20-60 °C

l Supply voltage: DC12V-24V

l Input signal: standard IEC60929 DALI signal

l Output signal: standard DMX-512 signal

l Gross weight: 214g

l Net weight:158g

l statical power consumption: <1W

l Packing size: L145ΧW70ΧH50 mm

l External dimension: L103.31ΧW65ΧH46 mm

l Connection mode: DALI input is 2pin green connection pillar, DMX output is 3pin Corleone head

l IP protect ion grade: IP20



External dimension





Interface Specifications

DALI input port and DC power input interface:



DMX output interface:





Direction for Use

Direction for use:

    1. Connect the load wire first, follow the power wire; Please ensure short circuit can not occur

   between connecting wire before you turn on the power;

2. This product use protocol standard is IEC62386, through accept DALI host machine send order. Can realize output signal voltage range and dimming curved to choose. Follow is order choose way.

A. Choose 0V-10V output, dimming curved choose linear dimming.

       Controller output voltage range is 0-10V, voltage successive from low to high or from high to

       low curved linear.

B. Choose 1V-10V output, dimming curved choose linear dimming.

       Controller output voltage range is 1-10V, voltage successive from low to high or from high to

low curved linear.

C. Choose 0V-10V output, dimming curved choose logarithmic dimming.

       Controller output voltage range is 0-10V, voltage successive from low to high or from high to

low curved logarithmic.

       D. Choose 1V-10V output, dimming curved choose logarithmic dimming.

       Controller output voltage range is 1-10V, voltage successive from low to high or from high to

low curved logarithmic.



3. Output signal voltage range and dimming curved setting

inquire order as follow:



Command number	Command code	Command name
224	YAAA  AAA1 1110 0000	Set output range 1-10V
225	YAAA  AAA1 1110 0001	Set output range 0-10V
229	YAAA  AAA1 1110 0101	Choose dimming curved
238	YAAA  AAA1 1110 1110	Inquire dimming curved
241	YAAA  AAA1 1111 0010	Inquire output state

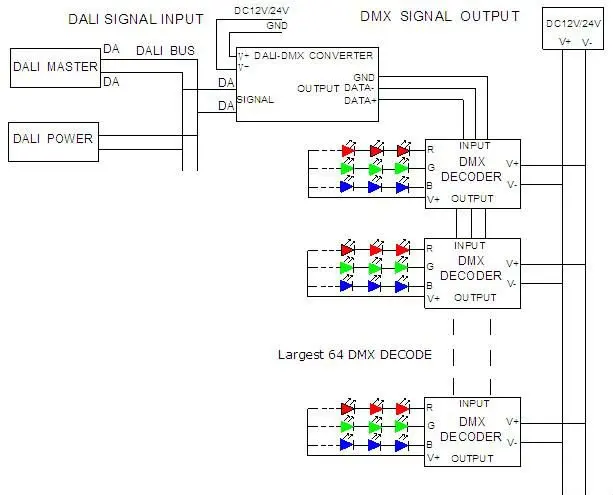

Typical Applications
