PLASTAR 1500mm Plastic Abc 3-Layer Film Blowing Machine
US $110000-$120000

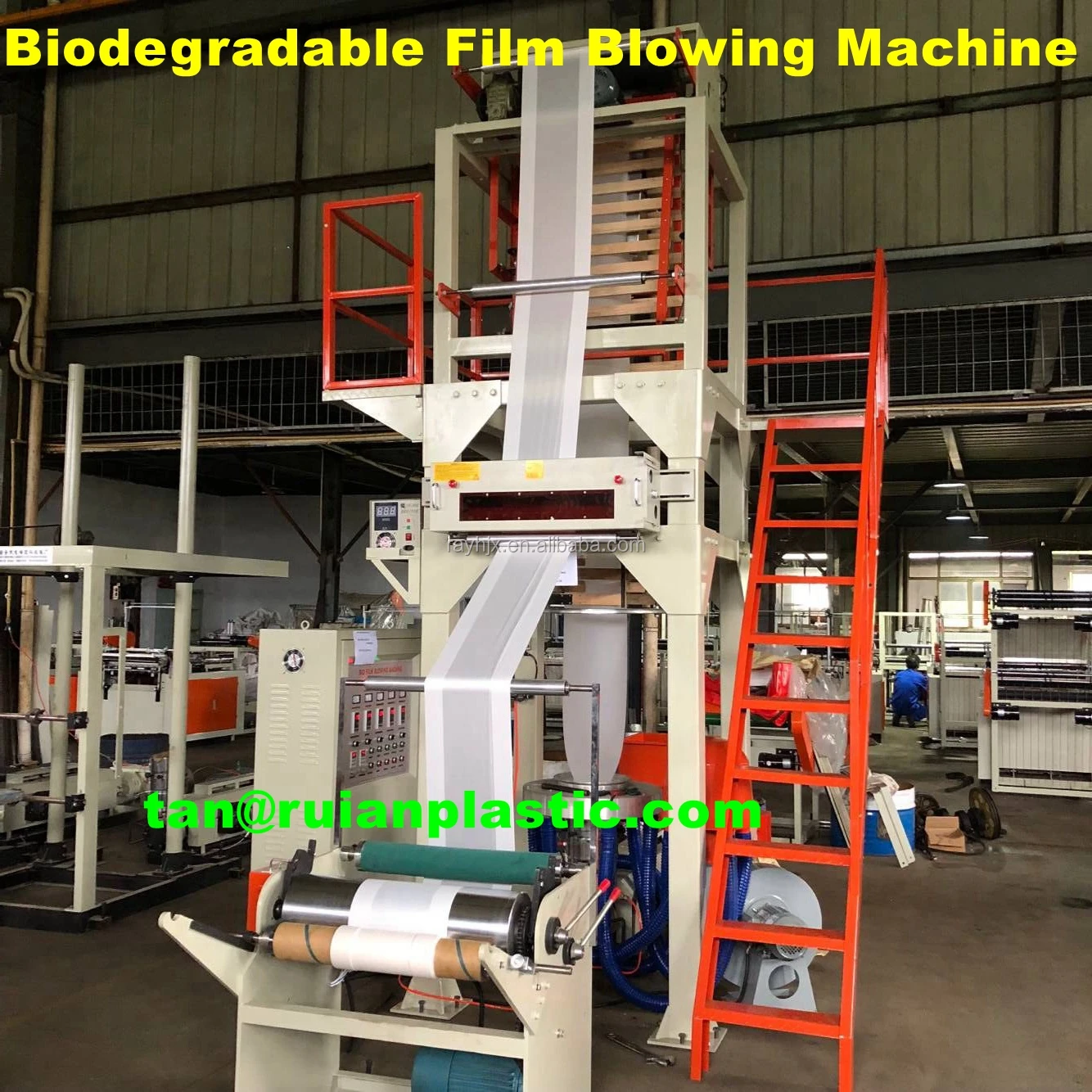

Biodegradable Film Blowing Machine
- Category: Blown Film Production Line >>>
- Supplier: Ruian Yuanhang Machinery Factory [Zhejiang China]Ruian
Share on (60002424277):
Product Overview
Description
Main Technical Parameters:
MODEL | SJ50-700 | SJ55-900 | SJ65-1100 | SJ70-1350 | |
Suitable Material | PE, PLA, Biodegradable Material | ||||
Film Width | 200-600mm | 250-800mm | 300-1000mm | 400-1200mm | |
Film Thickness |
| 0.009-0.05mm | 0.009-0.05mm | 0.01-0.05mm | |
Max. Extrusion Output | 35kg/hr | 50kg/hr | 75kg/hr | 90kg/hr | |
EXTRUDER
ScrewDiameter (mm) | Φ50 | Φ55 | Φ65 | Φ70 |
Screw L/D Ratio | 28:1/30:1 | |||
Screw Material | SACM-645/38 CRMOALA | |||
Cylinder Material | SACM-645/38 CRMOALA | |||
Cylinder Cooling | 250w×2 | 250w×2 | 250w×3 | 250w×3 |
Driving Motor | 11kw | 15kw | 18.5kw | 22kw |
Temperature Control | 3 | 3 | 4 | 5 |
Average Power-consume | 15kw | 22kw | 28kw | 34kw |
TYPE OF DIE
DieSize (mm) | Φ60/80 | Φ80/100 | Φ100/120 | Φ100/150 |
Temperature Control | 1/2 | |||

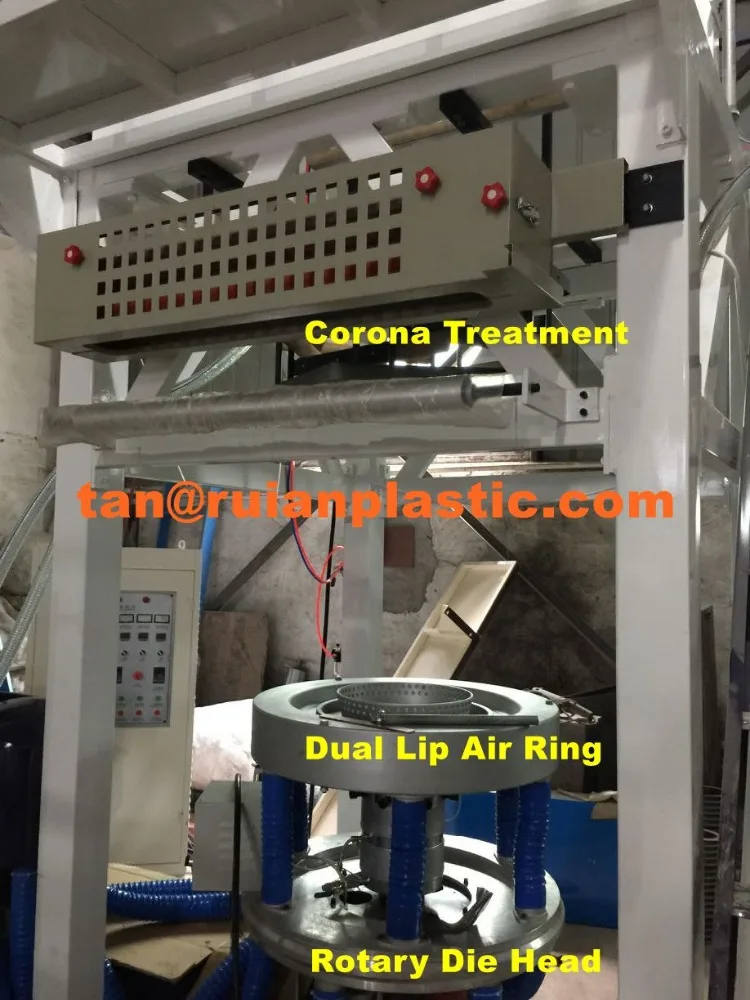

Air Ring | 1 | |||
Air Blower | 1.5kw | 2.2kw | 3kw | 3.7kw |
Center Steady Stick | 2 | |||
TAKE-UP UNIT
Pinch Roller Width | 700mm | 900mm | 1100mm | 1350mm |
Effective Width | 600mm | 800mm | 1000mm | 1200mm |
Height Adjustable Type | 700mm | |||
Take-up Speed | 10-100m/min | 10-100m/min | 10-100m/min | 10-80m/min |
Take-up Motor | 0.75kw | 0.75kw | 1.5kw | 2.2kw |
WINDING UNIT
Type | Surface Friction Type | |||
Winding Motor | 5/10N.m | 5/10N.m | 10/16N.m | 10/16N.m |
Winding Speed | 10-100m/min | 10-100m/min | 10-100m/min | 10-80m/min |
Cover Dimension | 5.0×2.1×4.5m | 5.0×2.3×4.8m | 5.5×3.3×5.5m | 5.8×3.6×6.0m |
Working Voltage | 3-PHASE -380V, 50HZ/220V,60HZ/440V,60HZ | |||
Our Service :
1. Purchase Service
We have a specialized and efficiency working team. If you are new on the Plastic Machinery area, Some samples of your products could be show to us will be appreciated ,we will give you specialized suggestion of whole work .
2. Shipping Service
We have a specialized and independent department which just for shipping the buyer's goods .The workers are knowing T/T, L/C Items very well. All Exported documents could be made perfectly.
We cooperated with the most famous shipping company in China also. They could provide the best and economic shipping ways to the buyer's port.
3.Installation and Training Services
Installation Services are available with all machines. We will dispatch technician to The Buyer's factory to installation and preoperation of machines .But the buyer need to supply the round trip tickets ,food ,hotel and other cost.
Training on our factory also be welcome.
4.After Sales Service
Our machines guarantee time is one year.
Many easy broken spare parts will be prepared in the tool box together with machines.
Any parts broken, Just a pictures or a videos.Then new free parts will reach within 3-7 Express working days .
If need know more about our machines/price/service:
Mobile/WhatsApp: +86 13396972488
Wechat: 65295224
