Corrosion protection Viscoelastic Tape definition: Viscoelasticis a new-type high-performance visco elastic polyolefin material. CYG Viscoelastic Tape is mainly designed for corrosion protection.
CYG flange corrosion protection Viscoelastic Tape enjoys the propertiers of both solid adhesive material and the liquid adhesive material.

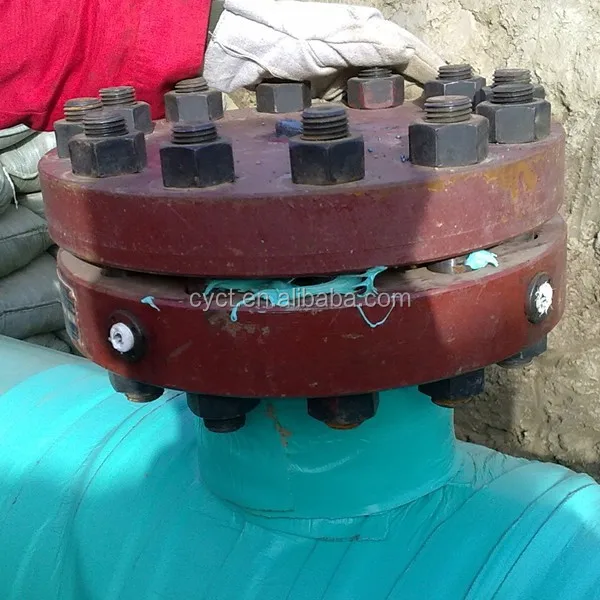

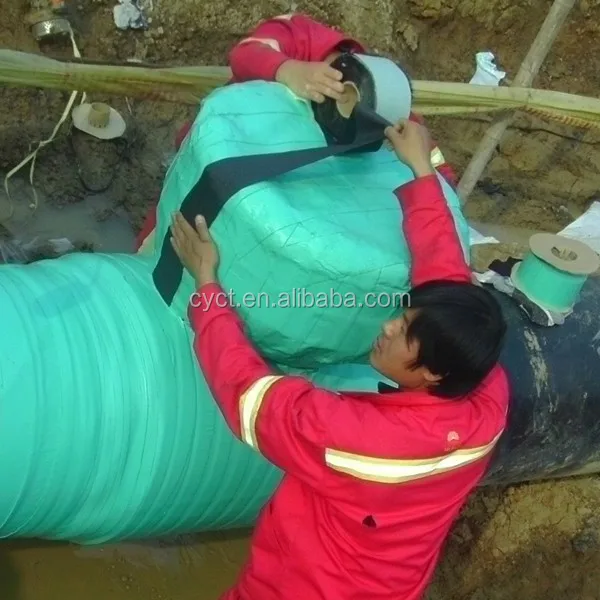

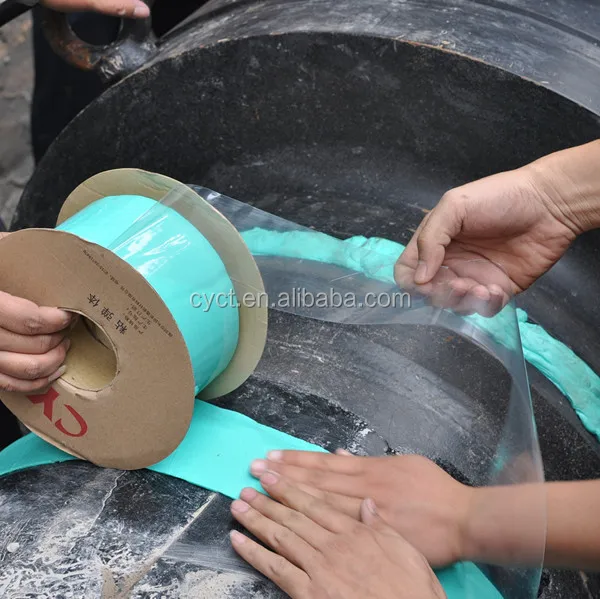

Application of viscoelastic :It is designed for pipeline joint coating, repair, anti-corrosive for elbow, winding pipe, tees, insulating flange ect.
Service Life ofviscoelastic : excellent viscoelastic , sound water-proof and easy-installation characters.
Viscoelastic tapefeatures:
Viscoelastic can be use in the surface of steel, PE, PP, FBE etc. directly.
Completely compatible to other coating (three-layer PE, CTE-coating, asphaltum)
Excellent chemical resistance and sealing, it is completely water-proof.
Viscoelastic tape enjoys the property of self-repair for light defects.
Widely applicable temperature (it can be installed between-30°C~60°C).
The Construction Quality can be handled. viscoelasticity seldom affected by the environment and the operator.
viscoelastic tape can be stored in long time and the material it adopts is eco-friendly.
Performance of viscoelastic tape
Item
Test method
Performance
color
Visual estimation
green
thickness
GB/T 6672
≥1.8mm
application temperature range
-45~70°C
peel strength to steel (23°C)
GB/T 2792
≥5N/cm
Coverage rate
Actual estimation
≥95%
peel strength to PE(23°C)
GB/T 2792
≥5N/cm
coverage rate
Actual estimation
≥95%
Peel strength to steel(-45°C)
GB/T 2792
≥5N/cm
Coverage rate
Actual estimation
≥95%
Shear strength to steel(23°C)
GB/T 7124
≥0.02MPa
Coverage rate
Actual estimation
≥95%
Shear strength to steel(-45°C)
GB/T 7124
≥1.0 MPa
Coverage rate
Actual estimation
≥95%
Include outside tapes indentation test
SY/T0315-G
≥15J
Include outside tapes indentation test
EN12068-G
10MPa, 15KV
Cathodic disbanding resistant(1.5V, 65°C,30d)
SY/T0315-C
<5mm
Drop down (85°C)
Visual estimation
No dripping
Volume resistivity
GB/T 1410
≥ 1*1012
Water absorption
SY/T0414-B
≤0.03%Ω*m
Hot-water soak(70°C,120d)
GB/T1733
No change
Heat aging(90°C,100d)
Actual measurement
Coverage rate ≥95%
Chemical resistant(90d,10% HCI)
SY/T0315
No change
Chemical resistant( 90d, 10% NaOH)
SY/T0315
No change
Chemical resistant(90d, 3% NaCI)
SY/T0315
No change
Company Information

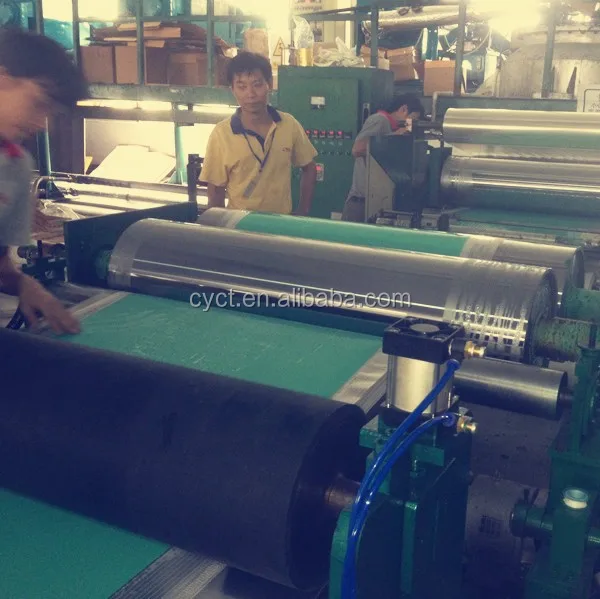

CYG Changtong is a state-level high-tech enterprise integrating R&D, production and sales of heat shrink Insulation material, pipeline corrosion protection materials as well as buried pipeline detection service and pipeline coating field application service into one.
FAQ
CYG viscoelastic Projects:
CYG Viscoelastic tape Quality Guarantee:
CYG should submit at least 20 years performance guarantee of the product being offered.
Besides, we can produce according to your special requirements, pls. feel free to contact us for free sample of viscoelastic tape.
