Automatic spray machine for Multicolor spray paint
US $29500-$30000
Распылительный насос для нанесения цементного раствора
- Category: Mortar Spray Machines >>>
- Supplier: Wenzhou Engineering Machinery Co. Ltd.
Share on (60015123550):
Product Overview
Description

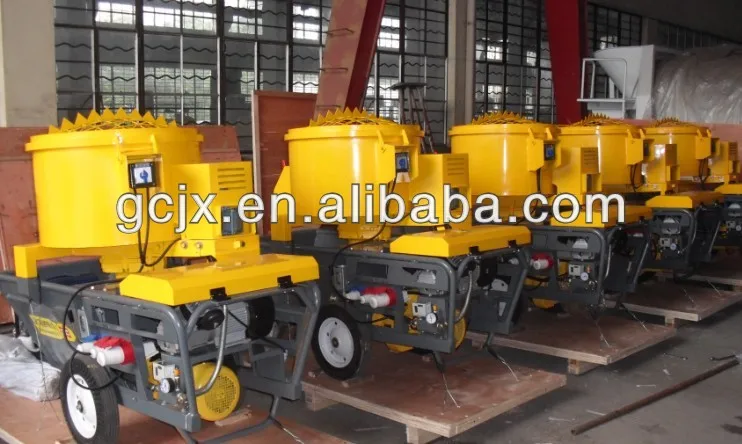

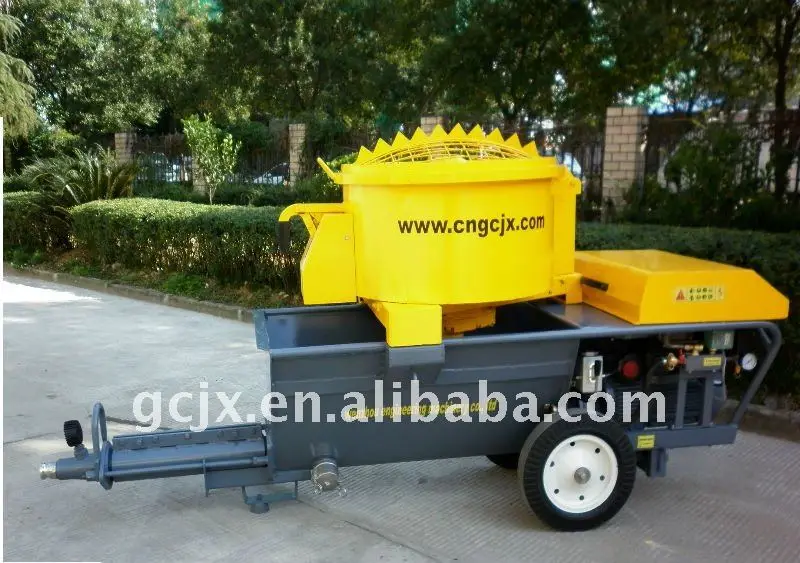

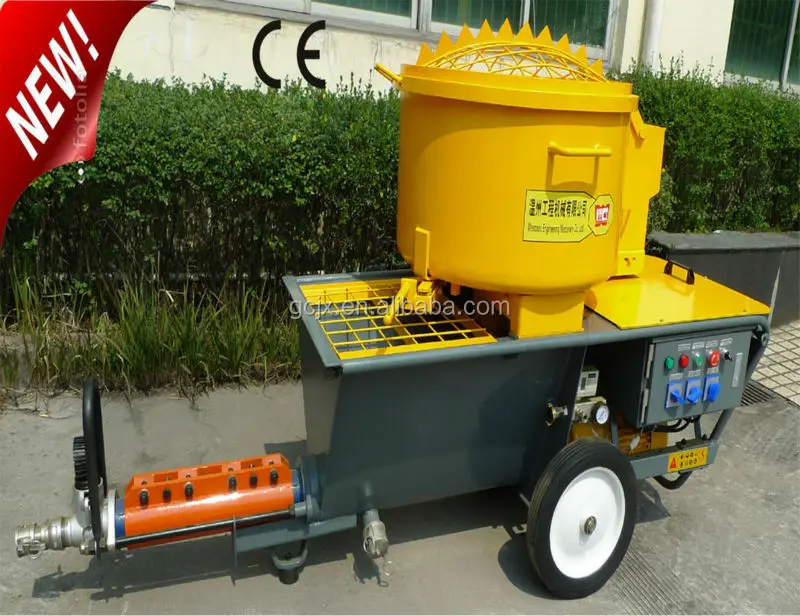

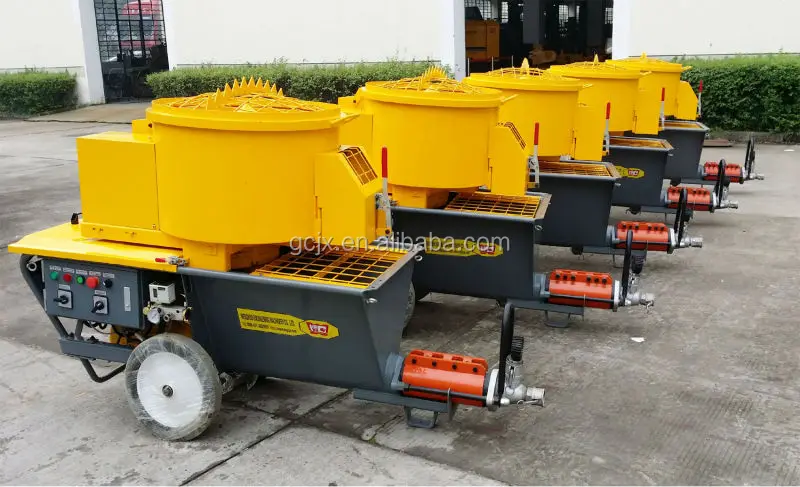

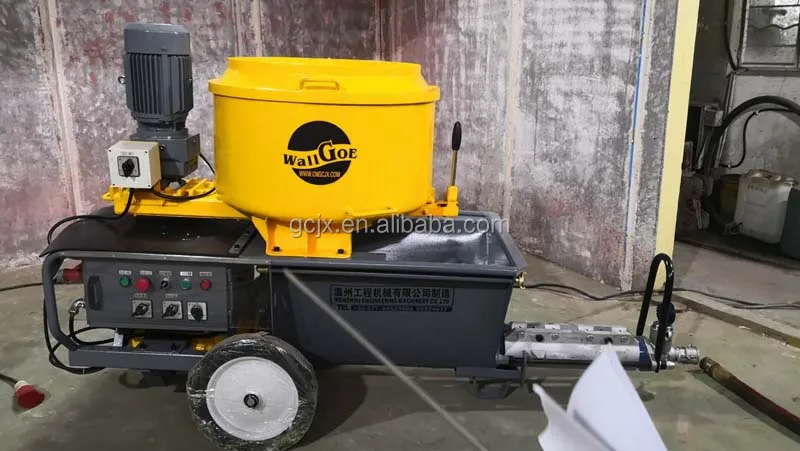

JP60-L Plaster sprayer pump
1. JP60-L,JP60-P is high cost-effective machine introduced German technology.
2. It’s applicable to delivery, bonding and plastering for various kinds of plastering mortar, thermal insulation mortar, floor surface mortar, thick layer of mortar, bonding mortar, masonry mortar, reinforced mortar, filling mortar, perfusion mortar, fiber mortar, self-leveling mortar.
3. It equips mixer system and has the combined functions of mixing, pumping, bonding and plastering. It configures large output mortar pump.
4.It provides with variable regulation for speed, pressure and output. It set the pressure control and protection mechanism to achieves the remote control.
Technical parameters of JP60-L Mortar plastering machine
Model | — | JP60-L | JP60-P |
Supply power | — | 400V 50Hz | 400V 50Hz |
Motor power | kw | 4.0/7.5 | 4.0/7.5 |
Maximum grain size | mm | 6 | 6 |
Output | l/min | 40 | 40 |
Delivery pressure | bar | 30 | 30 |
Horizontal delivery distance | m | 60 | 60 |
Vertical delivery distance | m | 40 | 40 |
Mixer power | kw | 1.1 | — |
Mixer volume | l | 120 | — |
Hopper volume | L | 100 | 100 |
Net weight | kg | 400 | 280 |
Dimension (L×W×H) | mm | 2290×680×1220 | 2290×680×660 |

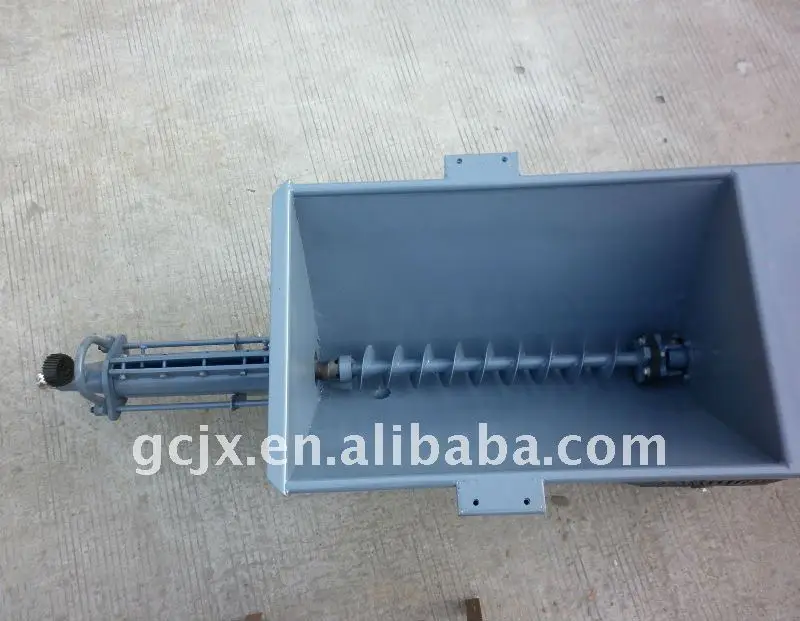

1. JP60-L can pump mortar and perlite to max height to 30m. JP60-L with longer screw conveyor shaft can pump it well, JP60-L doesn't damage perlite at all. The long screw shaft can enure the wet material pump out well.

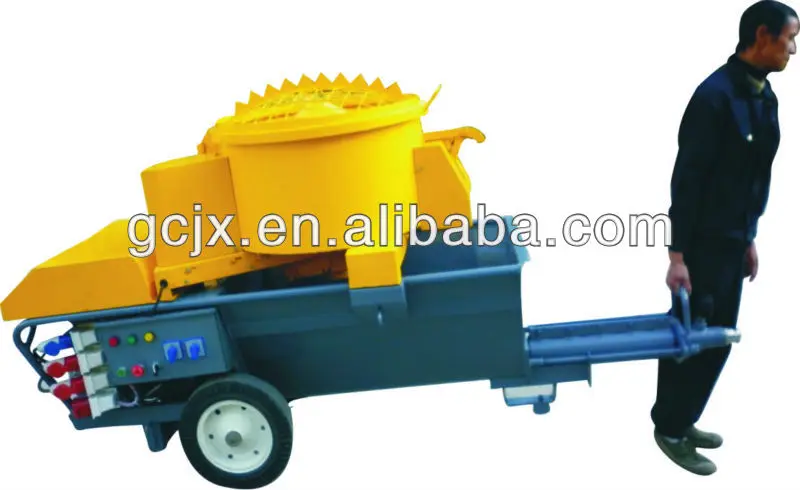

2. JP60-L can be easier to move, here fits some safty hooks for lifting.

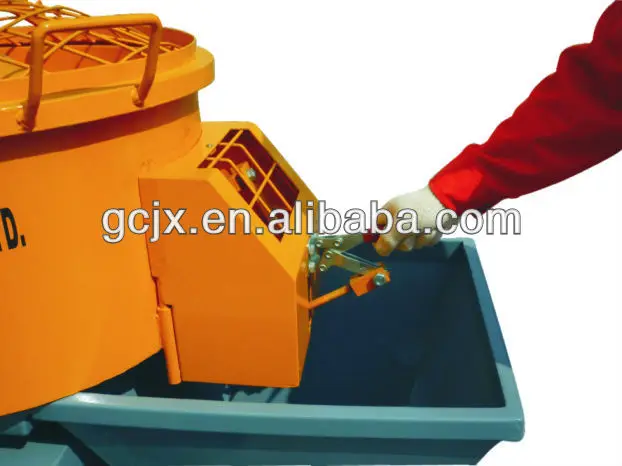

3. JP60-L has auto falling material device. You can pull it slightly, the wet material can fall into feeding hopper quickly.
4. JP60-L is included the Upper mortar mixer and below plastering machine, it can do pump, grout and plaster as it's included air compressor already!
company information
Wenzhou Engineering Machinery Co., Ltd. is a member of China Construction Machinery Association, China Bulk Cement Association of Popularization & Development, is the first batch of key enterprises in Zhejiang Province. It is leader of China's mortar spraying technology, and recognized as one of the scale of strong enterprises for the manufacture of mortar spraying machine.
Wenzhou Engineering Machinery Co., Ltd. has been committed to the manufacture of concrete machinery for such a long time, based on the domestic leading technology, relying on international cooperation R & D advantages, together with Germany NORD, CELLMANN and other famous companies to import advanced management concepts and management models, improved product quality management system. Following the ISO9001 quality management system, and with full implementation and effective operation of it, we are able to ensure product’s quality and stability.
Our products are renowned because of high quality and a famous brand at home and abroad. In the 1970s, our company introduced the German plunger type, squeeze type, Screw concrete transportation, Mortar spraying technology into China. And nowadays the continuation of the current concrete pump, mortar spraying machine products from the Chinese market has expanded to Europe, South America, North America, Australia, the Middle East, Southeast Asia, Africa and other regions and countries. Our products with high quality and reliable performance services are popular with the trust of users around the world. Now we have been formed the ability that our annual output of various types of mortar spraying machine reaches 12000 sets.

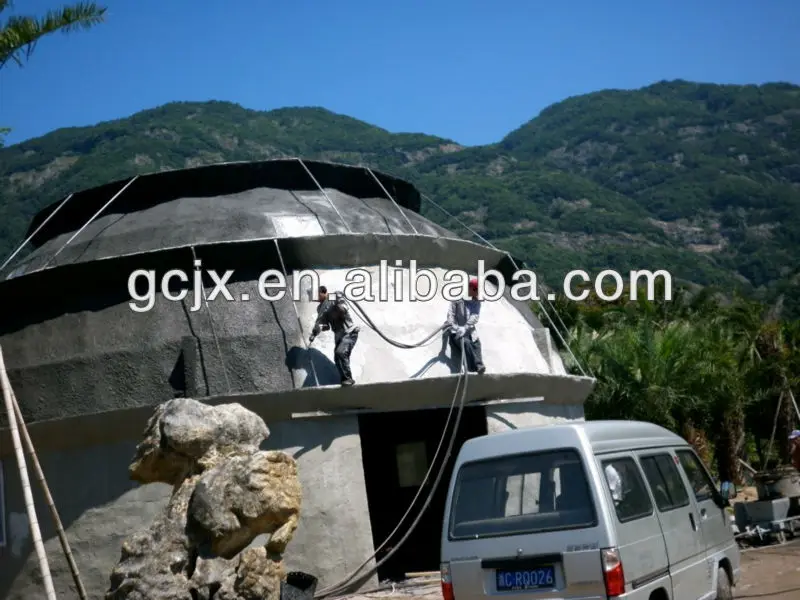

Construction Case
Packaging & Shipping
***Wooden case packing
Full container shipment---wooden pallent package
LCL shipment----wooden carton package
FAQ
1. Q: Which pump model or plastering machine should we choose?
A: To recommend the most suitable model, please tell us:
- Material: composition, max aggregate size
-use for plastering or grouting?
- Capacity (-m3/h) :
- Delivery distance (horizontally / vertically):
- Grouting pressure:
- Driven type: electric motor, diesel engine, pneumatic motor
2. Q: What is the vulnerable part? How many spares should we prepare?
A:Screw type plastering machine
Rotor and stator would be worn out after 1-4 weeks depends on material and operation period.suggest purchase 4--6 sets.
Concrete pump:
After long-time running, the rubber piston and cylinder sleeve may get worn. We will offer some spares for free.
Referring to the service life of each part, we will put a rough estimate of requested spares according to your project scale.
3. Q: Can we have customized model?
A: Yes. Customized production and OEM production are available according to your actual requirements.
4. Q: Do i need technical skills to operate this machine?
A: Yes. Please read the Operation Instruction for some basic technical skills before operating this machine, and contact us if any operation procedure is unclear.
5. Q: What should we do if there are some problems with the machine?
A: The Operate Instruction will help with routine maintenance and common problems.
Also, you can contact us for technical instruction by email, instant messenger or live video etc.
6. Q: What is the lead time?
A: 1 week if voltage is 3 phase 380v 50hz. 20-40 days if other voltage.
7. Q: How about the package?
A: The machine will be wrapped by plastic film and packed by fumigation-free wooden case along with spare parts.
8. Q: How to place an order?
A: Both online order and offline order are acceptable.
It is suggested to place online order with a Trade Assurance to get full protection for first order.
9. Q :How to pay for this order?
A: Generally, TT, 30% deposit 70% before shipment;
L/C at sight (high bank charge, not suggest, but acceptable);
100% TT in advance (especially for small amount and spare parts etc.)
