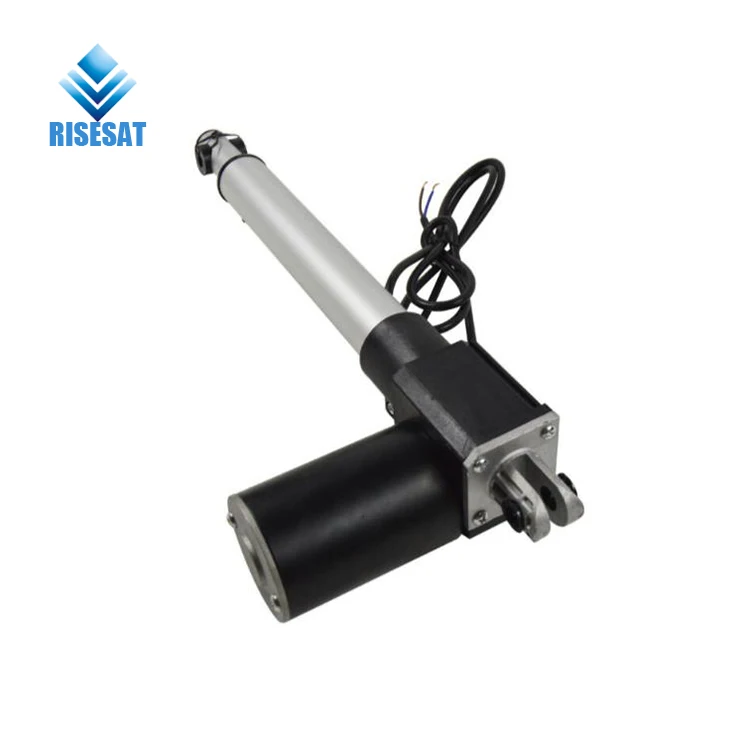

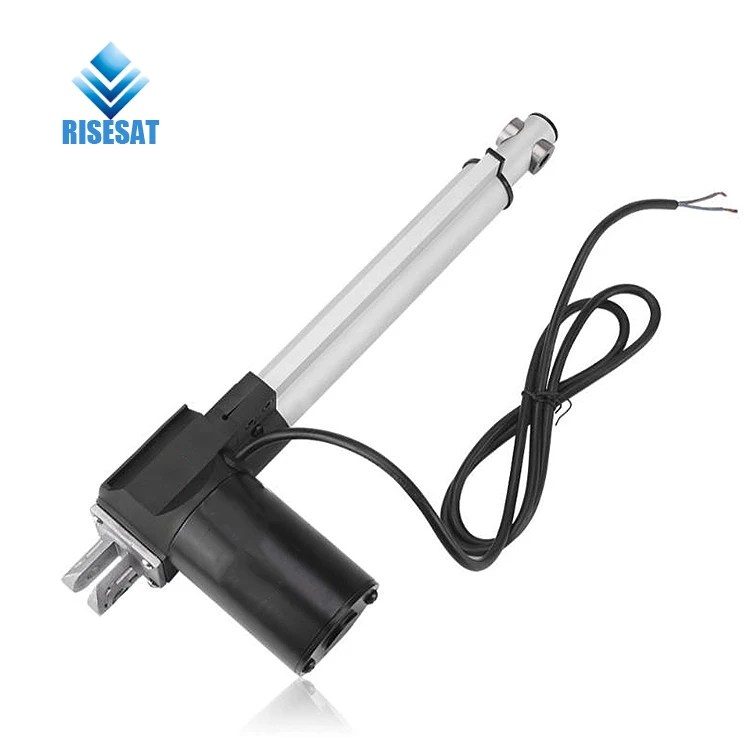

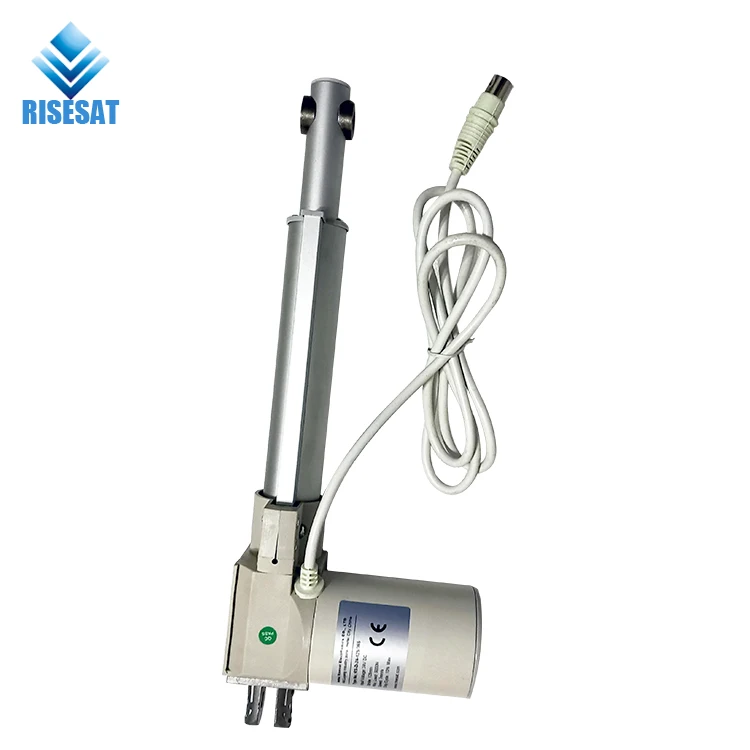

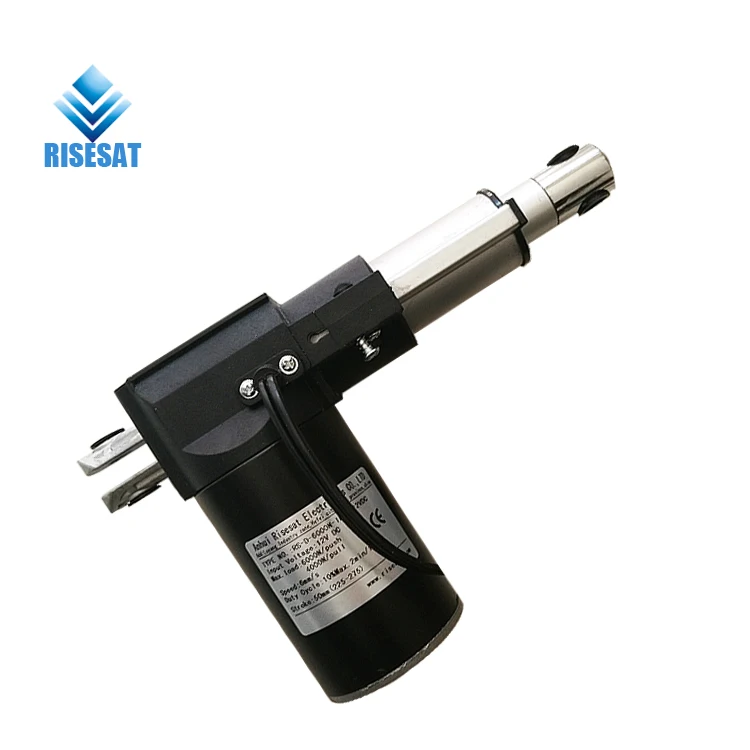

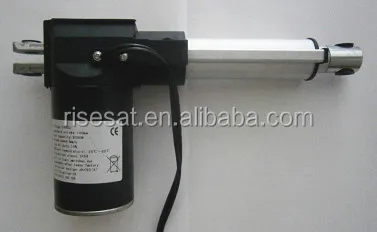

24V DC 300mm stroke 6000N linear actuator RS D with wired control
24V DC 300mm stroke 6000N linear actuator RS-D with wired control
24V DC 300mm stroke 6000N linear actuator RS-D with wired control
24V DC 300mm stroke 6000N linear actuator RS-D with wired control
24V DC 300mm stroke 6000N linear actuator RS-D with wired control
24V DC 300mm stroke 6000N linear actuator RS-D with wired control

24V DC 300mm stroke 6000N linear actuator RS D with wired control

Share on (60022483772):


Price:$33.90 - $38.00

Quantity:


Product Overview

Description



Products Description


We are factory. We can OEM and ODM.

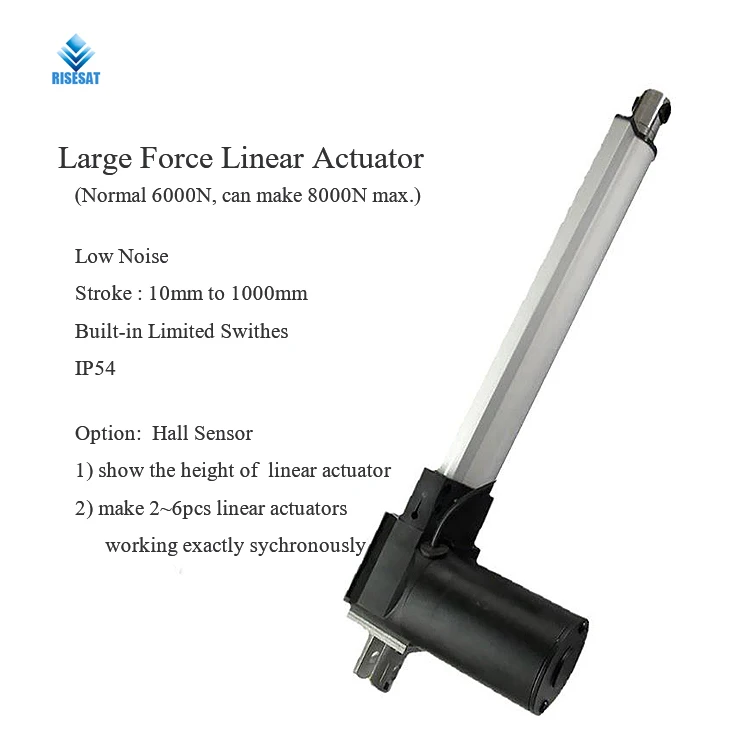

Features:
12V/12V/36V DC permanent magnet motor (Option)
Load Capacity: 6000N
Speed: 6mm/s(6000N)
30mm/s(No load)
Stroke length: 50mm to 600mm (Option)
Min. Install dimension: Stroke+175mm(Option)
Duty cycle: 10%
Color: Black or Gray
Certification: CE
Ambient temperature: -26℃ to +65℃
Built-in end stop signal switches (not adjustable)


Product Paramenters




Model
RS-D
Power
50W
Brand
RISESAT
Color
White/Black
IP Grade
IP54
Limit switch
Built-In
Duty cycle
20%

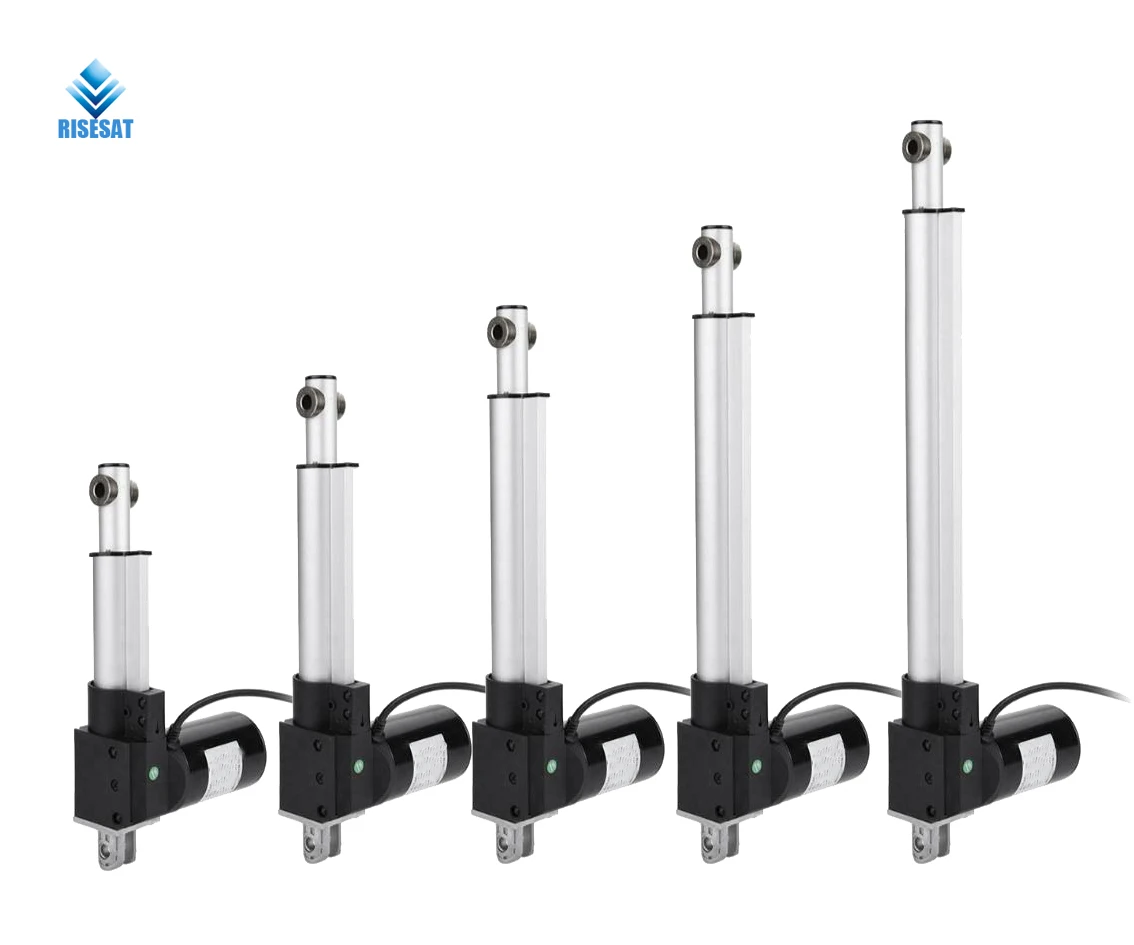

Stroke
Customized Stroke Available
(10~1000mm)
Noise level
<=50dB

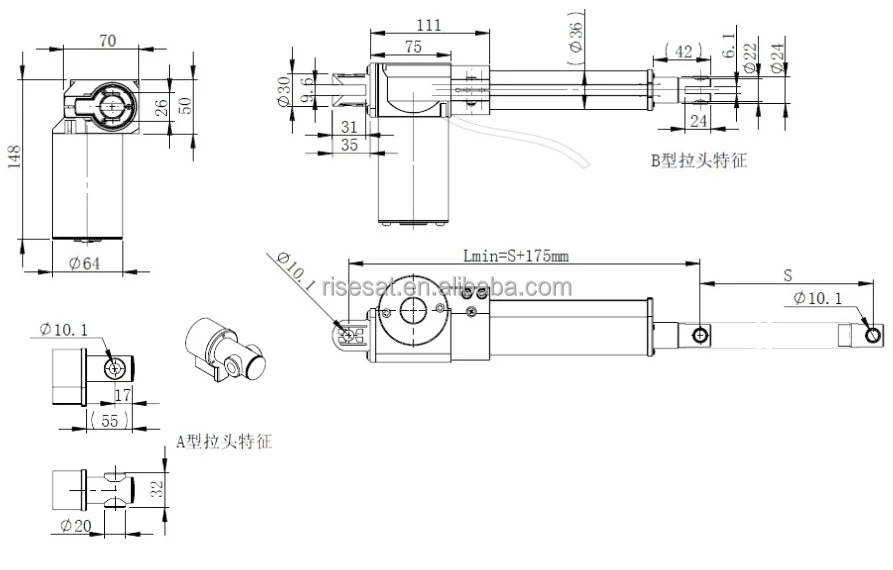

Minimum installation distance
Stroke+175mm
Feedback signal options
Hall sensor
Operation temperature
-30℃~+65℃




Type
Max. Force(N)
Max. Speed(mm/s)
Stroke
(mm)
Voltage
(V DC)
Protection
Weight
(kg)
push
pull
no Load
full load
RS-D01
500
400
42
35
10-1000
12/24
IP54
2.5
RS-D02
1000
600
32
25
10-1000
12/24
IP54
2.5
RS-D03
2000
1500
20
13
10-1000
12/24
IP54
2.5
RS-D04
3000
2500
10
8
10-1000
12/24
IP54
2.5
RS-D05
4000
3000
8
6
10-1000
12/24
IP54
2.5
RS-D06
6000
4000
6
4
10-1000
12/24
IP54
2.5

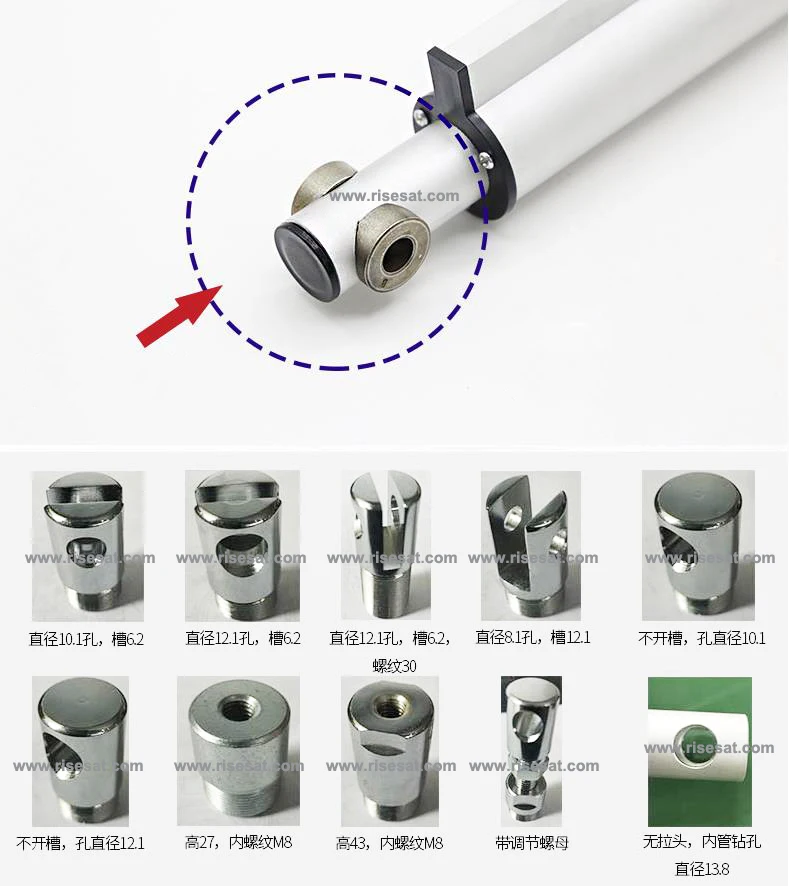

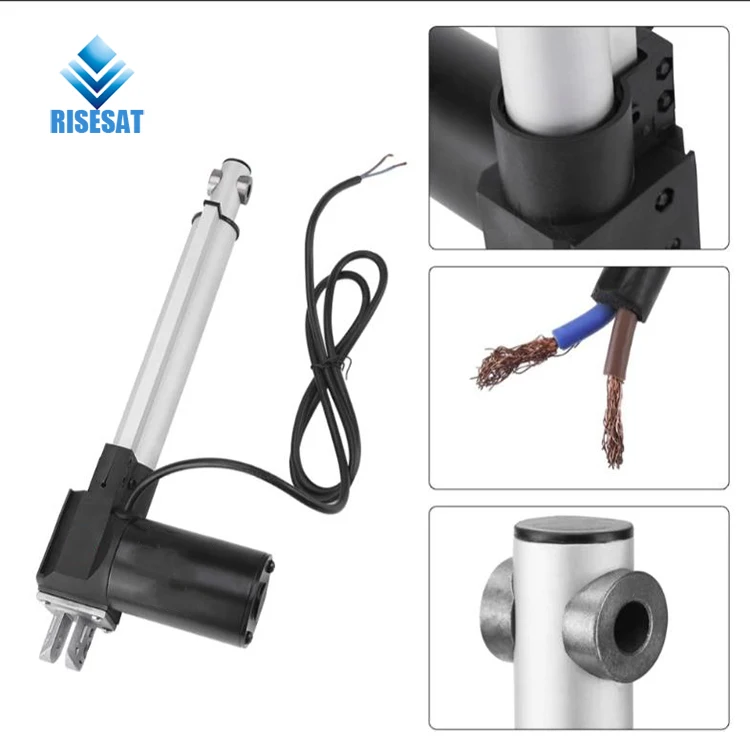

Details Images

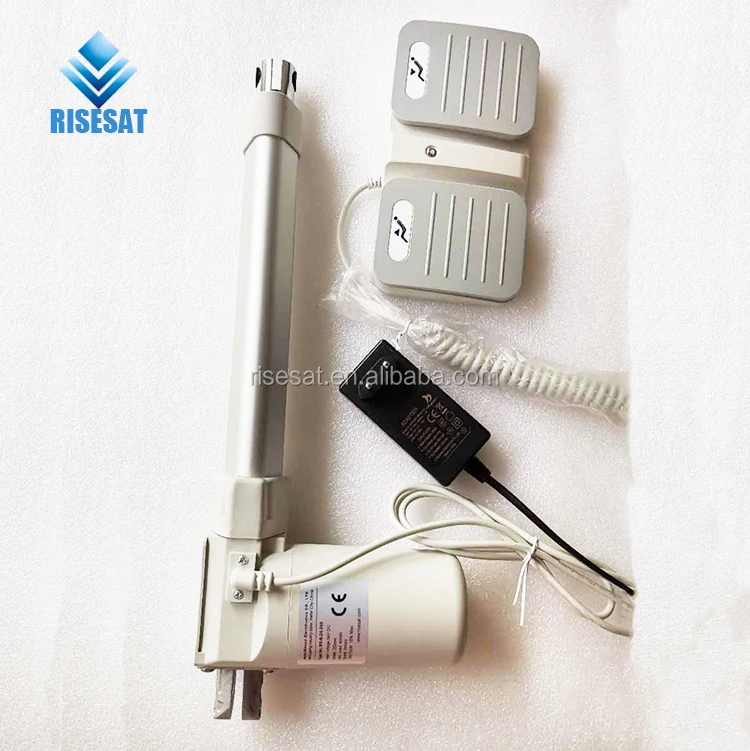

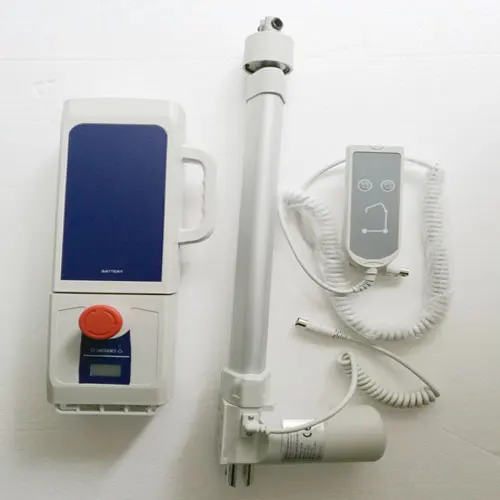

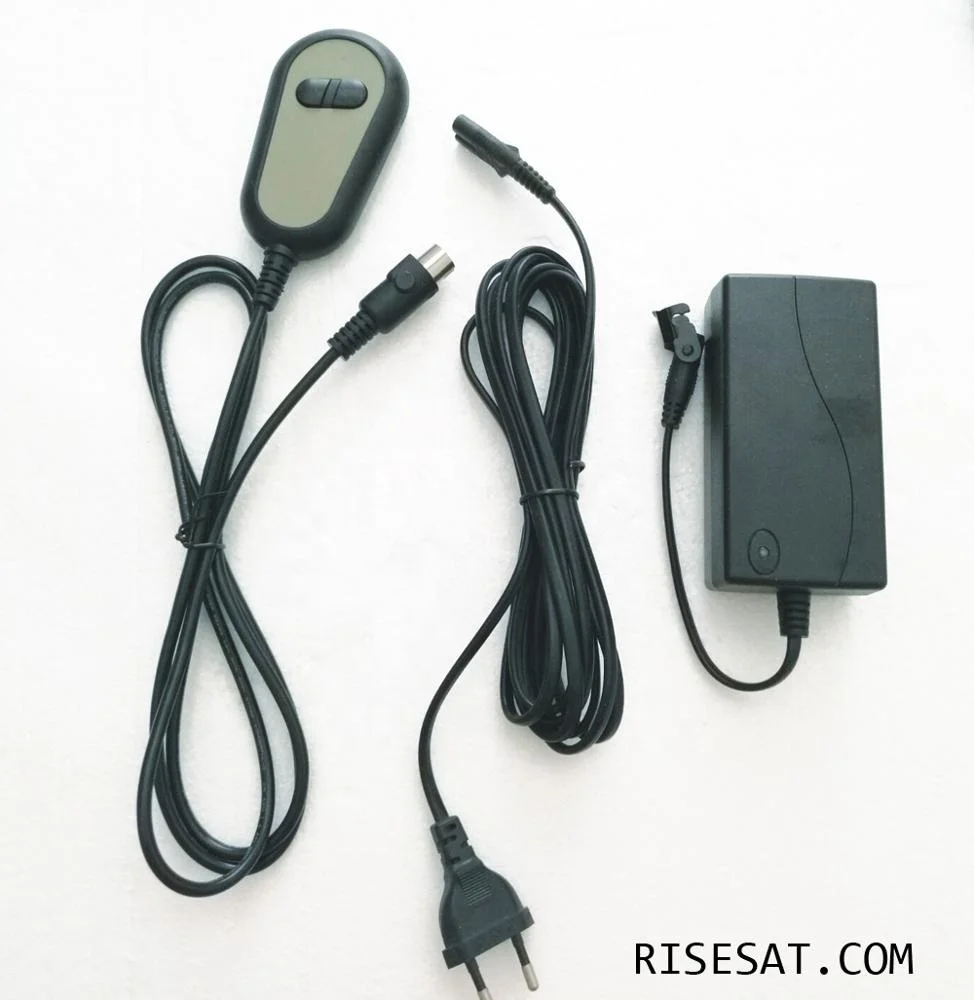

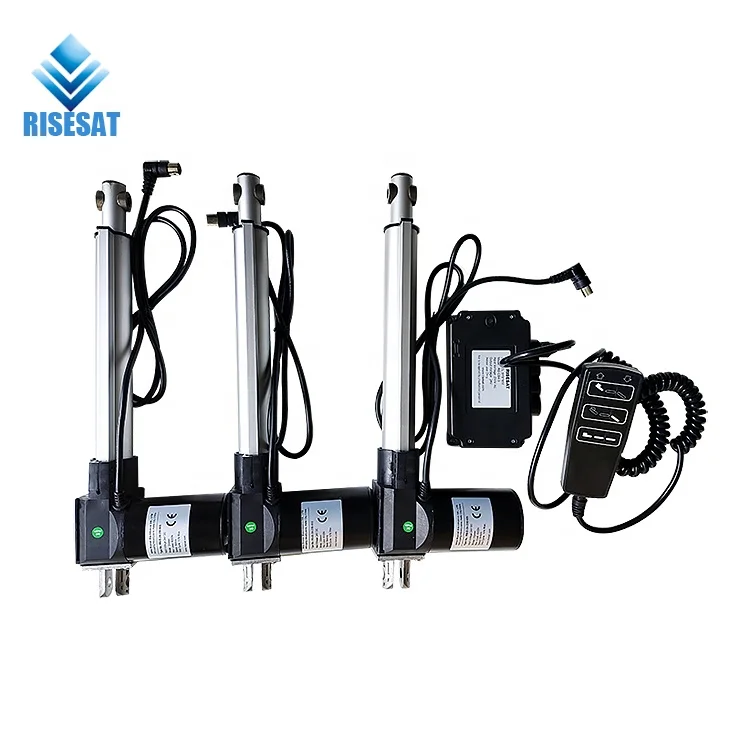

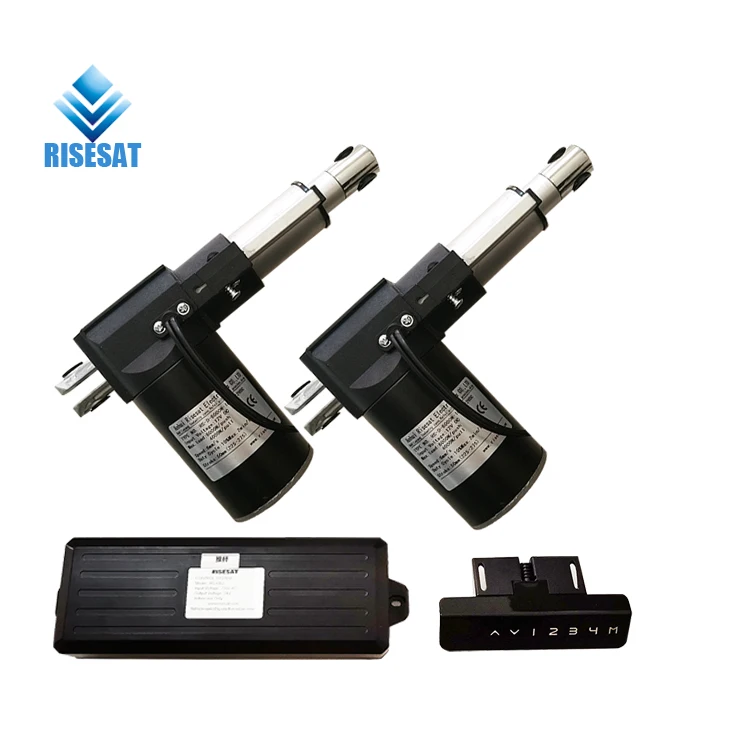

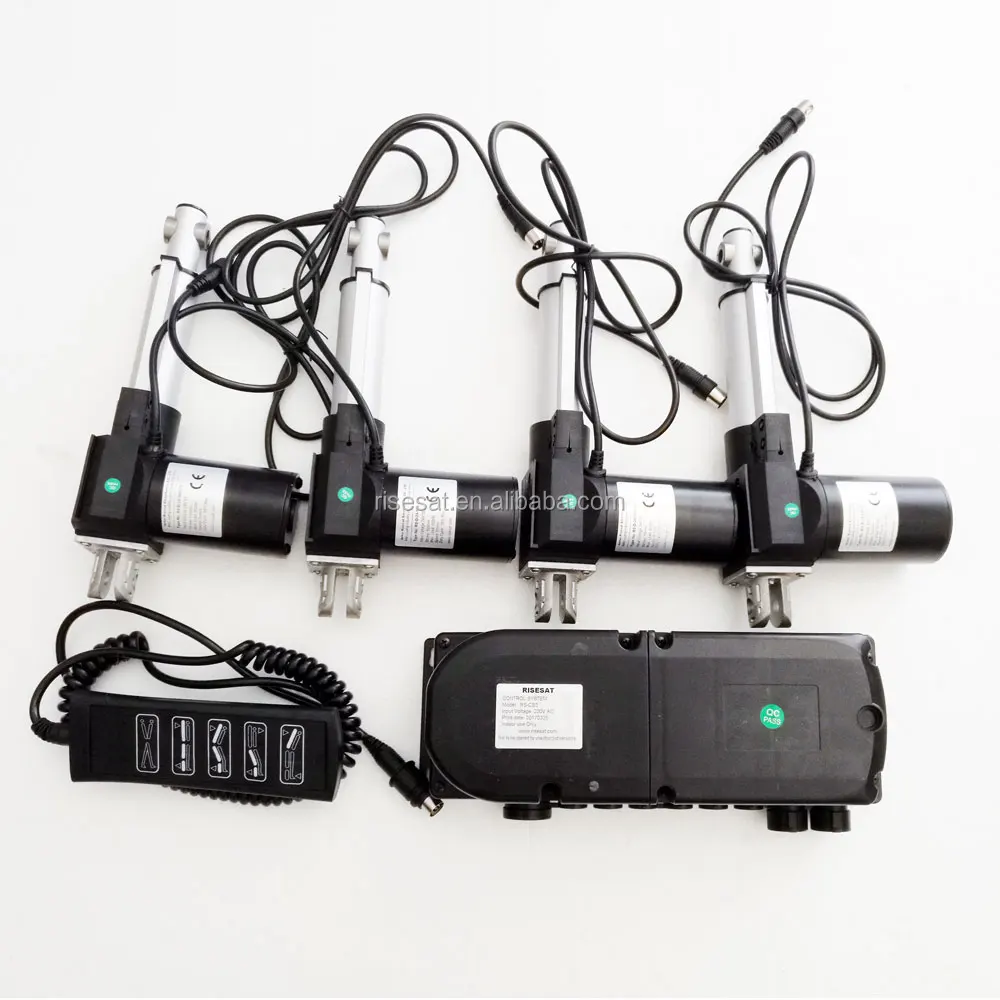

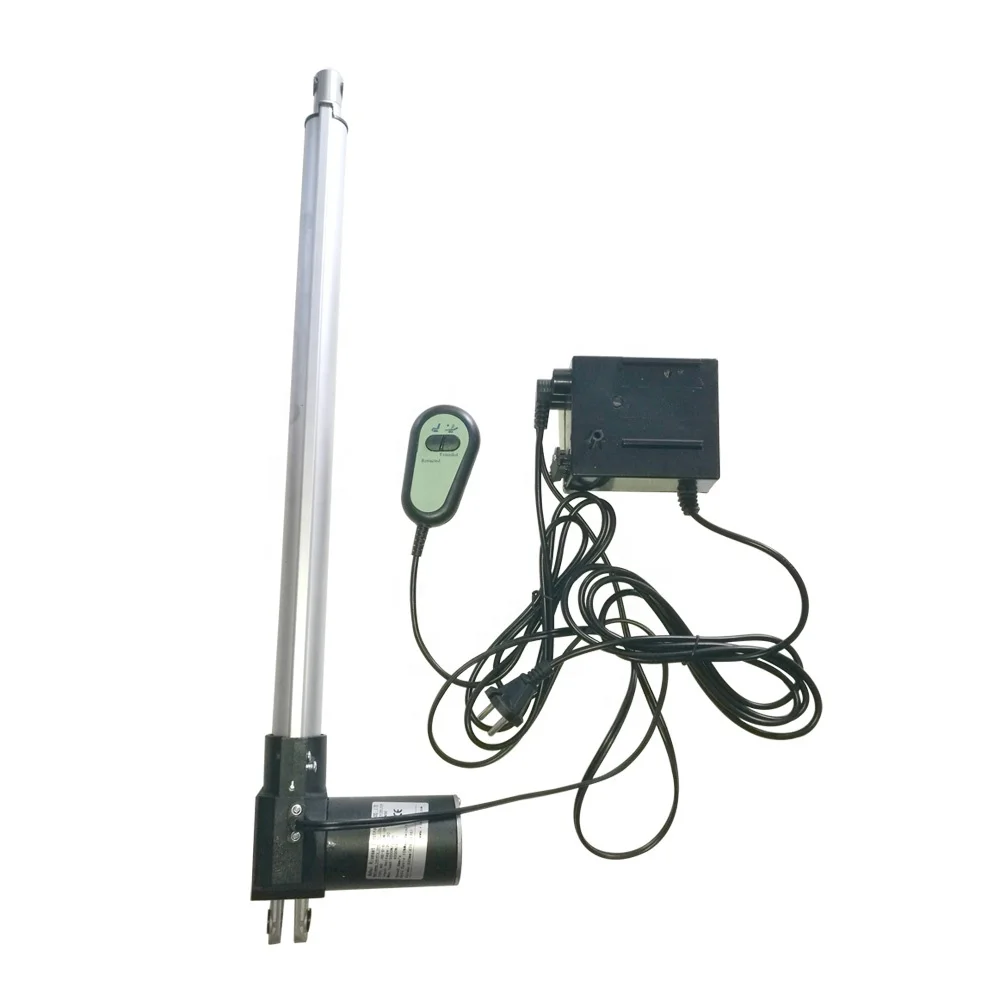

Controller:
There are different controllers for you to choose.

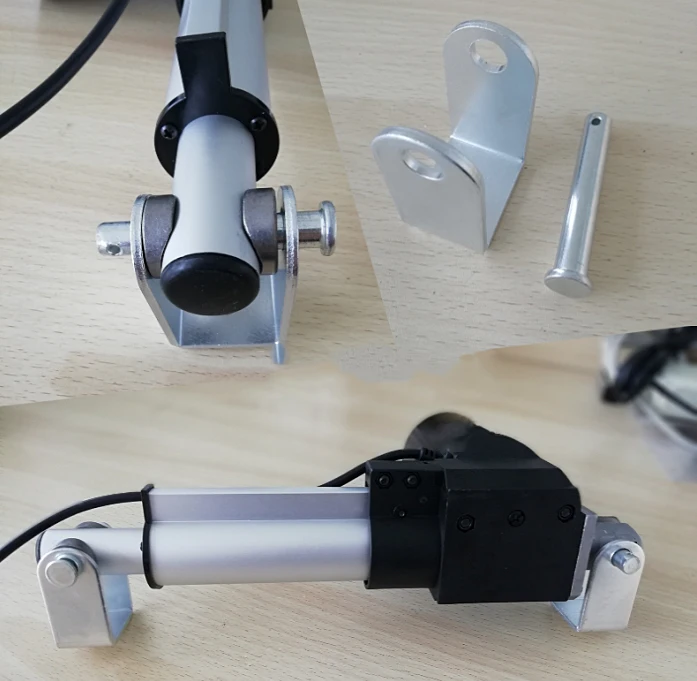

we can supply the brackets if you need.






Certifications




Company Profile




Order Process




By Sea
Delivery from Shanghai or Ningbo seaport
By Air
Departure from Shanghai Pudong Airport
By Express
By FEDEX, UPS, TNT, DHL, EMS , etc.



Payment Term


T/T
EXW

30% T/T in advance, paid the balance before shipment
FOB
CNF
CIF
L/C
L/C amount above 50,000 usd, we can accept L/C at sight
West Union
Amount lower than 5000usd
Delivery Time
1)5~7days for sample
2)10~15days after receiving payment for bulk order
